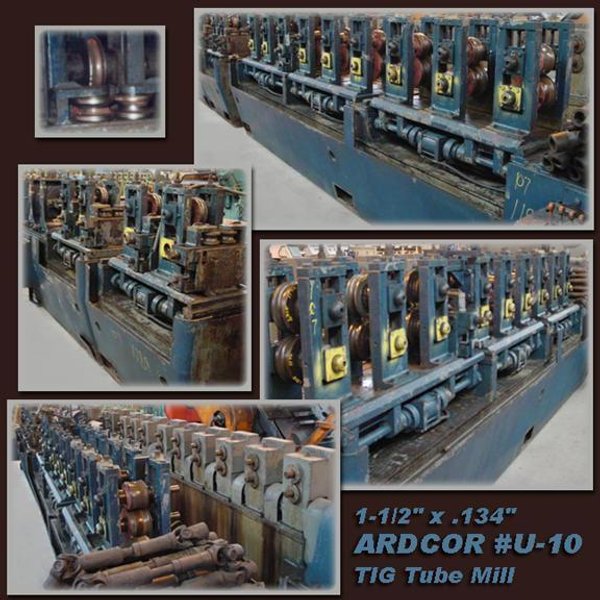

1-1/2" X .134" ARDCOR #U-10 TIG TUBE MILL: STOCK #14013
Brand
Category
Type
Model
01.5
Stock #
14013
Year
Not specified
Condition
Not specified
Location
Not specified
|
MODEL ............................ U-10 MAXIMUM TUBE DIAMETER ............ 1-1/2" MINIMUM TUBE DIAMETER ............ 3/4" MAXIMUM WALL THICKNESS ........... .134" MINIMUM WALL THICKNESS ........... .034" VERTICAL ADJUSTMENT .............. 4" - 8-5/8" HORIZONTAL CENTERS ............... 16" ROLL SPACE ....................... 6" SPINDLE DIAMETER ................. 2" CENTER OF LOWER SPINDLE TO BASE .. 7-1/2" WORM GEAR RATIO .................. 14.5:1 FORMING MILL ..................... (6) DRIVEN BREAK DOWN STANDS (3) DRIVEN FINE STANDS + CHAR(13) + CHAR(10) + + CHAR(13) + CHAR(10) + WELDING .......................... (2) ROLL WELD PRESSURE SEAM IRONING PASS SIZING MILL ...................... (4) DRIVEN SIZING STANDS (4) IDLE SIDE ROLLS (2) 2-ROLL STRAIGHTENING UNITS 25 HP DC 500 VOLT MOTOR TOOLING .......................... 1.315" ON MILL |
