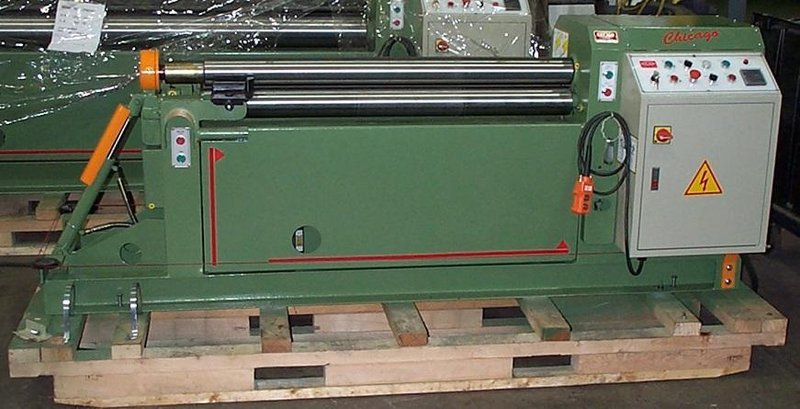

3.1" Dia x 5 ft, Chicago Model IPR5060 Plate Bending Rolls

Brand
Model
IPR5060
Stock #
2880
Year
Not specified
Condition
New

Location

Illinois
  New Chicago Initial Pinch Hydraulic Plate Roll
  Model LH IPR 5060

  Capacity........................... 5 ft. x 16 Ga. Mild Steel
  Roll Diameter...................... 3.10 in.
  Weight............................. 2,100 lbs
  Motors:
        Drive Motor.................. 2 HP
        Hydraulic Motor.............. 1/2 HP
  3-Phase
  Standard Equipment:

  Hydraulically powered rear bending roll adjustment
  LED Readout for rear bending roll position
  Hydraulic drop end
  Powered lower roll adjustment, with rapid gap adjustment
  Dual rotation controls - console-mounted and remote hand control
  Cone bending attachment
  Rolls heat-treated to 45 Rc
  Roller Bearings on all roll shafts
  Powered tilting of the rear bending roll for cone bending
