7" Diameter x 6 ft., New Chicago Power Roll, Model IPR 6250 - 1/4" Capacity
Brand
Category
Model
IPR 6250
Stock #
5007
Year
Not specified
Condition
New
Location
Not specified
|

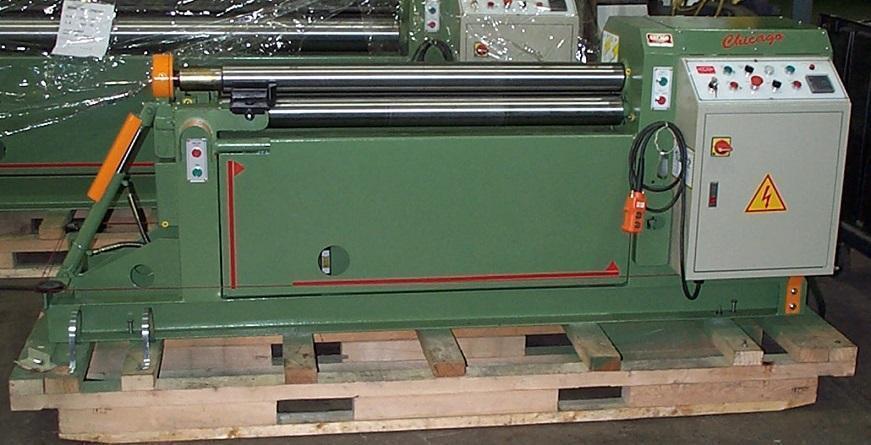

New Chicago Initial Pinch Hydraulic Plate Roll
Model IPR 6250
Capacity................................ 72 in. x 1/4 Mild Steel
Roll Diameter...................... 7 in.
Weight................................... 6,200 lbs.
Motors:
Drive Motor.................. 5 HP
Hydraulic Pump Motor.............. 2 HP
Standard Equipment: Hydraulic operation of rear bending roll
Hydraulic operation of lower pinch roll with quick gap set feature
Electric motor/transmission powers gear driven pinch rolls
LED readout of bending roll position
Hydraulic operation for tilt of rear bending roll
Hydraulic powered drop end
Forged steel hardened rolls
Roller bearings on all roll shafts
Reinforced heavy duty frame
Pendant Forward/Reverse control
Safety cut off cable around work area
Cone forming attachment
Keylock on/off control switch
FOB: Illinois |
