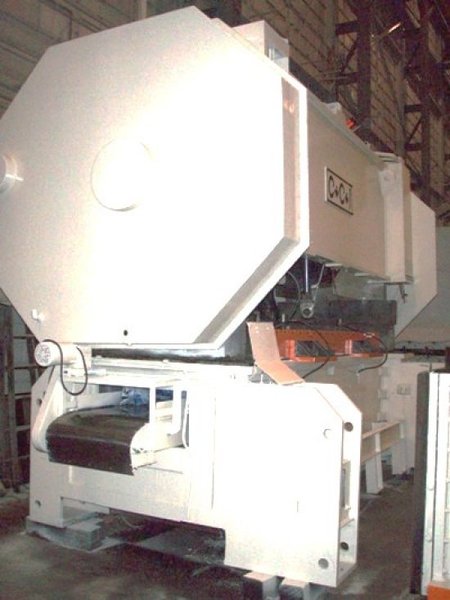

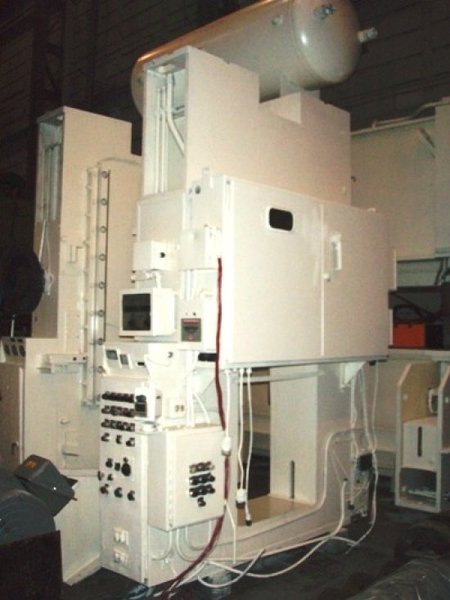

400 Ton, CCI S2-400-120x48, 14" STR, 36" SH, 120"X48"BA, 15-30SPM, WIN, 1986
Brand
Category
Model
Stock #
3183
Year
Not specified
Condition
Good
Location
Not specified
|
PRELIMINARY SPECIFICATIONS
Model: #S2-400-120x48
New: 1986
Capacity: 400 Ton
Stroke 14"
Shut Height: 36" (To The Bolster)
Slide Adjustment: 10"
Bed Area: 120"LR x 48"FB
Slide Area: 120"LR x 48"FB
Speed: 15 - 30 SPM (variable)
Windows: 30.5" Wide x 38" High
Floor Standing Design
EQUIPPED WITH
Air Clutch & Brake on Backshaft
Air Counterbalances
8.5" T-Slotted Bolster Plate
T-Slotted Slide With Die Clamping
QDC System, Rollers in Bolster
(3) Cutouts in Bolster 14"LR x 20"FB (each)
Magnetic Chip Conveyor in Bed
8 Point Gibbing
Twin End Drive
Hydraulic Tie Rod Nuts
Hydraulic Overloads
Electrics & Controls
60 HP Dynamatic Variable Motor, 230/460, 50-1710 RPM
APPROX O.A. HEIGHT: 23'
|
