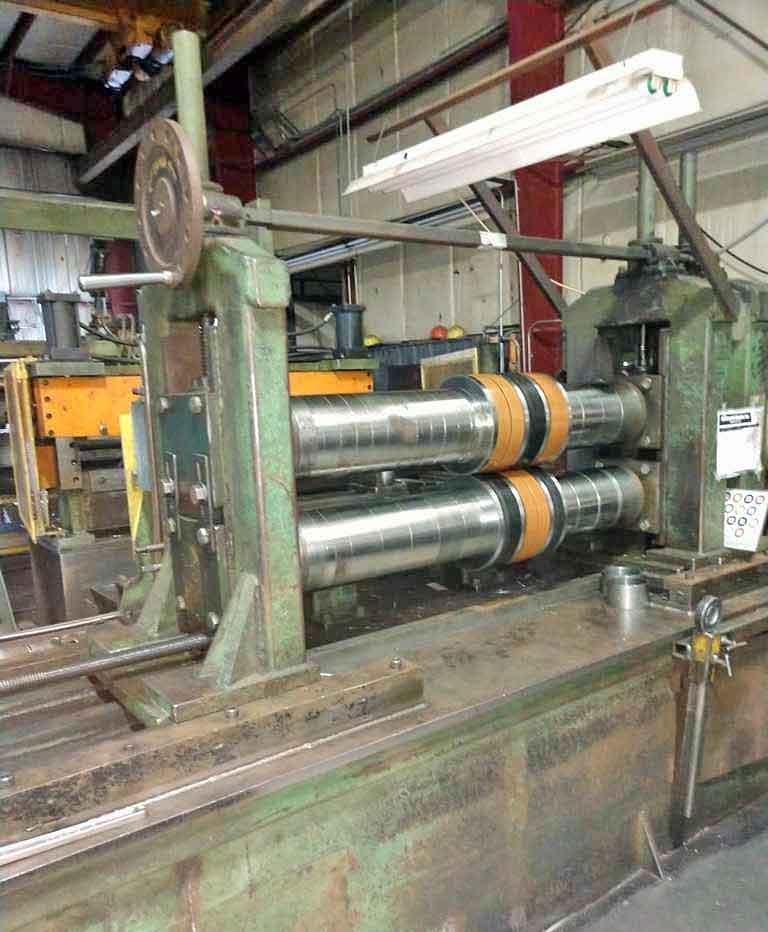

48"(1219mm) FORTE SLITTING LINE (13446)

MACHINE 13446

SPECIFICATIONS:

MANUFACTURER:                  FORTE

CAPACITY:                      48" (1219mm) WIDTH
                               0.135" (2.54mm) - 0.015"  THICKNESS

UNCOILER:                      20,000 LBS. (9 METRIC TONS)
RECOILER:                      30,000 LBS. (13.5 METRIC TONS)

SPEED:                         400 FPM

INCLUDES:                      SCRAP WINDER, TURNSTILE AND TOOLING
 Forte Slitter Line 48" x 135" x 20,000 lb Pull-thru Slitter Line

 5" Diameter Arbors
 .015-135" Thickness Range
 Mandrel Uncoiler, Powered, Hold Down Roll, Hydraulic Expansion, Sliding Base,
 Slitter Head with 5" Diameter Arbors,
 Sliding Outboard for Narrow Heavy Gauge Cuts
 Edge Guides
 Scrap Winder,
 Recoiler with AC Inverter Drive,
 Exit Turnsile with Push-Off
 Tooling, Electrics, Hydraulics and Controls
 12", .062" x 6000 lb. Pull-Through Slitting Line (Addison) Amermac Rubber
 Ring Shaver Model 1100, S/N 268-B
 Additional Tooling.
**Temporary Sepcifications Subject to Verification**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TOVERIFICATION BY PURCHASER**
