52" x 12" HERR VOSS, 40,000 Lbs, 0.375" - 0.095" SLITTING LINE (127549)

MACHINE # 12749

52" x 12" Herr Voss Slitting Line

Manufacturer: Herr Voss

-Material Width Max.:        52" (1320mm)
-Gauge Capacity:             0.095" - 0.375" (2.4 - 9.525mm)
-Weight Capacity:            40,000 Lbs.  (20 tons)
-ID Range:                   24" - 30" (609.6 - 762mm) In
                             24" (609.6mm)
-O.D. Max:                   72" (1828.8mm)
-Yield:                      45,000 PSI
-Line Speed:                 50 - 200 FPM (15 -62.5 meters per minute)
-Line Direction:             Right to Left

Consisting of the following:

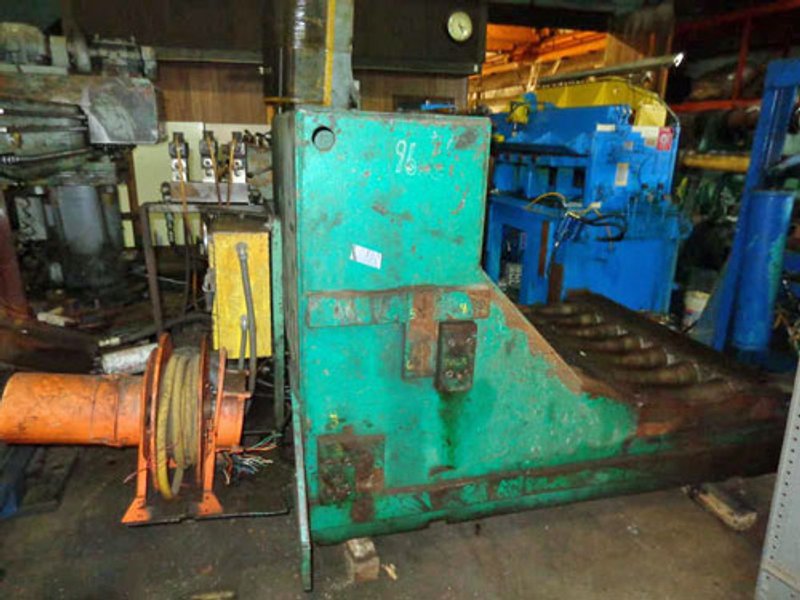

-Coil Car:
  Serial #12895
  "L" Type Design
  40,000# Capacity
  Powered "Bowtie" Conveyor Rolls
  Self Contained Hydraulics
  Retractable Cable Reel

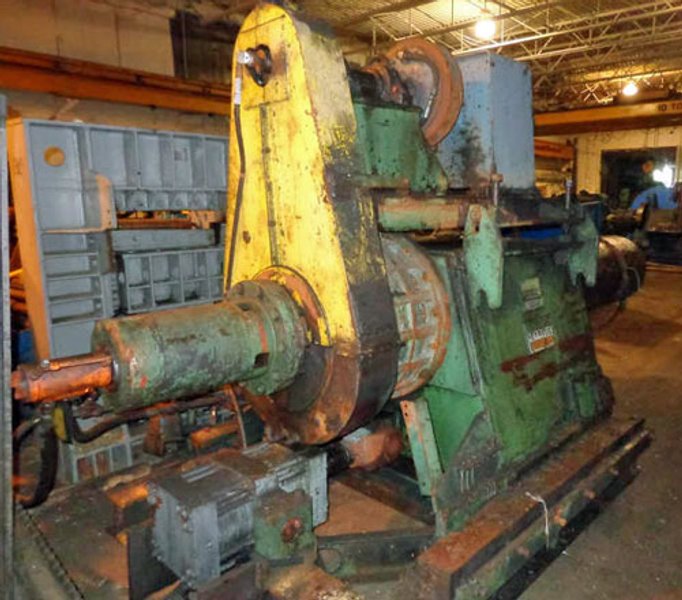

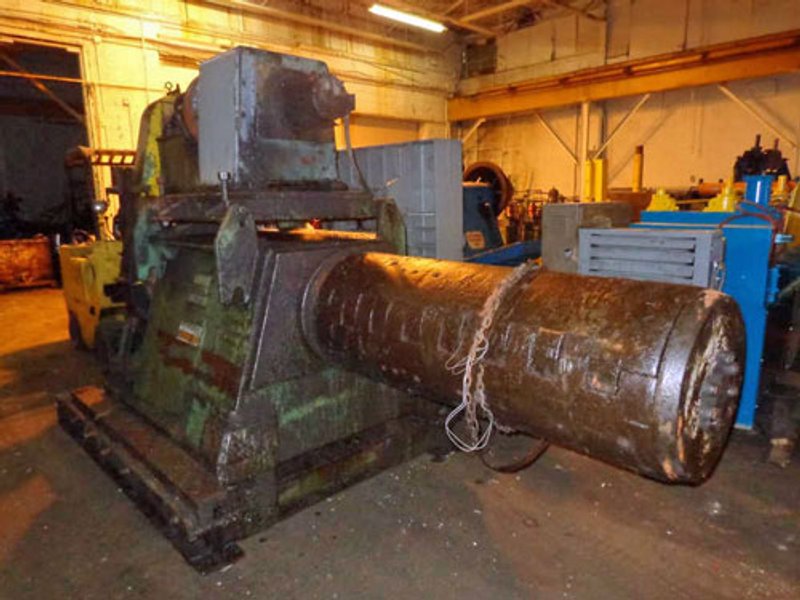

-Uncoiler:
  Single Mandrel Design
  40,000# Capacity
  13" (330mm) Dia. Main Shaft
  24" - 30" (609.6 - 762mm) ID Range
  72" (1828mm) OD Capacity
  Hydraulic Expansion
  Pumpkin Tooth Mandrel
  AC Motor Threading Drive with Air Clutch
  Sliding Base
  Wichita Brake

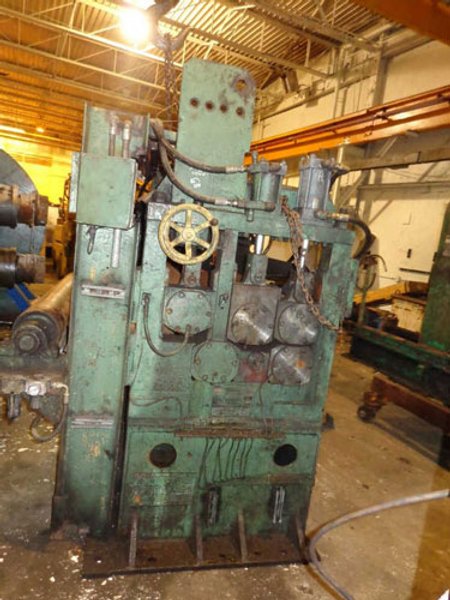

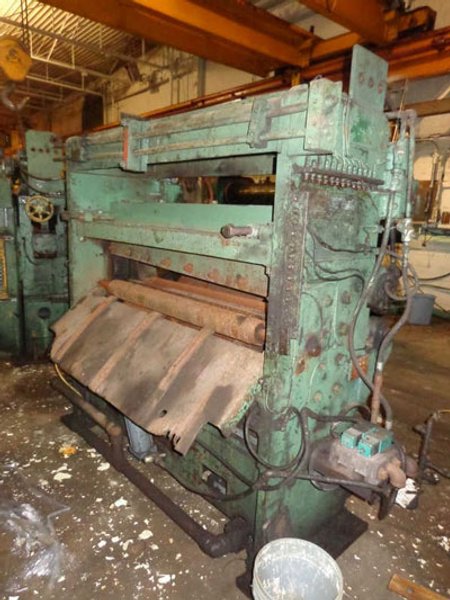

-Coil Breaker:
  Entry Driven Pinch Rolls
  3 Breaker Rolls, 2 Over 1
  Exit Passline Roll

-Entry Crop Shear:
  Serial #12895-7
  Pinch Rolls with 60" (1524mm) Face

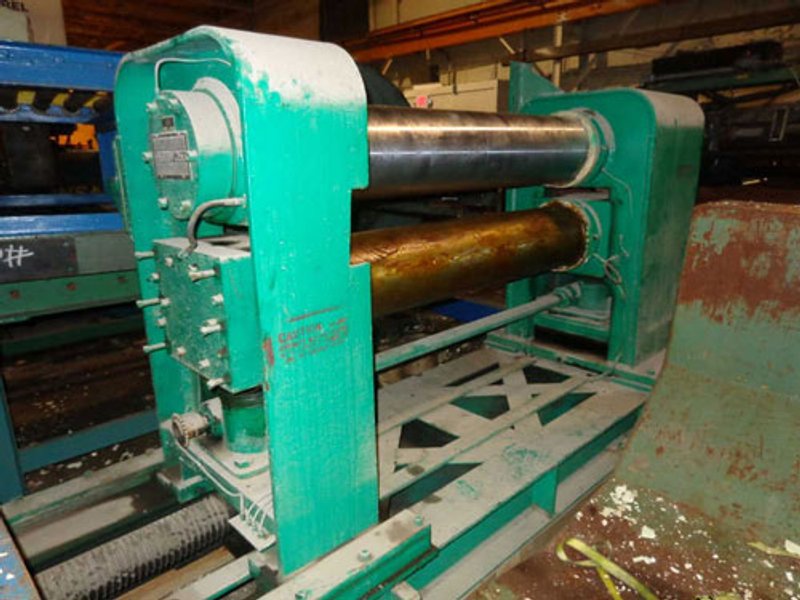

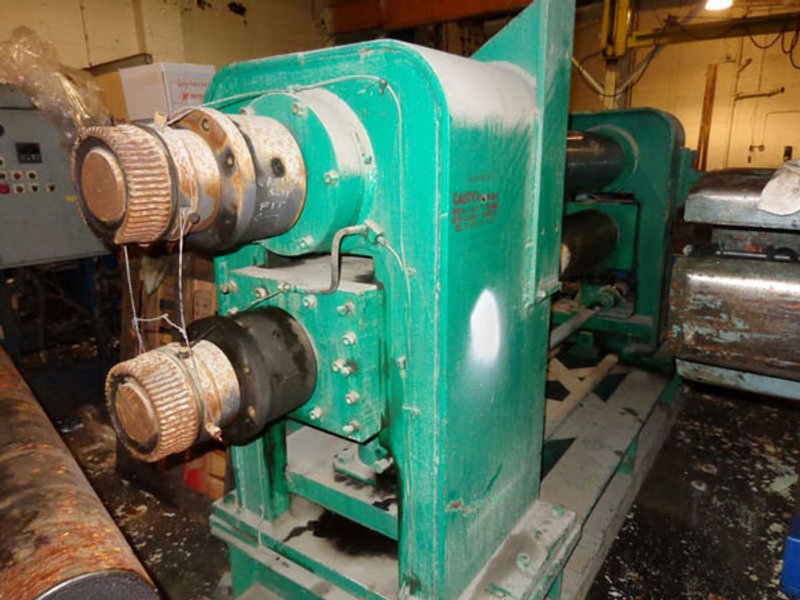

-(2) Slitter Heads:
  Serial #12895-20
  12" (304.8mm) Diameter x 60" (1524mm) Face Arbors
  Crane Removal Type
  Powered removal of outboard housing for tooling change.

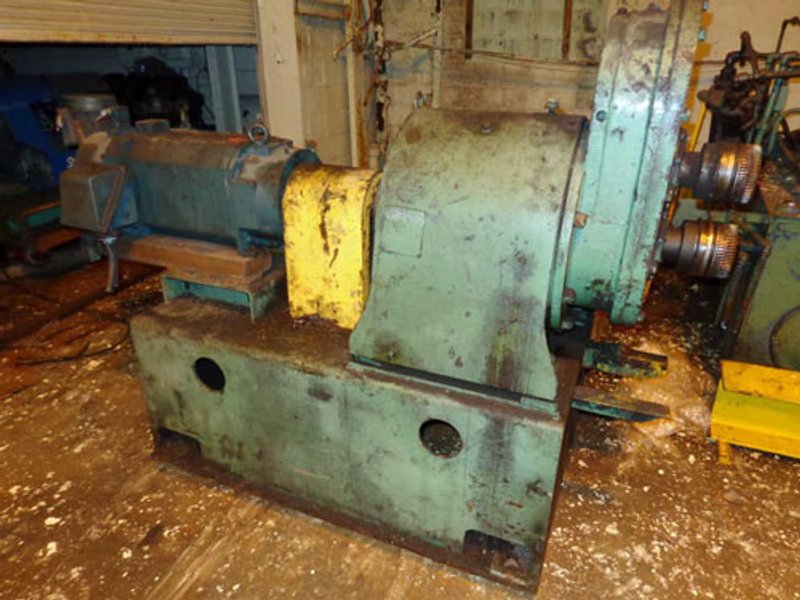

  100 HP Reliance AC Inverter Motor, 460 V, 1760 RPM, 122.5 AMP
  Falk Reducer, 75 HP Rated, 20.79:1 Ratio, Output RPM:  92.6

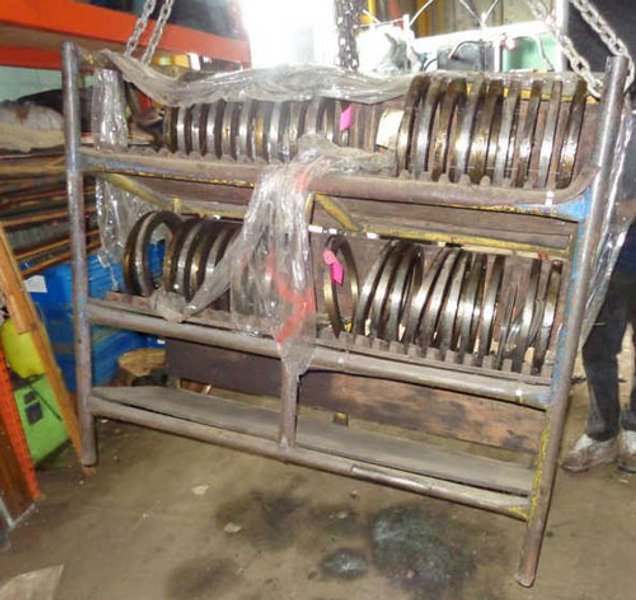

  Full complement of tooling

-(2) Scrap Winders:
  Oscillating Design
  Hydraulically Driven

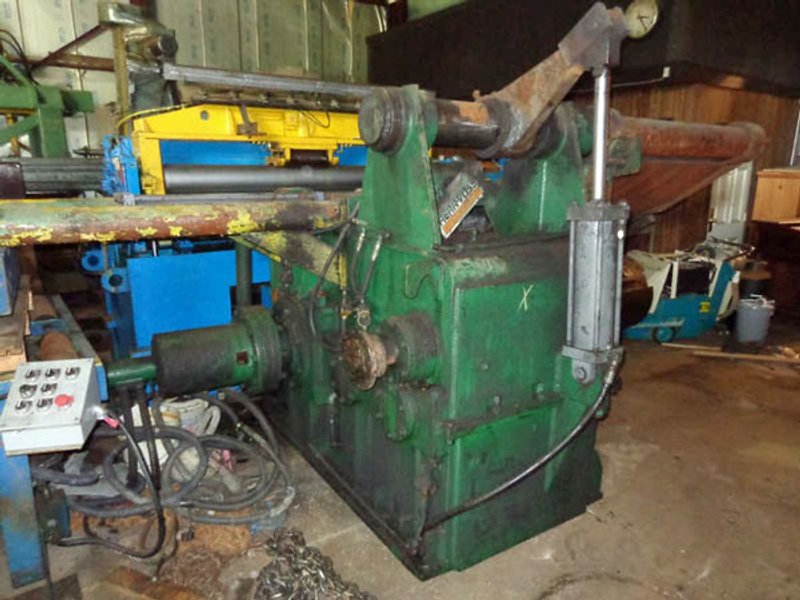

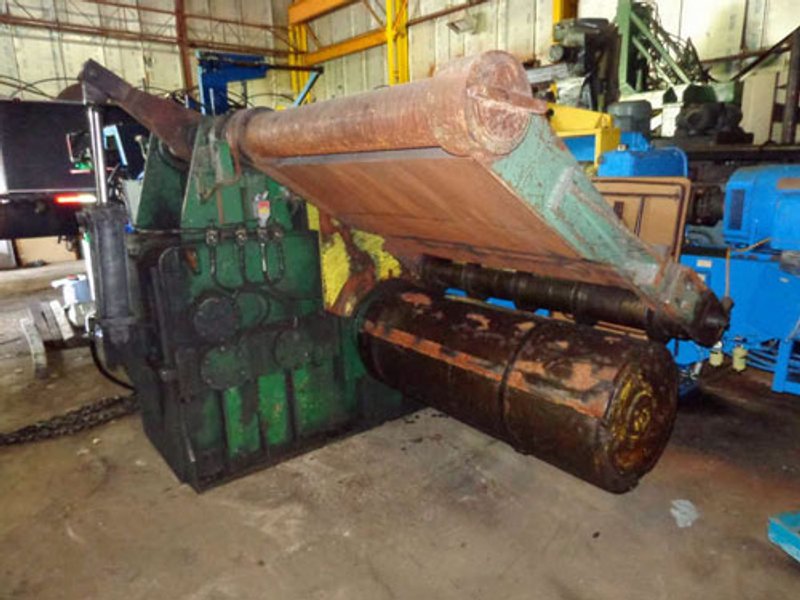

-Recoiler:
  Serial #12895-14
  40,000# Weight Capacity
  12" (304.8mm) Dia. Main Shaft
  24" (609.6mm) Dia. x 60" (1524mm) Face Drum
  Hydraulic Grip and Collapse
  Hydraulic Pushoff
  Overarm Separator
  150 HP Reliance DC Motor, 500/600 rpm, 500 v

-Hydraulic Power Unit:
  40 HP

-Removed and in storage

**Preliminary Specifications**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICAITONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
