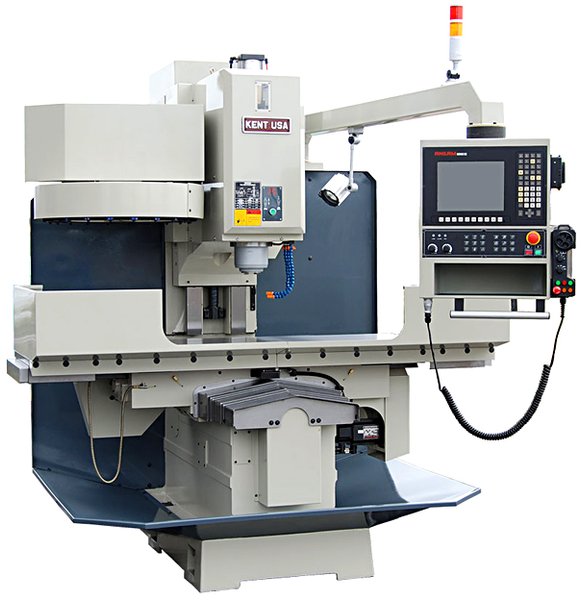

18" x 59" KENT USA TW-50MCO VERTICAL BED MILL - NEW

Brand
KENT
Category
Milling Machines
Type
Millers, Vertical
Model
TW-50MCO
Stock #
12804
Year
Not specified
Condition
New
Location
Not specified
18" x 59" KENT USA TW-50MCO MANUAL BED MILL - NEW


PRODUCT FEATURES
  • 10 HP AC Servo Spindle Motor
  • Meehanite GB300 casting for superior rigidity
  • Hardened and Ground Square Y and Z-axis ways
  • Hardened and Ground table top and dovetail ways
  • Precision Ground ballscrews on X, Y and Z-axis
  • Ultra precision ground spindle, ABEC-7 bearings
  • Hardened and Ground spindle spline and taper
  • Auto Lube system with metered Check valves
  • Metal telescoping way cover on Y-axis
  • Built in Coolant system and Chip pan
  • Halogen work light


STANDARD ACCESSORIES
  • 20 Tools Carousel ATC
  • Auto-Lubrication Unit
  • Flood Coolant System


OPTIONAL ACCESSORIES

  • MPG Handheld Jog Box
  • Clamping Kit
  • CAT 40 End Mill Adapters
  • Rustlick G25 Coolant
  • Angle-Lock Vise
  • Rotary Table
  • Full Enclosure





  • Table Size
  • Table Travel (X-Axis)
  • Saddle Travel (Y-Axis)
  • Knee Travel (Z-Axis)
  • Spindle Center to Column
  • Spindle to Table
  • Quill Travel
  • Quill Diameter
  • T-Slots (number x width)
  • Coolant Pump
  • Spindle Motor
  • Spindle Taper
  • Speed Range
  • Quill Power Feed (per rev)
  • Drilling Capacity (Manual)
  • Drilling Capacity (Power)
  • Boring Capacity
  • Milling Capacity
  • Maximum Work Load
  • Net Weight
  • Gross Weight
  • Packing Dimension
  • Power Requirements

  • TW-50MCO

  • 18" x 68"
  • 50" (48" w/ control)
  • 22" (20" w/ control)
  • 22" (20" w/ control)
  • 22"
  • 3.54" to 23.16"
  • NA
  • NA
  • 3 x 5/8"
  • 0.25 HP
  • 10 HP (7.5 HP For Fanuc System)
  • CAT40 or BT40
  • 70-8000 RPM
  • NA
  • NA
  • NA
  • 8" Diameter
  • 2.5 in³/min
  • 10 lbs (distributed)
  • 7700 lbs
  • 8500 lbs
  • 112" x 90" x 99"
  • 220 volts, 60 Hz, 3-phase, 60 Amps
