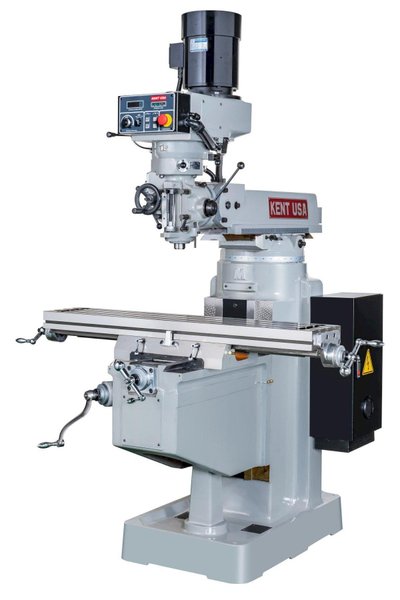

10" x 50" KENT USA KTM-3VKF MANUAL KNEE MILL - NEW

Brand
KENT
Category
Milling Machines
Type
Vertical Millers
Model
KTM-3VKF
Stock #
19005
Year
Not specified
Condition
New

Location

Not specified
10" x 50" KENT USA KTM-3VVK MANUAL KNEE MILL - NEW


PRODUCT FEATURES
  • 3 HP spindle  motor, mechanical infinitely variable speed head
  • 10” x 50” (Opt. 10″ x 54″) hardened and ground table top
  • Table, saddle, and knee with hardened and ground dovetail ways
  • Precision ground leadscrews with backlash compensating double nut
  • Precision bored and ground milling head, with super precision ABEC-7 bearings
  • Meehanite castings, with built in coolant reservoir in machine base
  • Centralized one-shot lubrication, with metered check-valves
  • Variable Frequency Drive
  • Digital RPM Display
  • Load Monitor

OPTIONAL ACCESSORIES



  • DRO system
  • Table (X-Axis) Power Feed
  • Saddele (Y-Axis) Power Feed
  • Knee (Z-Axis) Power Feed
  • Air Power Drawbar
  • Flood Coolant System
  • Chip Tray
  • Right Angle Milling Attachment w/ Arbor Support
  • Rustlick Coolant (1 Gal., Mixes 1:30)
  • Riser Blocks (4″/6″/8″)
  • Angle-lock Vises (6″/8″)
  • Rotary Table
  • Clamping Kit (52pc)
  • R-8 Collet Set
  • Single Phase Motor Option
  • NMTB-30 Spindle


  •
  •
  • Table Size
  • Table Travel (X-Axis)
  • Saddle Travel (Y-Axis)
  • Knee Travel (Z-Axis)
  • Quill Travel
  • Ram Travel
  • Spindle Motor
  • Spindle Speed
  • Spindle Taper
  • Quill Diameter
  • Quill Feed Rate
  • Drilling Capacity (Manual / Power)
  • Boring Capacity
  • Milling Capacity
  • Maximum Work Load (Center)
  • Spindle Nose to Table Surface
  • Spindle Center to Column
  • Net Weight
  • Gross Weight
  • Shipping Dimensions
  • Power Requirements
  •

  • KTM-3VKF

  •
  • 10" x 50" (Opt 10" x 54")
  • 35"
  • 15.25"
  • 15"
  • 5.5" (4" w/MillPwr-3 CNC Control)
  • 22"
  • 3 HP
  • 60–500-4200 RPM (Var)
  • R-8
  • 3.375"
  • 0.0015" / 0.003" / 0.006" in/rev
  • 0.75" / 0.37" diameter
  • 6" diameter
  • 2.0 in³/min
  • 850 lbs
  • 2.75" - 17.75"
  • 5" - 27"
  • 3000 lbs
  • 3100 lbs
  • 72" x 72" (skid)
  • 220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 5 Amp)
  •
