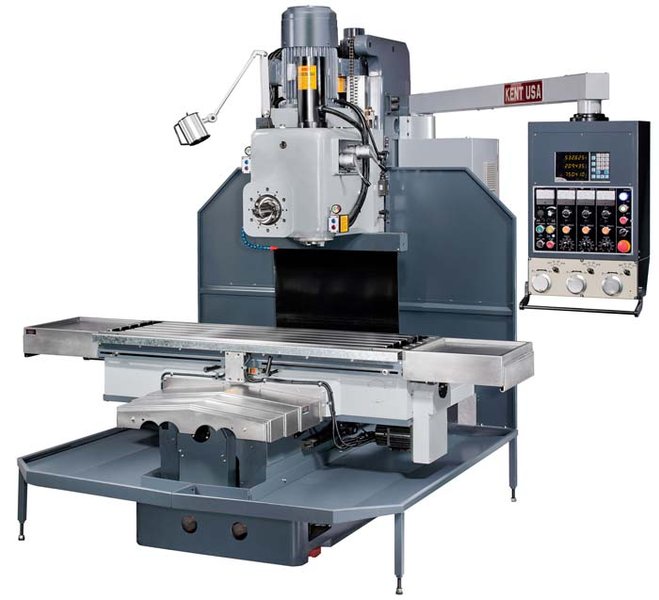

27.6" x 102.4" KENT USA JY-VH780 COMBINATION HORIZONTAL & VERTICAL SPINDLE MILL - NEW

Brand
KENT
Category
Milling Machines
Type
Millers, Vertical
Model
JY-VH780
Stock #
12813
Year
Not specified
Condition
New
Location
Not specified
19.7 " x 75" KENT USA JY-VH780 COMBINATION HORIZONTAL & VERTICAL SPINDLE MILL - NEW

PRODUCT FEATURES

  • 10 HP spindle motor infinitely variable speed, #50 taper spindle, 28” x 102” hardened and ground table top
  • Saddle and base with hardened and ground square (box) ways
  • Precision ACME screws in X, Y, & Z axes
  • X, Y, & Z axes driven by AC motor
  • Precision bored and ground milling head, with super precision ABEC-7 bearings
  • Meehanite® casting, with built in coolant reservoir in machine base
  • Coolant system and chip tray
  • Centralized automatic lubrication, with metered check-valves
  • Precise angular contact bearings spindle
  • Precision manufactured from SCM21 alloy steel, heat treated and  precision ground spindle
  • Hardened and precision ground for quiet running gears
  • High torque servo motor X-axis feed
  • Choice of Fanuc or Mitsubishi CNC controller
  • Hardened, precision ground, and Turcite-B coated sideways for maximum wear resistance
  • Convertible into CNC controlled system




    OPTIONAL ACCESSORIES
    • Dro System
    • Air Power Drawbar (Per Spindle)
    • Angle-Lock Vice
    • Rotary Table (Vertical and Horizontal)
    • Clamping Kit
    • Chuck System
    • Rustlick Coolant (1 Gal, Mixes 1:30)





      • Table Size
      • Table Travel (X-Axis)
      • Saddle Travel (Y-Axis)
      • Knee Travel (Z-Axis)
      • T-Slot
      • X, Y, Z Feedrate
      • X, Y, Z Rapid Feedrate
      • Spindle Motor
      • Vertical Spindle Speed
      • Vertical Spindle Taper
      • Spindle Nose to Table
      • Spindle Center to Column
      • Horizontal Spindle Speed
      • Horizontal Spindle Taper
      • Spindle Center to Table
      • Spindle Nose to Rear
      • Maximum Work Load
      • Machine Net Weight
      • Shipping Weight
      • Dimensions

      • JY-VH650

      • 27.6" x 102.4"
      • 78."
      • 41.3"
      • 39.4"
      • 0.98" x 0.2" x 4.92"
      • 1.2"/min -110"/min
      • 110"/min
      • 10 HP
      • 45 - 1500 RPM (variable)
      • NT-50
      • 0 - 31.6"
      • 30.7"
      • 45 - 1500 RPM (variable)
      • NT-50
      • 30.7
      • 7.87"
      • 6600 lbs
      • 33069 lbs
      • 32275 lbs
      • 155" x 128" x 135
      • "
