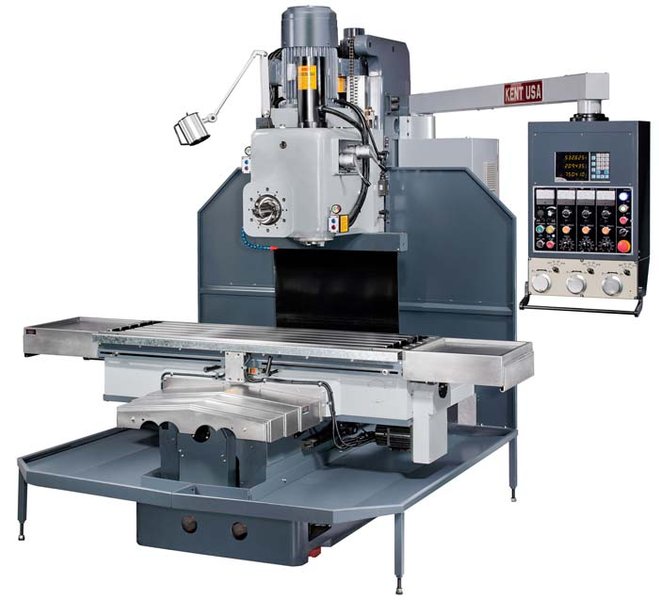

17.7" x 59" KENT USA JY-VH450 COMBINATION HORIZONTAL & VERTICAL SPINDLE MILL - NEW

Brand
KENT
Category
Milling Machines
Type
Millers, Vertical
Model
JY-VH450
Stock #
12811
Year
Not specified
Condition
New
Location
Not specified
17.7" x 59" KENT USA JY-VH450 COMBINATION HORIZONTAL & VERTICAL SPINDLE MILL - NEW

PRODUCT FEATURES

  • 10 HP spindle motor infinitely variable speed, #50 taper spindle, 17.7” x 59” hardened and ground table top
  • Saddle and base with hardened and ground square (box) ways
  • Precision ACME screws in X, Y, & Z axes
  • X, Y, & Z axes driven by AC motor
  • Precision bored and ground milling head, with super precision ABEC-7 bearings
  • Meehanite® casting, with built in coolant reservoir in machine base
  • Coolant system and chip tray
  • Centralized automatic lubrication, with metered check-valves
  • Precise angular contact bearings spindle
  • Precision manufactured from SCM21 alloy steel, heat treated and  precision ground spindle
  • Hardened and precision ground for quiet running gears
  • High torque servo motor X-axis feed
  • Choice of Fanuc or Mitsubishi CNC controller
  • Hardened, precision ground, and Turcite-B coated sideways for maximum wear resistance
  • Convertible into CNC controlled system

    OPTIONAL ACCESSORIES

    • Dro System
    • Air Power Drawbar (Per Spindle)
    • Angle-Lock Vice
    • Rotary Table (Vertical and Horizontal)
    • Clamping Kit
    • Chuck System
    • Rustlick Coolant (1 Gal, Mixes 1:30)



    • Table Size
    • Table Travel (X-Axis)
    • Saddle Travel (Y-Axis)
    • Knee Travel (Z-Axis)
    • T-Slot
    • X, Y, Z Feedrate
    • X, Y, Z Rapid Feedrate
    • Spindle Motor
    • Vertical Spindle Speed
    • Vertical Spindle Taper
    • Spindle Nose to Table
    • Spindle Center to Column
    • Horizontal Spindle Speed
    • Horizontal Spindle Taper
    • Spindle Center to Table
    • Spindle Nose to Rear
    • Maximum Work Load
    • Machine Net Weight
    • Shipping Weight
    • Dimensions

    • JY-VH450

    • 17.7" x 59"
    • 43"
    • 28.35"
    • 30.7"
    • 0.71" x 0.12" x 3.15"
    • 1"/min - 59"/min
    • 59"/min
    • 10 HP
    • 45 - 1500 RPM (variable)
    • NT-50
    • 0 - 24"
    • 17.7"
    • 45 - 1500 RPM (variable)
    • NT-50
    • 0 - 30.7"
    • 7.5"
    • 2200 lbs
    • 9240 lbs
    • 11000 lbs
    • 108" x 80" x 100"
