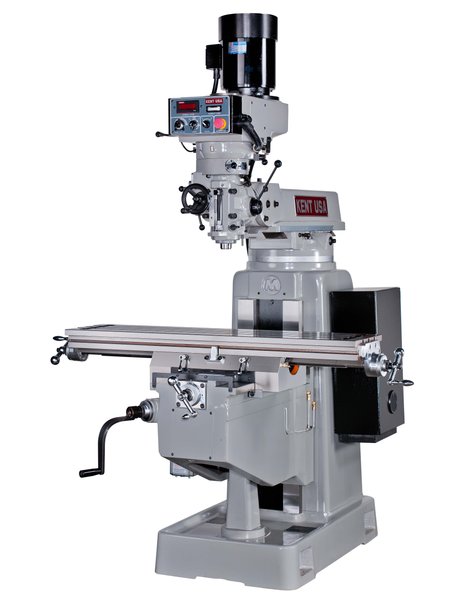

12" x 50" KENT USA KTM-4VVF-E MANUAL KNEE MILL - NEW
PRODUCT FEATURES
- 3 HP AC-Freq drive head with digital RPM display and analog load meter. Automatic spindle direction reversal when switching between high and low speed gear ranges
- 60-550-4500 spindle RPM (Hi/Low gear)
- Automatic centralized lubrication system with metered check-valves
- Single-phase or 3-phase power without the need for a phase converter
- Hardened and Ground (Hrc-52) table surface and all slide ways
- Solid box ways on saddle and column
OPTIONAL ACCESSORIES
- Digital Readout System
- Table (X-Axis) Power Feed
- Saddle (Y-Axis) Power Feed
- Knee (Z-Axis) Power Feed
- Air Power Drawbar
- Flood Coolant System
- Chip Pan
- Riser Block
- Angle-Lock Vise
- Rustlick Coolant
- Table Size
- Table Travel (X-Axis)
- Saddle Travel (Y-Axis)
- Knee Travel (Z-Axis)
- Quill Travel
- Ram Travel
- Spindle Motor
- Spindle Speed
- Spindle Taper
- Quill Diameter
- Quill Feed Rate
- Drilling Capacity (Manual / Power)
- Boring Capacity
- Milling Capacity
- Maximum Work Load (Center)
- Spindle Nose to Table Surface
- Spindle Center to Column
- Net Weight
- Gross Weight
- Shipping Dimensions
- Power Requirements
- 12" x 50"
- 33"
- 18"
- 15.25"
- 5.5" (4" w/MillPwr-3 CNC Control)
- 22"
- 3 HP
- 60–500-4200 RPM (Var) (60-600 Optional)
- R-8
- 3.375"
- 0.0015" / 0.003" / 0.006" in/rev
- 0.75" / 0.37" diameter
- 6" diameter
- 2.0 in³/min
- 850 lbs
- 2.75" - 17.75"
- 5" - 27"
- 3400 lbs
- 3600 lbs
- 72" x 72" (skid)
- 220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 5 Amp)
|
