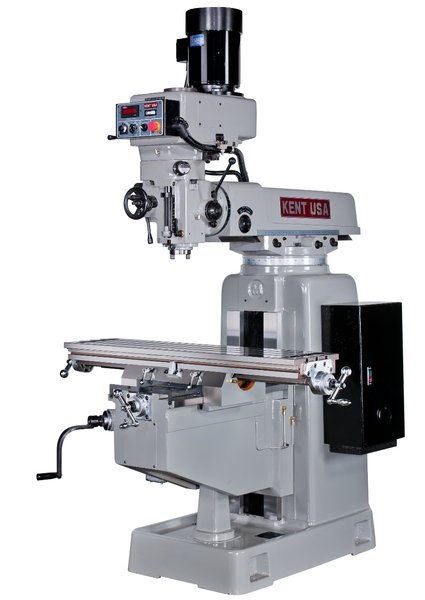

10" x 50" KENT USA KTM-5VKF-E MANUAL KNEE MILL - NEW

Brand
KENT
Category
Milling Machines
Type
Millers, Vertical
Model
KTM-5VKF-E
Stock #
12800
Year
Not specified
Condition
New
Location
Not specified
12" x 50" KENT USA KTM-5VVF-E MANUAL KNEE MILL - NEW


PRODUCT FEATURES
  • 5 HP AC-Freq drive head with digital RPM display and analog load meter
  • 60-550-4500 spindle RPM (Hi/Low gear). Automatic spindle direction reversal when switching between high and low speed gear ranges
  • NMTB-40 spindle taper
  • Automatic centralized lubrication system with metered check-valves
  • Single-phase or 3-phase power without the need for a phase converter
  • Hardened and Ground (Hrc-52) table surface and all slide ways
  • Solid box ways on saddle and column

OPTIONAL ACCESSORIES

  • Quick change tooling package (Mach-1)
  • NMTB-30 spindle
  • Flood coolant system (Built-in base)
  • Knee (Z-axis) power feed
  • Air power drawbar
  • Flood coolant system
  • Chip tray
  • 3-D edge finder
  • Knee linear encoder feedback for coupled z-axis position
  • AMI with programmable M-functions





  • Table Size
  • Table Travel (X-Axis)
  • Saddle Travel (Y-Axis)
  • Knee Travel (Z-Axis)
  • Quill Travel
  • Ram Travel
  • Spindle Motor
  • Spindle Speed
  • Spindle Taper
  • Quill Diameter
  • Quill Feed Rate
  • Drilling Capacity (Manual / Power)
  • Boring Capacity
  • Milling Capacity
  • Maximum Work Load (Center)
  • Spindle Nose to Table Surface
  • Spindle Center to Column
  • Net Weight
  • Gross Weight
  • Shipping Dimensions
  • Power Requirements

  • KTM-5VKF-E

  • 12" x 50"
  • 33"
  • 18"
  • 15.25"
  • 5.5" (4" w/MillPwr-3 CNC Control)
  • 26.75"
  •  HP
  • 60–500-4200 RPM (Var)
  • NTMB-40
  • 4.173"
  • 0.0017" / 0.0032" / 0.0054" in/rev
  • 1.25" / 0.625" diameter
  • 8" diameter
  • 2.5 in³/min
  • 850 lbs
  • 4" - 19.5"
  • 5.25" - 32"
  • 3700 lbs
  • 4100 lbs
  • 72" x 72" (skid)
  • 220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 8.5 Amp) Single Ph Available
