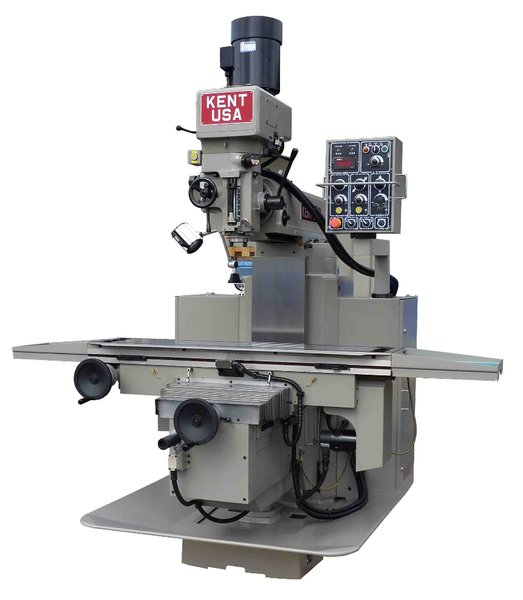

10" x 50" KENT USA KTM-5AVKF MANUAL KNEE MILL - NEW

Brand
KENT
Category
Milling Machines
Type
Millers, Vertical
Model
KTM-5AVKF
Stock #
12801
Year
Not specified
Condition
New
Location
Not specified
12" x 50" KENT USA KTM-5AVVF MANUAL KNEE MILL - NEW


PRODUCT FEATURES
  • 13” x 59” hardened and ground table top
  • Saddle and knee with hardened and ground square (box) ways
  • Oversized precision ballscrews in X & Y axes, telescoping cover on front cross way
  • X & Y axes driven by DC servo motor
  • Precision bored and ground milling head, with super precision ABEC-7 bearing
  • Meehanite® casting, with built in coolant reservoir in machine base
  • Coolant system and chip tray
  • Centralized automatic lubrication, with metered check-valves


OPTIONAL ACCESSORIES

  • Quick change tooling package (Mach-1)
  • NMTB-30 spindle
  • Flood coolant system (Built-in base)
  • Knee (Z-axis) power feed
  • Air power drawbar
  • Flood coolant system
  • Chip tray
  • 3-D edge finder
  • Knee linear encoder feedback for coupled z-axis position
  • AMI with programmable M-functions





  • Table Size
  • Table Travel (X-Axis)
  • Saddle Travel (Y-Axis)
  • Knee Travel (Z-Axis)
  • Quill Travel
  • Ram Travel
  • Spindle Motor
  • Spindle Speed
  • Spindle Taper
  • Quill Diameter
  • Quill Feed Rate
  • Drilling Capacity (Manual / Power)
  • Boring Capacity
  • Milling Capacity
  • Maximum Work Load (Center)
  • Spindle Nose to Table Surface
  • Spindle Center to Column
  • Net Weight
  • Gross Weight
  • Shipping Dimensions
  • Power Requirements

  • KTM-5AVKF

  • 13" x 59"
  • 39.37"
  • 20"
  • 20"
  • 5.5"
  • 21"
  •  5 HP
  • 70–4500 RPM (Var)
  • NTMB-40
  • NA
  • NA
  • NA
  • NA
  • NA
  • 1200 lbs
  • 3.15" - 23.23"
  • 5.31" - 26.38"
  • 6050 lbs
  • 6300 lbs
  • 80" x 80" (skid)
  • 220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 12.5 Amp)


No files or videos to display
