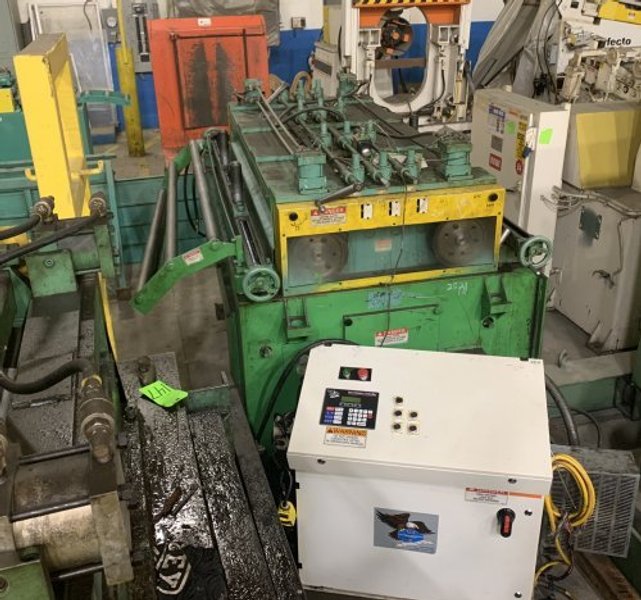

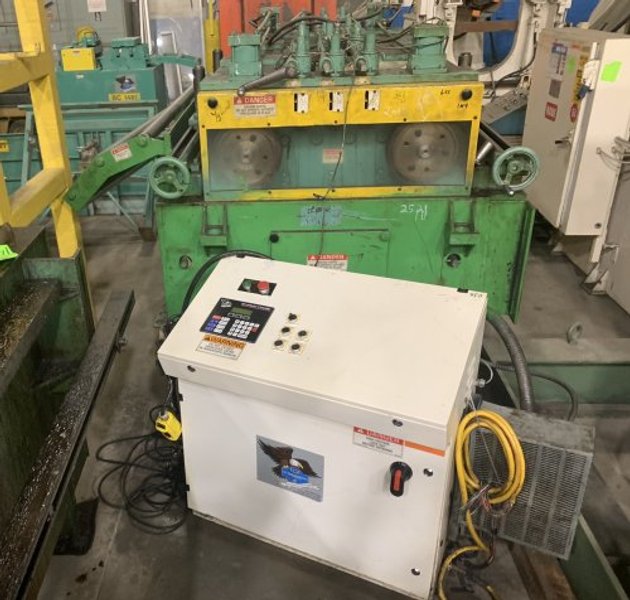

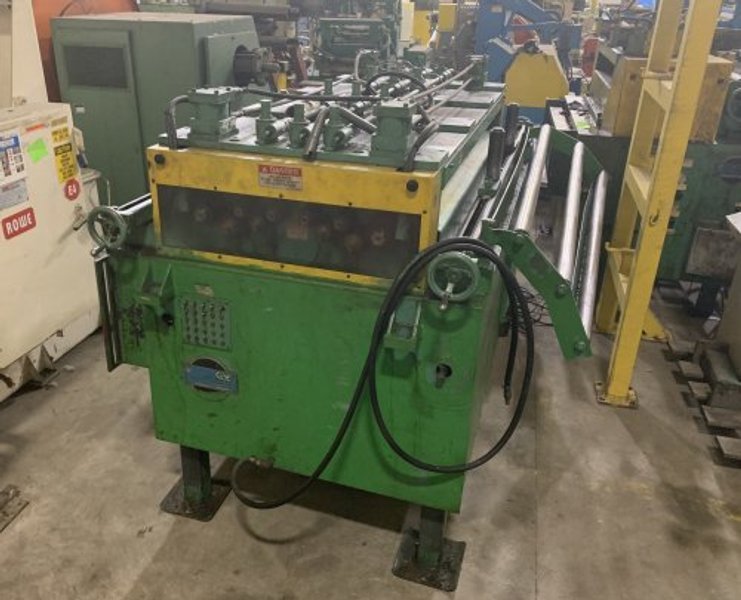

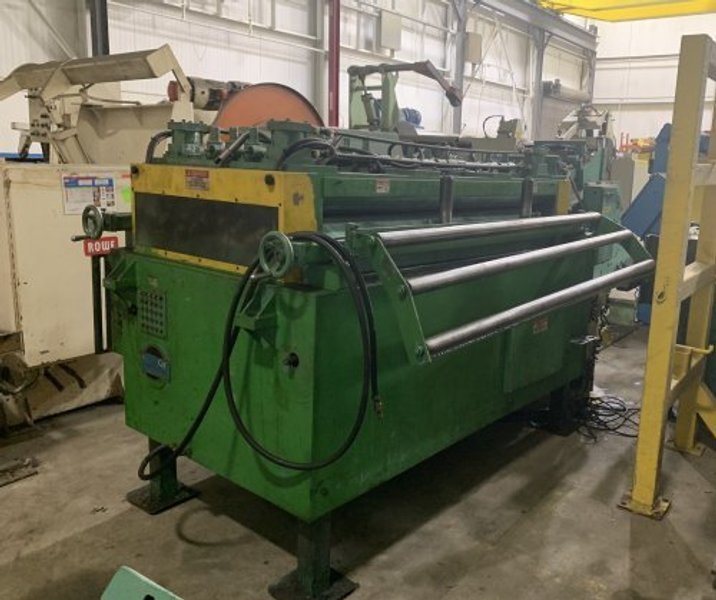

Standard Specifications
Model No. CPFS-305-72
72" Max Material Width
.080" x 72" Maximum Material Thickness
.030" x 72" Minimum Material Thickness
Up to 80 FPM Payoff Rate

Equipment and Features
Flat Top Design
7 Roll, 3 Inch Diameter Design With 5" Feed Rolls
Independently adjustable breaker rolls
1 ton screw jacks
Entrance and exit cluster gear driven pinch rolls
Air operated entrance and exit pinch rolls -
Pinch Rolls raise and lower with 5" bore cylinders
Pressure regulators and flow controls on pinch roll cylinders
Push button- solenoid operated control valves
Electrical safety disconnect
Central point lube system
Double row upper and lower breaker roll backup rollers
Crodon coated upper and lower entrance feed rolls with #5 Satin finish
Crodon coated upper and lower exit feed rolls with #5 Satin finish
Entrance edge guide with self centering hand crank adjustment
Heavy duty cabinet base with +/- 4" of height adjustment
3 roll entrance catenary support section

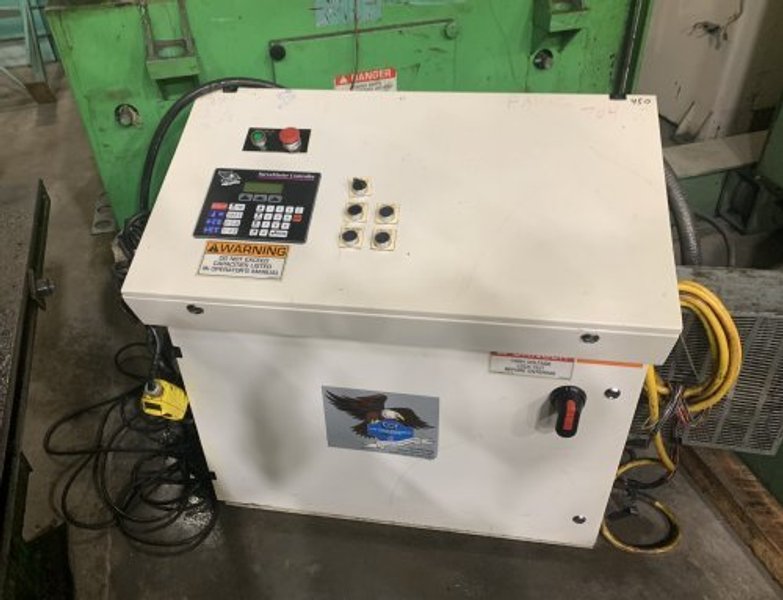

ServoMaster Controller:
. Serial communication capability to press or host devices
. Ergonomic desk-type slant top industrial electrical console
. Feed length setting from .001" to 999.999"
. Batch counter to 999,999 cycles with output
. Remote jog with hand held pendant for threading
. 100 job memory storage capacity
. Inch or metric programming
. Tight loop detection input
. 15 HP AC variable speed drive- ABB with encoder for positioning

Feed Direction: Left to Right
460 Volt Three phase
Passline Height: 50" +/-4"
