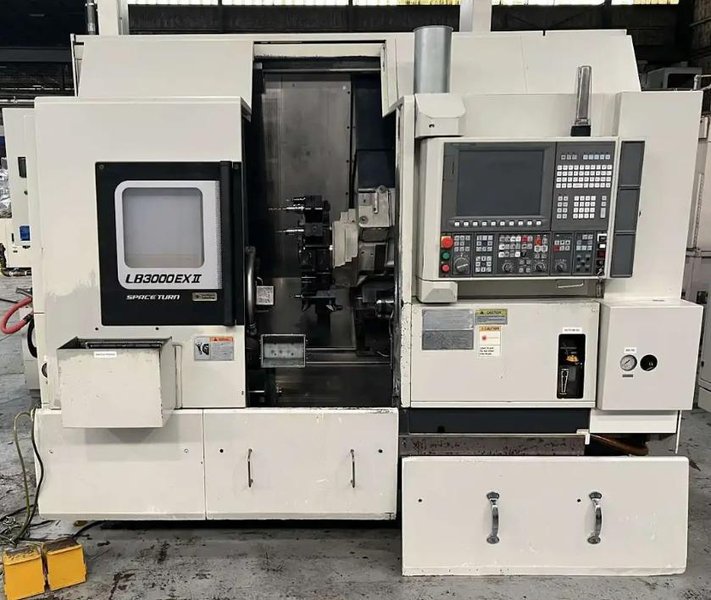

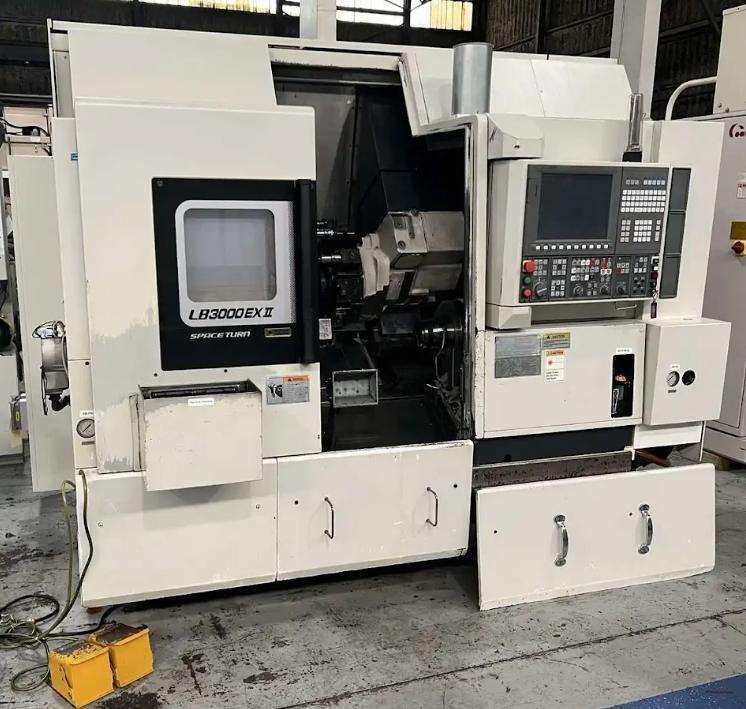

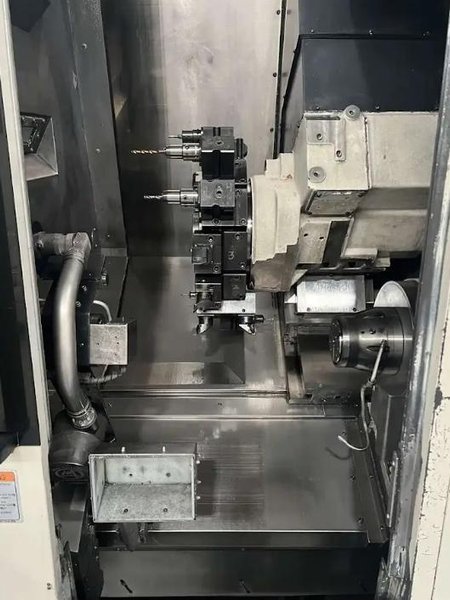

13” X 17.7” CNC Turning Center with Okuma OSP-P300LA CNC Control, 30/20 HP Main Spindle, 12 - Position Turret, Subspindle, Live Milling, Y - Axis, LNS Quick Six S2 Bar Feeder, High - Pressure Coolant and Chip Conveyor.

GENERAL SPECIFICATIONS
Distance Between Centers:                17.7”
Distance Between Spindle Noses:            30.9”
Swing Over Bed:                    22.8”
Swing Over Carriage:                18.5”
Max. Turning Diameter:                13.4”

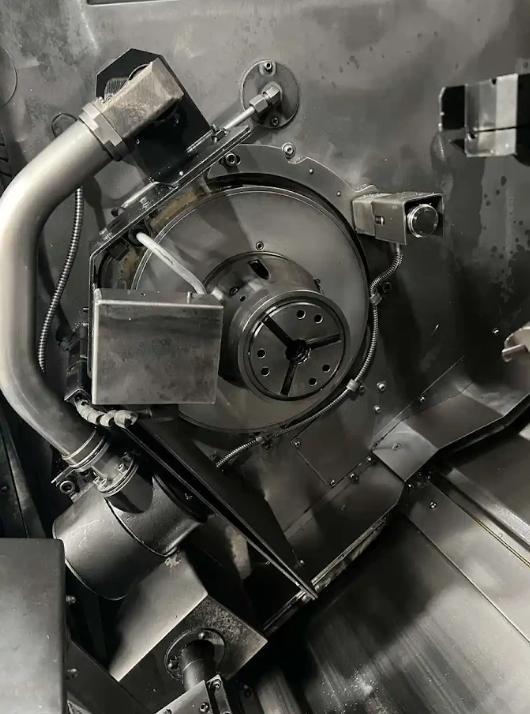

Main Spindle
Spindle Diameter:                    4.7”
Spindle Speed:                    5,000 RPM
Spindle Nose:                    A2-6
Spindle Bore:                        3.14”
Hole Actuator:                    2.75”
Max. Workpiece Weight:                396 Lbs
Main Motor:                        30/20 HP

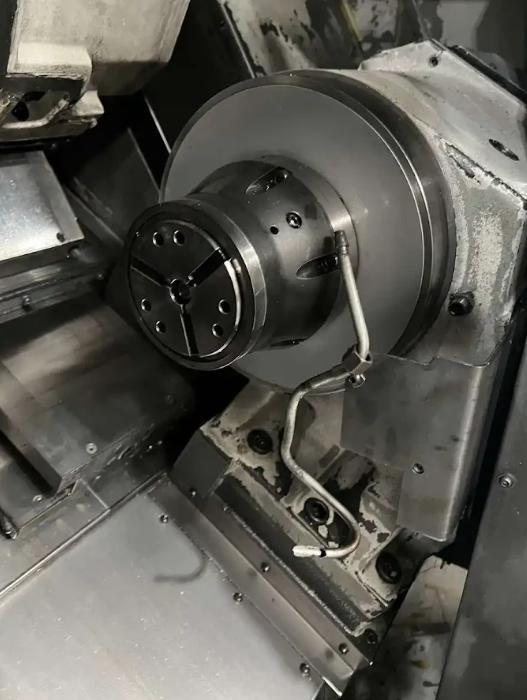

Subspindle
Spindle Diameter:                    3.9”
Spindle Speed:                    6,000 RPM
Spindle Nose:                    5.5” Flat
Spindle Bore:                        2.4”
Max. Workpiece Weight:                242 Lbs

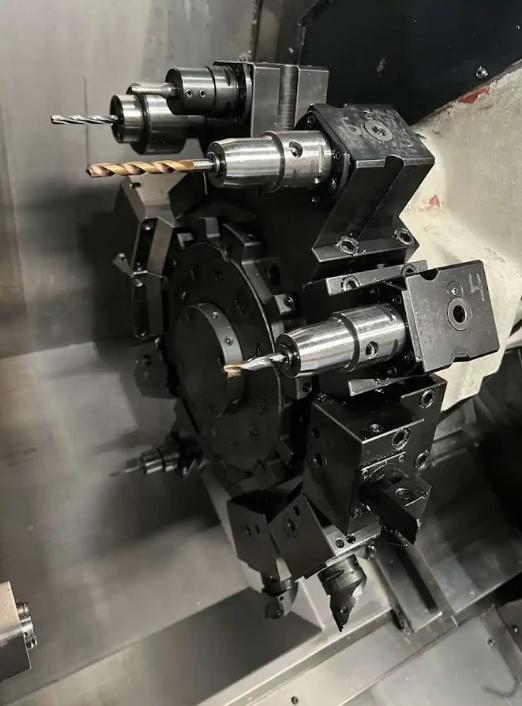

Turret & Axes
Turret Positions:                    12
X - Axis Travel:                    10.2”
Y - Axis Travel:                    4.5”
Z - Axis Travel:                    20.1”
W - Axis Travel:                    23.4”
C - Axis Indexing:                    360°, 0.001° Increments
X - Axis Feedrate:                    984 IPM
Y - Axis Feedrate:                    492 IPM
Z - Axis Feedrate:                    1,181 IPM
W - Axis Feedrate:                    1,181 IPM

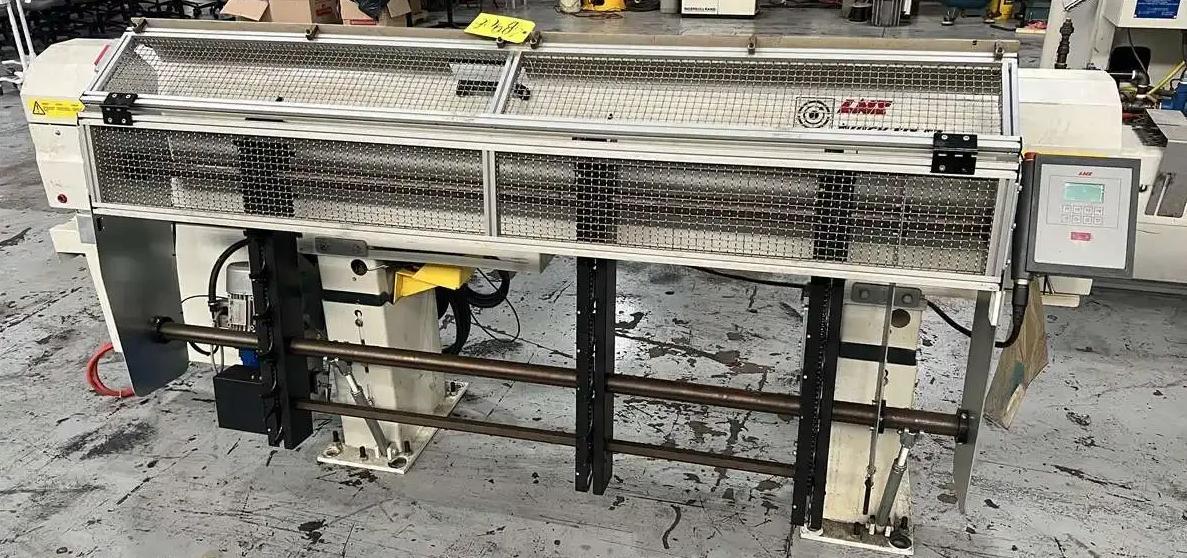

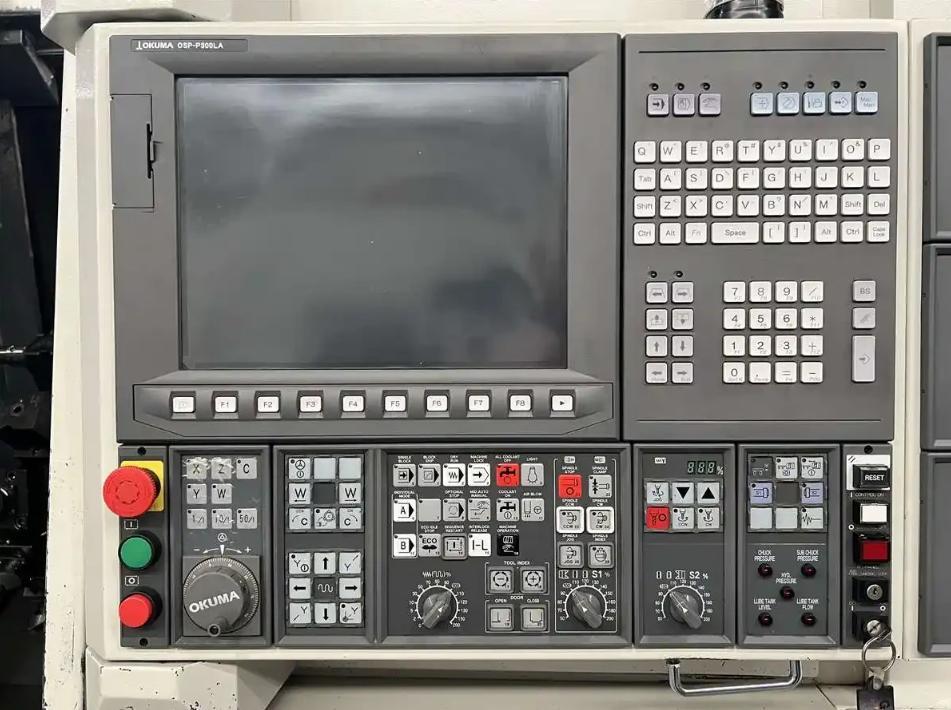

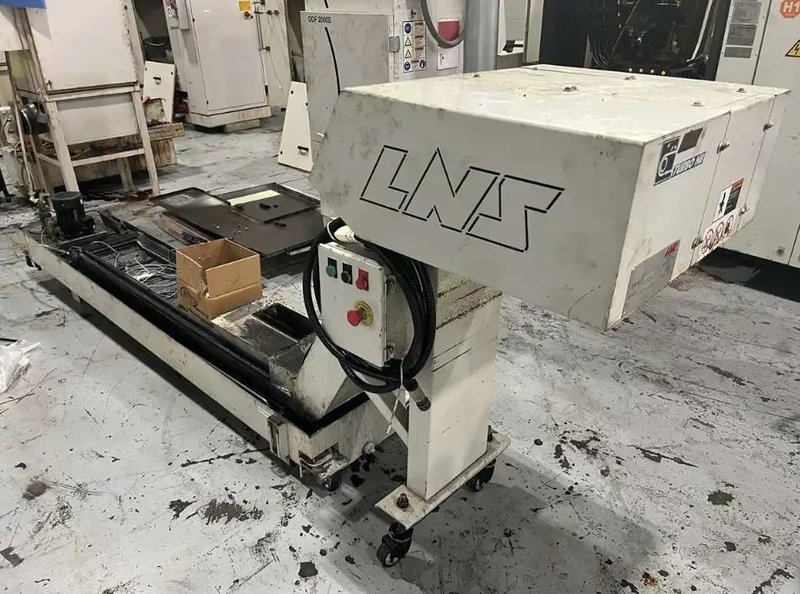

INCLUDES: Okuma OSP-P300LA CNC Control, 30/20 HP Main Spindle, 12 - Position Turret, Subspindle, Live Milling, Y - Axis, LNS Quick Six S2 Bar Feeder, High - Pressure Coolant and Chip Conveyor.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
