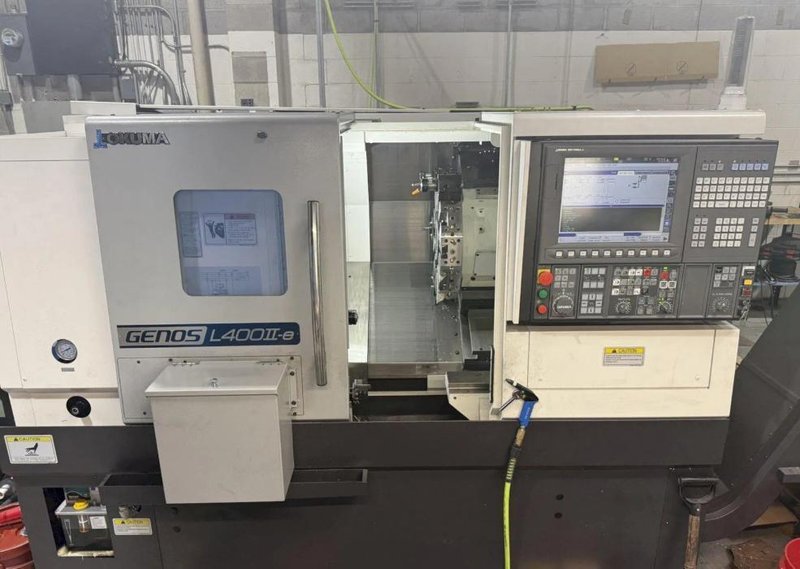

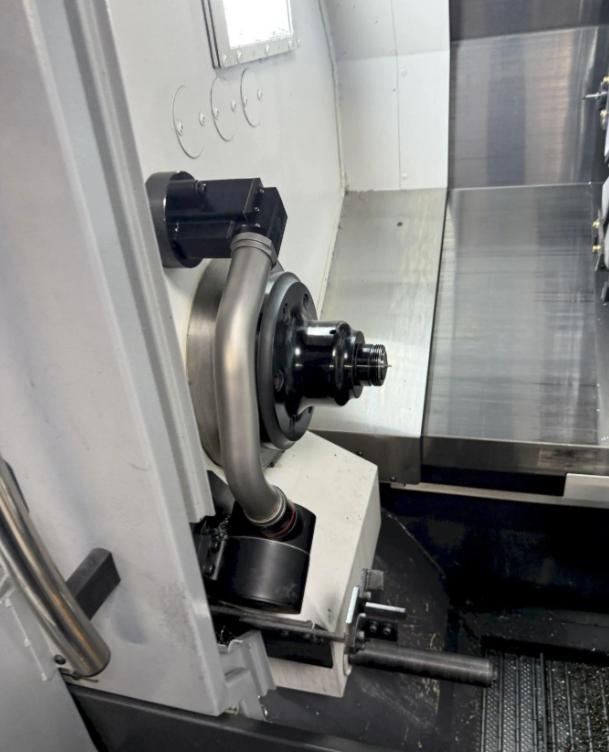

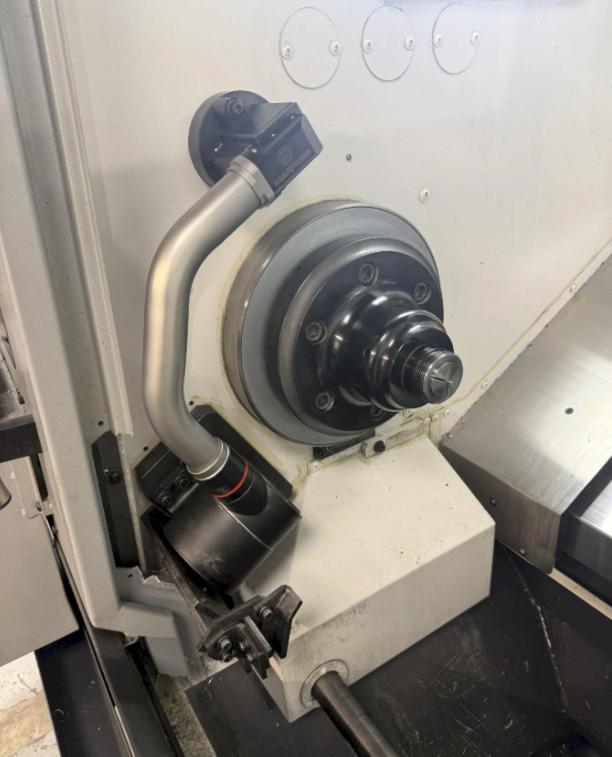

15.35” X 20.47” CNC Lathe with OSP-P300 LA-e CNC Control, Chip Conveyor, Coolant Tank, Programmable Tailstock, Marposs Tool Presetter, Collet Chuck on Main Spindle, 10” Kitagawa Chuck and One - Touch IGF (Conversational Programming)

GENERAL SPECIFICATIONS
Swing:                            20.47”
Turning Diameter:                    15.35”
Center Distance:                    20.47”
Chuck Size:                        10”
Bar Capacity:                        3.15”
X - Axis Travel:                    8.66”
Z - Axis Travel:                    20.47”
Spindle Nose:                    A2-8
Spindle Speed:                    3,000 RPM
Main Motor:                        20 HP

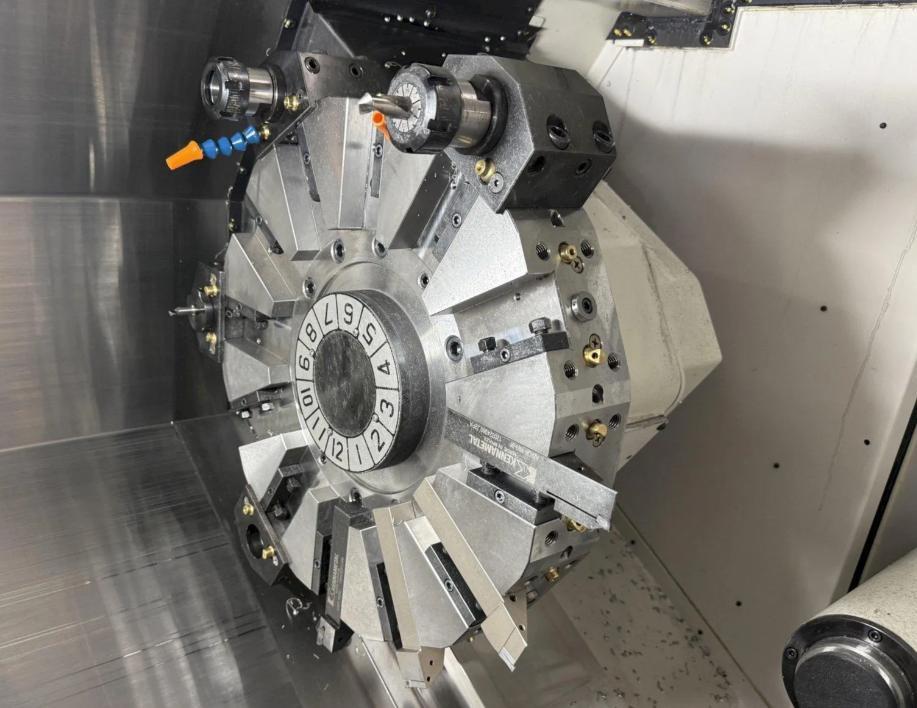

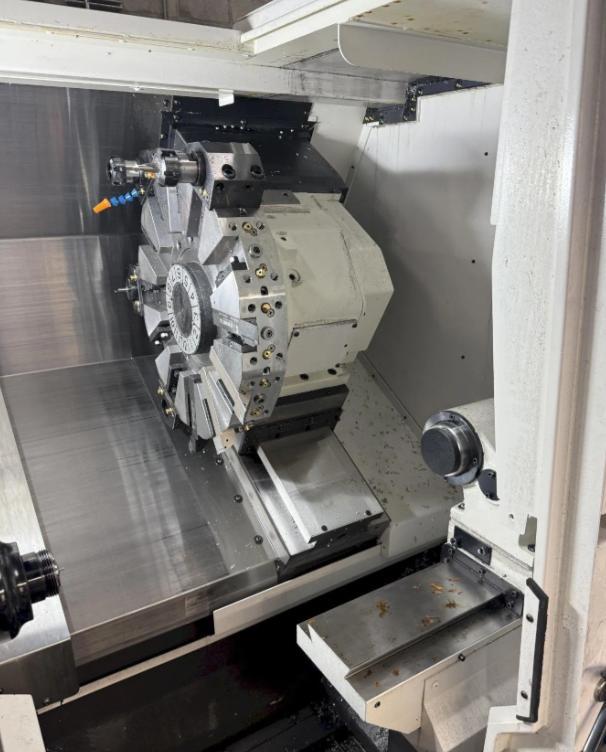

Turret Capacity:                    12
Machine Dimensions:                140” X 85” X 77”
Machine Weight:                    10,000 Lbs

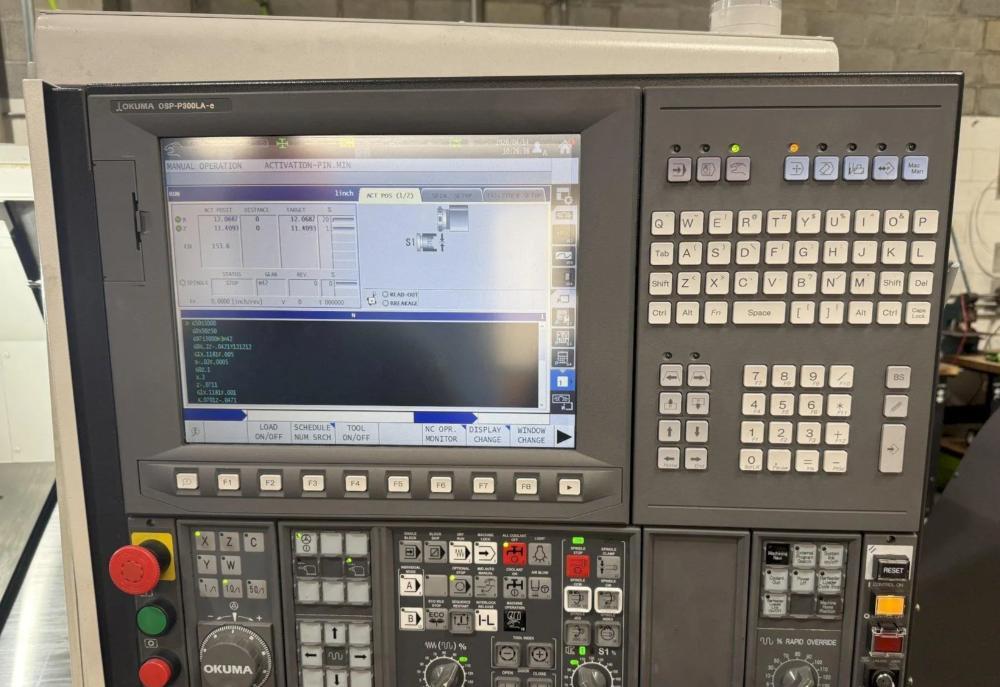

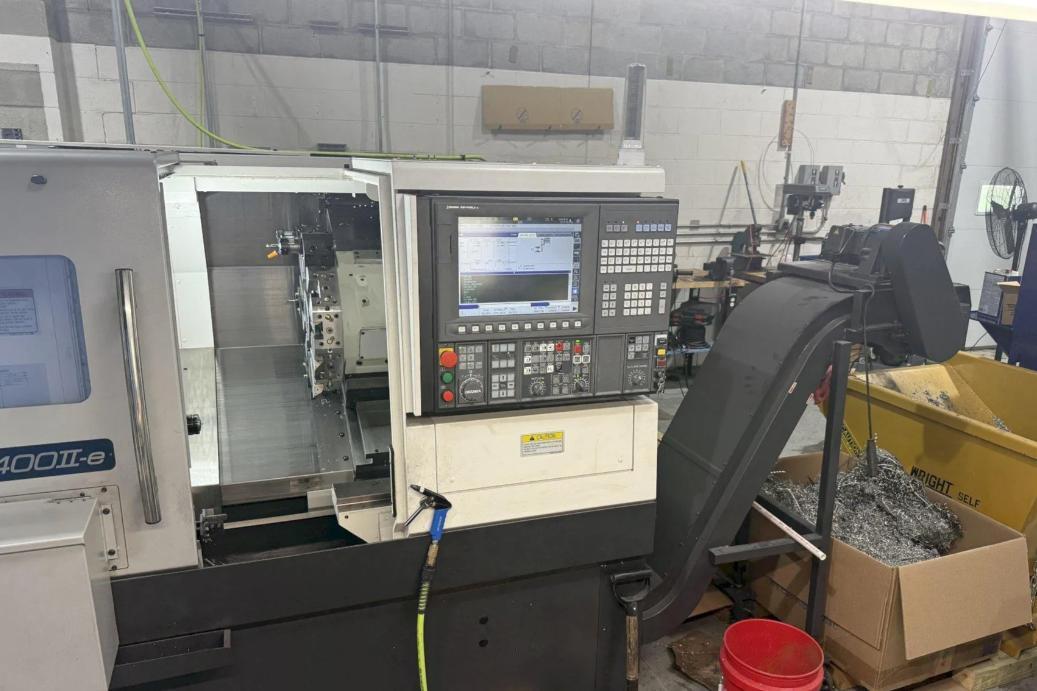

INCLUDES:  OSP-P300 LA-e CNC Control, Chip Conveyor, Coolant Tank, Programmable Tailstock, Marposs Tool Presetter, Collet Chuck on Main Spindle, 10” Kitagawa Chuck and One - Touch IGF (Conversational Programming)

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
