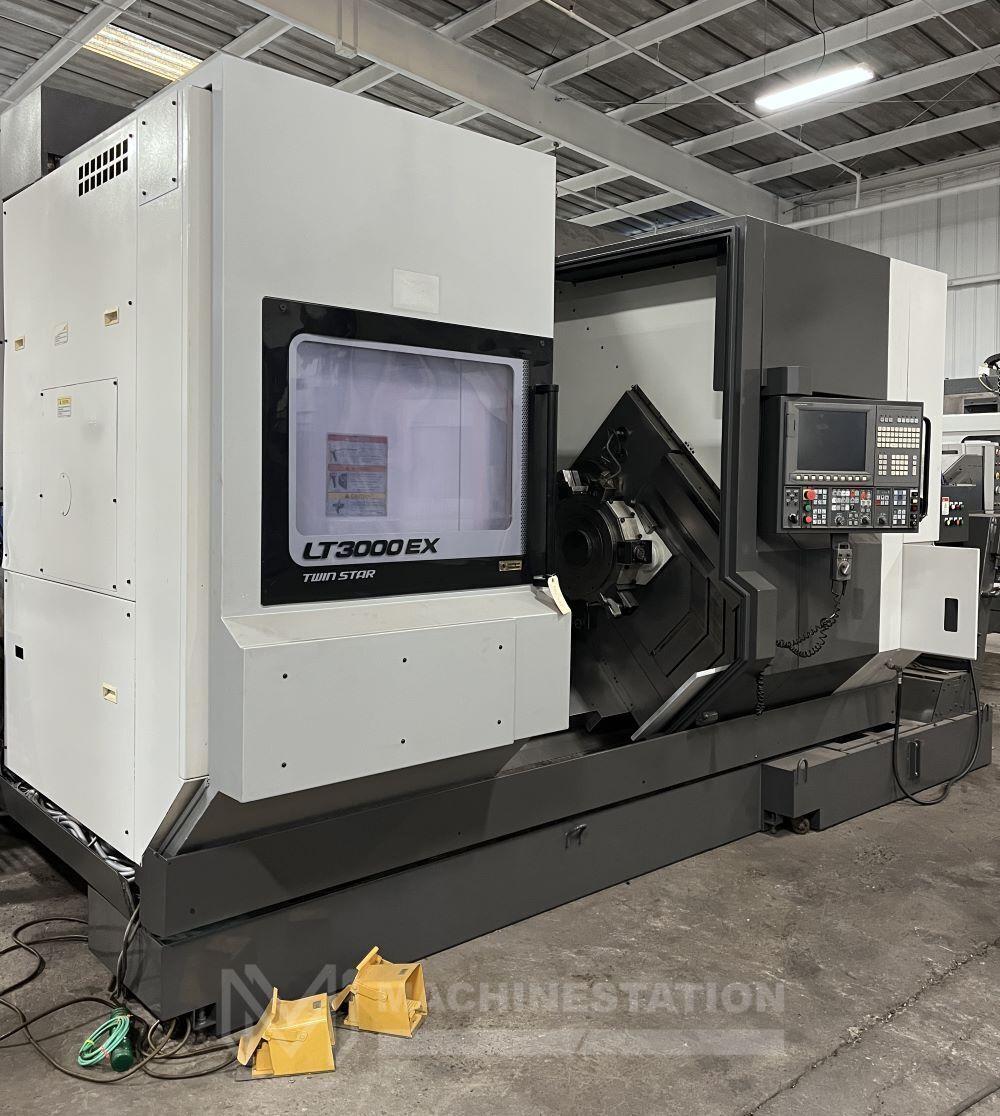

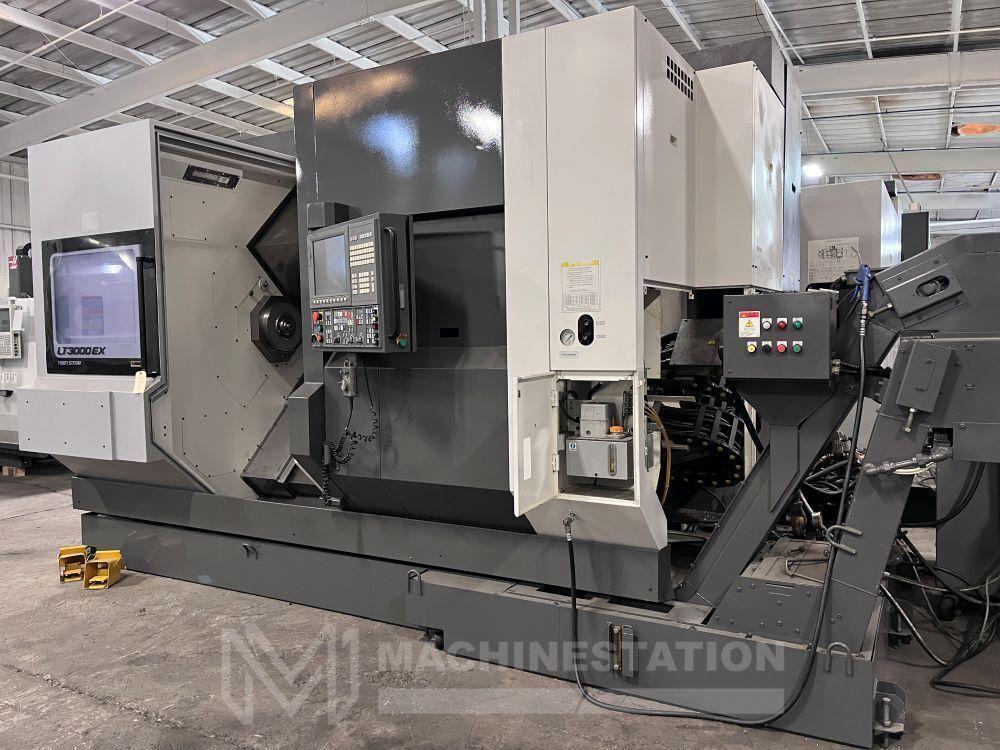

Okuma LT3000 EX 2T2MY Multi Axis CNC Turning Center – Lathe

Okuma LT3000 EX 2T2MY Multi Axis CNC Turning Center – Lathe

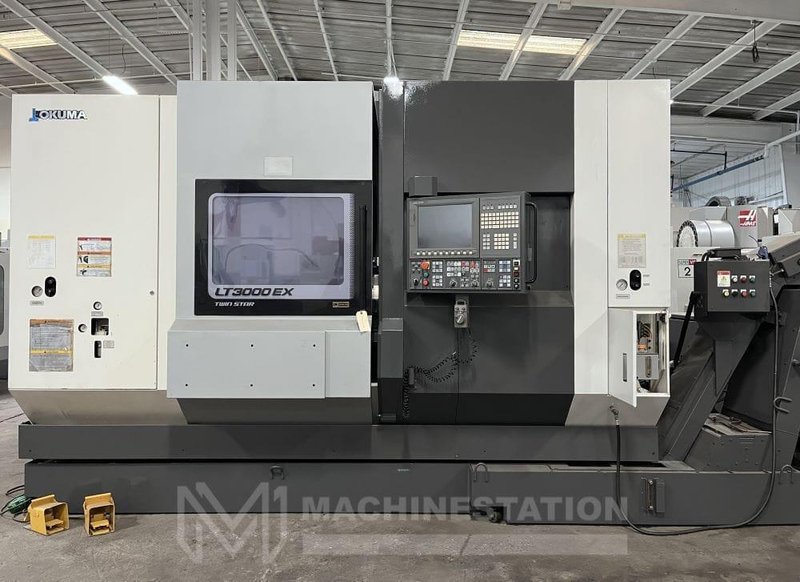

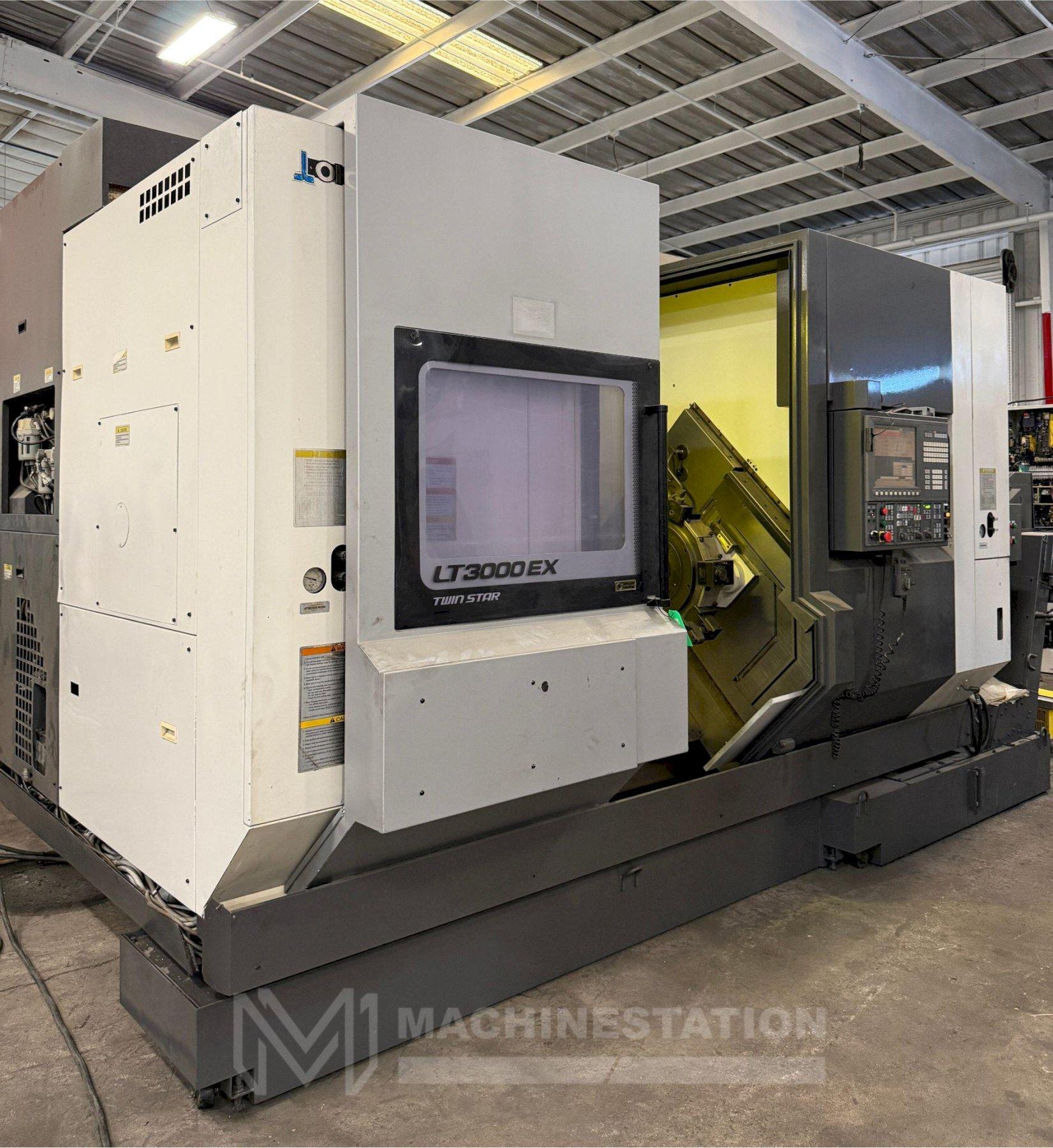

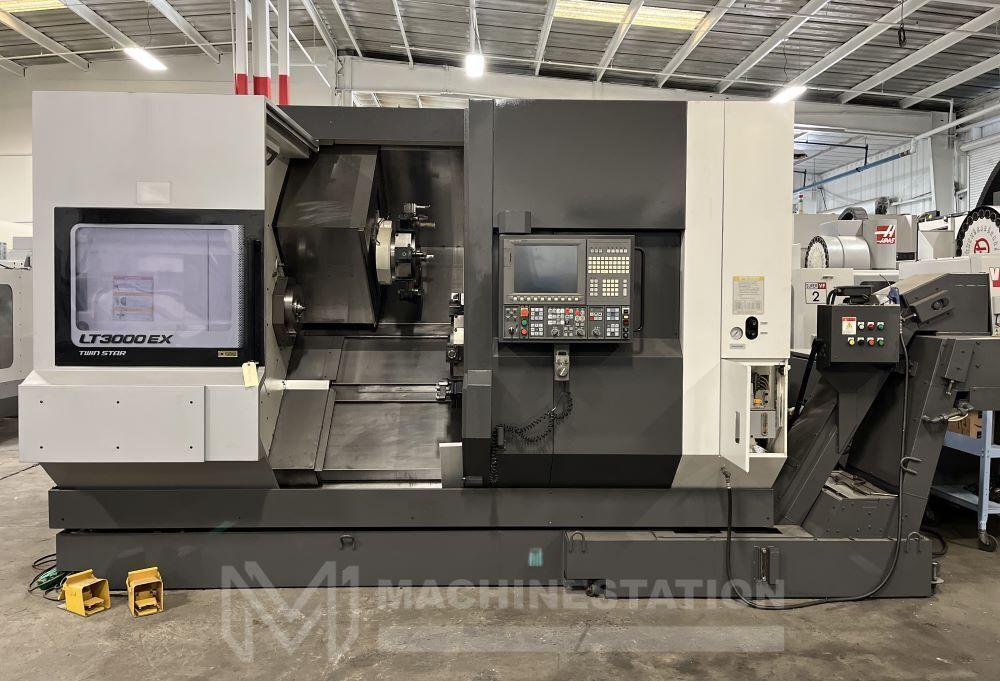

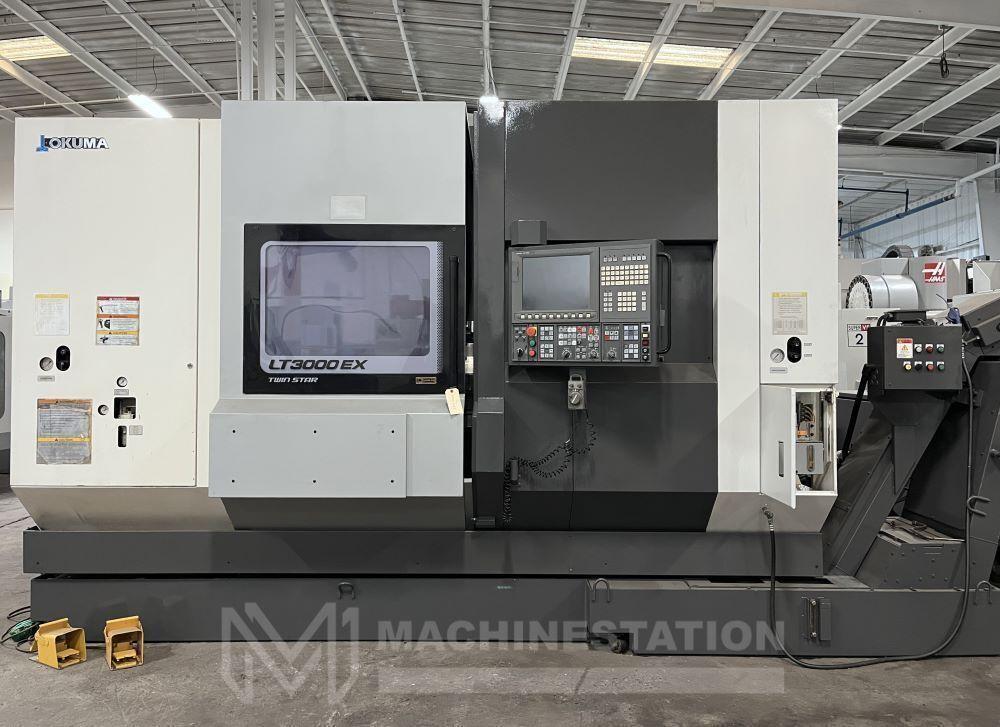

Name: Okuma LT3000 EX 2T2MY Multi Axis CNC Turning Center – Lathe
Brand: OKUMA
SKU: 112424
Availability: InStock

Brand

OKUMA

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112424
Make:	Okuma
Model:	LT3000 EX 2T2MY
Year:	2013

Features:

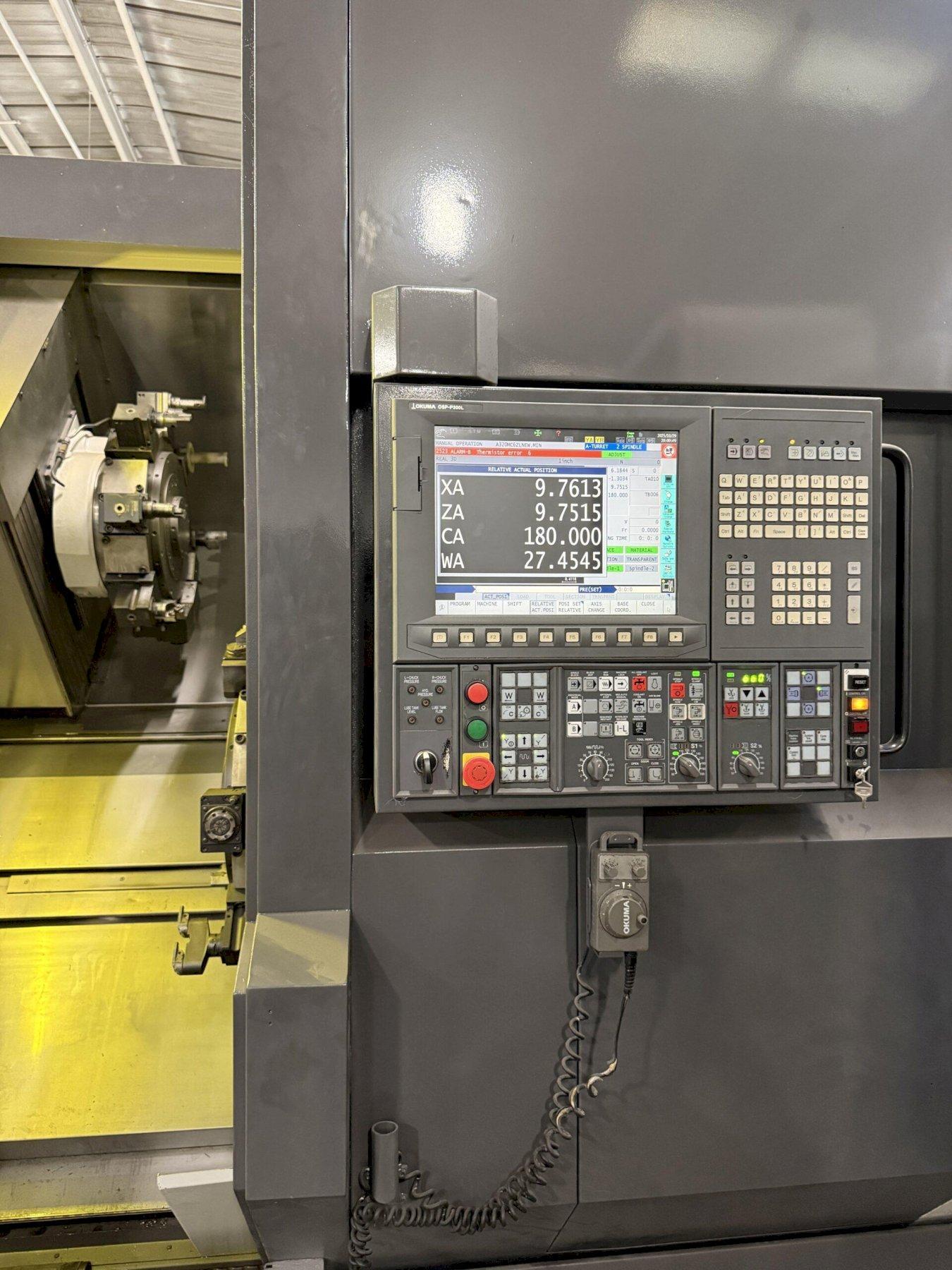

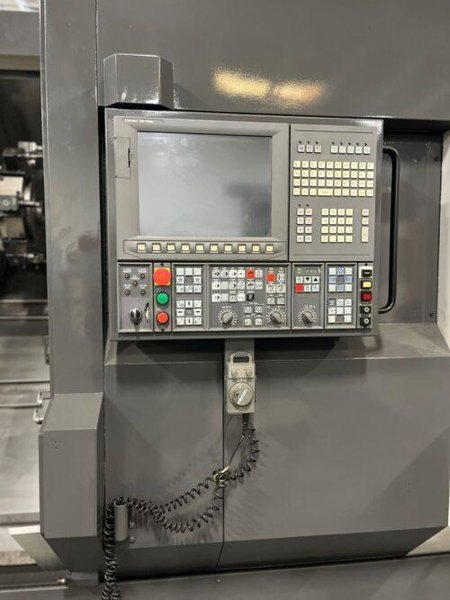

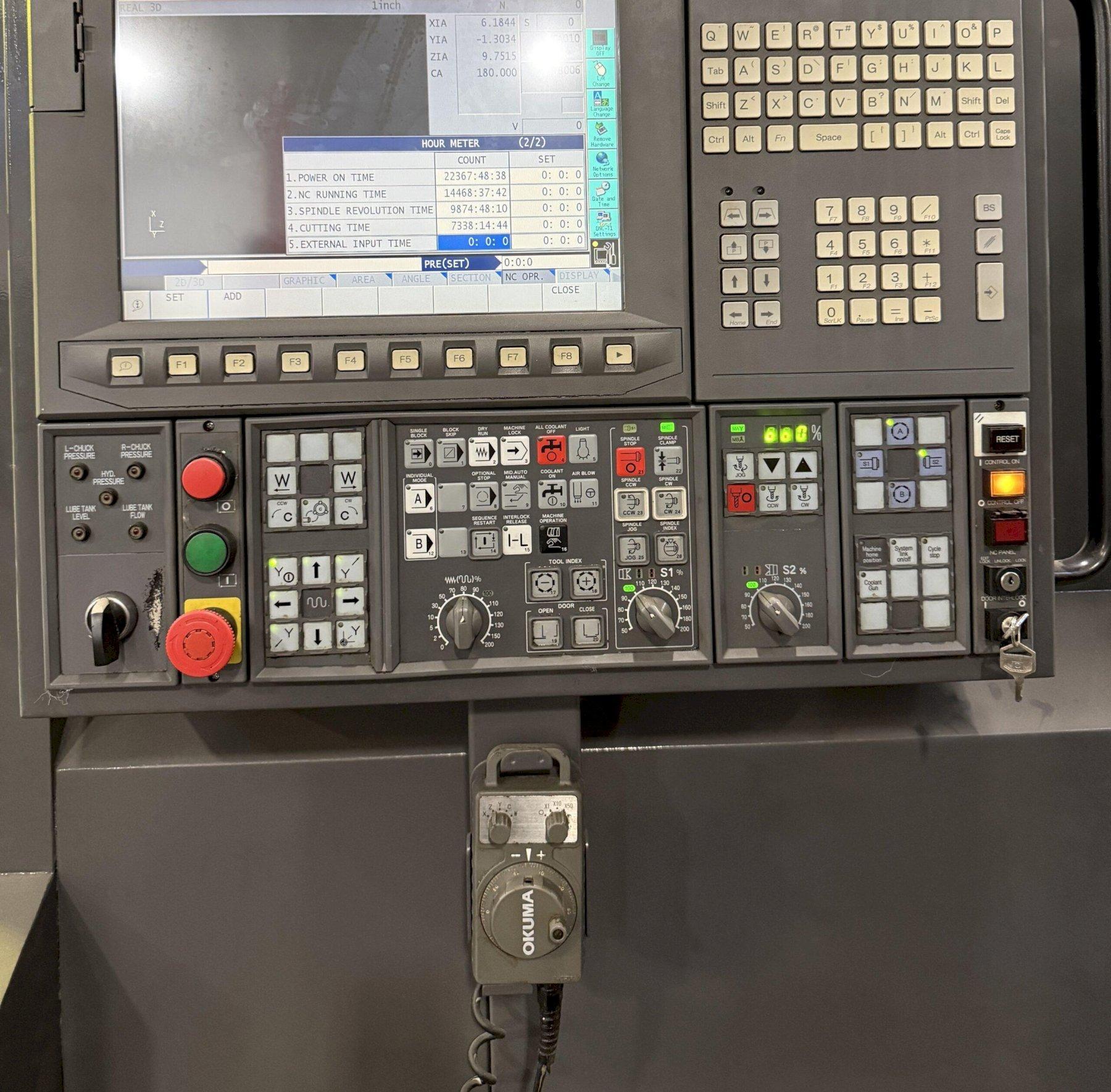

Okuma OSP-P300L CNC Control
16 Station Upper Turret with Live Tool
16 Station Lower Turret with Live Tool
Y Axis Capability on Both Turrets
Servo Controlled Full C-Axis on Both Spindles
A2-6 Main Spindle
A2-6 Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
Coolant System
Chip Conveyor

Capacity:
Max Turning Diameter Upper Turret: 13.78 inch
Max Turning Diameter Lower Turret: 13.78 inch
Max Swing Over Saddle : 21.66 inch
Max Turning Length: 7.88 inch
Max Bar Capacity Main Spindle : 2.56 inch
Max Bar Capacity Sub Spindle : 2.56 inch

Travels:
X1 Axis Travel Upper : 10.04 inch
X2 Axis Travel Lower : 10.04 inch
Y1 Axis Travel: 4.92 inch
Y2 Axis Travel: 4.92 inch
Z1 Axis Travel Upper : 36.61 inch
Z2 Axis Travel Lower : 36.61 inch
W Axis Travel: 37.01 inch ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle

Feedrate:
X Axis: 1181 IPM Rapid Traverse
Y Axis: 787 IPM Rapid Traverse
Z Axis: 1575 IPM Rapid Traverse
W Axis: 1575 IPM Rapid Traverse

Spindle:
Main Spindle Bore: 3.15 inch
Sub Spindle Bore: 3.15 inch
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-6
Main Spindle Speed: 45 – 5000 RPM
Sub Spindle Speed: 45 – 5000 RPM
Main Spindle Power: 30 HP
Sub Spindle Power: 20 HP

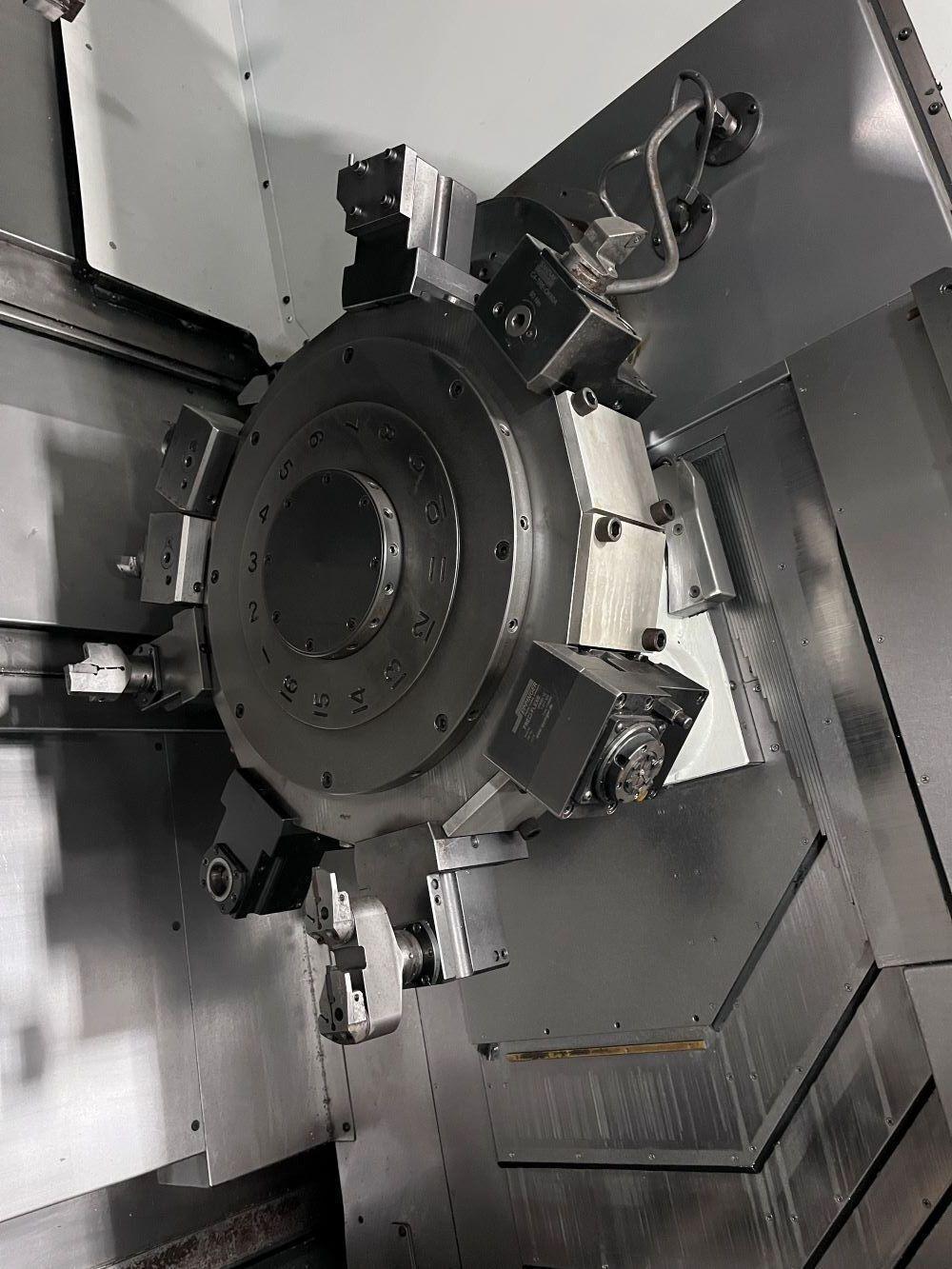

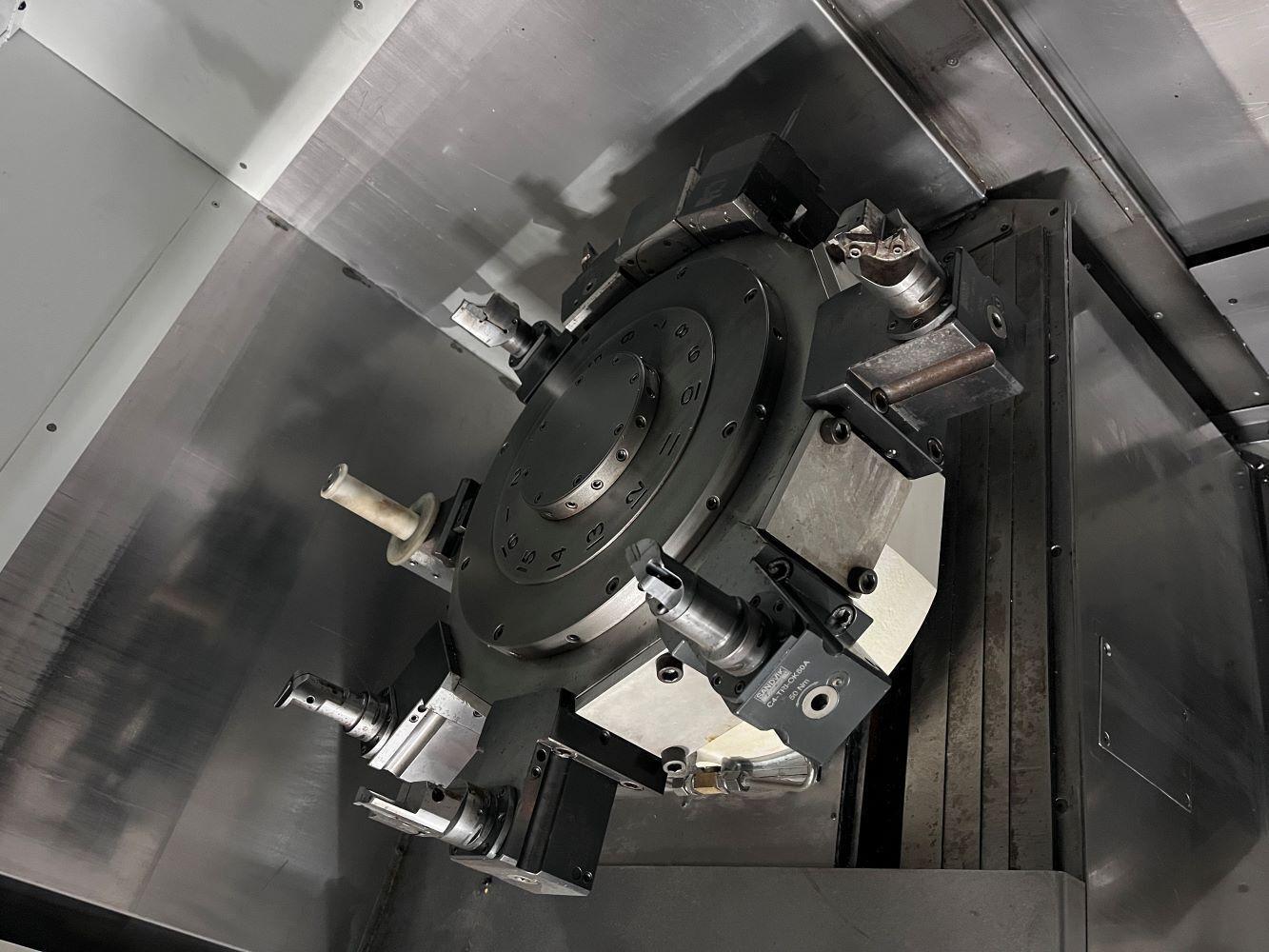

Turret:
Turret Type: Multitasking V16
Upper Turret Capacity: 16 Stations
Lower Turret Capacity: 16 Stations
Live Tool Speed: 45 – 6000 RPM
Live Tool Power: 9.5 HP

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 56.8 kva
Overall Dimensions: 177.32 inch x 108.27 inch x 104.33 inch
Weight: 24,640 lbs Approx.
