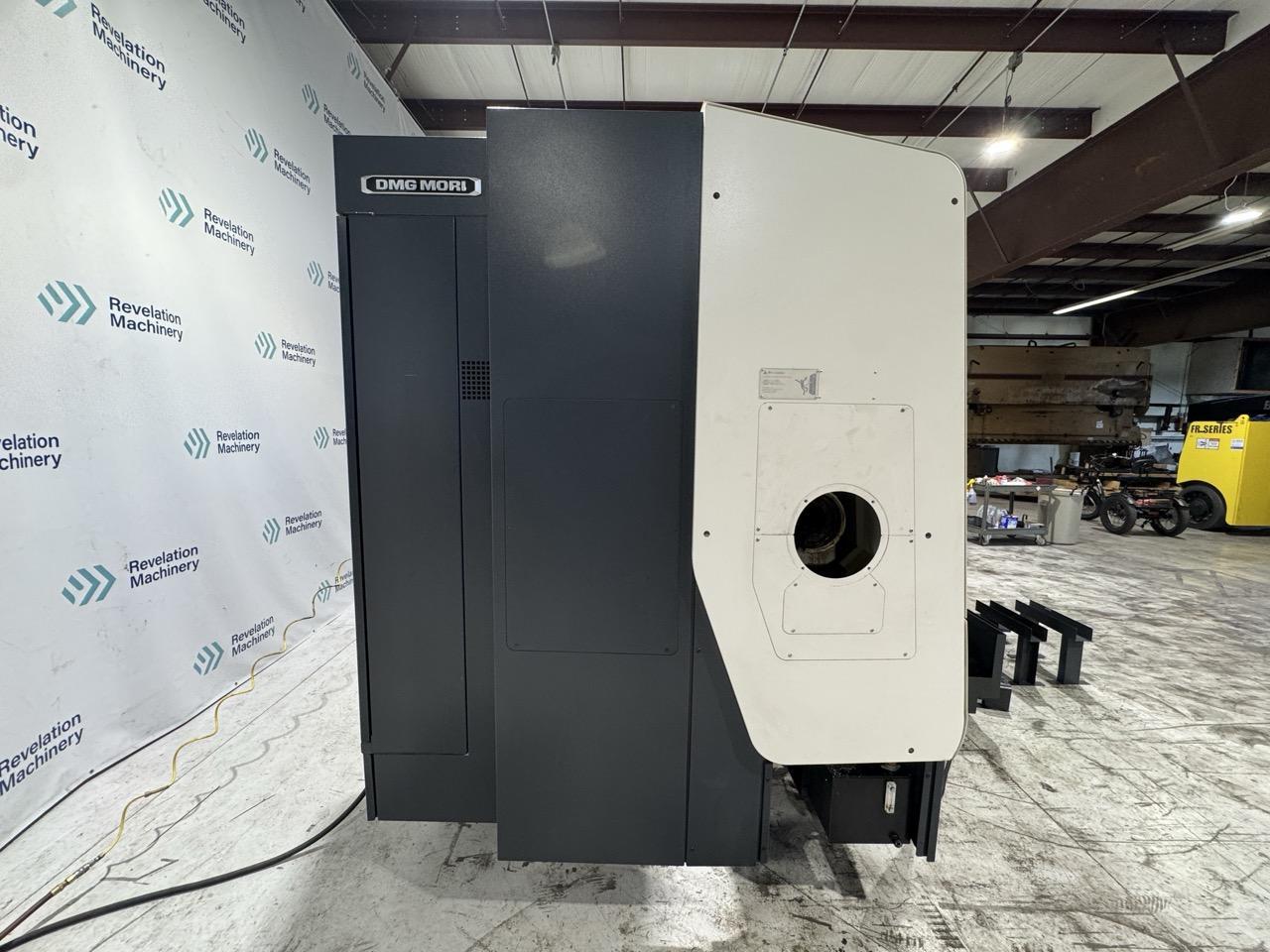

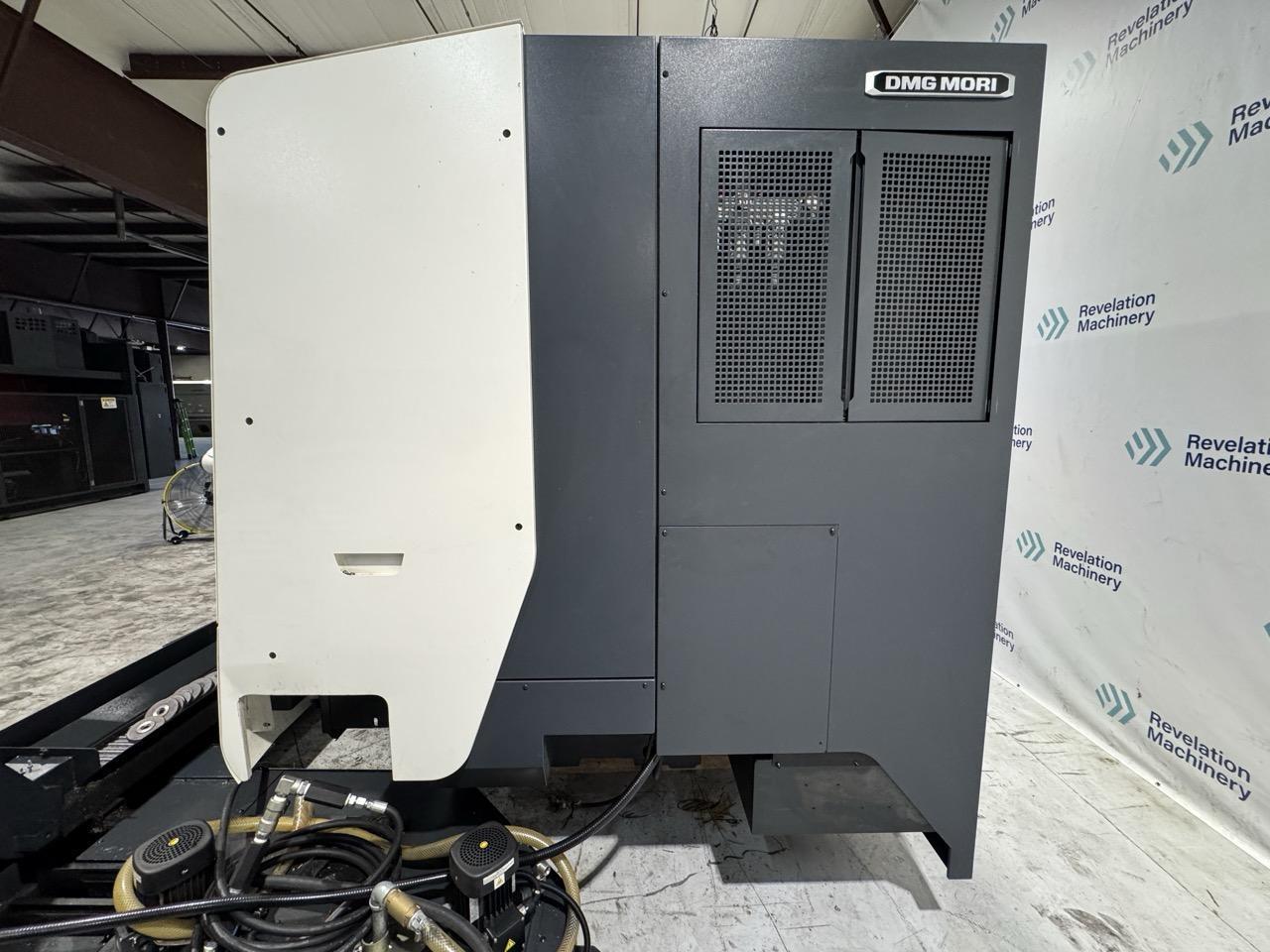

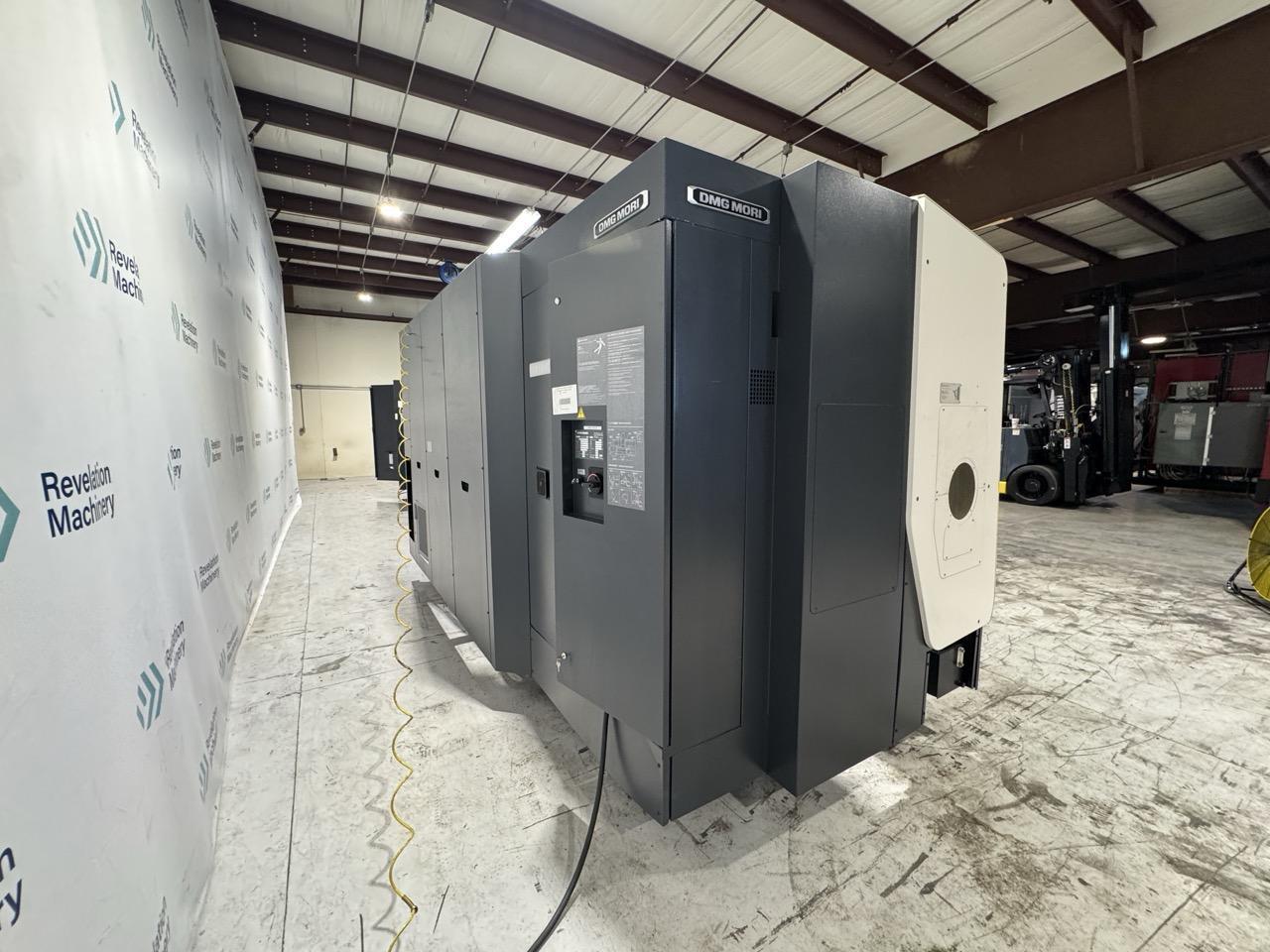

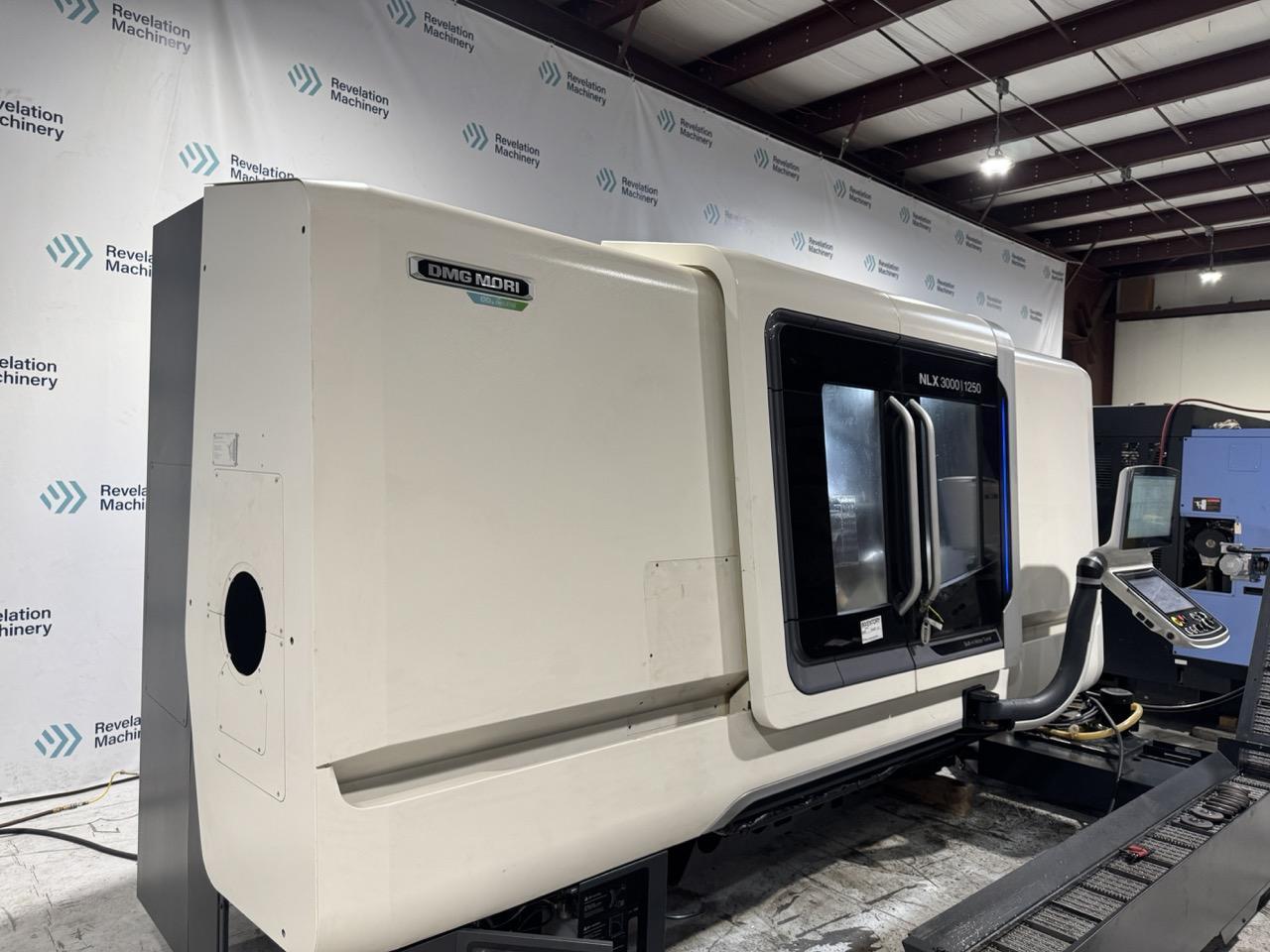

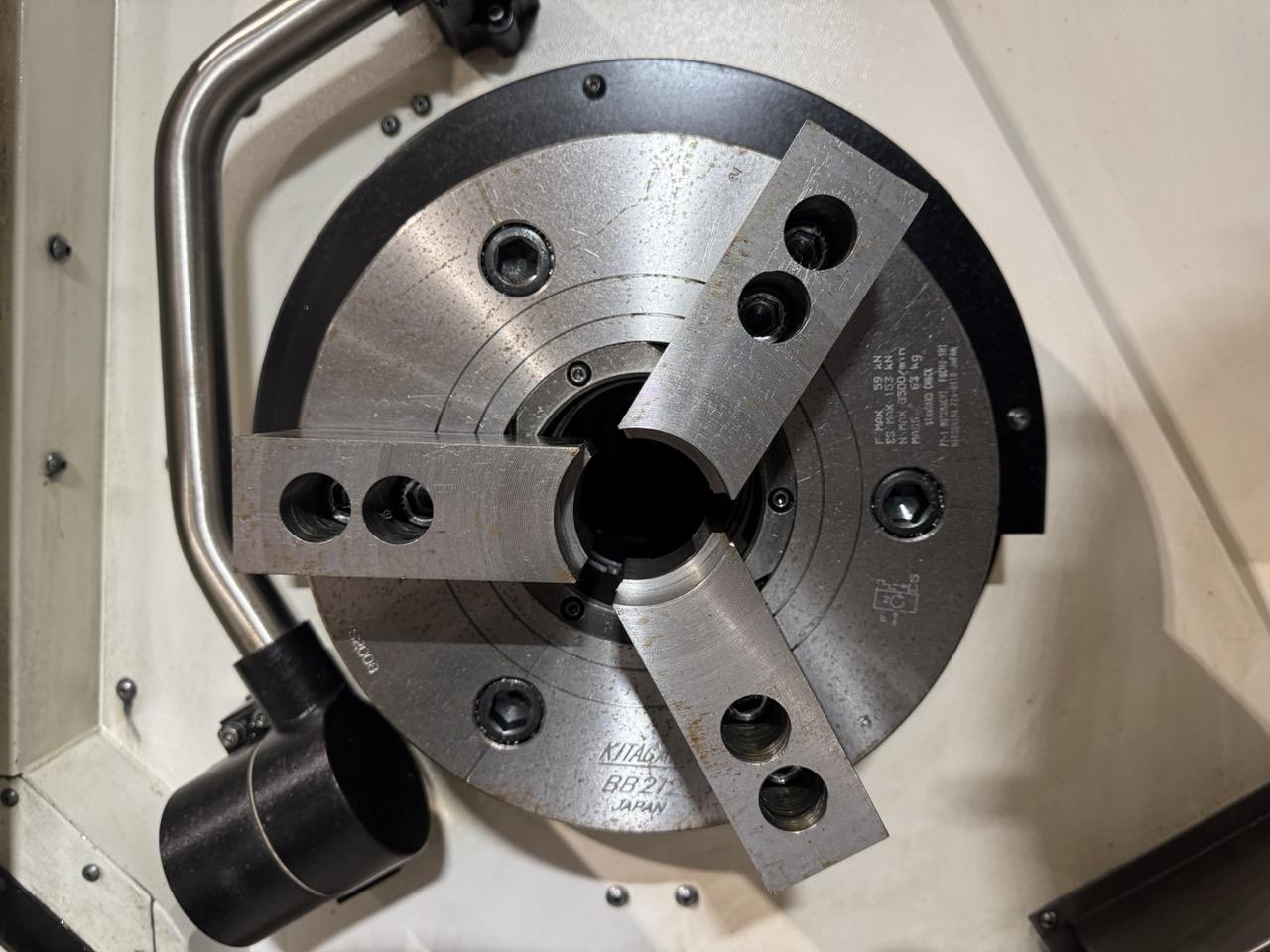

DMG Mori NLX 3000/1250 CNC Turning Center, 2022 – 12″ Chuck, Long-Bed CNC Lathe

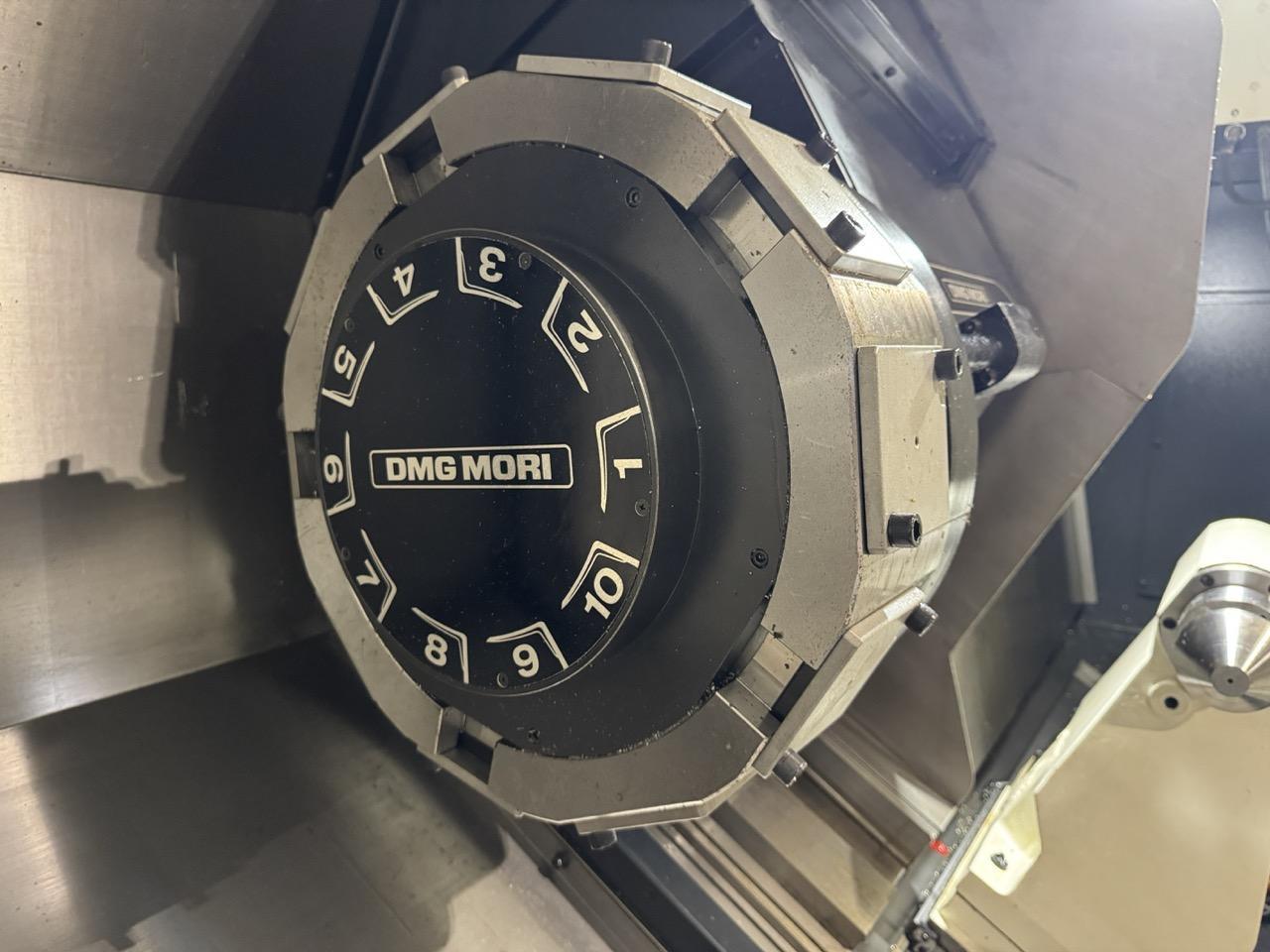

The 2022 DMG MORI NLX 3000/1250 is a high-rigidity heavy-duty turning center engineered for exceptional vibration damping and thermal stability during high-precision machining. Featuring a Built-in Motor Turret (BMT) and a generous 49.6-inch max turning length, this machine is optimized for complex milling and turning operations in high-production environments

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Turning Diameter: 16.9″ Max Turning Length: 49.6″ Max Bar Capacity: 3.5″ X-Axis Travel: 11.0″ Y-Axis Travel: ±2.4″ Z-Axis Travel: 53.9″ Spindle Speed: 3,000 RPM Spindle Nose: A2-8 Spindle Motor: 30 HP Turret Capacity: 12 Station Rotary Tool Speed: 10,000 RPM Approximate Machine Weight: 19,620 lbs. Approximate Dimensions (LxWxH): 209″ x 98″ x 95″

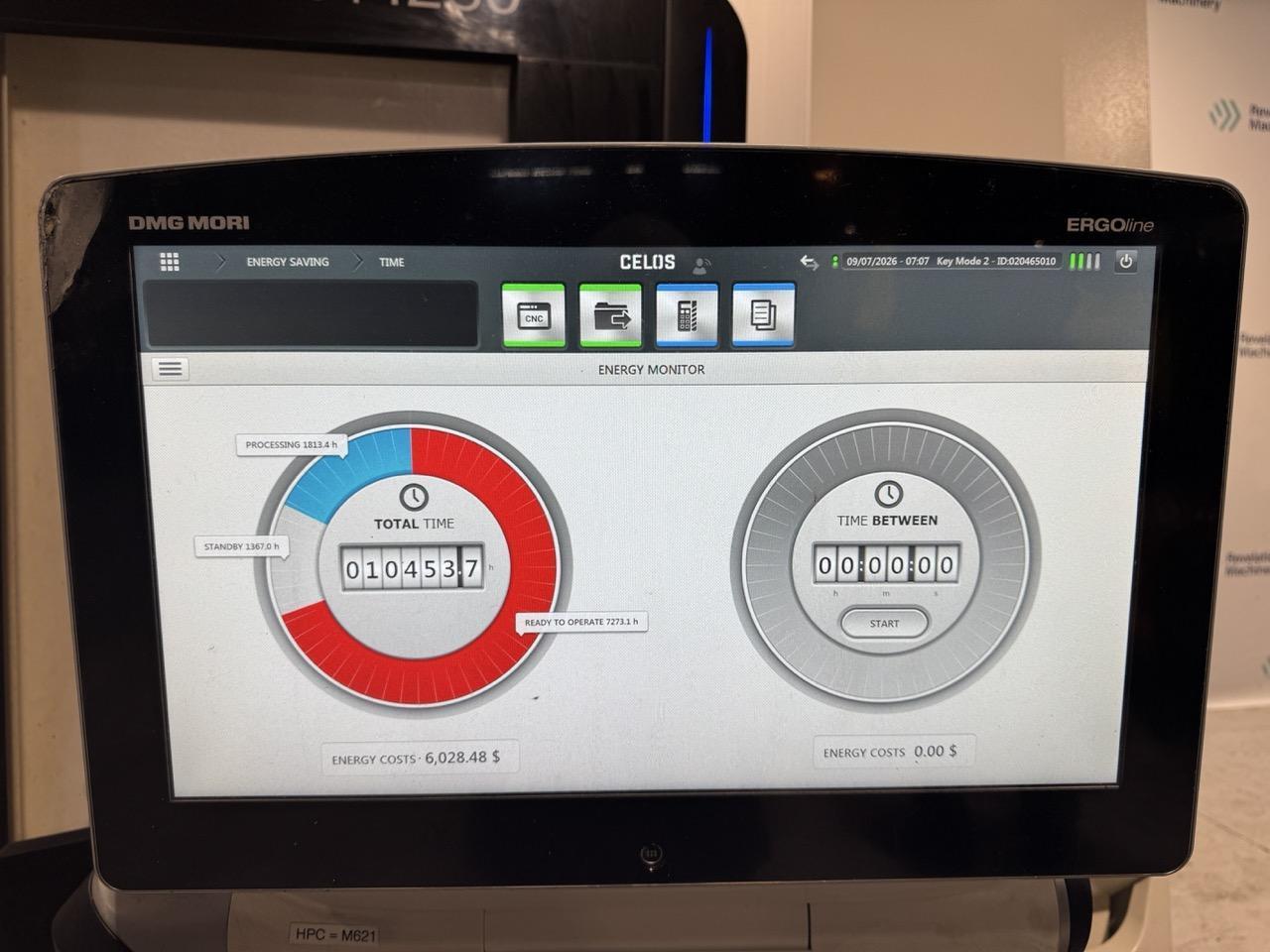

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: ERGOline Touch Screen with CELOS / MAPPS Control Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
