PLATT/MONTBARD 20 TON SINGLE PULL DRAWBENCH & STRAIGHTENING LINE (14726)

PLATT/MONTBARD 20 TON SINGLE PULL DRAWBENCH & STRAIGHTENING LINE
STOCK #14726

DRAWBENCH TECHNICAL DATA

Manufacturer: Samuel Platt Ltd
Model: DS
Year of Manufacture: 1969
Drawing Force: 20 Tons
Breaking Strain: 72 Tons
No. of Bars Capacity: Single
Round Bar Working Range
Single Bar: Ø50.8mm (2”)
45kg/mm2
Some Dies for Hexagons and Squares included
Max. Bar Length: 8m
Main Motor
Power: 118 kW DC
Speed: 1650/2400 RPM
Voltage: 440
Current: 290 AMPS
Push Pointer Force 40 Ton

COMPRISES

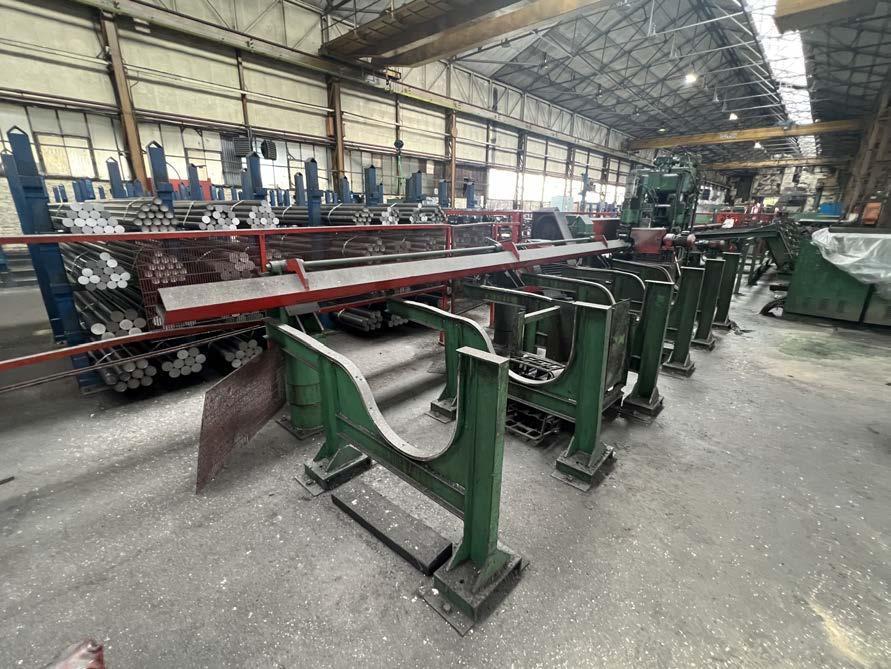

Bar Storage Rack
Inclined Loading Tabe

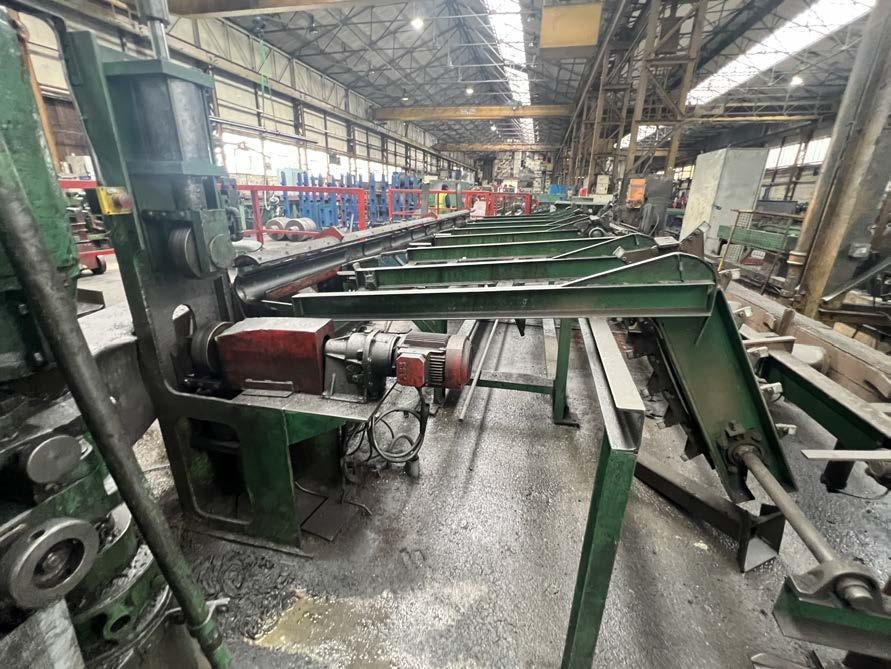

Entry Roller Table
Push Pointer
Die Head
Drawing Bench
Drawing Carriage
Main Drive Motor
Gearbox
Bar Ejection to Inclined Transfer Table
Roller Table to Bandsaw
Bandsaw

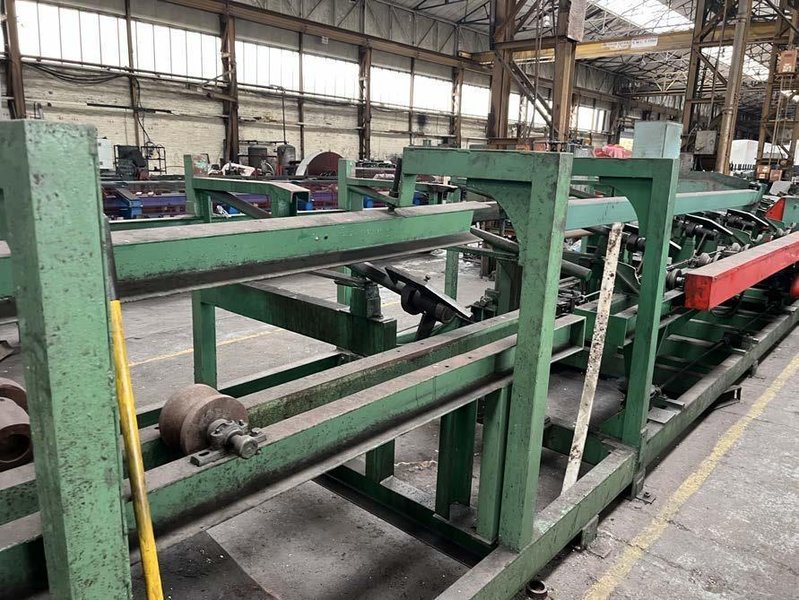

Roller Exit Table to Straightener

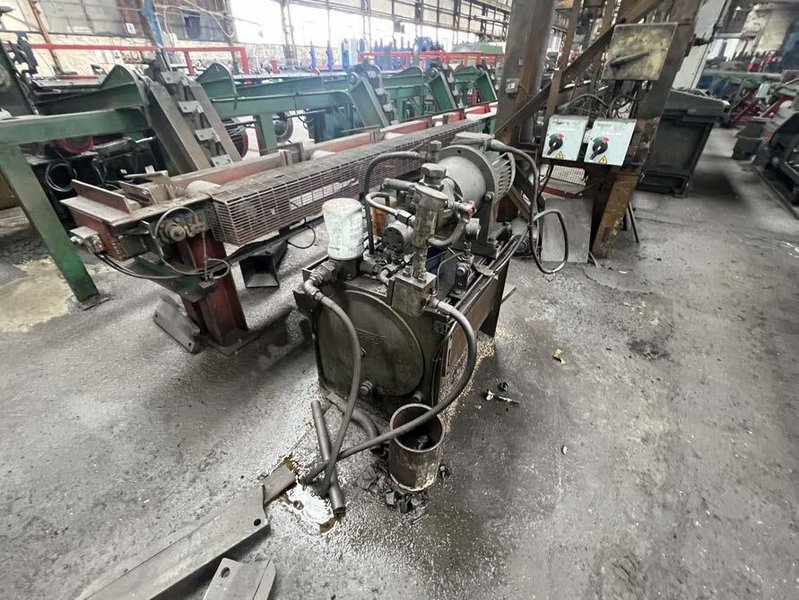

Lubrication System

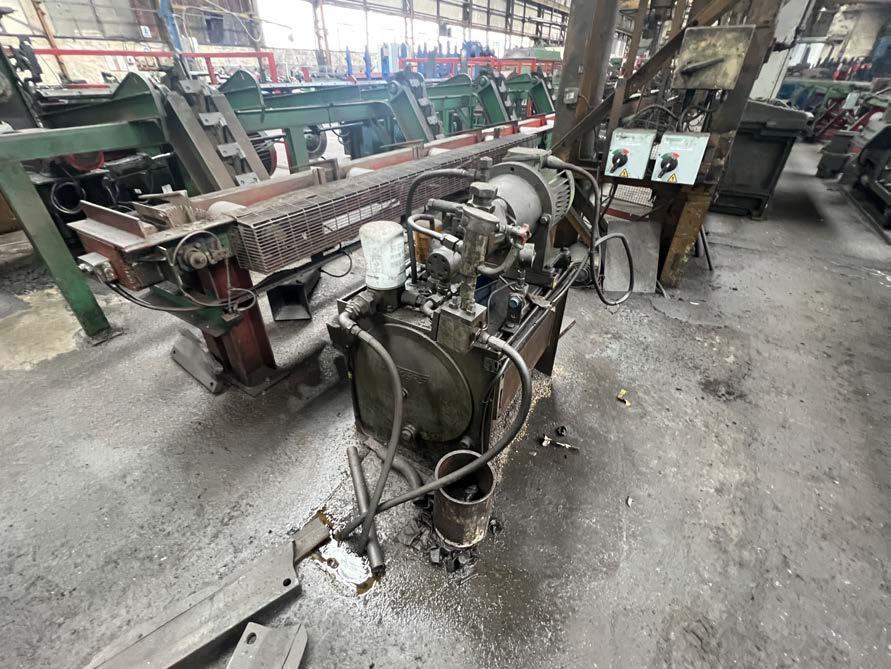

Hydraulic Power Pack
Electrical Controls
Tooling - Drawing Dies and Grippers

STRAIGHTENER TECHNICAL DATA
Manufacturer: Montbard, France
Model: VBM 75
Year of Manufacture: 1968
Design: 2-Roll Vertical
Diameter Range
30/40 kg/mm2  Ø16 - 75mm
60/70 kg/mm2  Ø16 - 55mm
80/90 kg/mm2  Ø16 - 50mm
Max. Bar Length: 8m
Straightening Speed: 15/30 m/min
Roll Dimensions
Diameter: 290mm
Length: 380mm
Feed Direction: Right to Left

COMPRISES

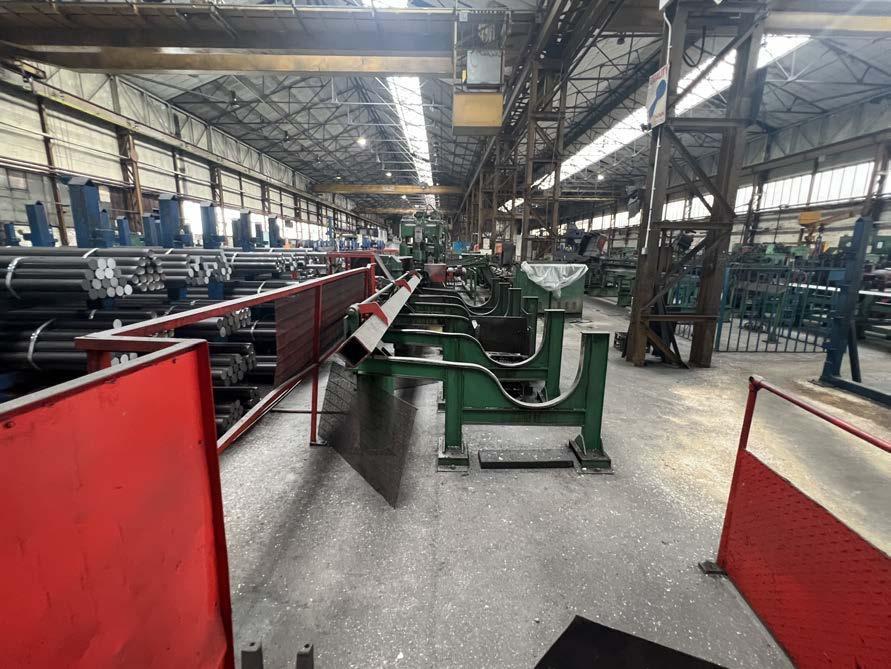

Straightener Bar Storage Rack
Entry Trough
Pneumatic Lid

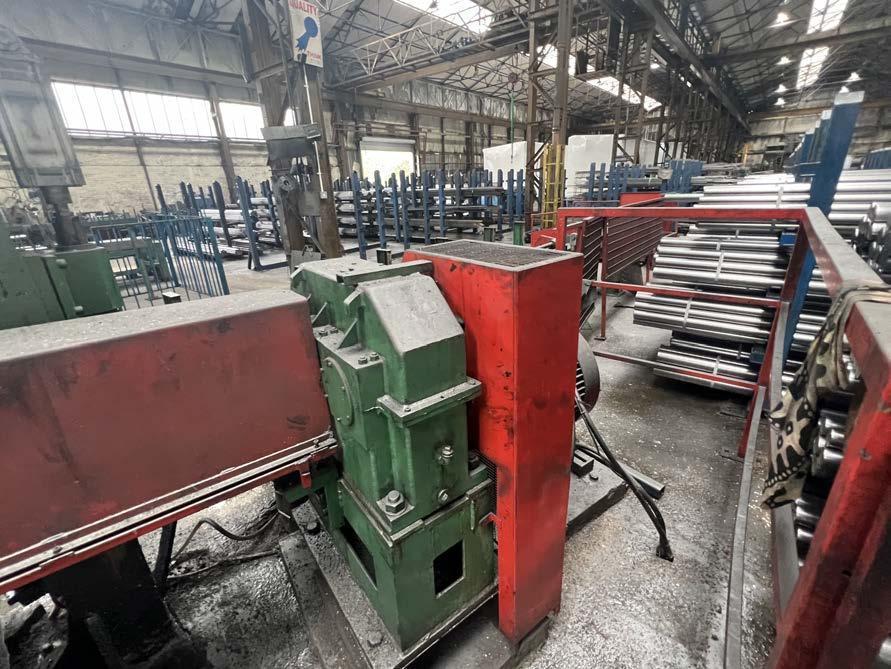

Pinch Roll Unit

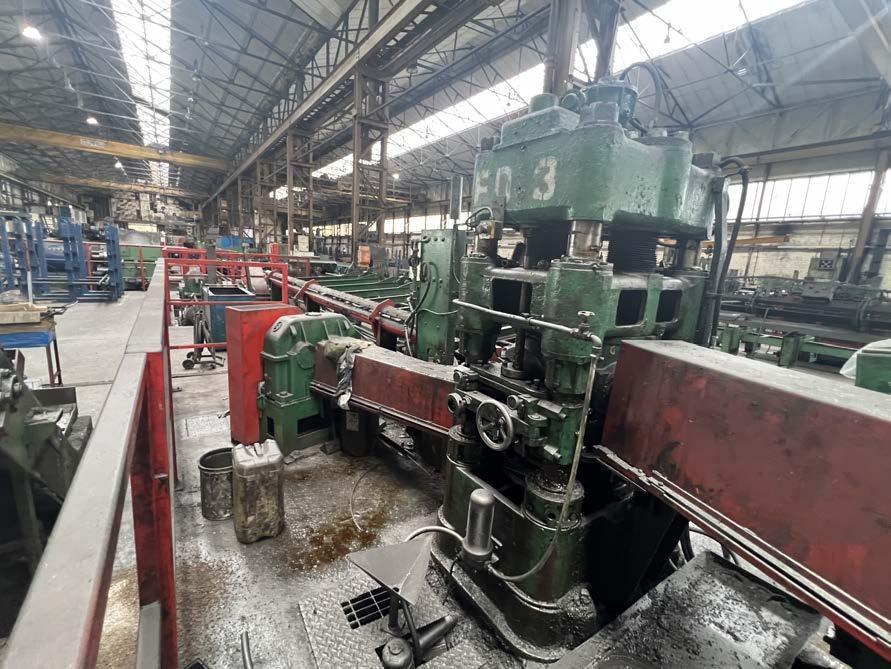

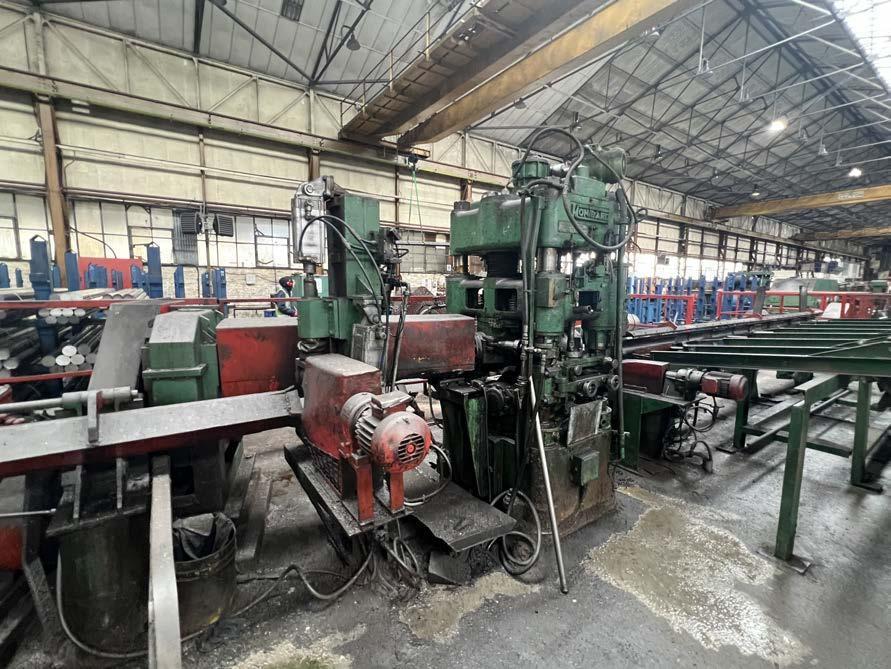

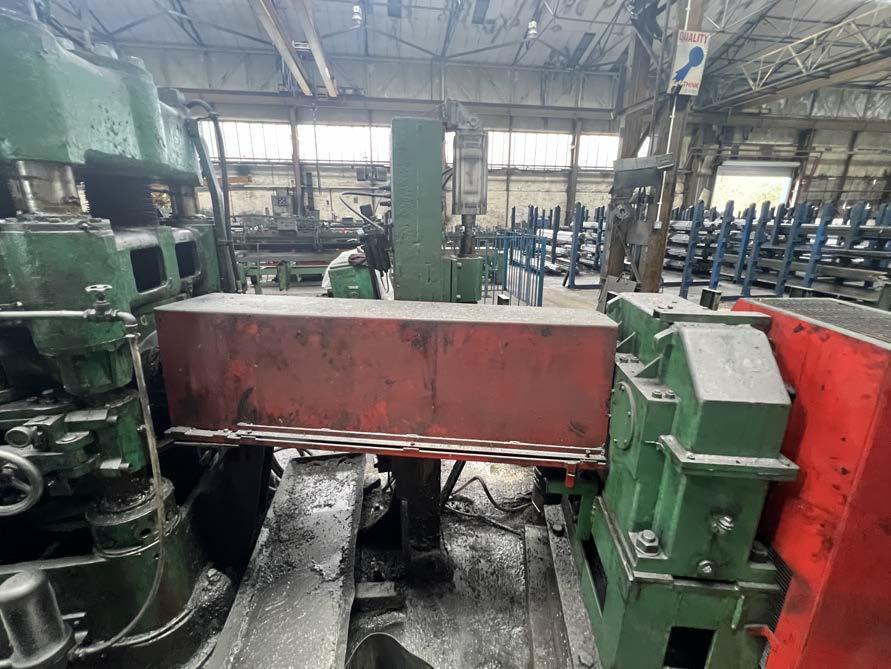

Straightener
Motorized Adjustment
Two (2) Motor/Gearboxes
Exit Pinch Roll
Exit Trough
Inclined Bar Ejection to Collection Pockets
Collection Pocket Table
Dual Pockets
Lubrication System
Hydraulic Power Pack
Electrical Controls

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS SUBJECT TO VERIFICATION**
