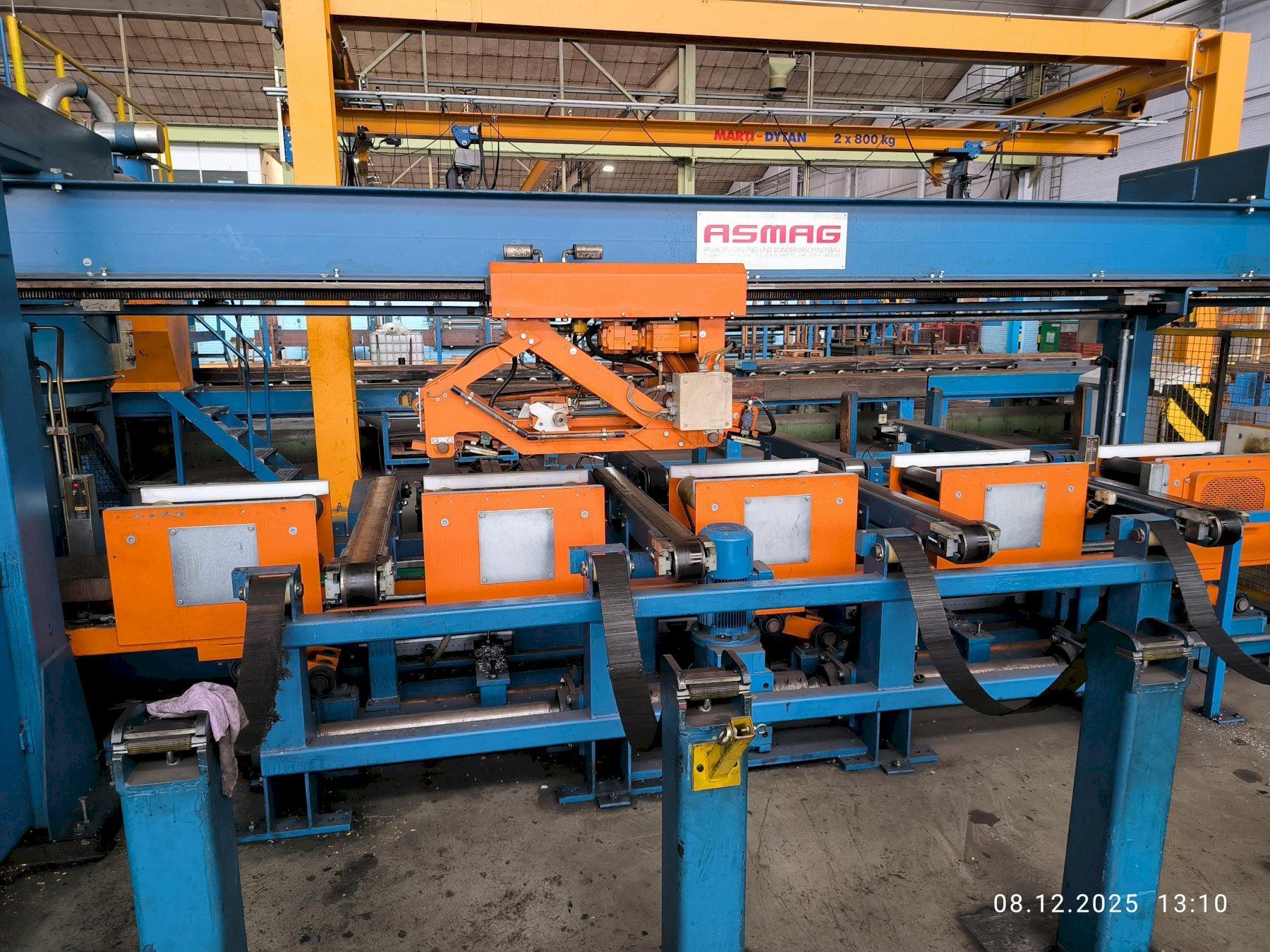

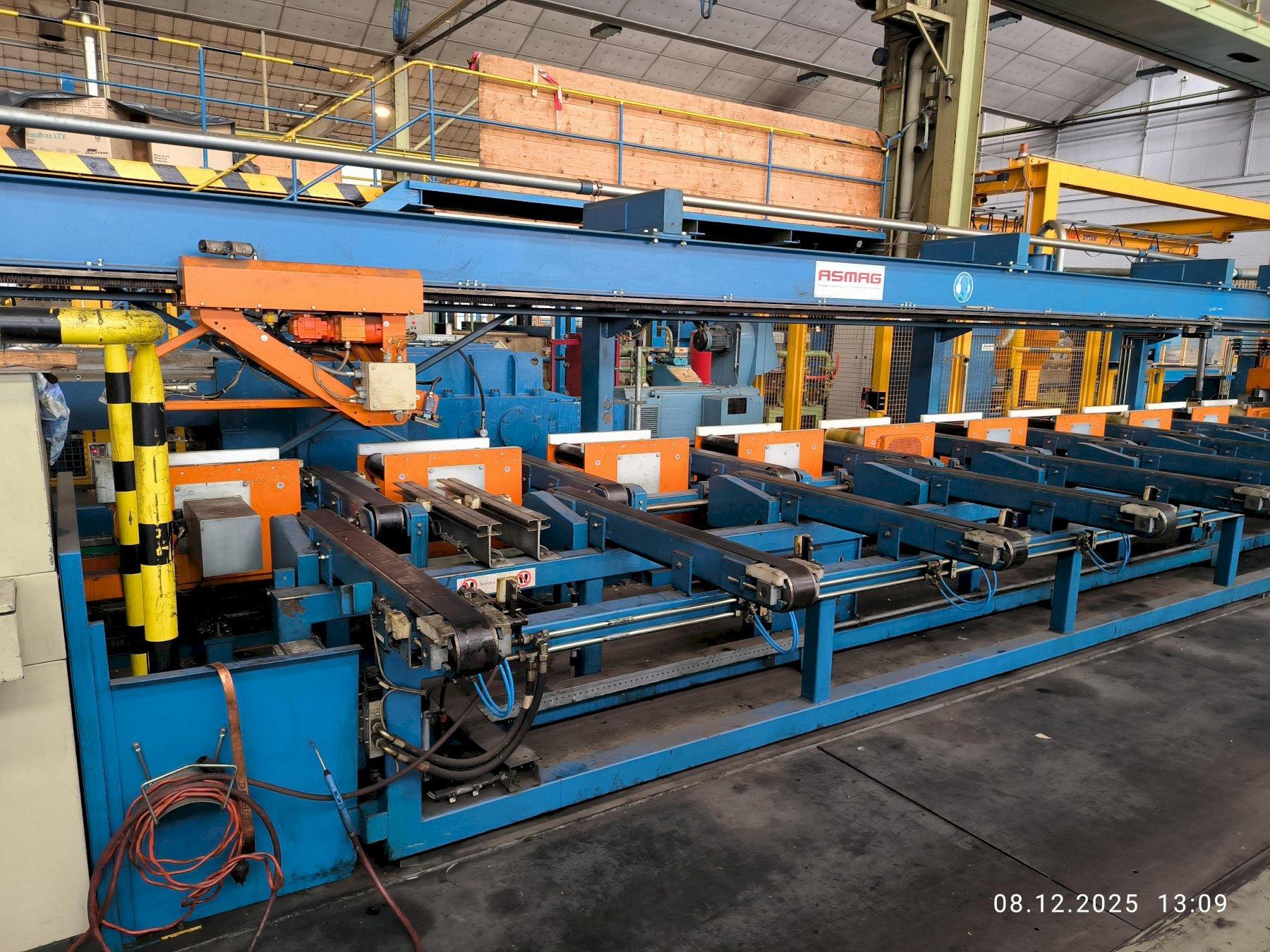

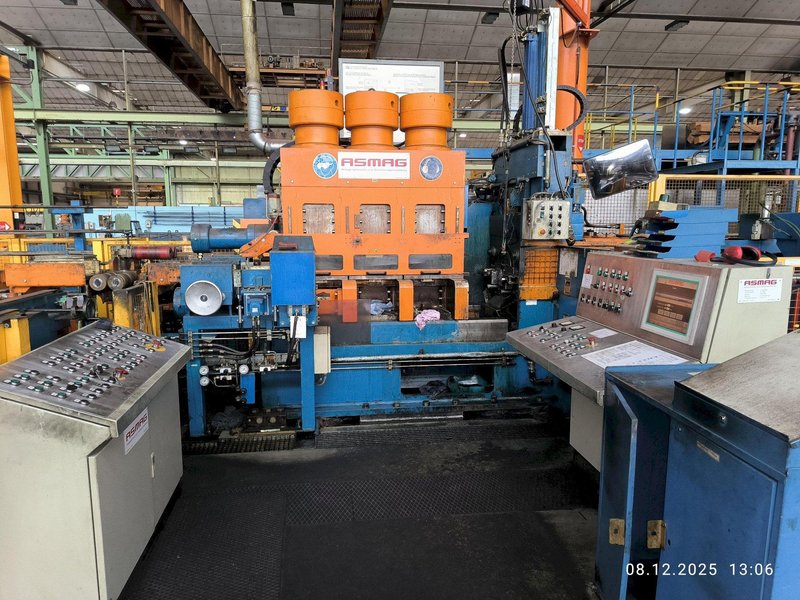

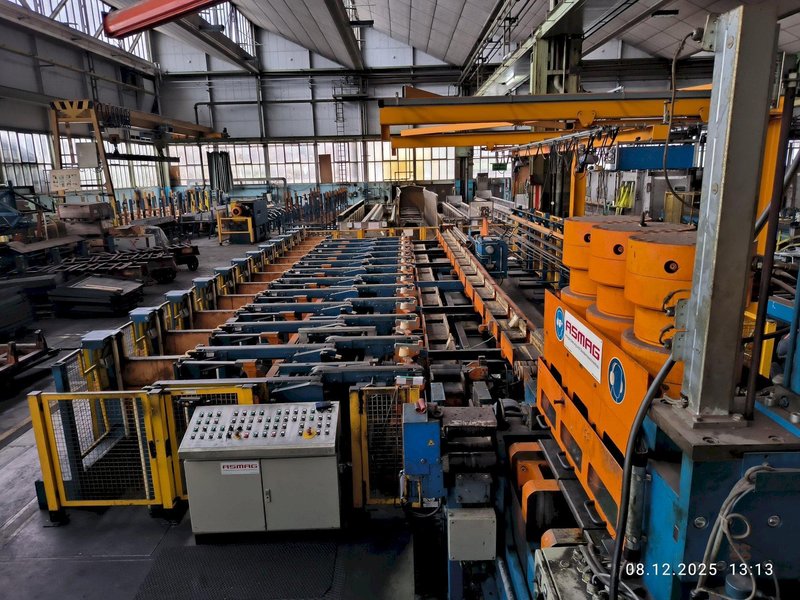

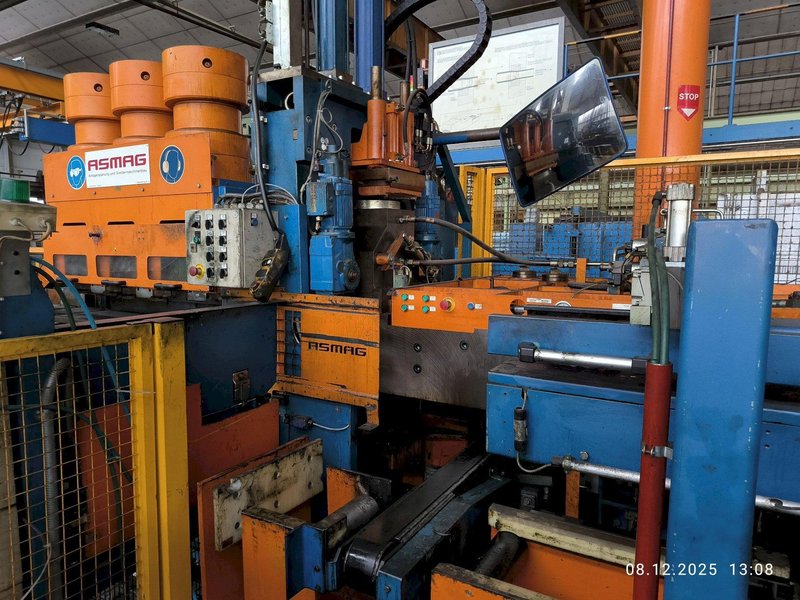

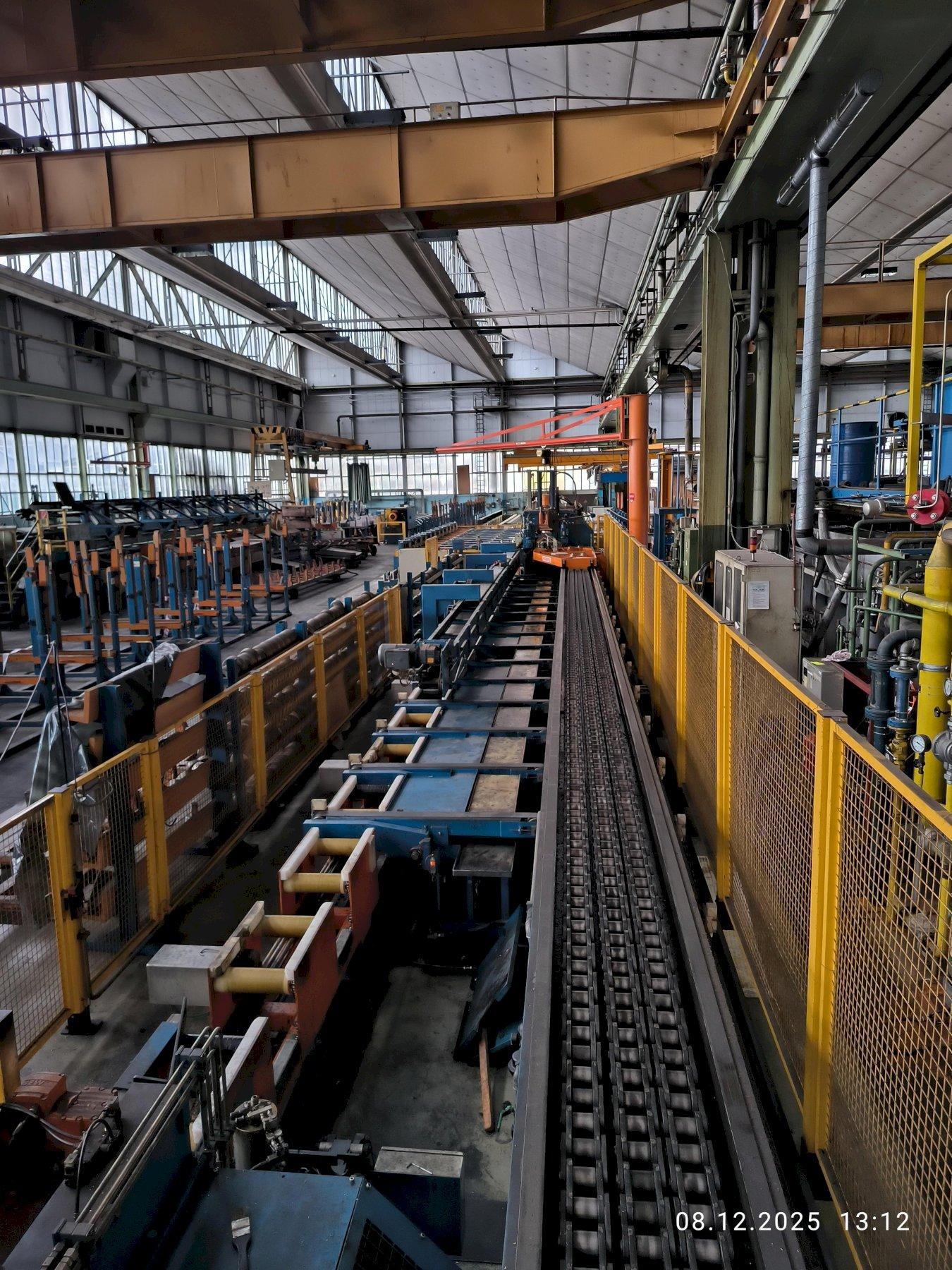

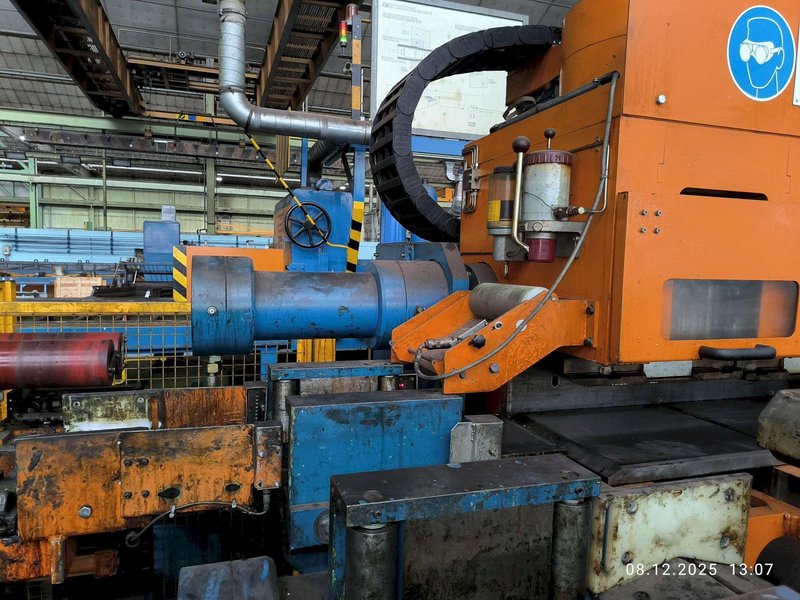

50 TON ASMAG DRAW BENCH w/INLINE SAW CUTTING, NEW 2003

50 TON ASMAG DRAW BENCH w/INLINE SAW CUTTING, NEW 2003

Name: 50 TON ASMAG DRAW BENCH w/INLINE SAW CUTTING, NEW 2003
Brand: Unknown
SKU: 117136
Availability: PreOrder

Brand

Not specified

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

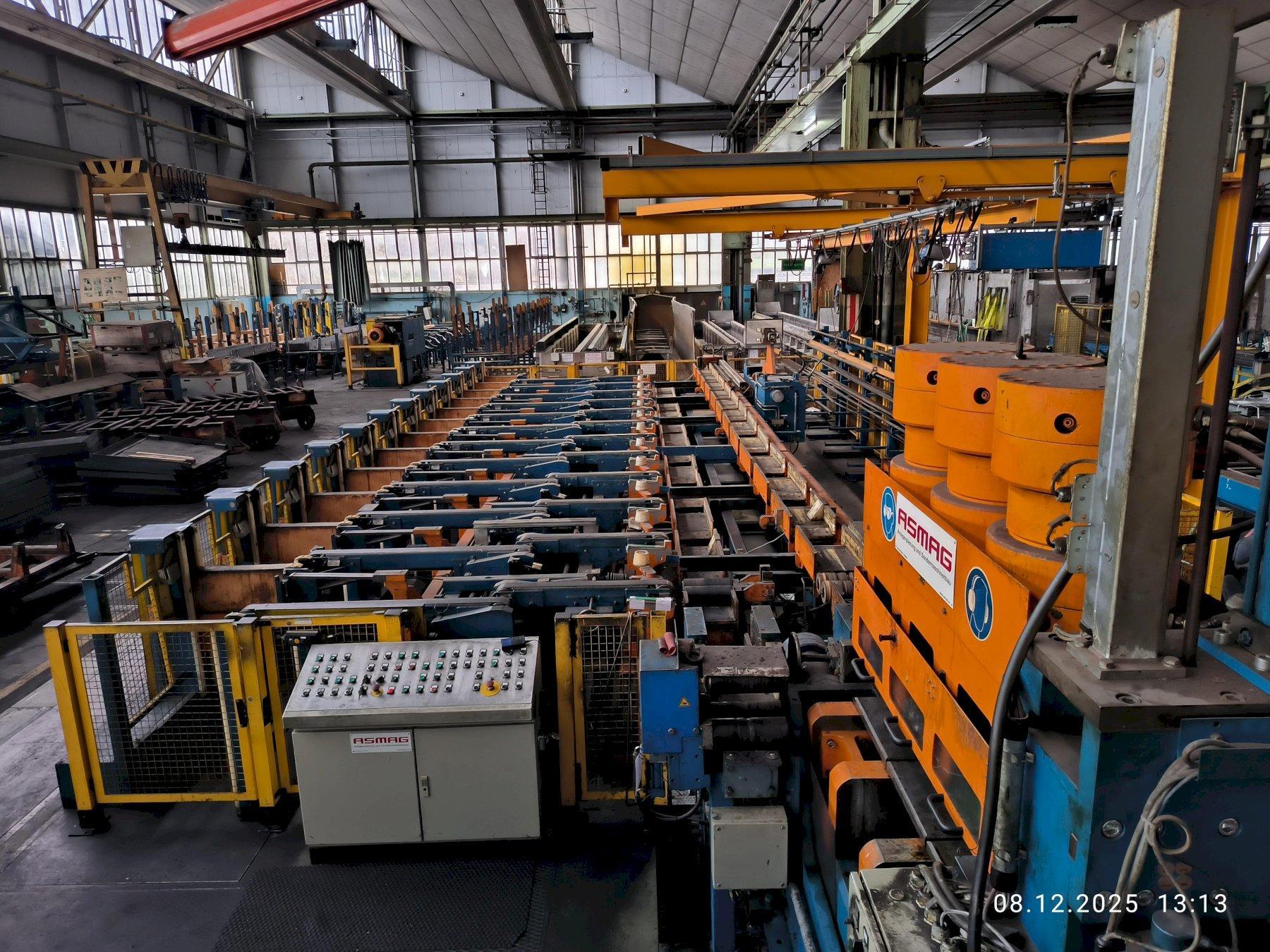

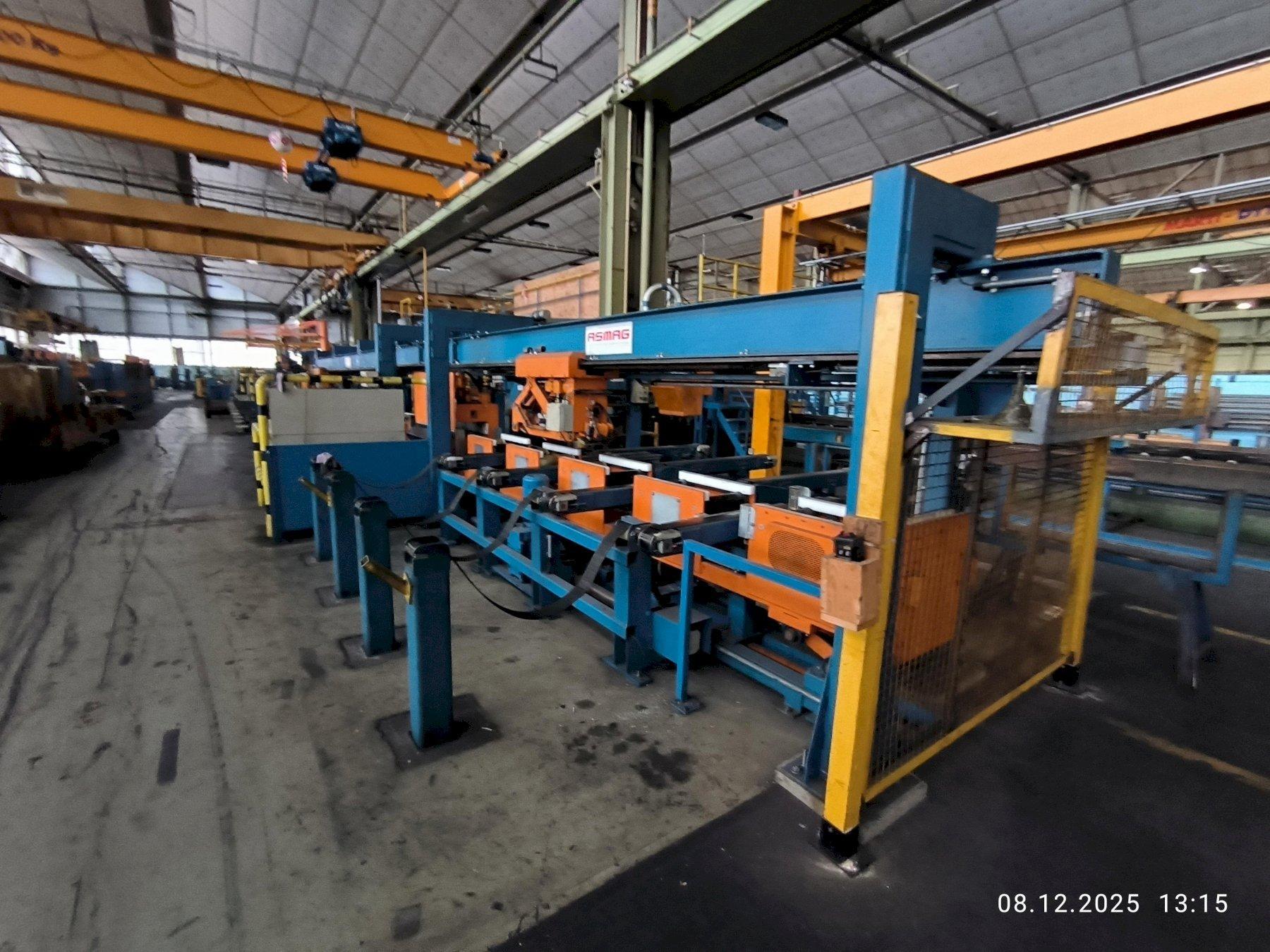

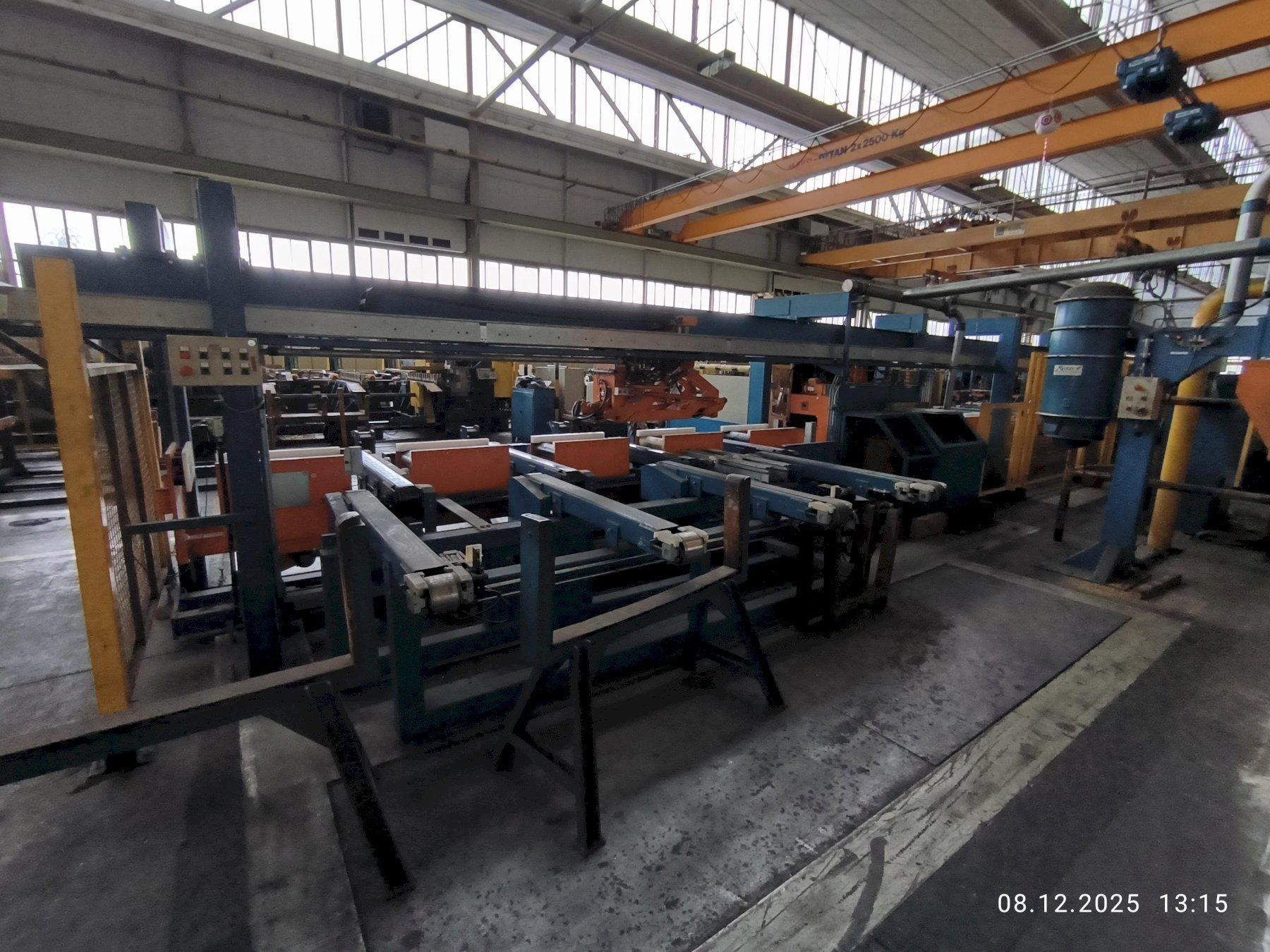

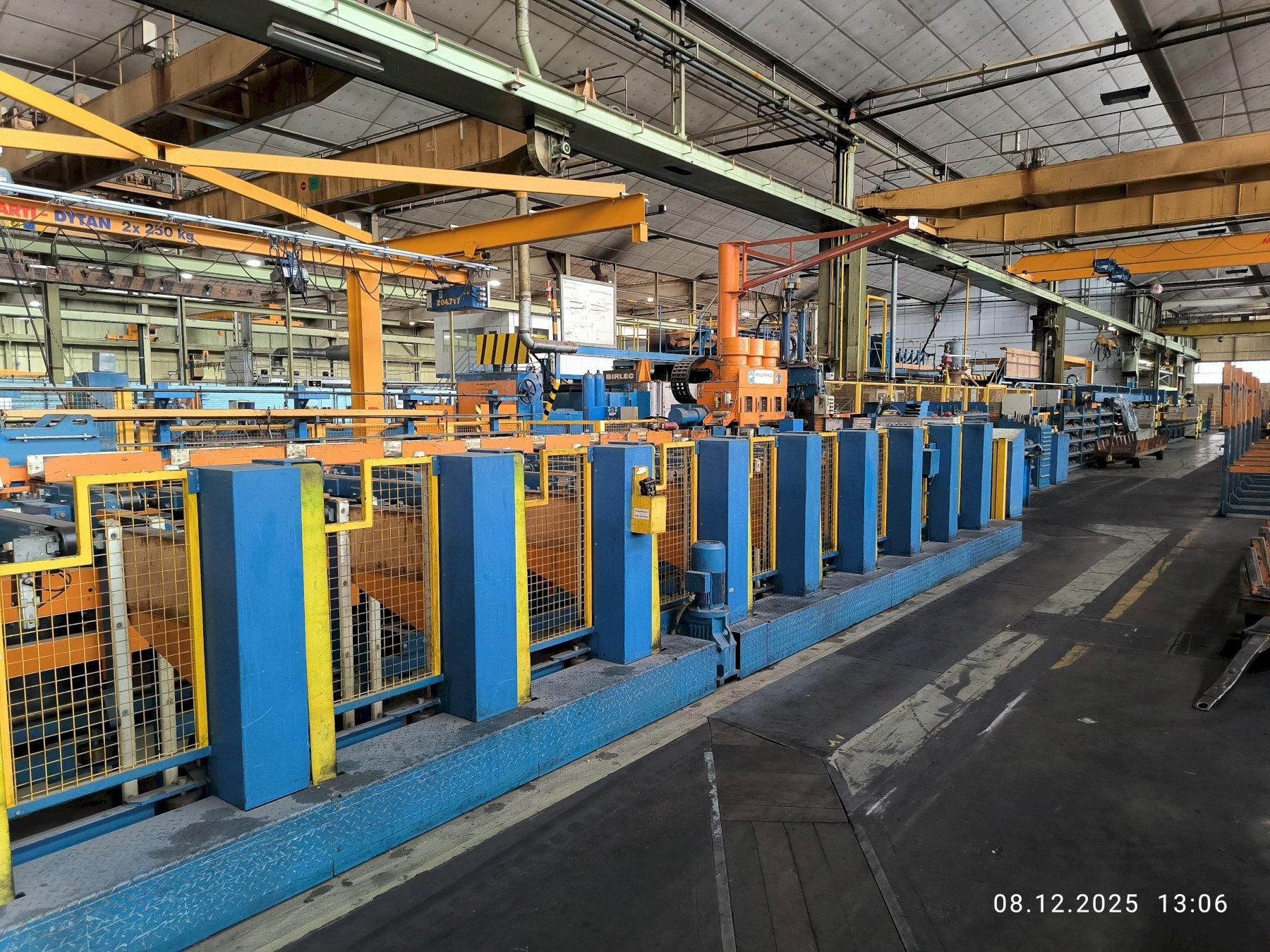

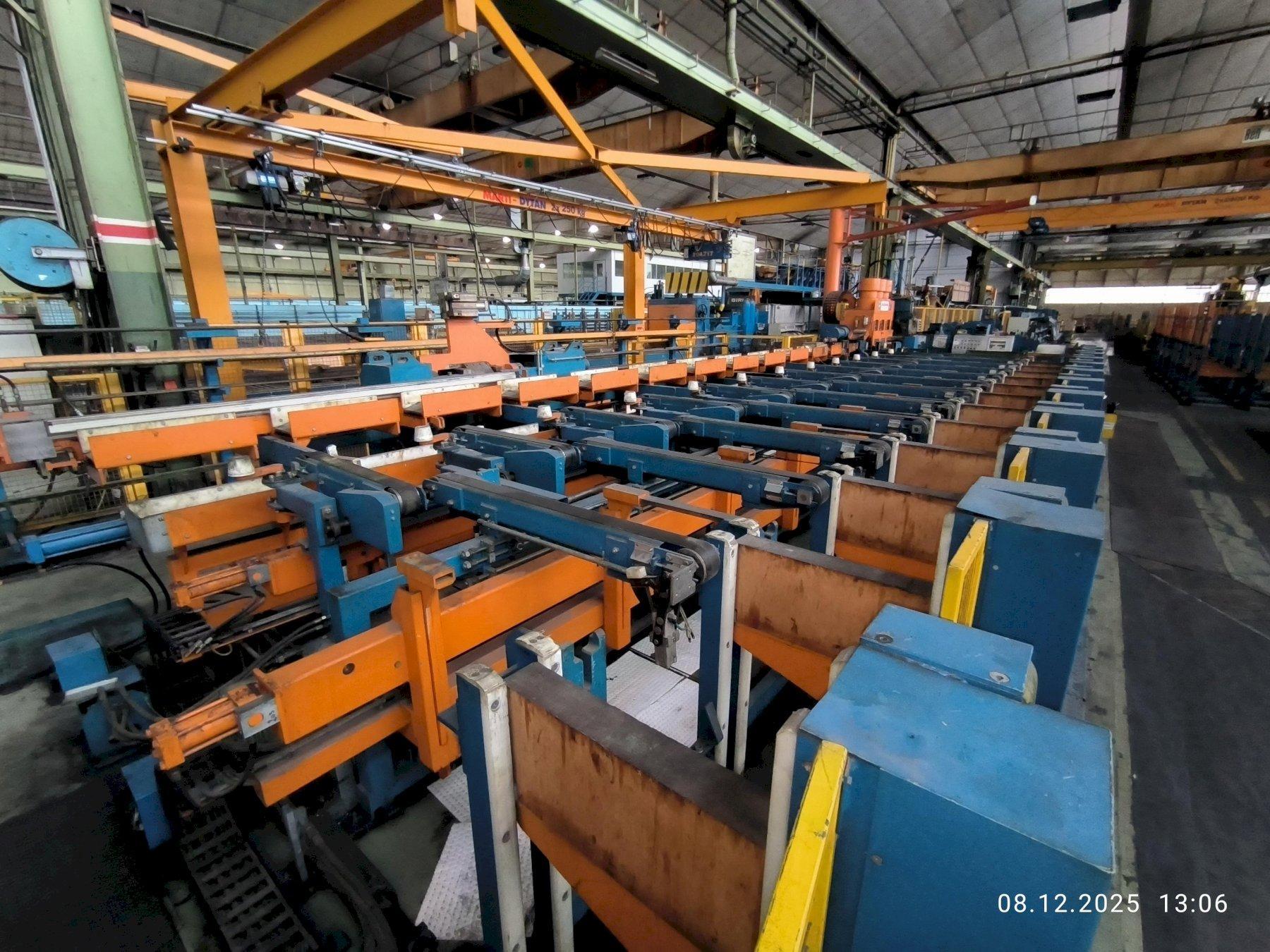

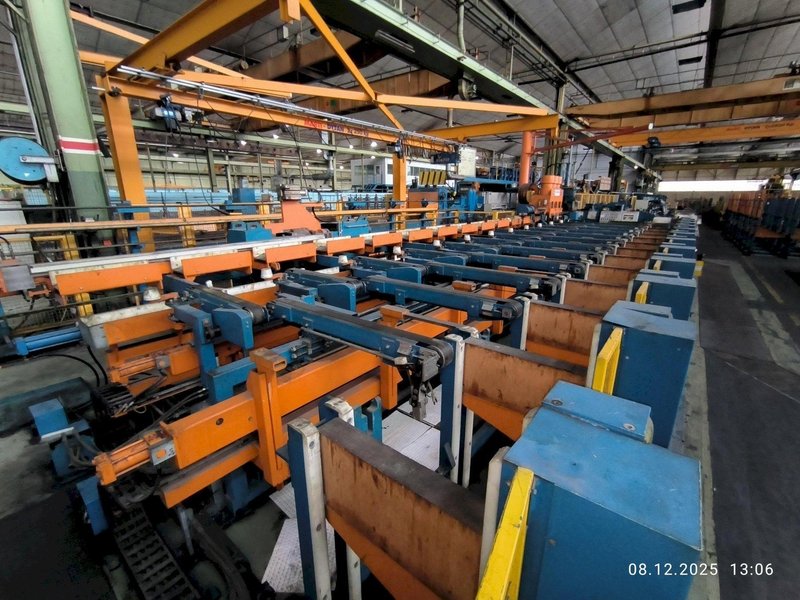

50TON ASMAG AUTOMATED BAR DRAWING LINE WITH DOUBLE CUT OFF STATION COPPER & BRASS, NEW 2003

SPECIFICATIONS:

MANUFACTURER - ASMAG
TYPE - DRAWING AND STRETCHING MACHINE ZRM500
PROFILE FORMS - ROUND, SQUARE, HEXAGONAL, OCTAGONAL, SOLID BARS / HOLLOW PROFILES / FLAT BARS
TENSILE FORCE - 500KN (600KN AT START FOR 2-3 SECONDS)
DRAWING SPEED RANGE - (CONTINUOUSLY ADJUSTABLE) 5-60 METERS PER MINUTE
MAX. DRAWING SPEED AT 300KN TENSILE FORCE - 38 METERS PER MINUTE

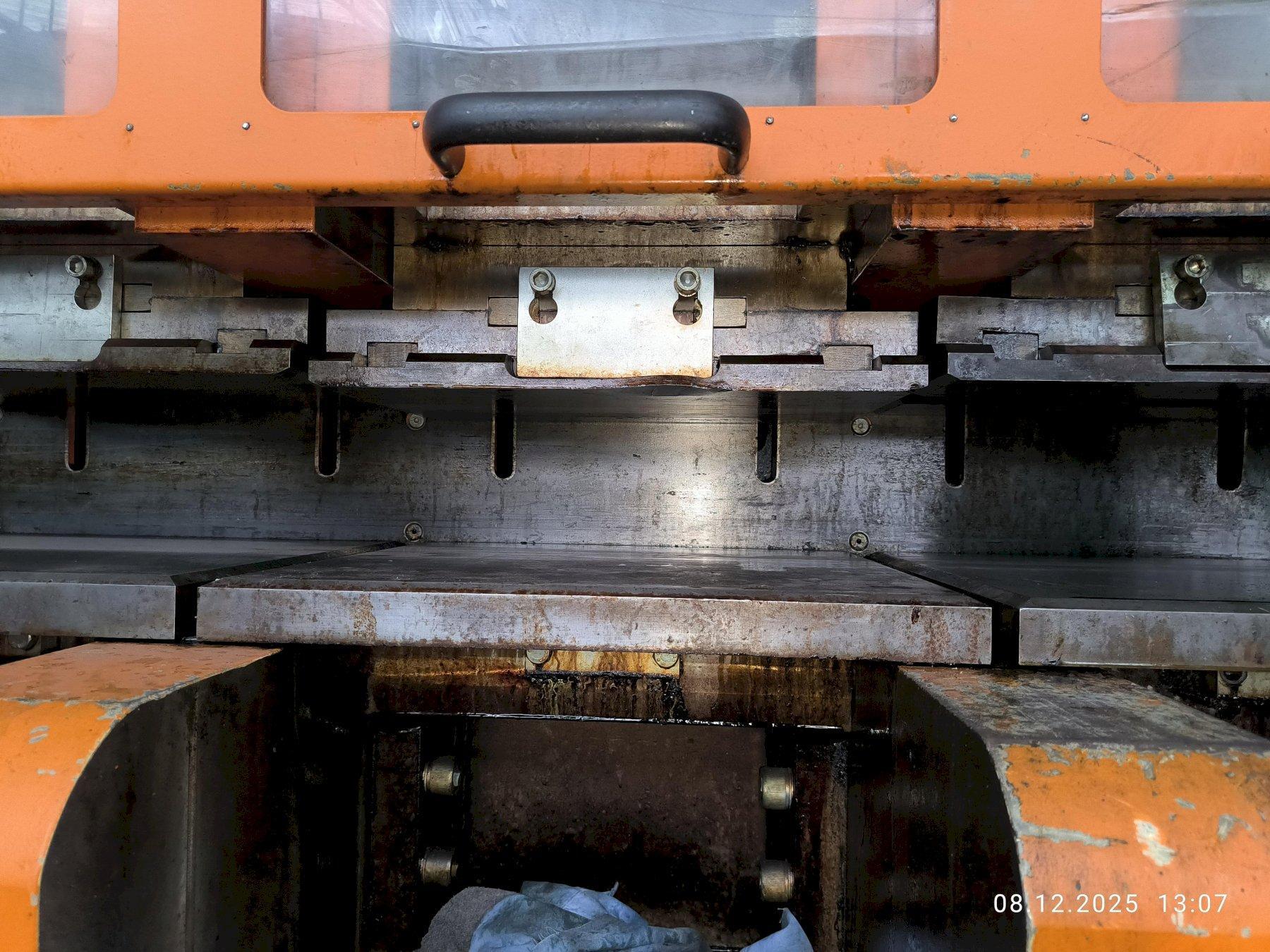

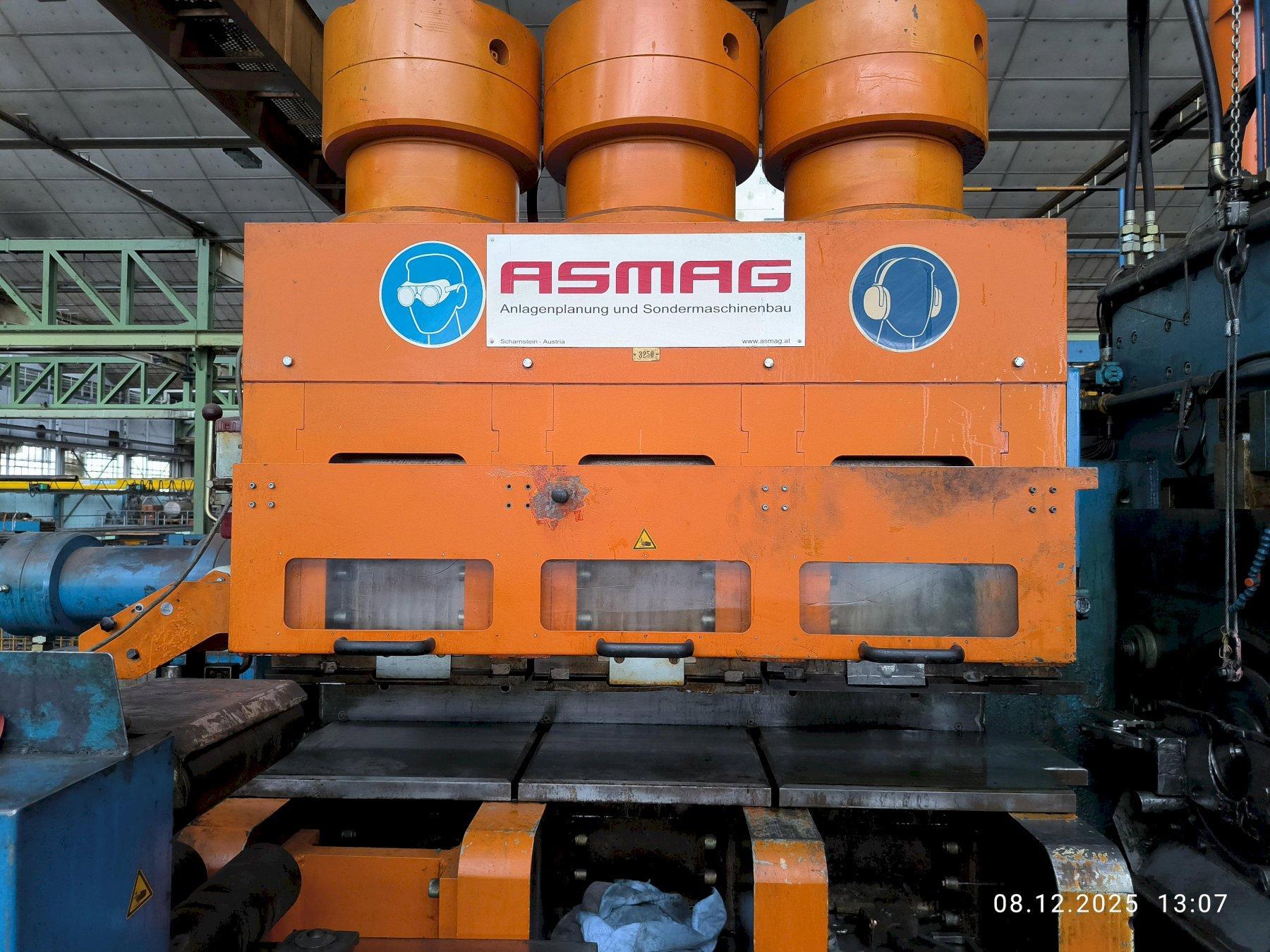

PUSHER - MAX. PUSHING FORCE: 900KN / MAX. PUSHING SPEED: 80MM PER SECOND / PUSHER TRAVEL: 10 - 300mm / CLAMPING FORCE: 3 x
MAX. 1400KN

PULLER RETURN SPEED - 120 METERS PER MINUTE

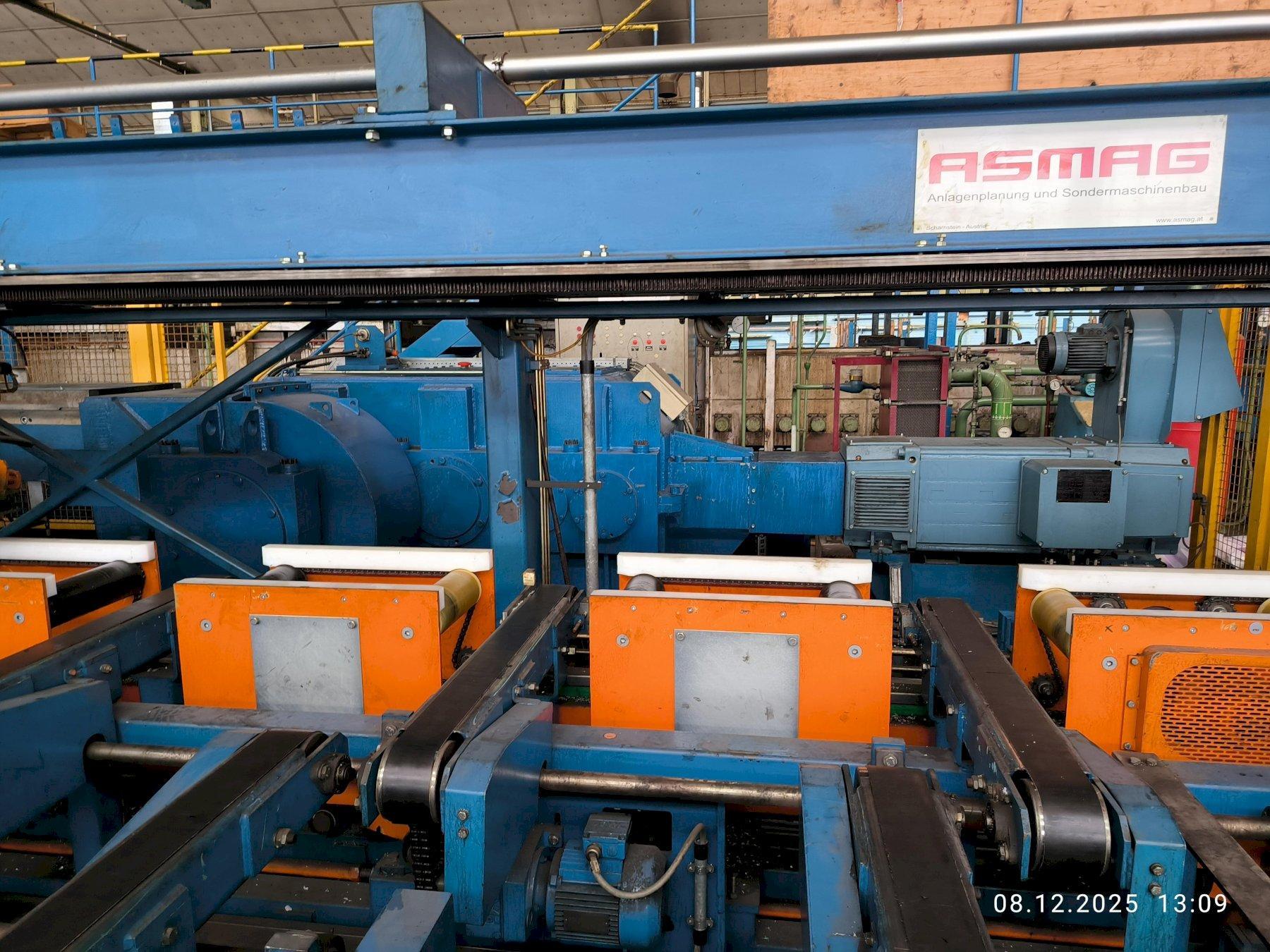

PULLER DRIVE - 360KW DC MOTOR
MAX. DRAW CARRIAGE SPEED - 120 METERS PER MINUTE
DRAWING LENGTH - 4000mm - 16000mm
CUTTING WITH AND WITHOUT TRIMMING AND WITH AND WITHOUT END CUTTING (REMAINING PIECE EJECTION)

MATERIAL SPECIFICATIONS:

DIMENSIONS OF STRAIGHT PRE-MATERIAL - LENGTH: 3000MM - 12000MM / BUNDLE DIA: MAX. 600MM / BUNDLE WEIGHT MAX. 3000KG
DIMENSIONS OF ROUND, SQUARE, HEXAGONAL, OCTAGONAL SOLID BARS - DIA: 15 - 100MM OR DIAGONAL
FLAT MATERIAL - MAX. 250 x 50MM OR MAX. 180 x 90MM OR MAX. 150 x 100MM
MATERIAL CROSS-SECTION - MAX. 8500MM²

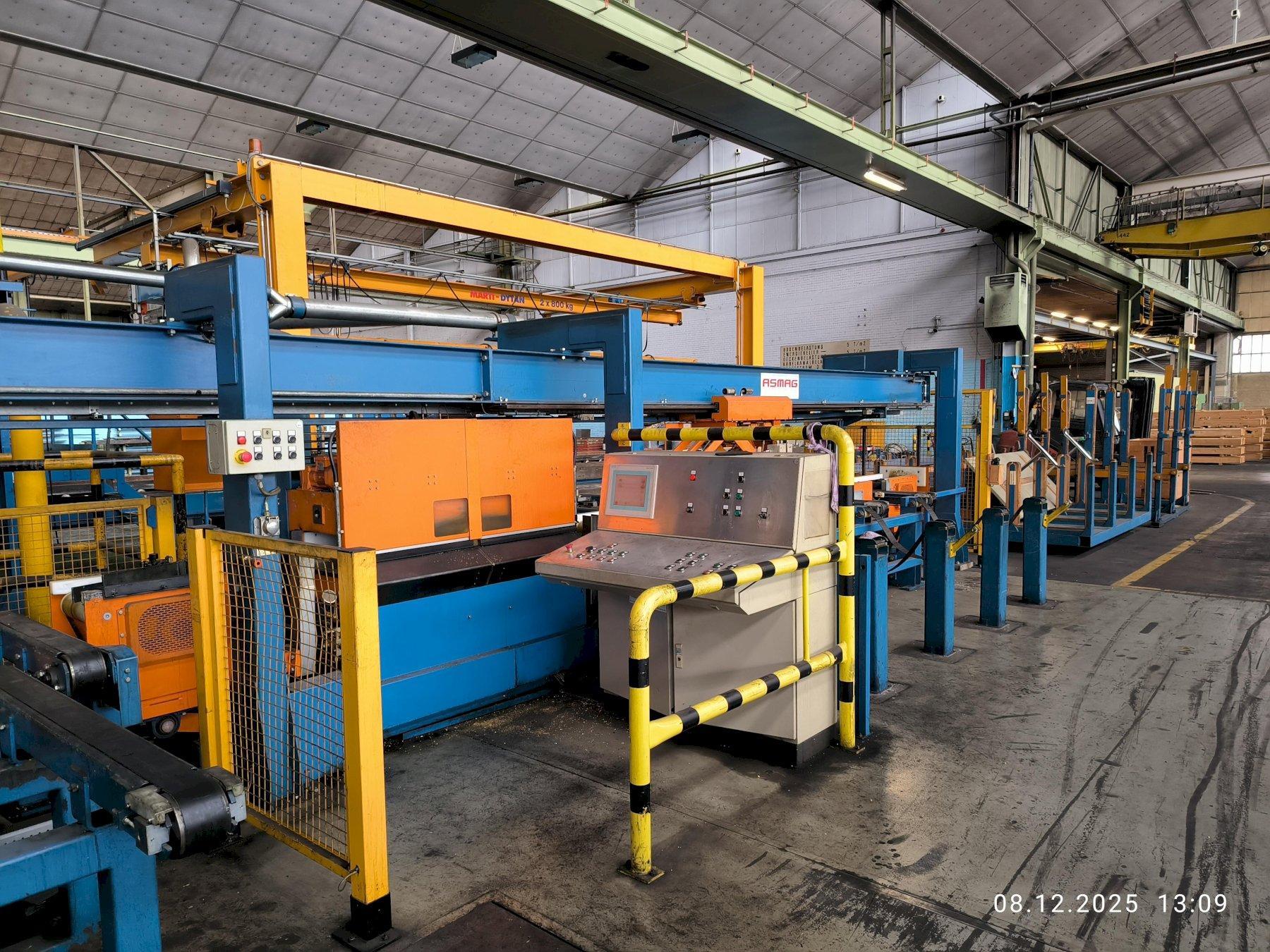

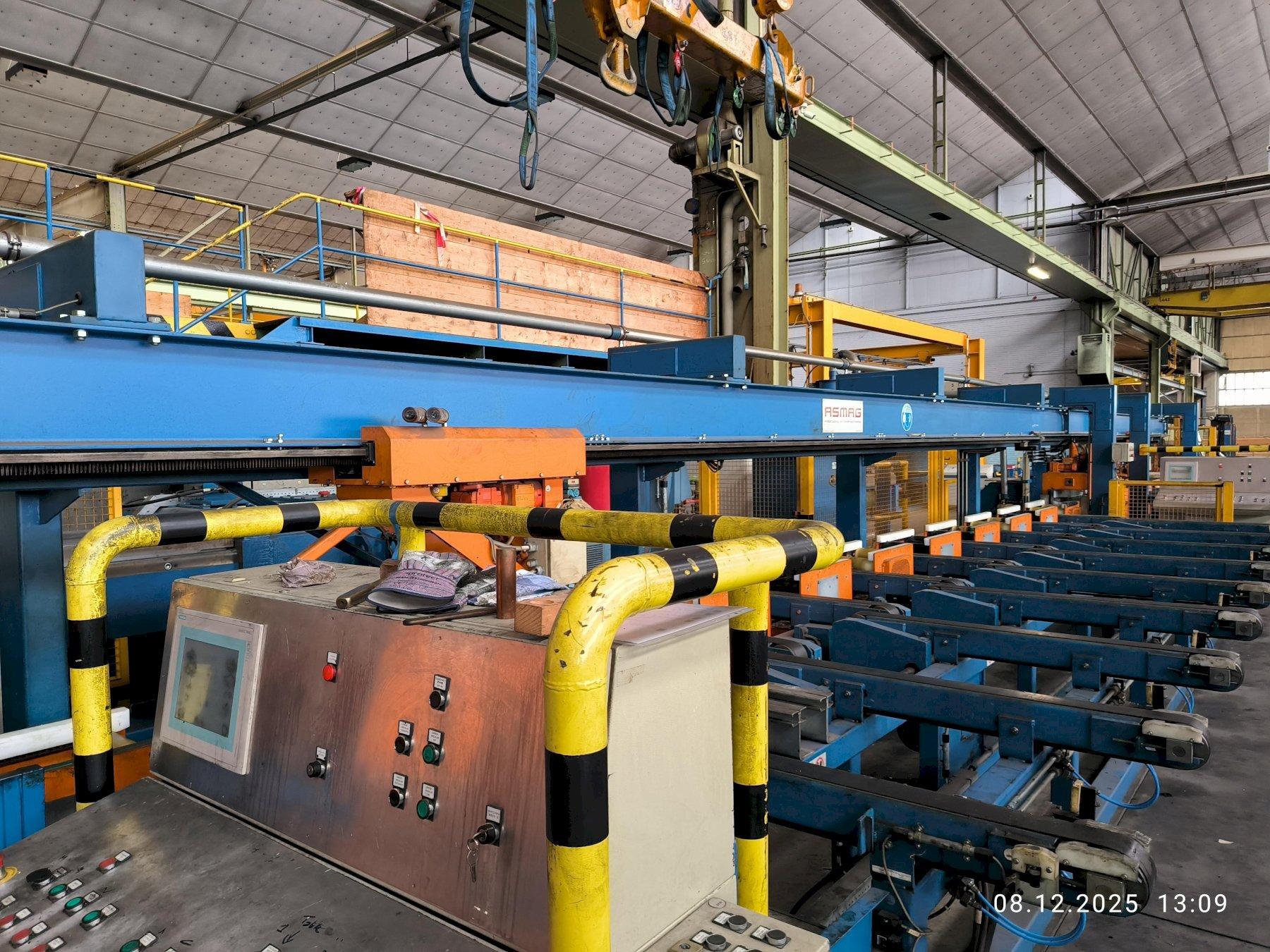

PLC-SYSTEM:

SIEMENS S7

HYDRAULICS:

NOMINAL PRESSURE: 140BAR
MAX. PRESSURE 240BAR
FLOW RATE: 1200 LITERS PER MINUTE

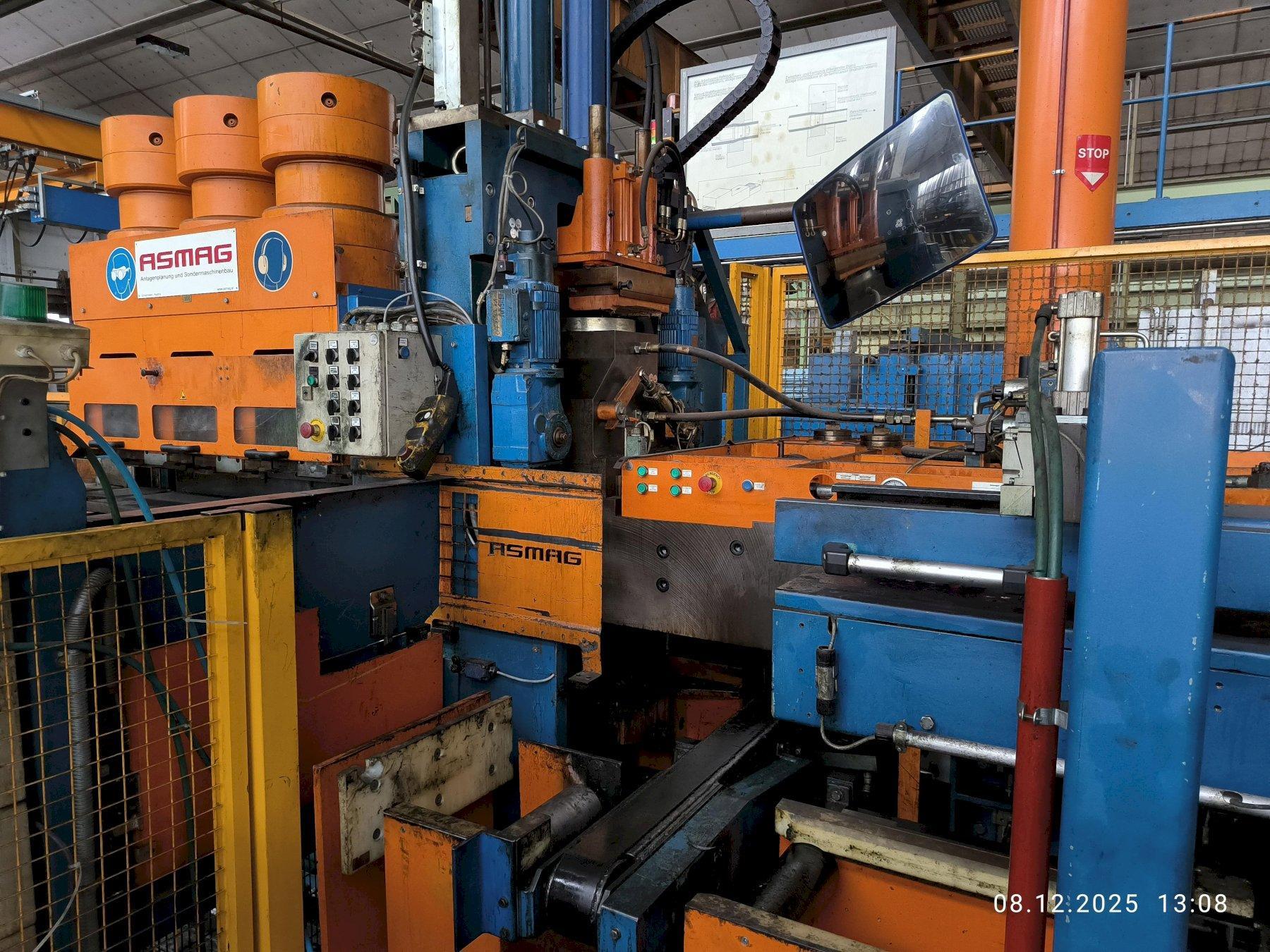

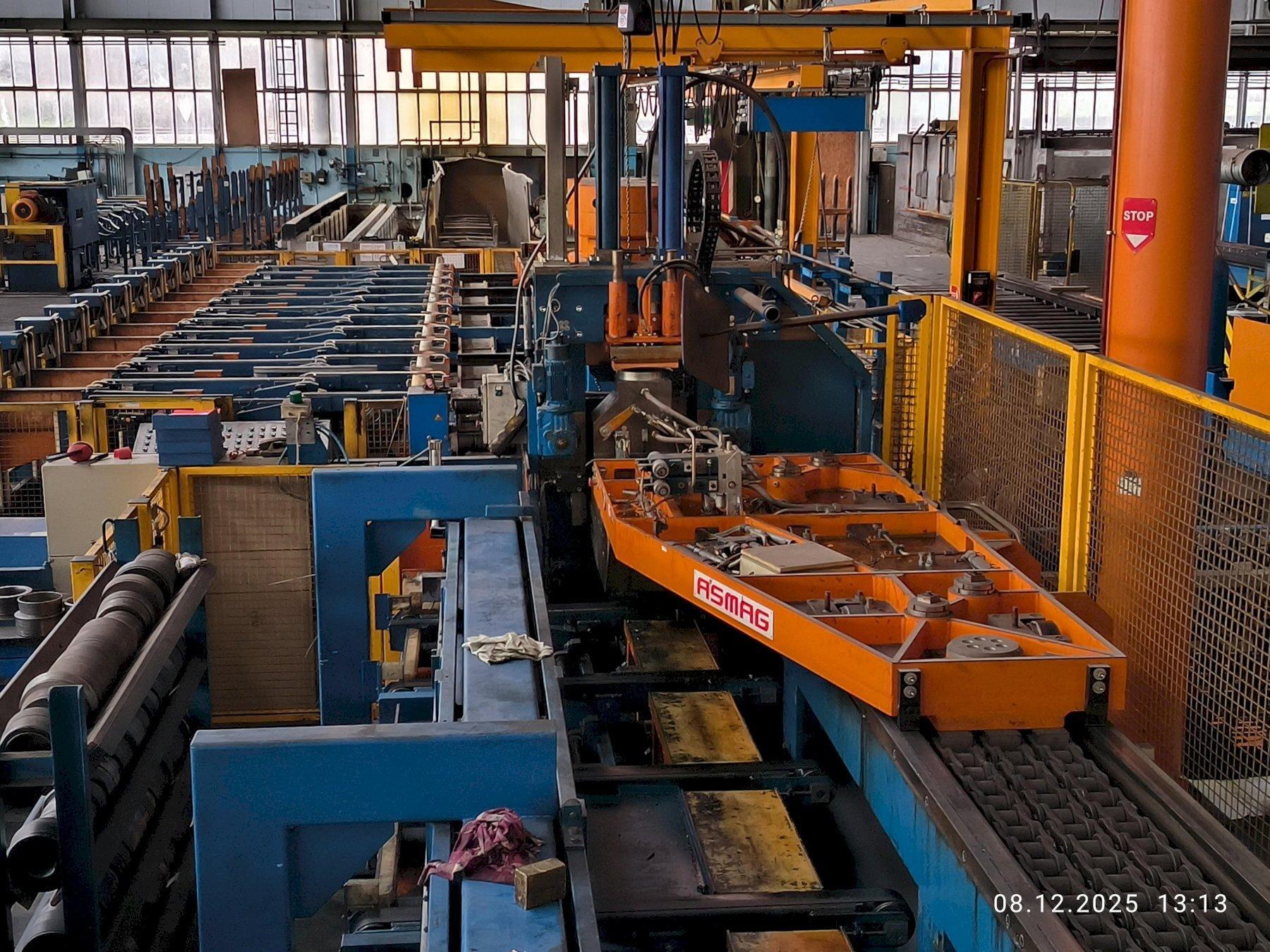

2 x HIGH PERFORMANCE CIRCULAR SAWS:

SAW BLADE DIA - 500MM
DRIVE POWER - 15KW
SAW BLADE SPEED - 10 - 73 METERS PER SECOND
CUTTING FEED SPEED - 5 - 80 MILIMETERS PER SECOND
LENGTH STOP - FINISHED LENGTH ADJUSTMENT RANGE: 2000 - 9000MM

Watch https://youtu.be/rEEZsrnwG3I
