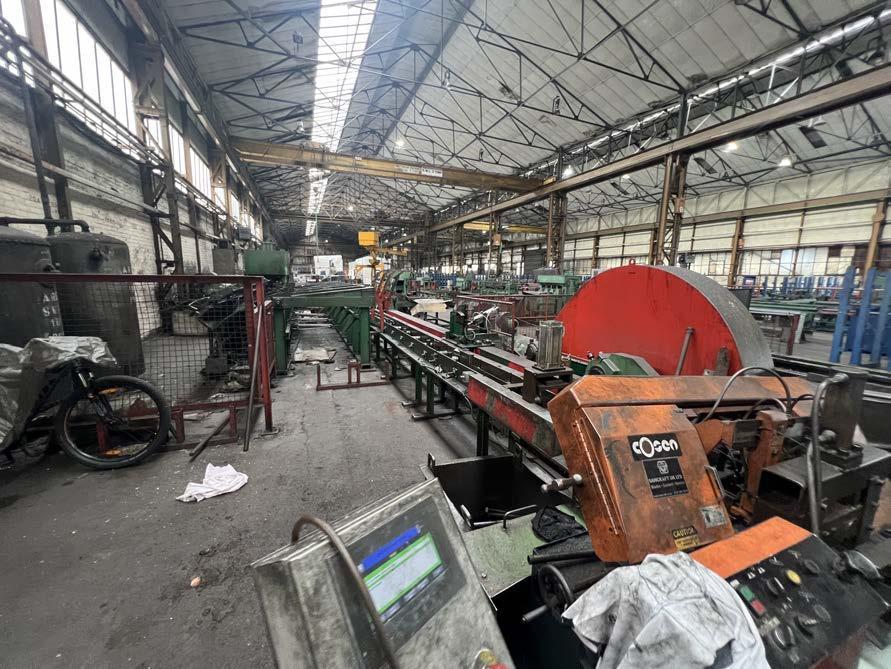

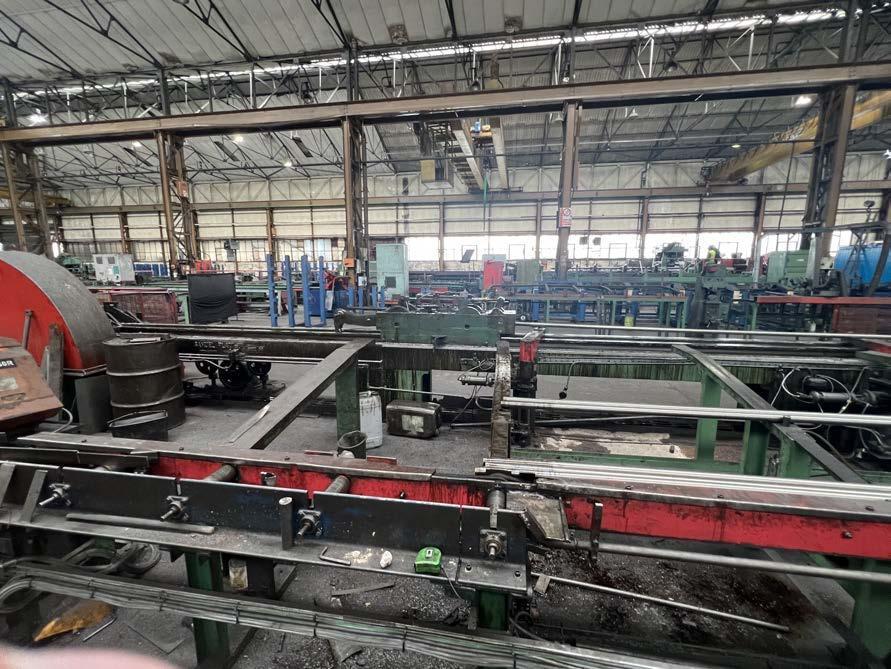

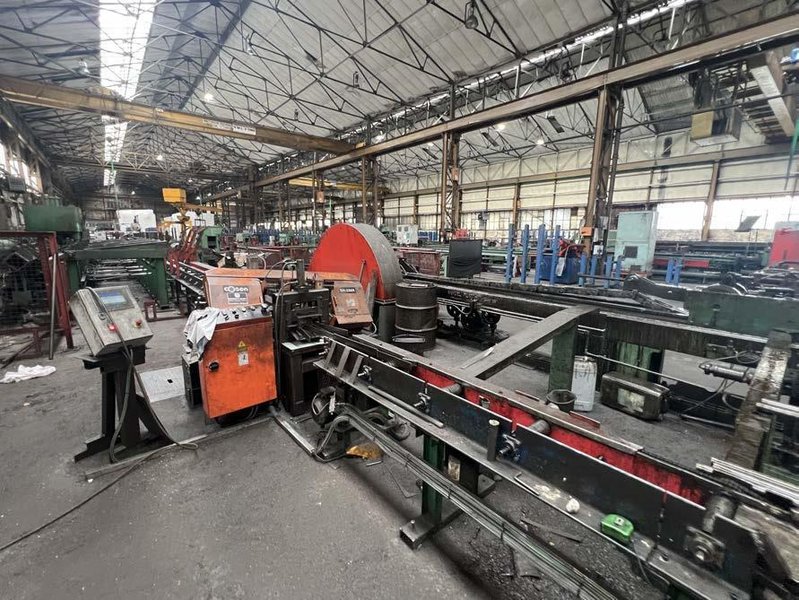

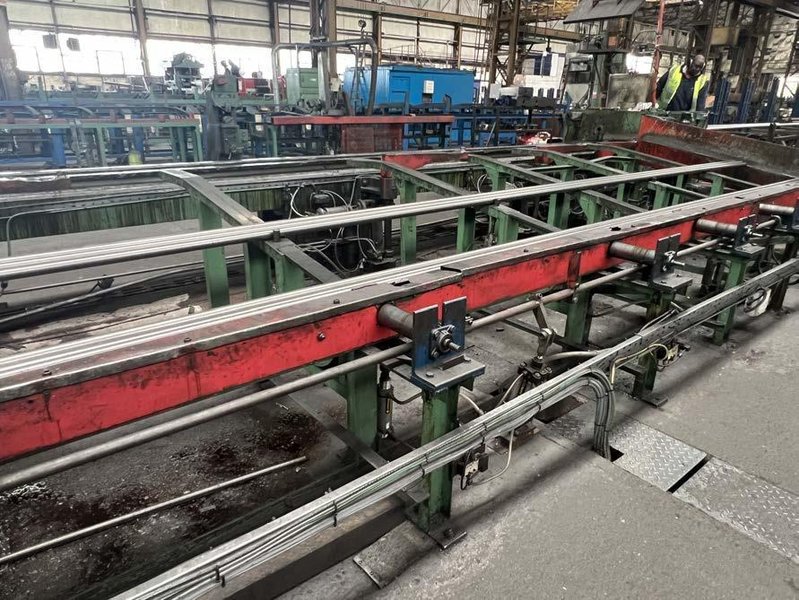

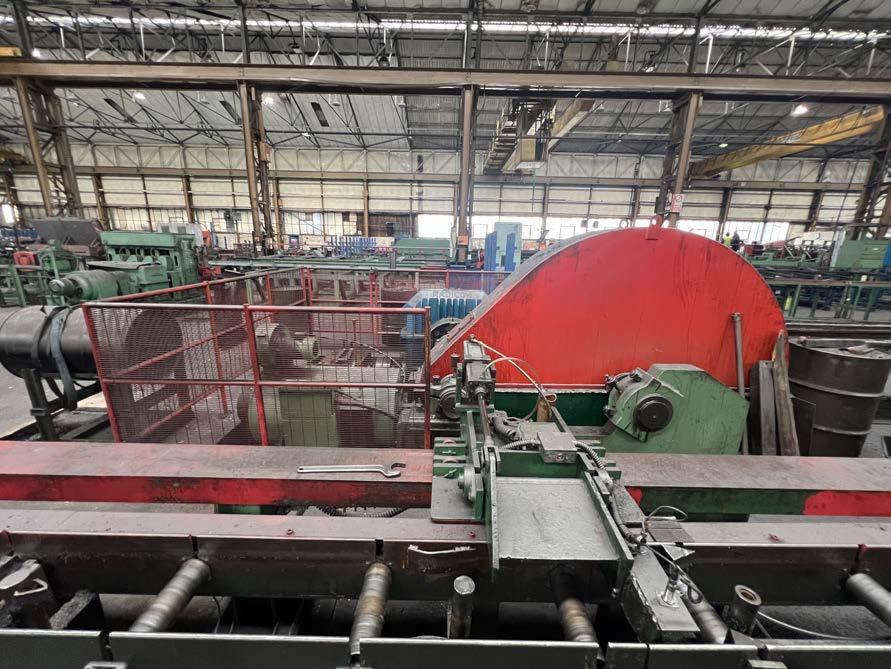

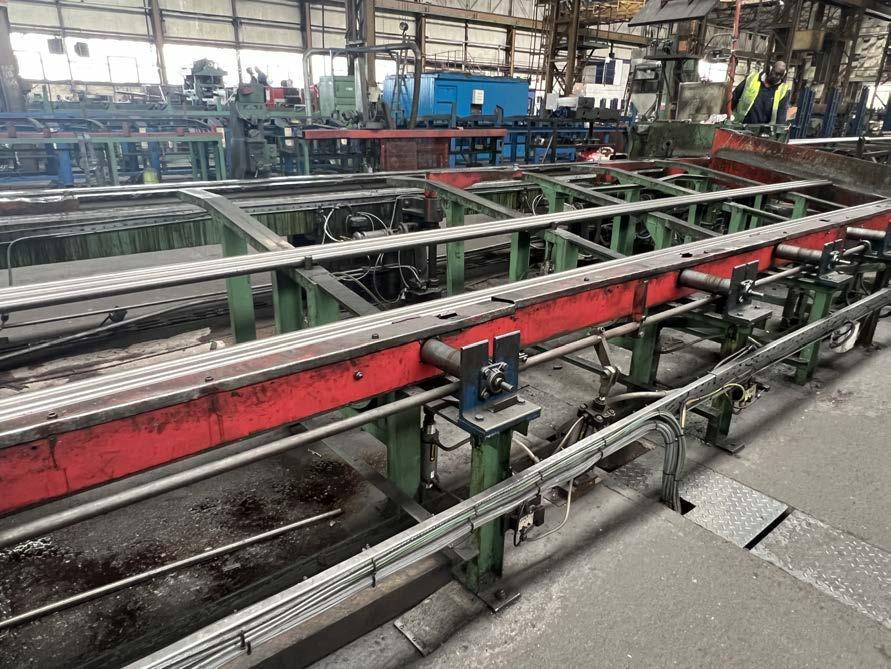

40 TON SAMUEL PLATT/BRONX SINGLE DIE DRAW BENCH LINE (14725)

Platt / Bronx 40 Ton Single Pull,
Drawbench, Straightening, Sawing & Chamfering Line (14725)
Stock # 14725

DRAWBENCH
TECHNICAL DATA
Manufacturer: Samuel Platt Ltd
Model: CS
Year of Manufacture: 1976
Drawing Force: 40 Tons
Breaking Strain: 132 Tons
No. of Bars Capacity: Single
Round Bar Working Range Single Bar: Ø76.2mm (3”)
45kg/mm2
Some Dies for Hexagons and Squares included
Max. Bar Length: 8m
Main Motor Power: 0-75-75 HP DC
Speed:  0-750-1500 RPM
Voltage: 0-450-450
Current: 182 Amps
Push Pointer Force: 80 Ton

Entry Loading Table
Push Pointer
Die Head
Drawing Bench
Drawing Carriage
Main Drive Motor
Gearbox
Rotating Bar Support & Ejection Arms
Pneumatically Operated
Transfer/Holding Table to Saw
Lubrication System
Hydraulic Power Pack
Electrical Controls
Tooling - Drawing Dies and Grippers

BRONX STRAIGHTENER
TECHNICAL DATA
Manufacturer: Bronx
Model: PBRV-5
Year of Manufacture: 1978
Design: 2-Roll Vertical
Drives
Amount: 2
Power: 60 HP
Speed: 1500 RPM
Voltage: 460V
Current: 112 AMPS

Diameter Range:
45/55 kg/mm2: Ø16 - 89mm (5/8 – 3-1/2”)
55/70 kg/mm2: Ø16 - 75mm (5/8 – 3”)
70/85 kg/mm2: Ø16 - 67mm (5/8 – 2-5/8")
85/100 kg/mm2: Ø16 - 63mm (5/8" - 2-1/2")
100/115 kg/mm2: 16mm - 54mm (5/8 -2-1/8")
115/130 kg/mm2: 16mm -41mm (5/8 - 1/5/8")

Transfer Loading Table

Unscrambler

Entry Trough
Pneumatically Operated Lid Pusher Type

Straightener Motorized Adjustment Guide Blade Gate
Exit Trough
Inclined Bar Ejection to Chamfering Machine Roller Table

Collection Pocket Table
Dual Pockets Lubrication System Hydraulic Power Pack Electrical Controls
Spare Set of Rolls
Guide  Blades

CHAMFERING MACHINE
TECHNICAL DATA
Amount 1
Manufacturer MOJ
Max. Bar Diameter 80mm


COMPRISES
Straightener Bar Storage Rack
Entry Trough
Pneumatic Lid
Pinch Roll Unit
Straightener
Motorized Adjustment
Two (2) Motor/Gearboxes
Exit Pinch Roll
Exit Trough
Inclined Bar Ejection to Collection Pockets
Collection Pocket Table
Dual Pockets
Lubrication System
Hydraulic Power Pack
Electrical
