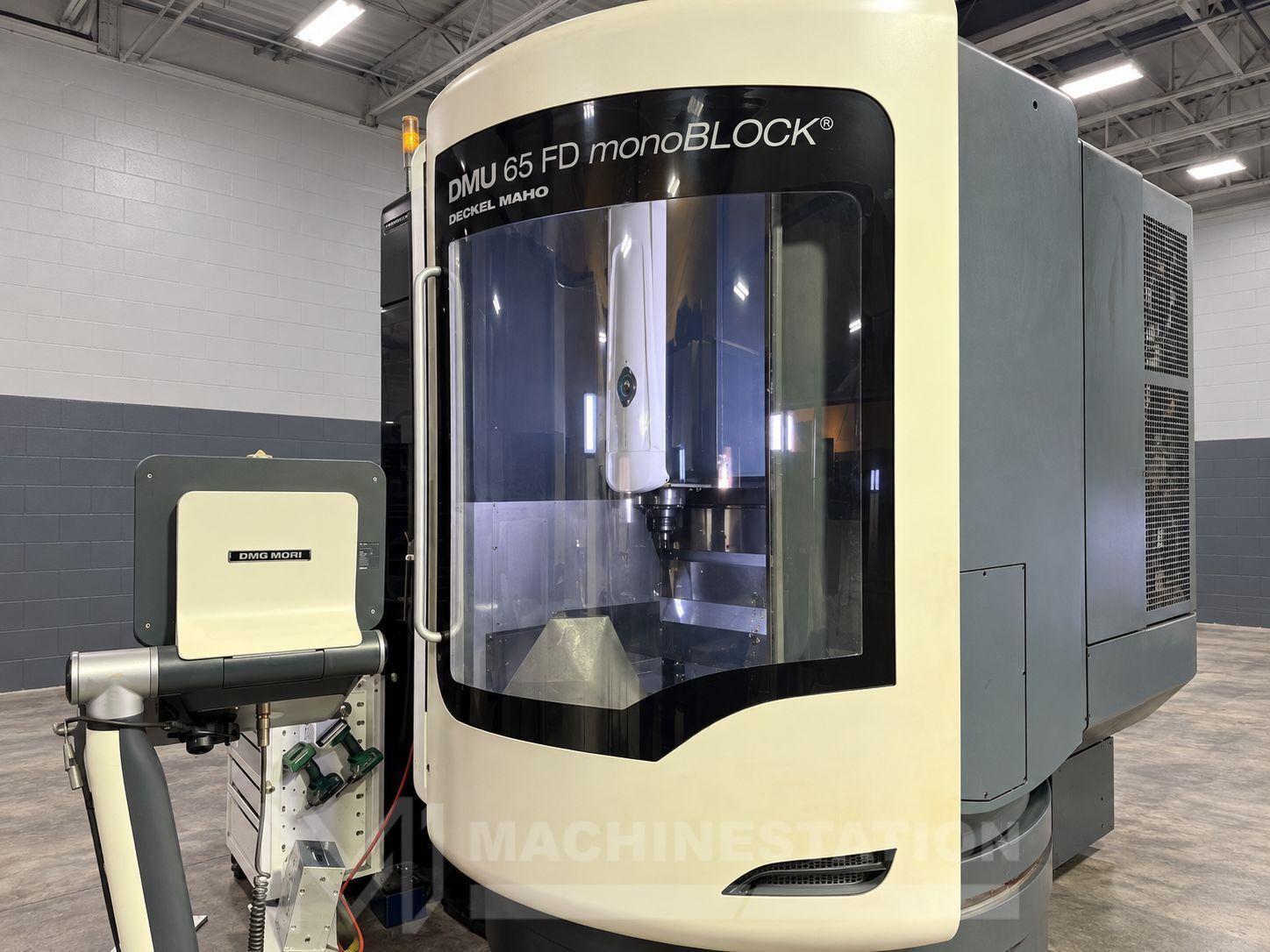

DMG Mori DMU 65FD monoBLOCK 5 Axis CNC Universal Machining Center – Mill

DMG Mori DMU 65FD monoBLOCK 5 Axis CNC Universal Machining Center – Mill

Name: DMG Mori DMU 65FD monoBLOCK 5 Axis CNC Universal Machining Center – Mill
Brand: DMG MORI
SKU: 113547
Availability: InStock

Brand

DMG MORI

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	DMG MORI
Model:	DMU 65FD monoBLOCK
Year:	2012
Condition:	Used – Good

Features:
Seimese 840D ERGOline CNC Control
5 Axis Simultaneous Machining
25.59 inch Programmable Swivelling Trunnion Table
18,000 RPM High Speed Spindle
60 Station Automatic Tool Changer
Through Spindle Coolant
3D QuickSet
Mill-Turn Operation Up to 12,00 RPM on C Axis
Touch Probe
PCMCIA Card Slot
Thermal Compensation
Spindle Orientation
Helical Interpolation
Rigid Tapping
High Pressure Coolant System
Chip Conveyor
Books and Manuals

Swivelling Trunnion Table:
Table Diameter: 25.59 inch
Maximum Work Piece Diameter: 33.07 inch
Max. Height: 19.7 inch
Max Weight on Pallet: 1322 lbs
Mill-Turn Operation Up to 12,00 RPM on C Axis
