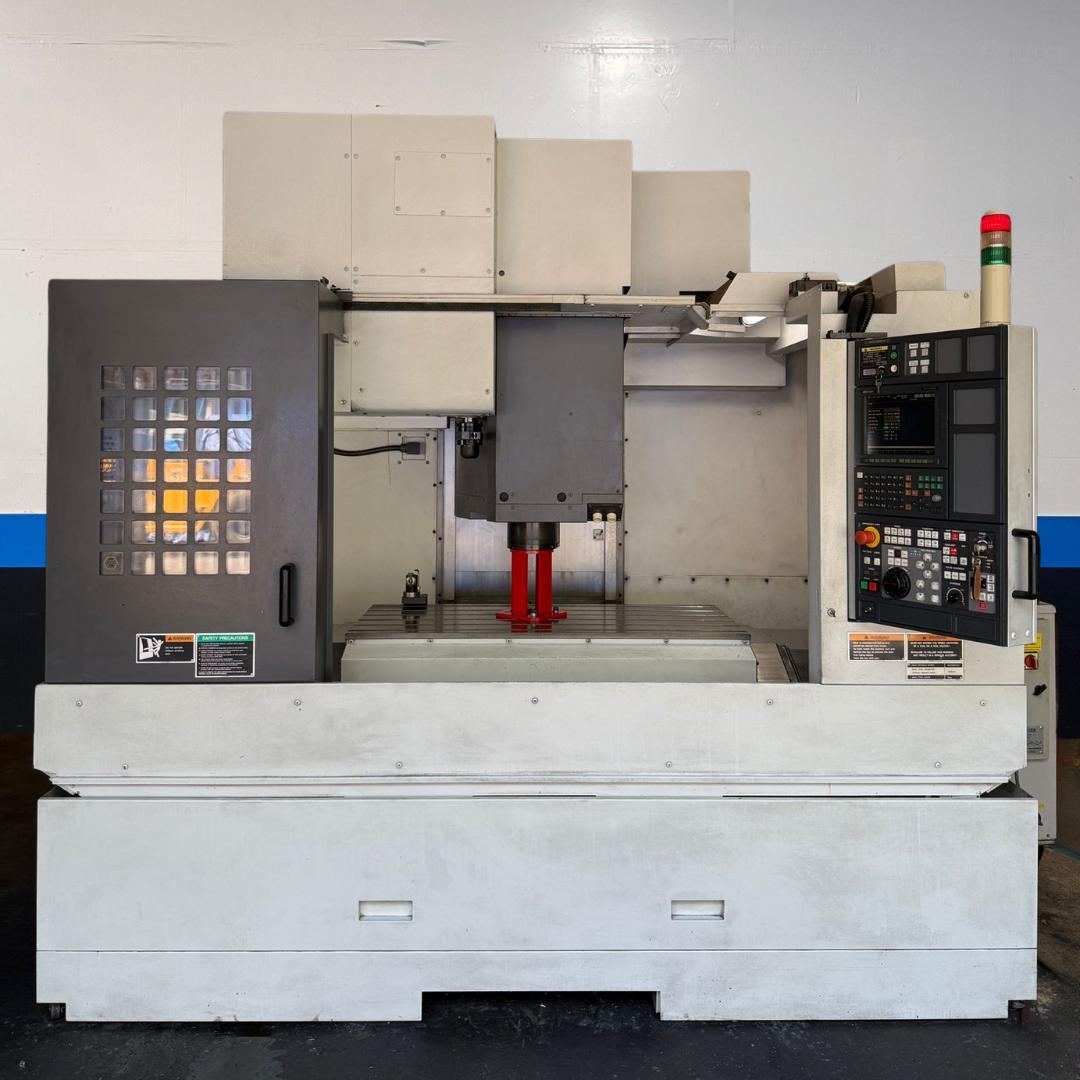

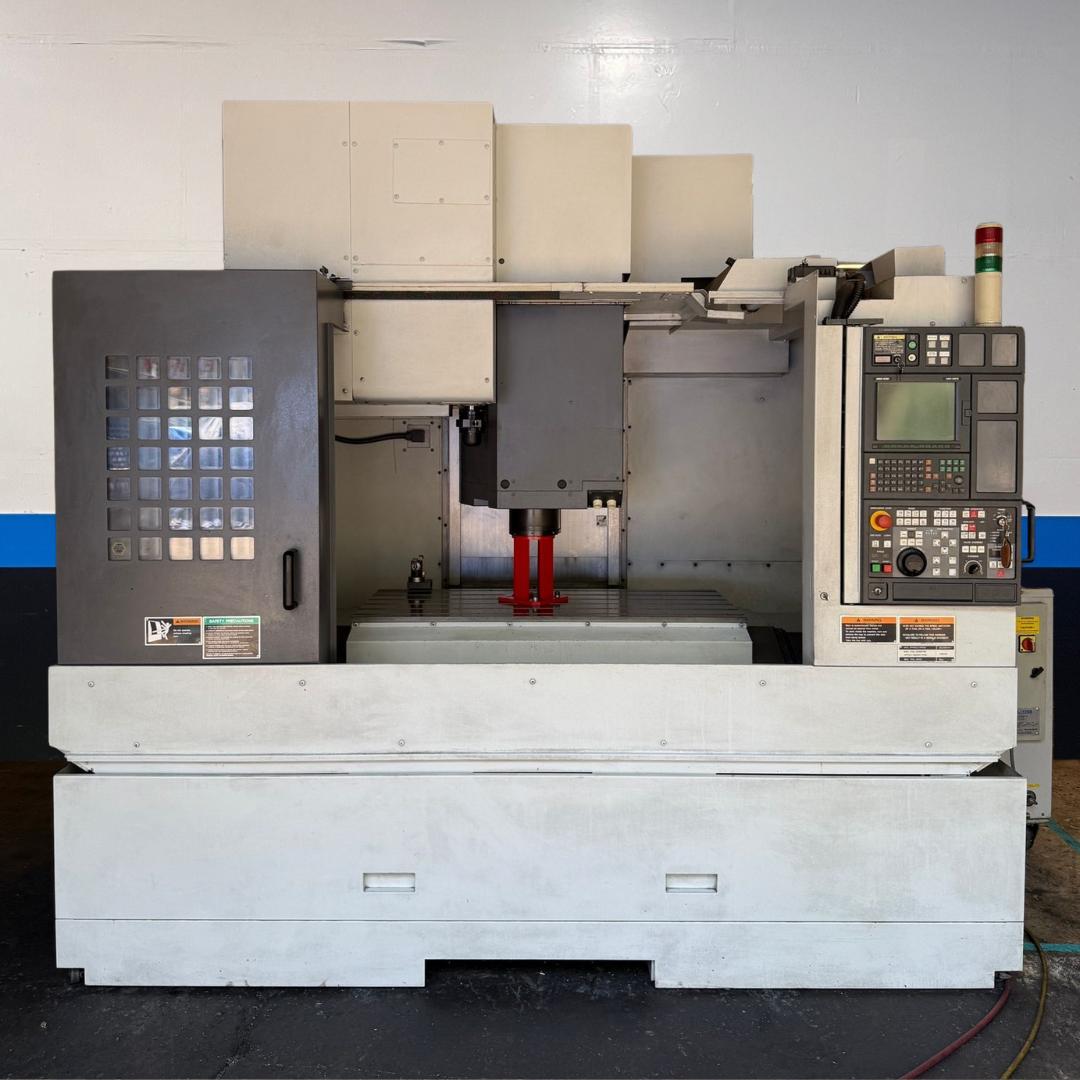

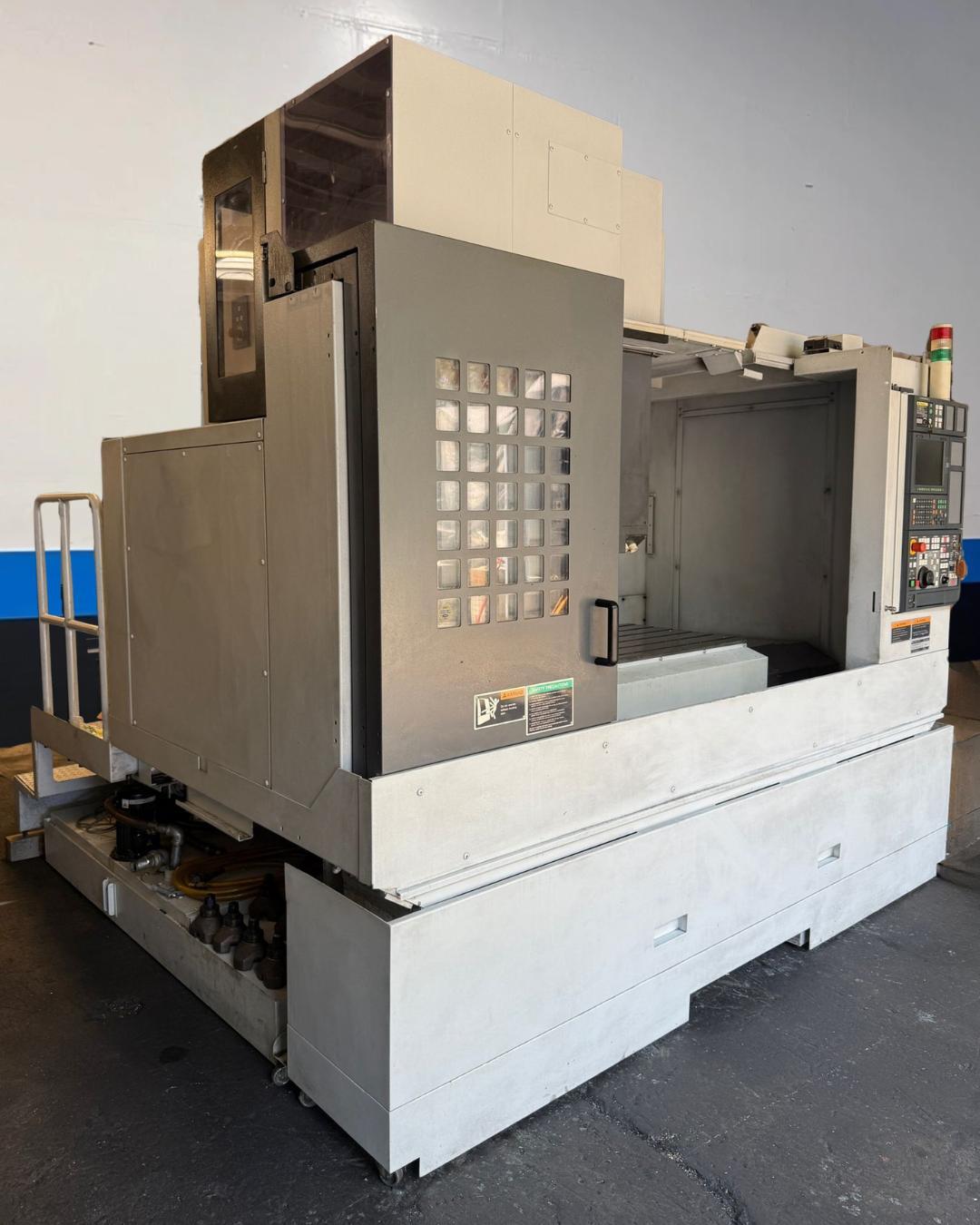

Mori Seiki NVD5000 α1B/40 CNC Vertical Machining Center – 20000 RPM Mill

Mori Seiki NVD5000 α1B/40 CNC Vertical Machining Center – 20000 RPM Mill

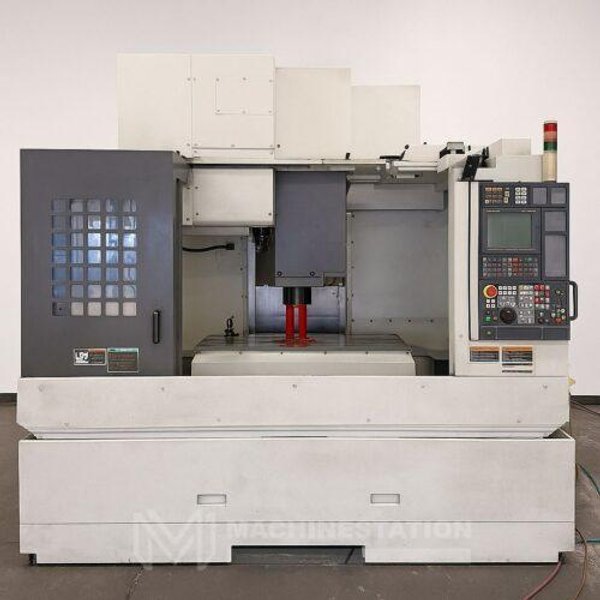

Name: Mori Seiki NVD5000 α1B/40 CNC Vertical Machining Center – 20000 RPM Mill
Brand: DMG MORI
SKU: 112804
Availability: PreOrder

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112804
Make:	Mori Seiki
Model:	NVD5000 α1B/40
Year:	2007
Condition:	Used – Good

Equipped With:

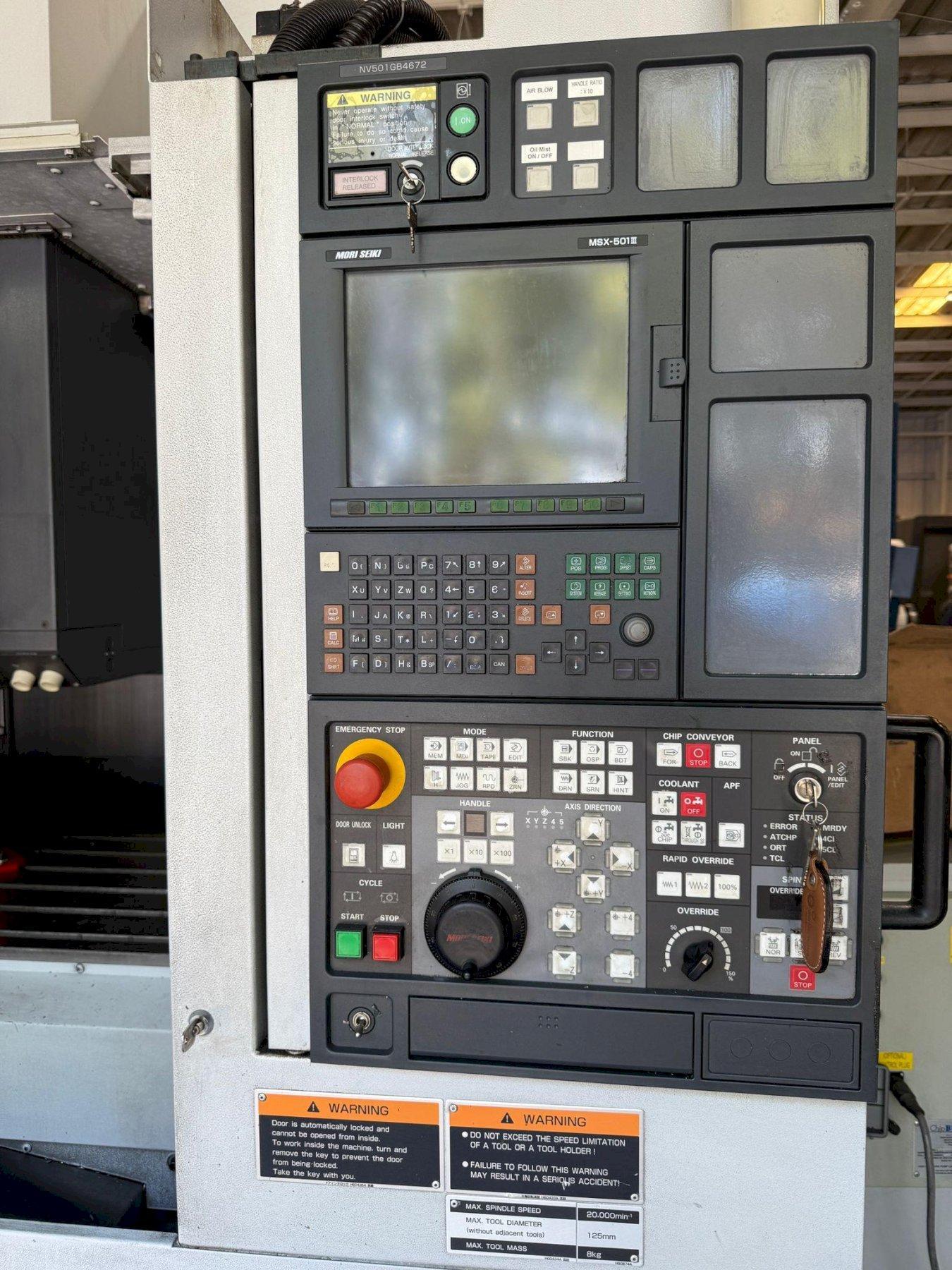

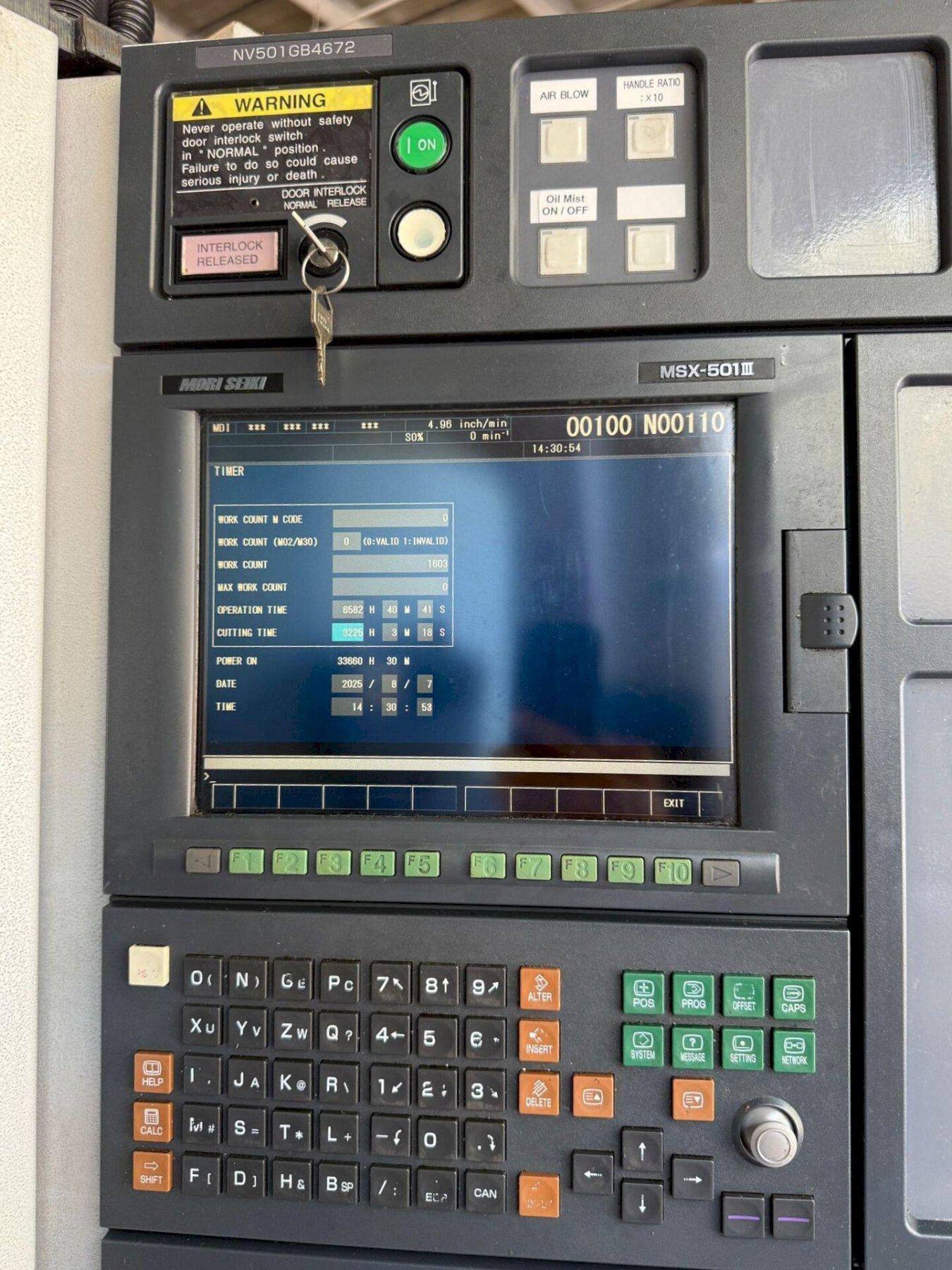

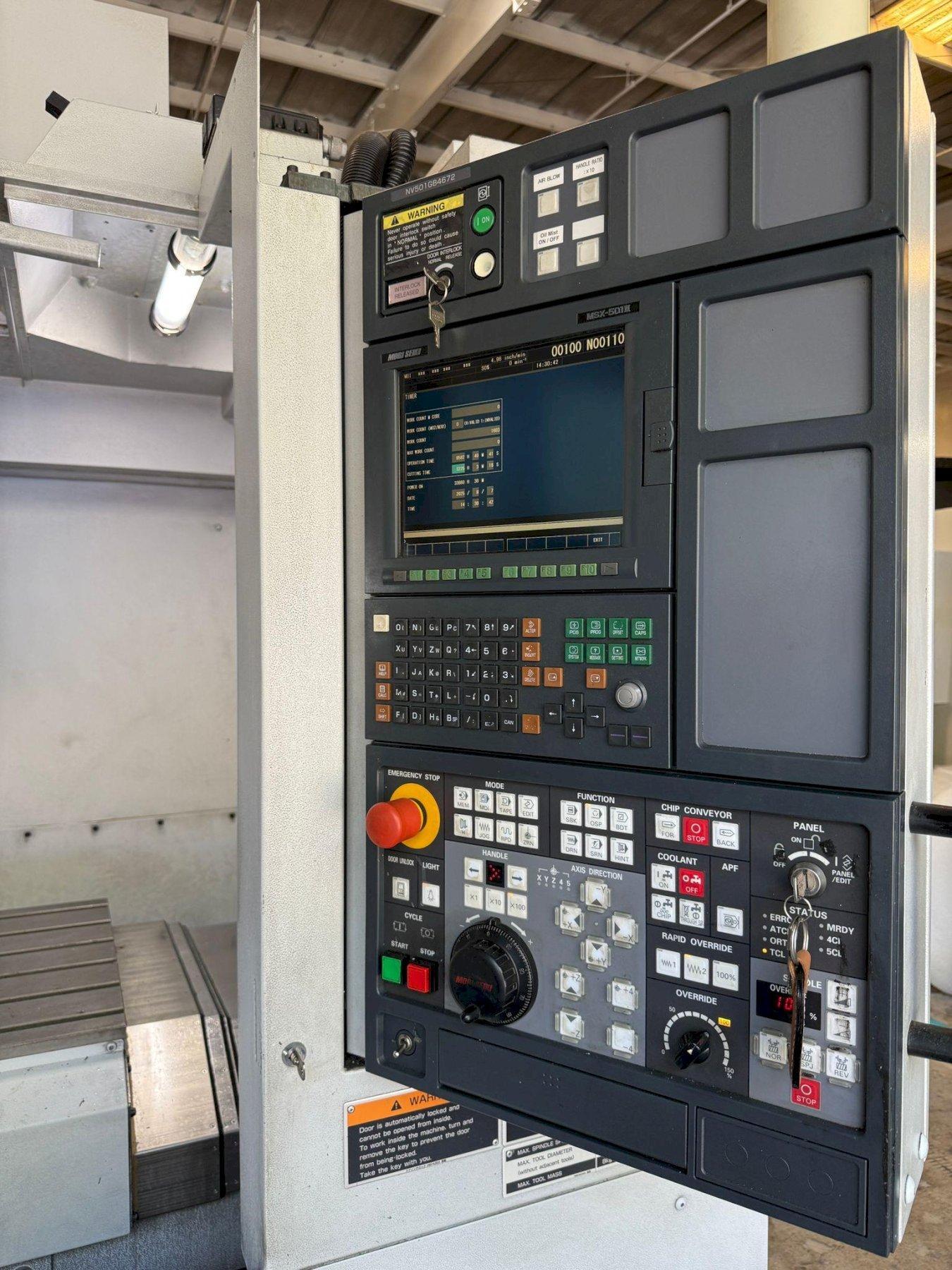

MSX-501III ( FANUC ) CNC Control
20,000 RPM High Speed Spindle – (Upgraded $30,000 value Included)
Through Spindle Coolant
30 Station Automatic Tool Changer
25 HP high torque Spindle Motor

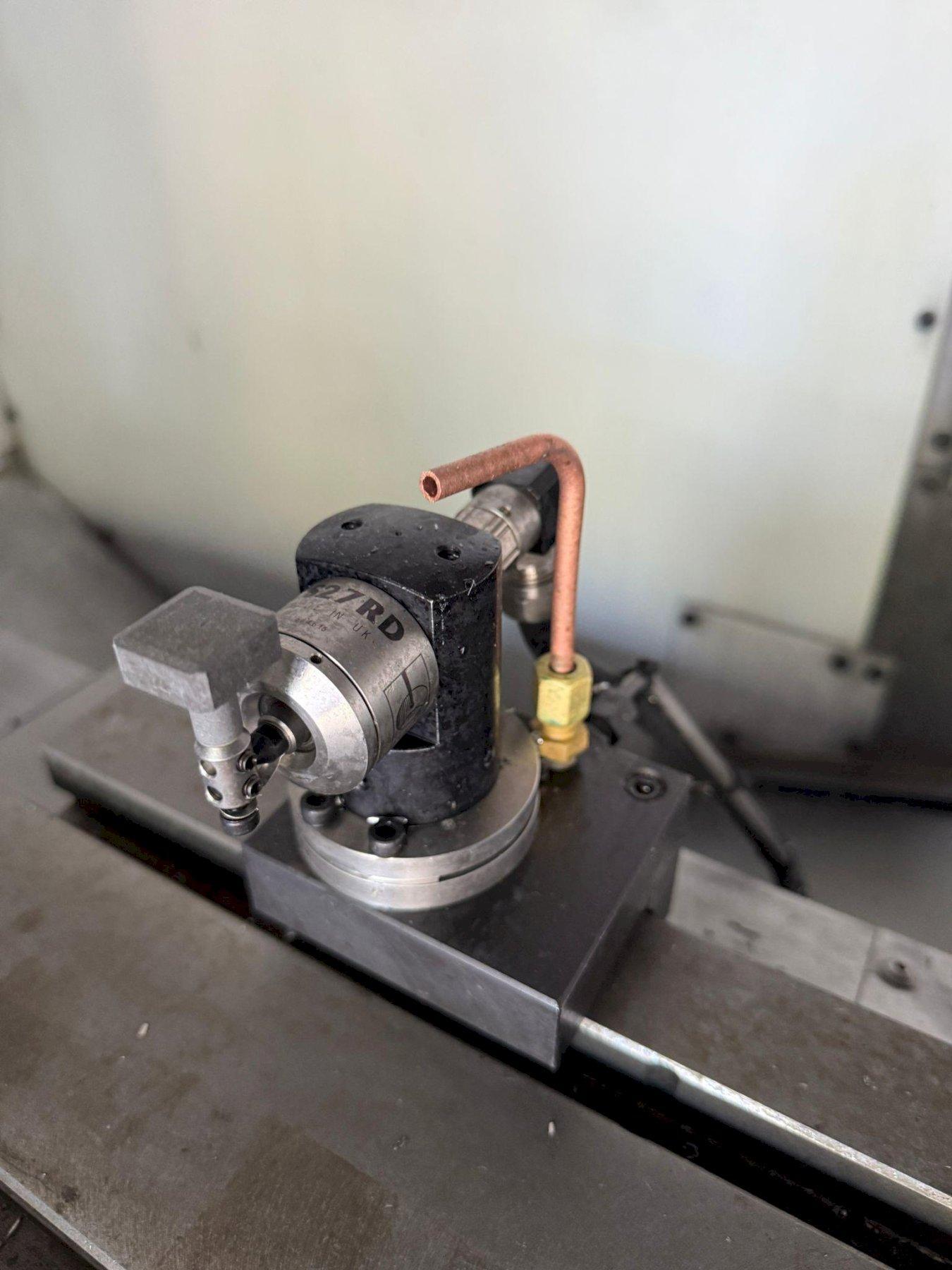

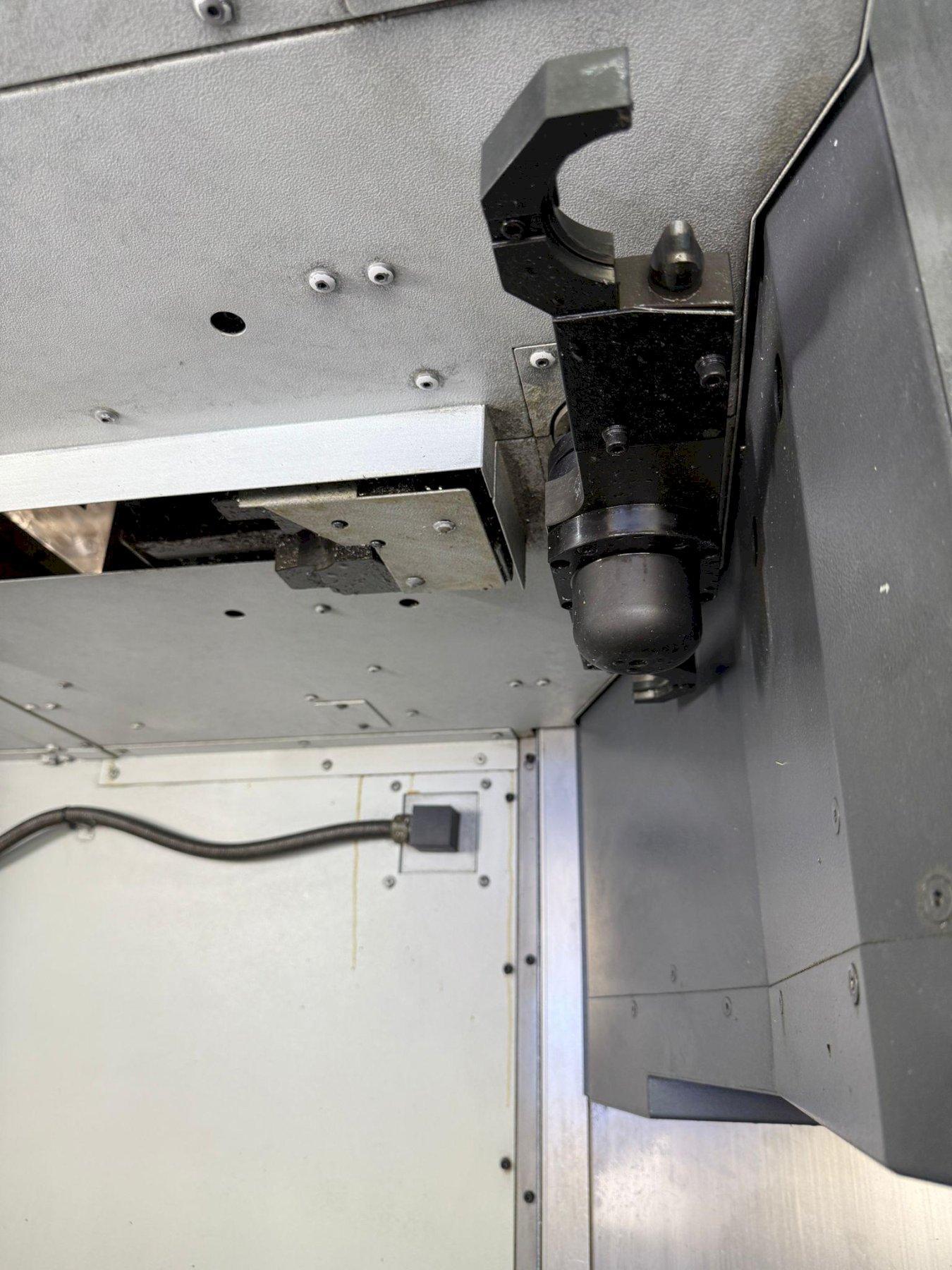

Tool Presetter
Rigid Tapping
Coolant System

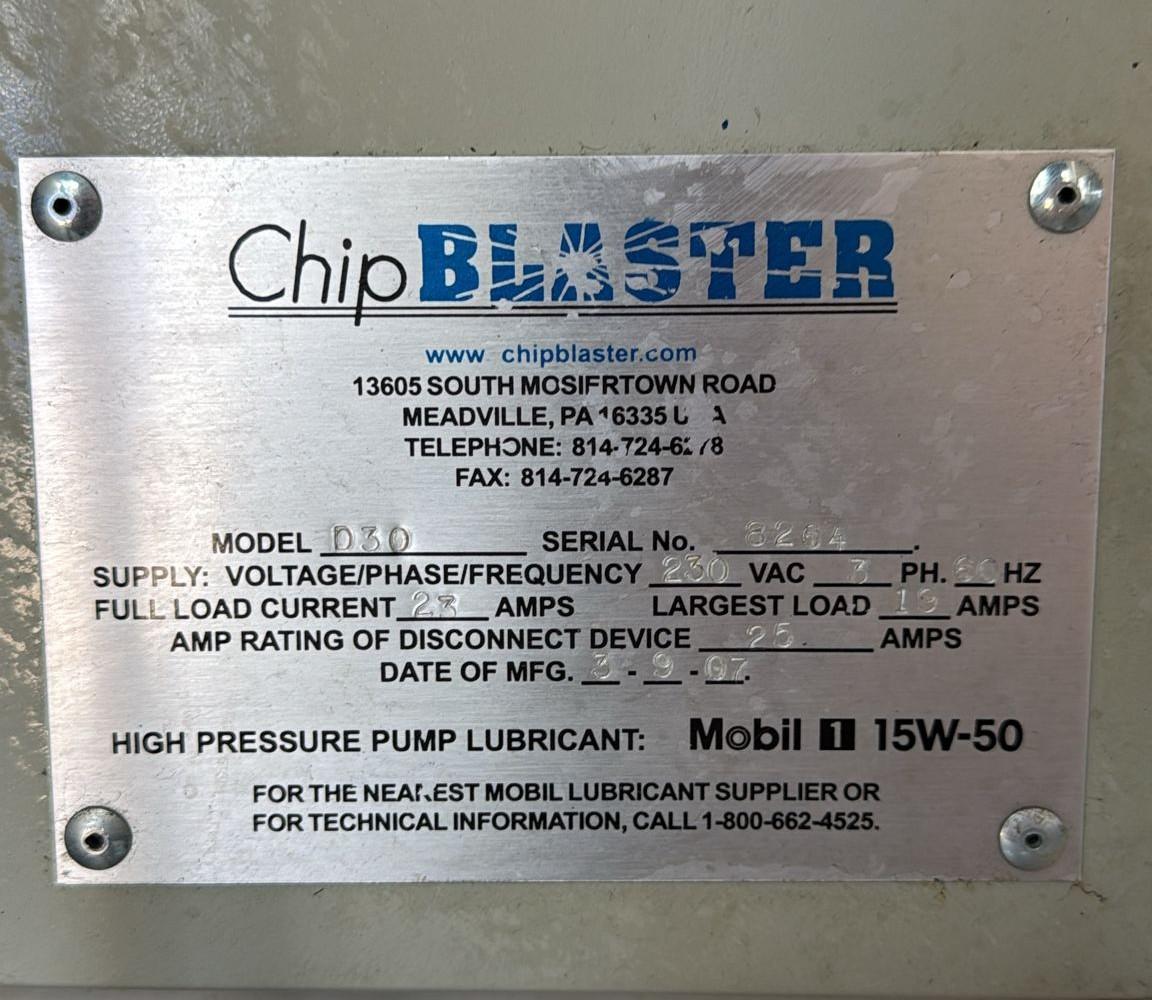

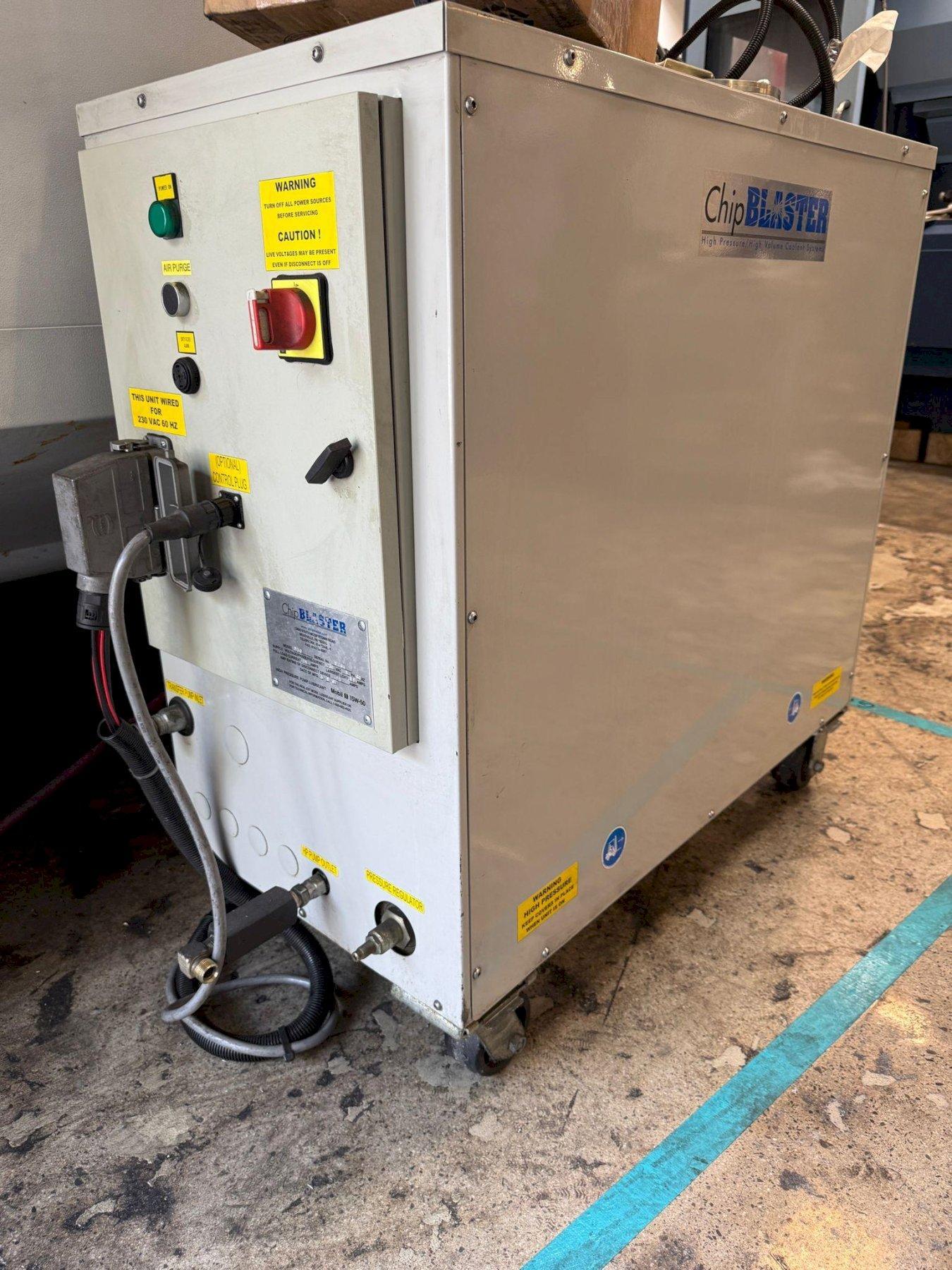

D-30 Chip Blaster High Pressure Unit – (Upgraded $10,950 value Included)

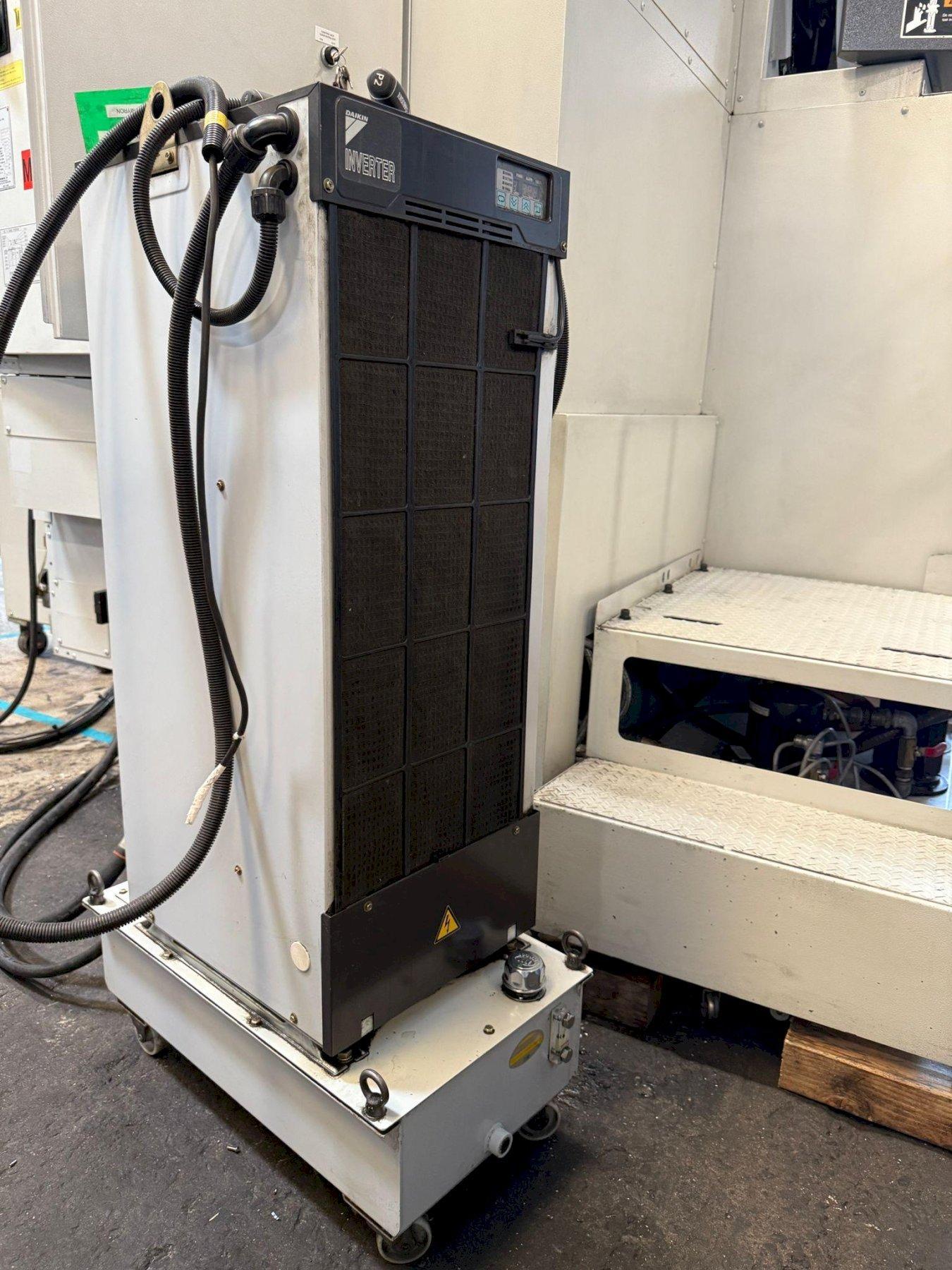

Spindle Chiller Unit
Books & Manuals Set
Levelling Pads

Travels:
X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

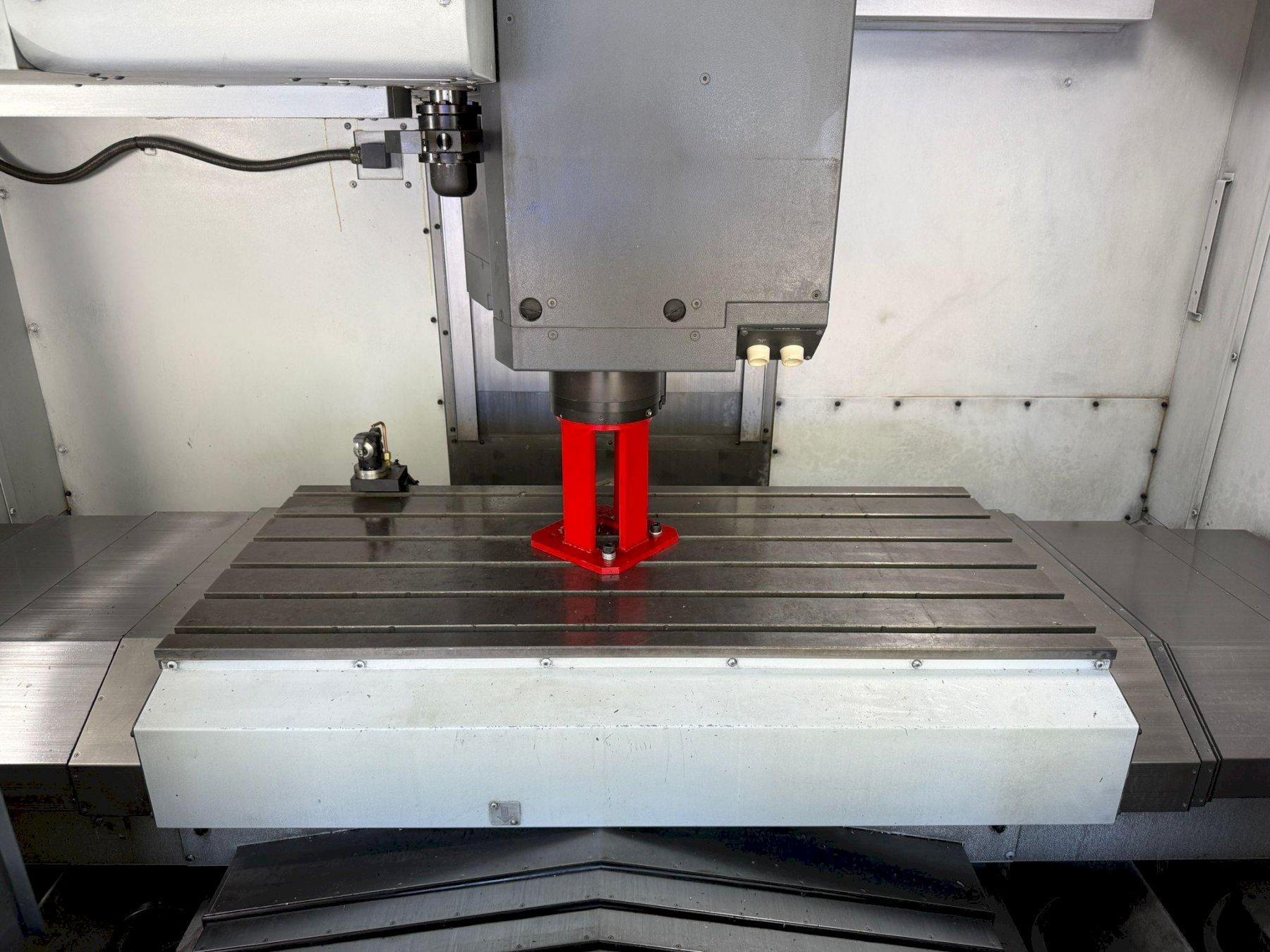

Table:
Length: 52.0″
Width: 23.6″
Max Weight on Table: 2640 lbs
Number of T-slots & Size: 6 × 0.7″ × 3.9″

Spindle:
Taper Size: BT-40
Speed Range: 20,000 RPM
Spindle Power: 25 HP

Feed Rate:
Rapid X, Y & Z: 787 inch/PM
Cutting Feed rate: 787 inch/PM

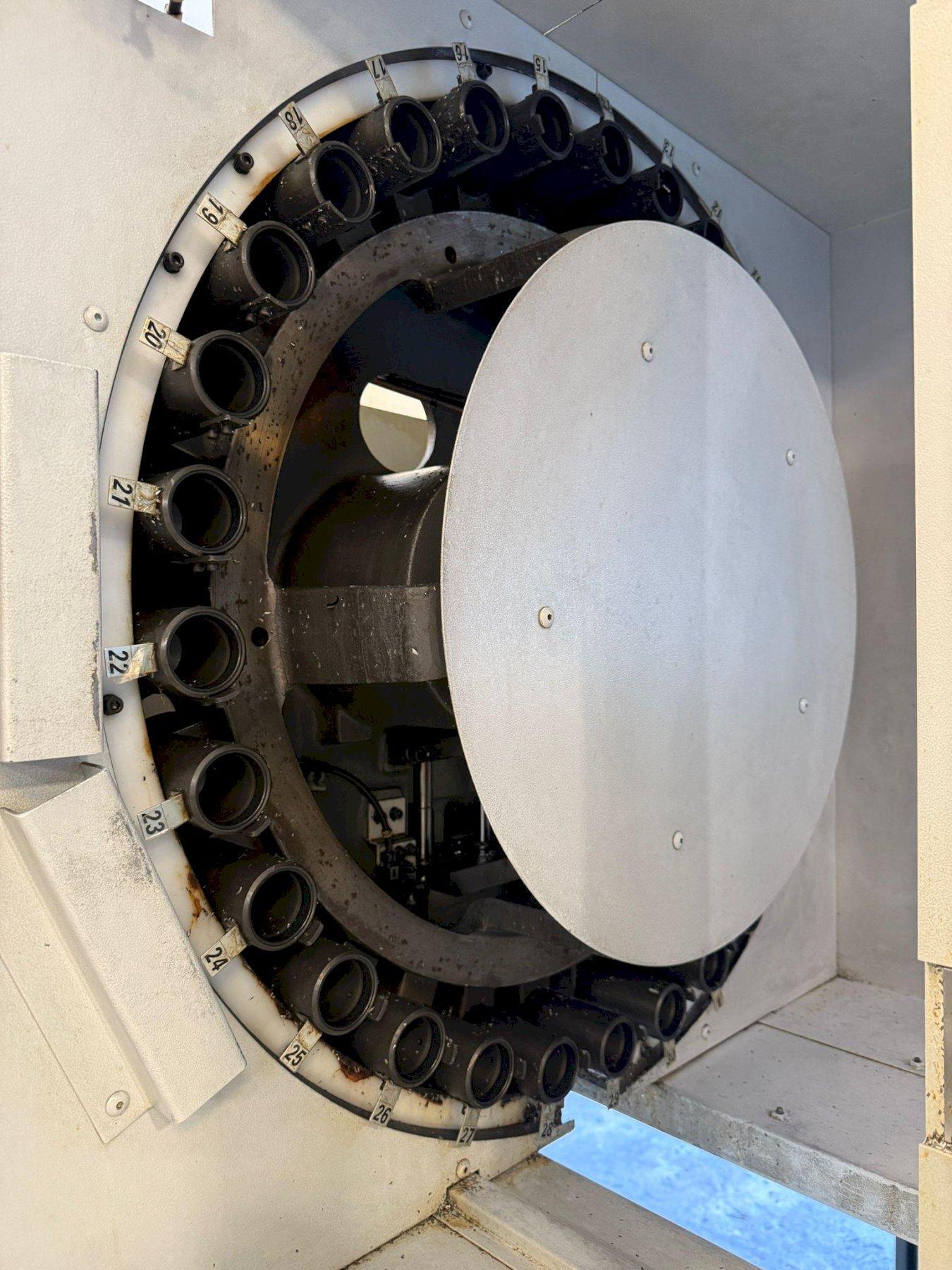

Automatic Tool Changer:
BT-40 Taper
Capacity: 30
Max Tool Weight: 17.6 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.92″

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase / 38 kva
Overall Dimensions: 110″ L X 108″ W X 102″ High
Weight: 18,190 lbs Approx.

Tags: DMG MORI, DMG Mori Seiki
