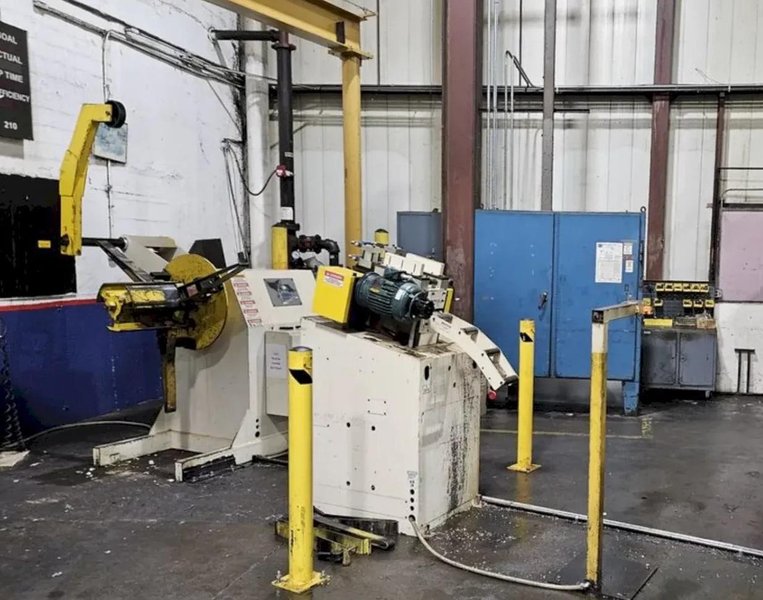

6 inch x 6,000 lbs. Capacity Coe Press Equipment Coil Reel and Coe Powered Straightener For Sale

6 inch x 6,000 lbs. Capacity Coe Press Equipment Coil Reel and Coe Powered Straightener For Sale

Name: 6 inch x 6,000 lbs. Capacity Coe Press Equipment Coil Reel and Coe Powered Straightener For Sale
Brand: COE
SKU: 3043
Price: 39500.00 USD
Availability: InStock

Brand

COE

Location

Michigan

Price

$39,500.00

Specifications
Files & Videos

Coil Weight	6000 pounds
Coil Width	6 inches
Coil Thickness	.187 inches

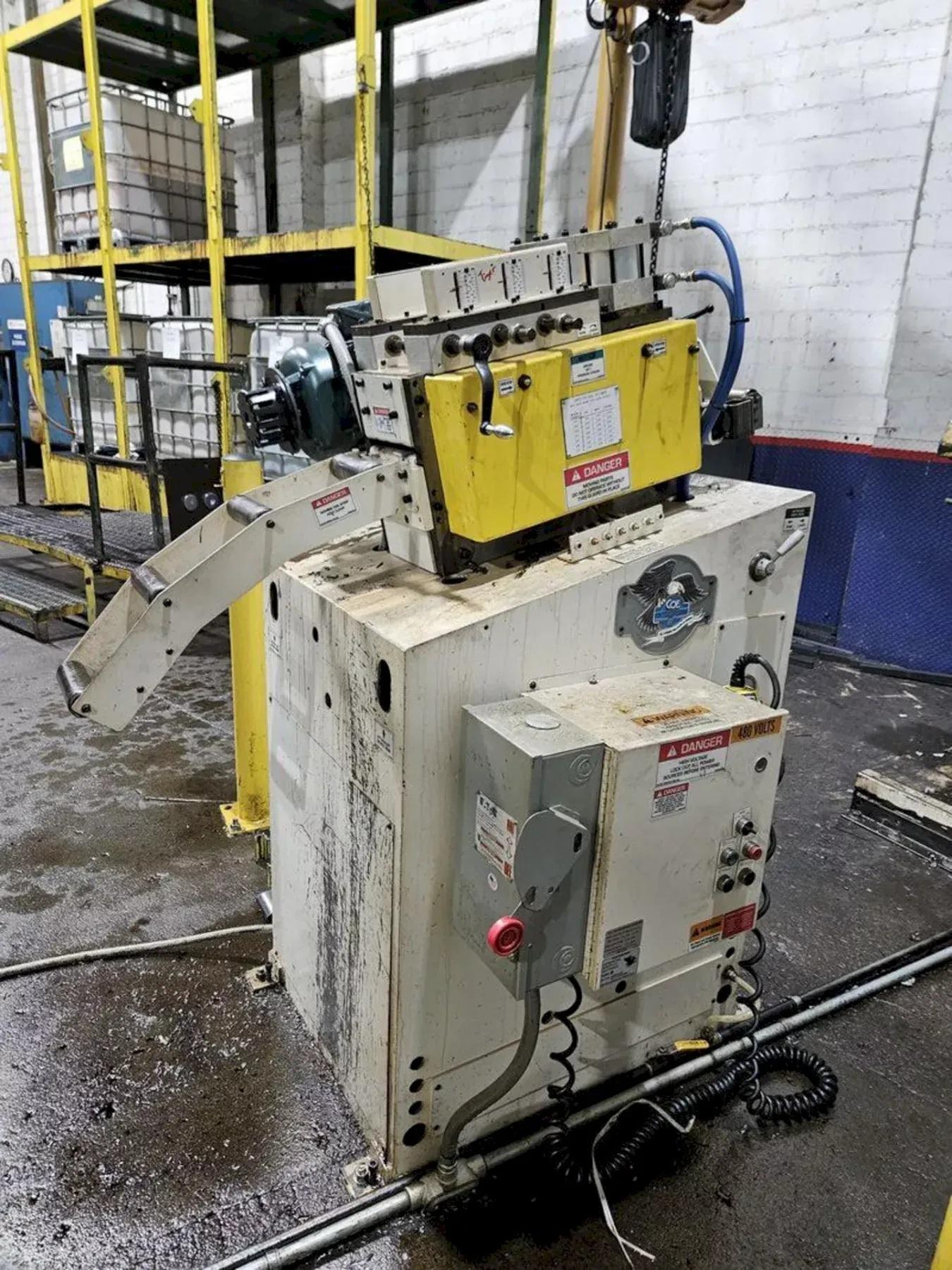

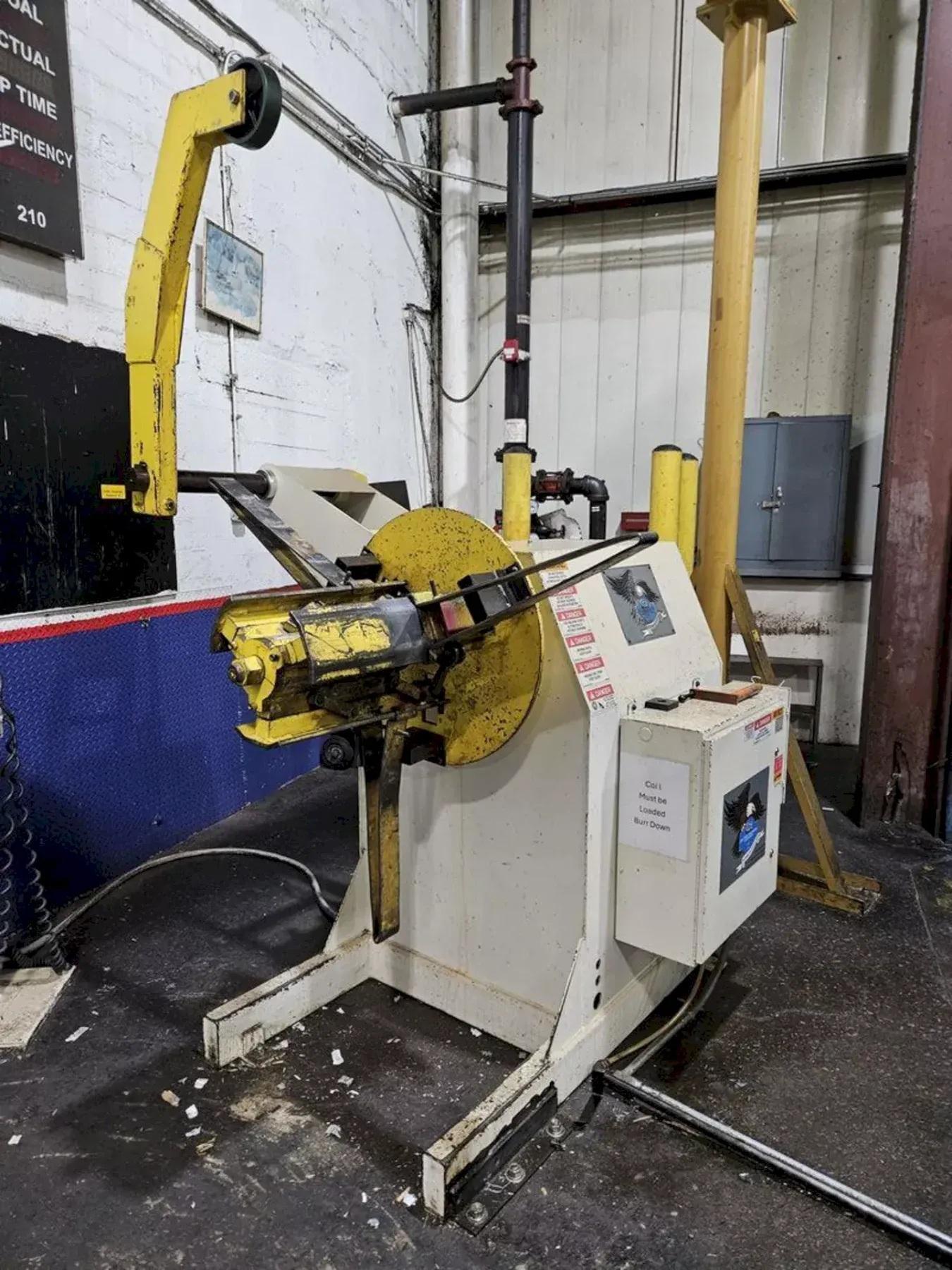

Coe Press Equipment 6 inch x 6,000 lbs. Coil Reel and Coil Straightener For Sale Can be seen under power! COE PRESS Coil Reel Uncoiler Model No. CPR-PO-6018 S/N 67111-4 6,000 lbs. x 18" Capacity Coil Reel Three leaf mandrel with hydraulic expansion Coil hold down arm Air Brake with adjustable tensioning Self contained hydraulics COE PRESS Powered Coil Straightener Model No. CPPS-PO-250-06 / Serial No. 67111-3 .187" x 6" Maximum Coil Thickness at Full Width Entry pinch rolls with air operated adjustment Seven Straightening rolls x 2.50" diameter Individual upper roll adjustment with position readouts Adjustable stock width edge guides Automatic lubrication system AC VF Drive and control system Operator's control station Jog forward and reverse Auto / Run cycle with loop control Looking for a high-performance feed line to elevate your metal stamping operations? We have a late-model, exceptionally well-equipped Coe Press Equipment coil reel and powered straightener line available now, and it can be inspected under power! This clean system features a Coe Model CPR-PO-6018 coil reel handling up to 6,000 lbs. with an 18” width capacity, complete with hydraulic mandrel expansion, air brake tensioning, and a coil hold-down arm. It's paired with a Coe Model CPPS-PO-250-06 powered straightener capable of processing up to .187" thick x 6" wide material, featuring seven 2.50" rolls, air-operated entry pinch rolls, individual upper roll readouts, and an AC variable-frequency drive with loop control. Contact S&G Press & Machinery Sales today to arrange your under-power demonstration!
