6,000 Lbs. x 12" Wide Coe Press Double End Coil Reel And Straightener For Sale, Year 2012
Brand
Category
Model
CPR-DE-PO-60 / CPPS-350
Stock #
2982
Year
2011
Condition
Not specified
Location
Michigan
| Coil Weight | 6000 pounds |
| Coil Width | 12 inches |
| Coil Thickness | .170 inches |
|
Coe Press Double End Coil Reel And Straightener
6,000 Lbs. x 12" Wide Model: CPR-DE-PO-60 / CPPS-350
Serial #: 54645-1
Year: 2011 Coil weight capacity: 6000 pounds
Stock Width Capacity 12 inches
Max Stock Thickness Capacity At Full Width .170 inches
Minimum expansion range: 16 inches
Maximum expansion range: 21 inches
Coil O.D. capacity: 72 inches
.170" x 12" Wide (85,000 PSI) Stock thickness capacity
.187" x 08" Wide (85,000 PSI) Stock thickness capacity
.250" x 03" Wide (85,000 PSI) Stock thickness capacity
Equipment and Features:

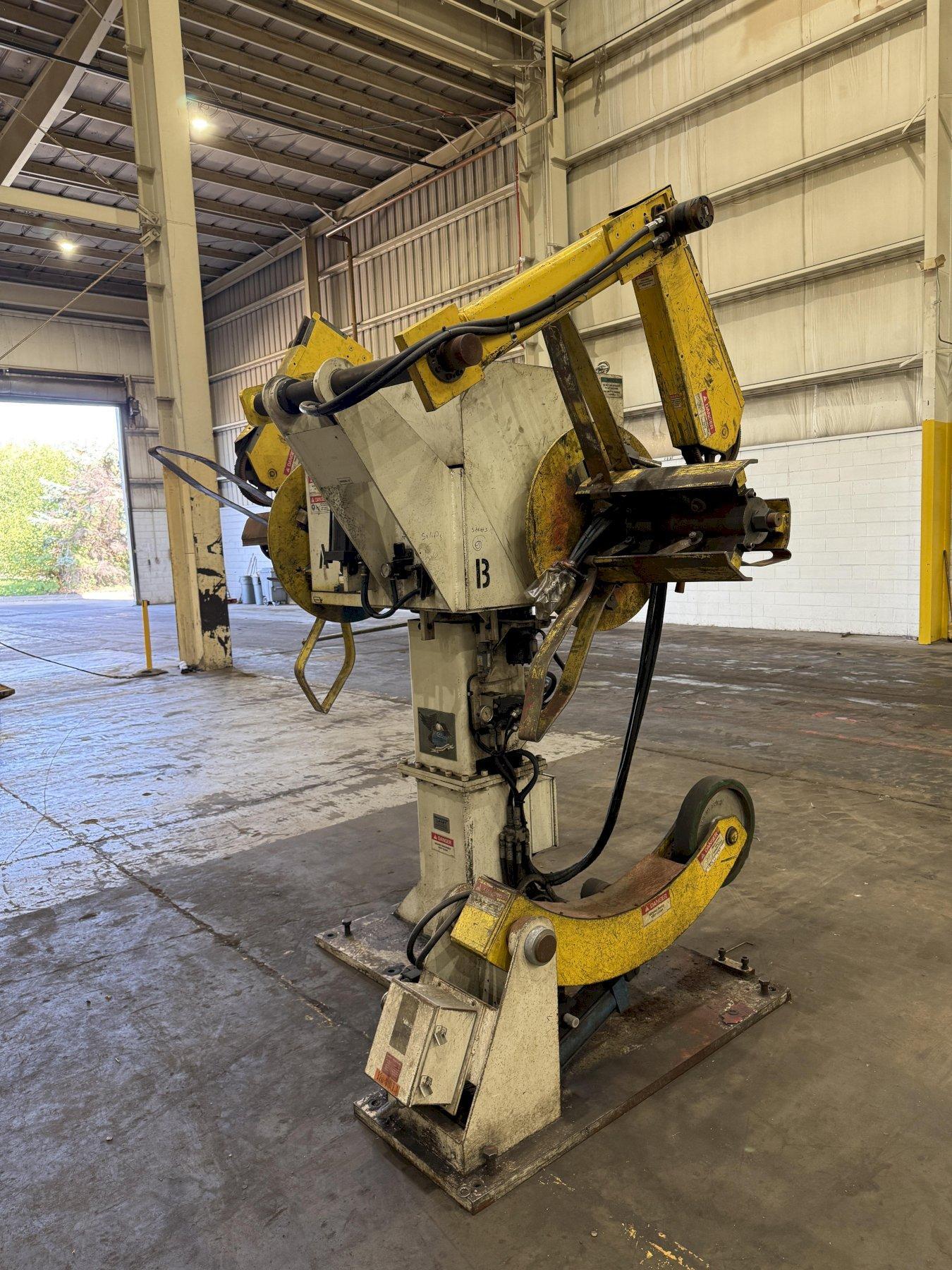

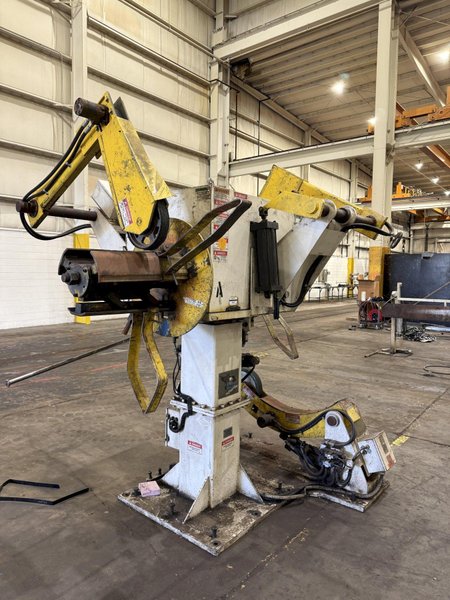

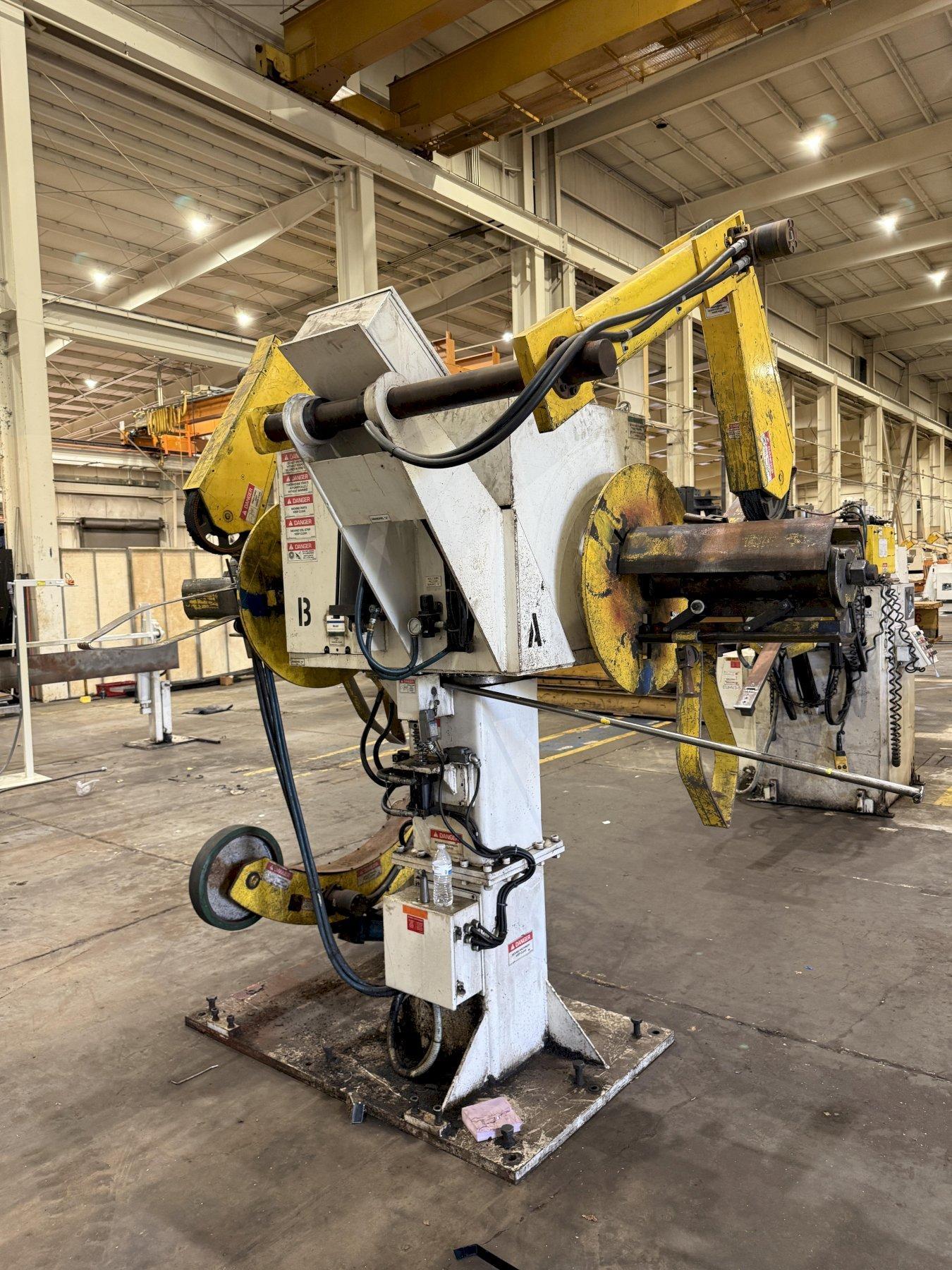

Coe Press Double End Coil Reel Model No. CPR-DE-PO-60
Three lead mandrel - hydraulic mandrel expansion
Adjustable coil keeper arms
Air brake for adjustable tensioning (fail safe)
Powered threading drive (jog)
Powered turret indexing for double end reel
Dual coil hold down arms with motorized end wheels
Coil hold up arm for run side mandrel

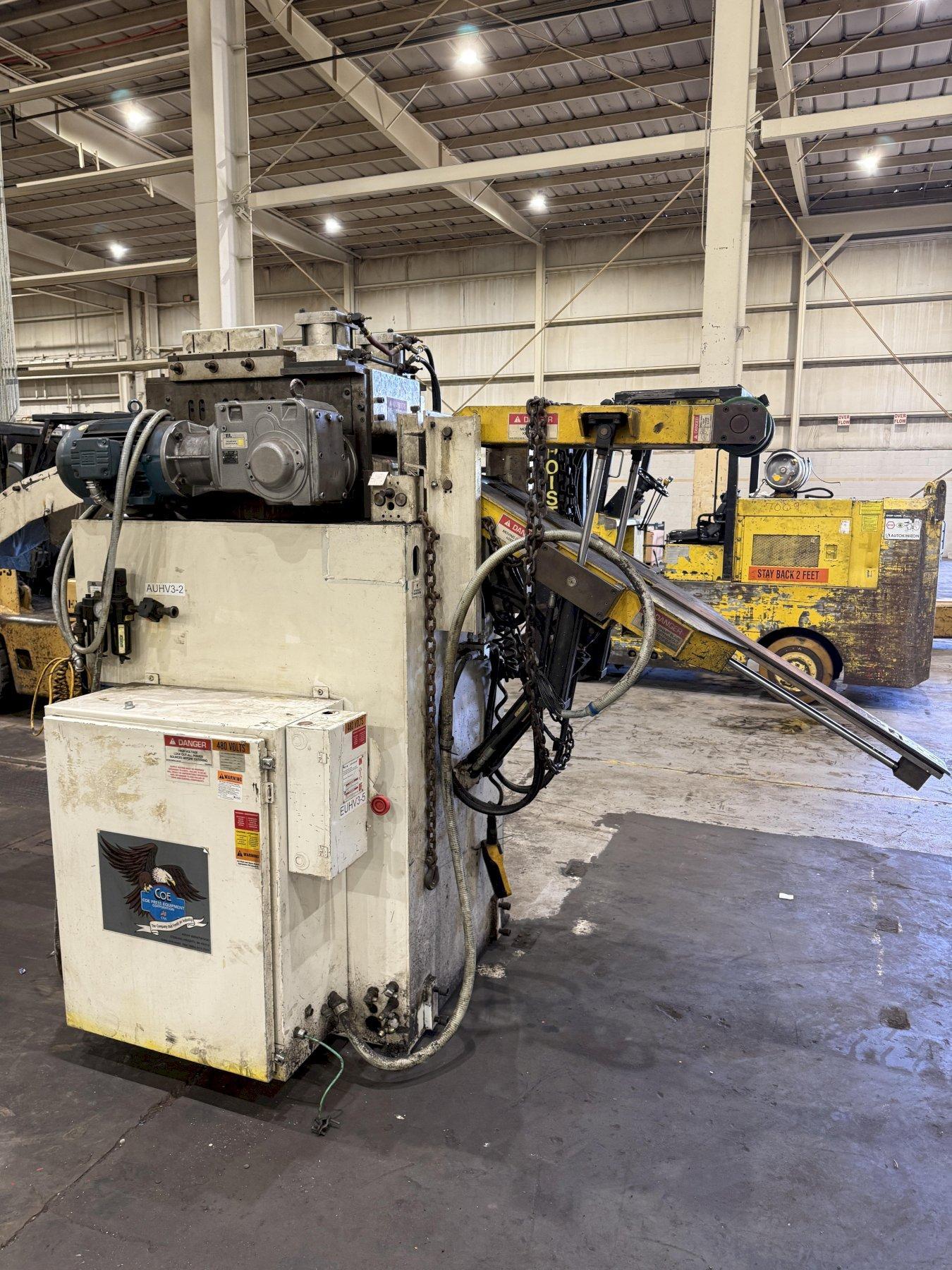

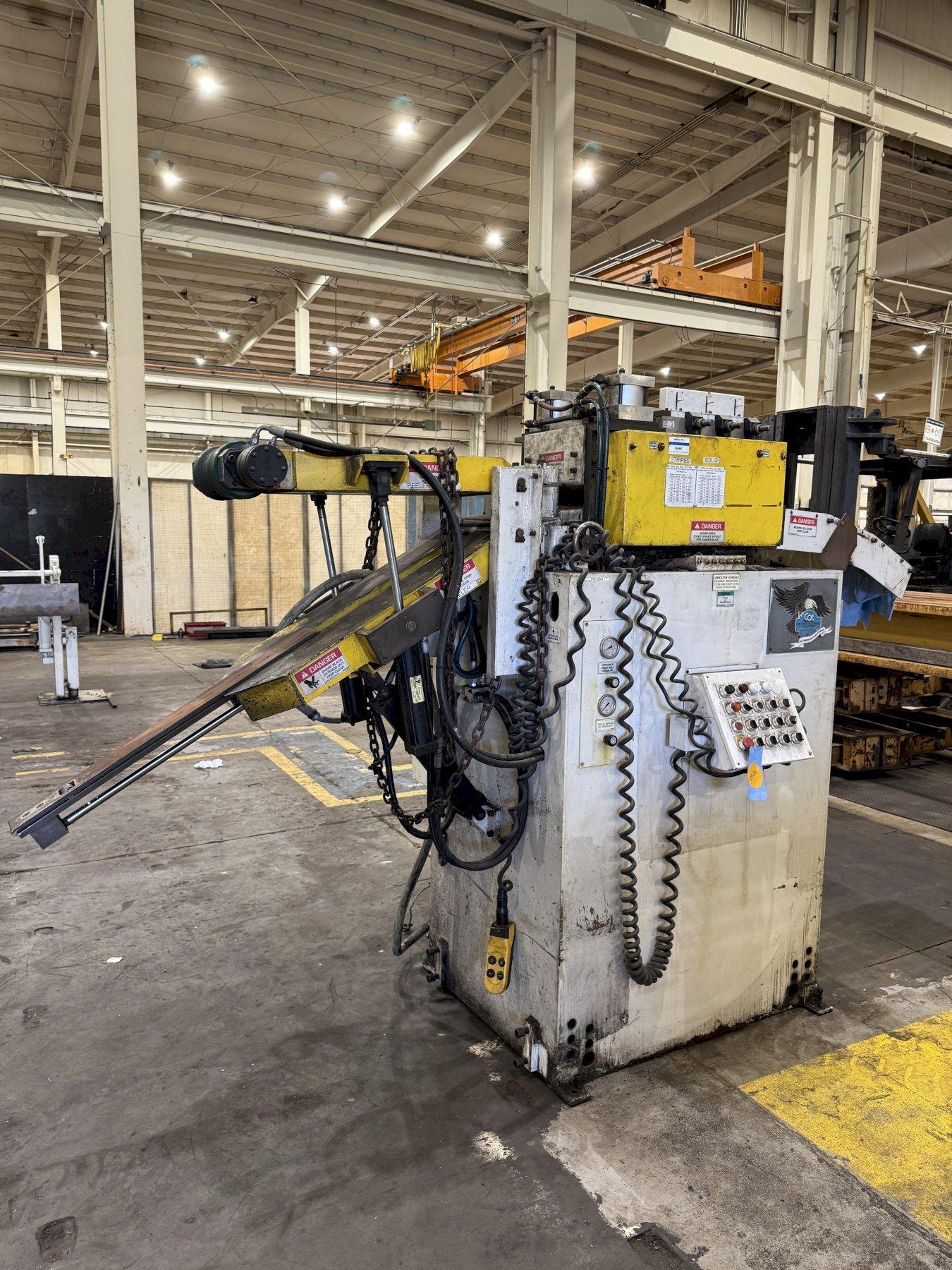

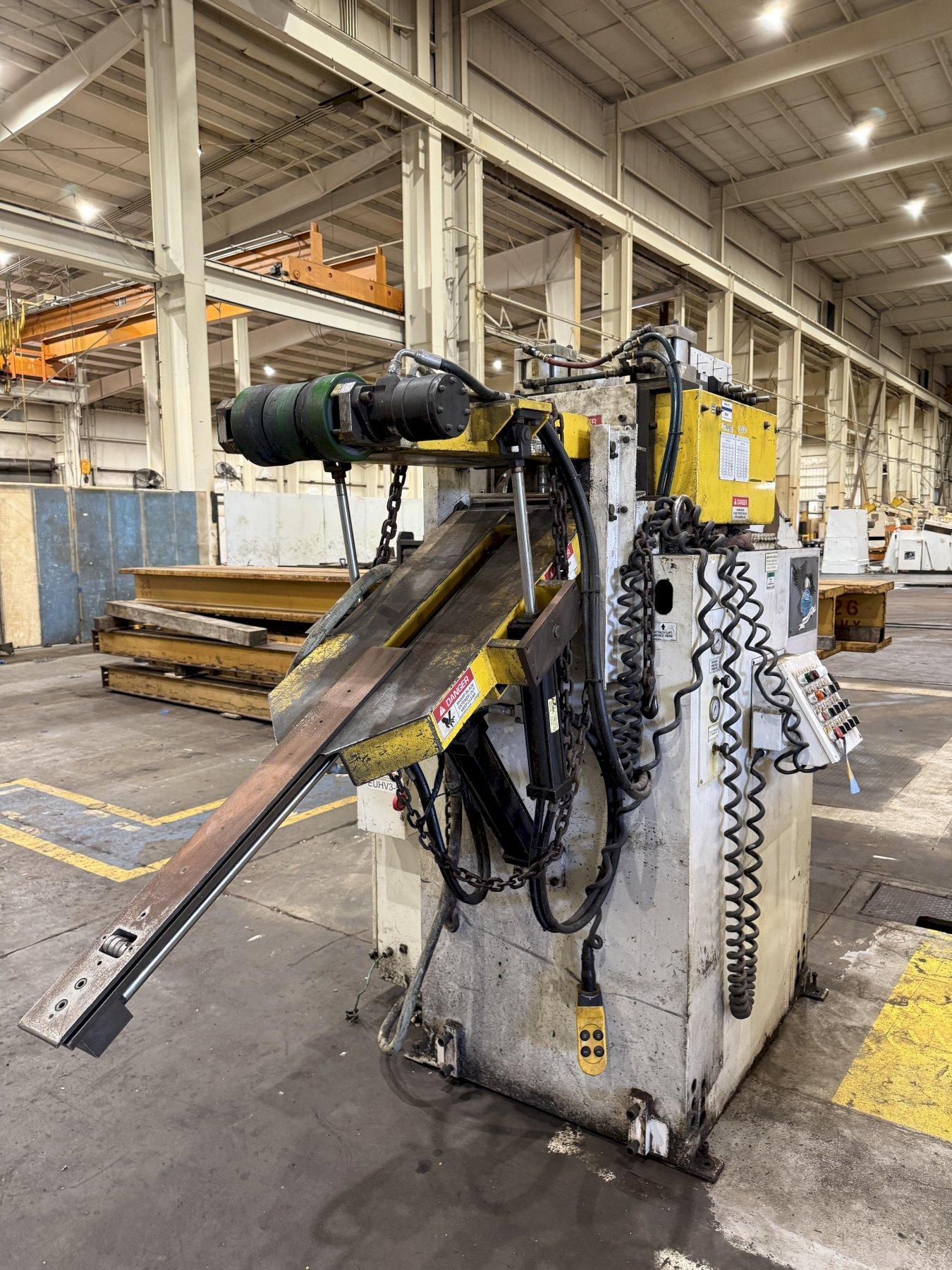

Coe Press Powered Coil Straightener Model No. CPPS-350-12
Seven straightening rolls x 3.5" diameter
Digital roll position indicators
Hand crank self centering edge guides
Pinch rolls x five inch diameter w/ air operated open / close
Stock peeler and threading station with motorized roll
AC Variable frequency drive (10 HP)
Operator's control station
Auto / run cycle w/ laser loop control`

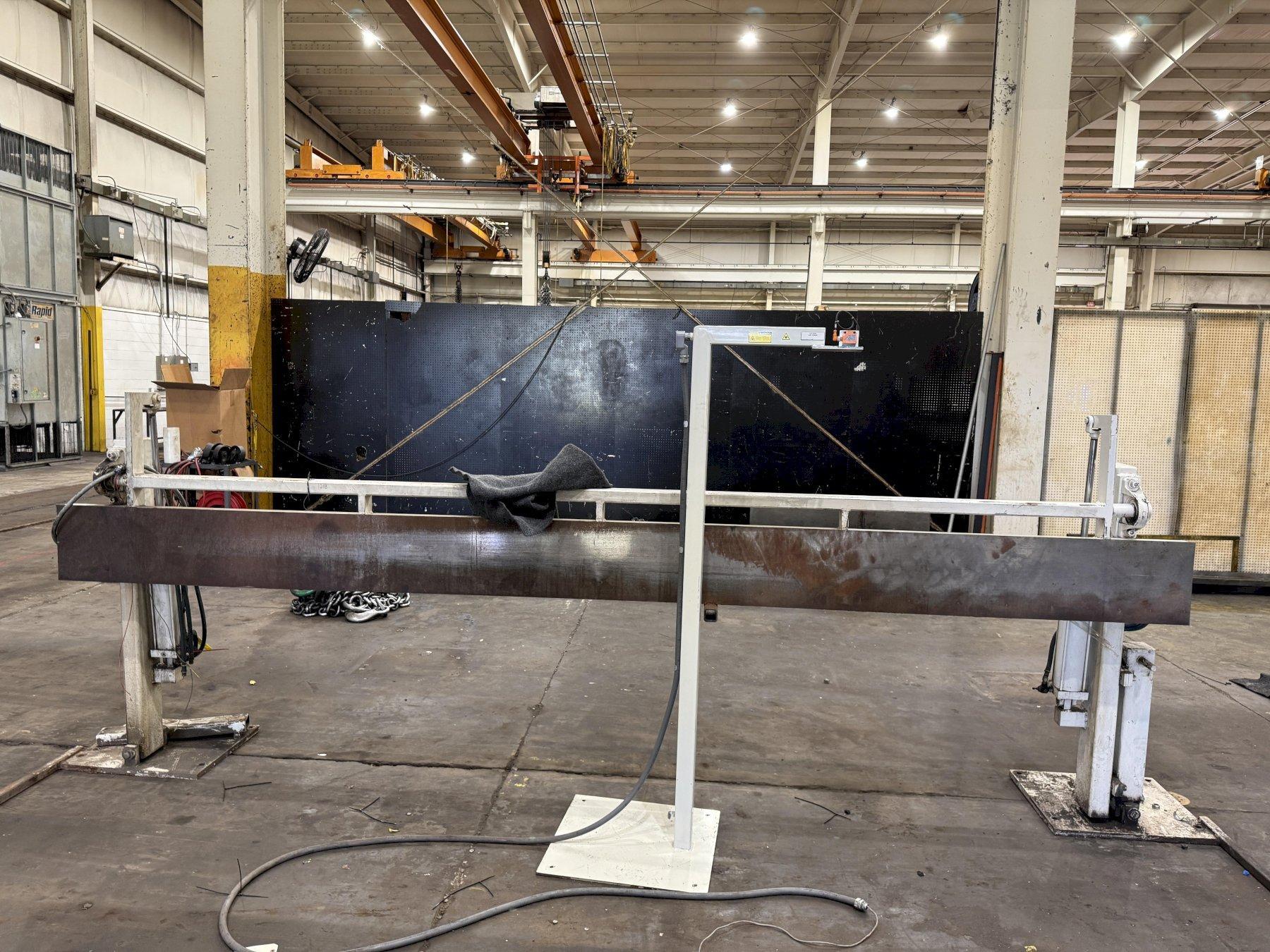

Coe Press Exit Threading Table Model No CPTT-12
12" Wide x 20' Long
Air operated actuation
Bomb-bay door design
Optional:
New or used servo roll feed to complete the line
|
|
