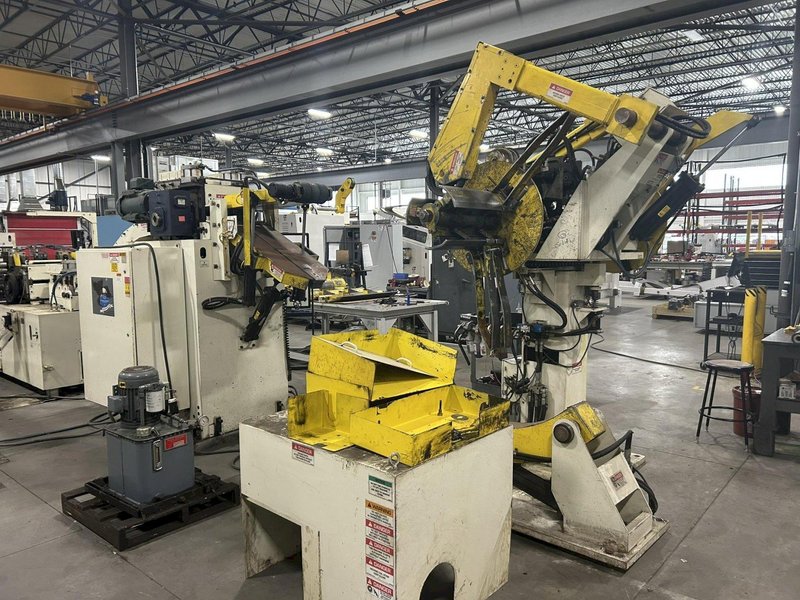

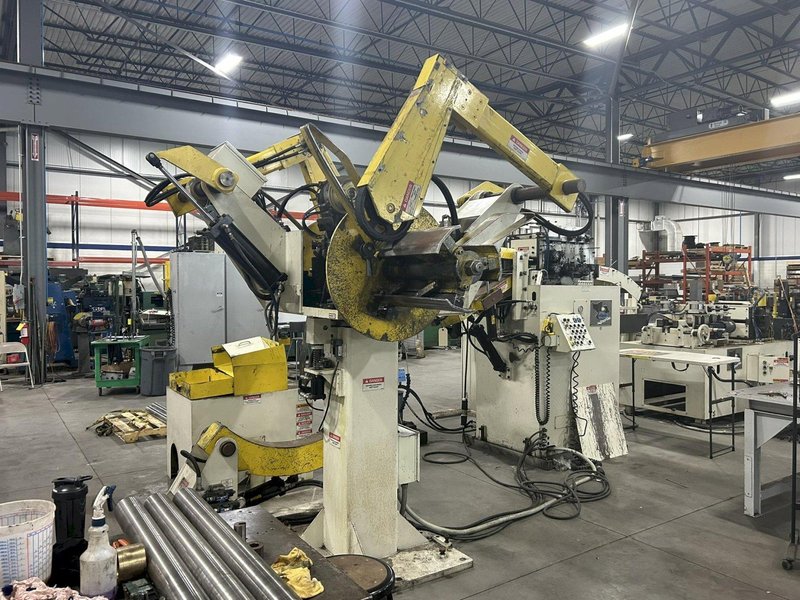

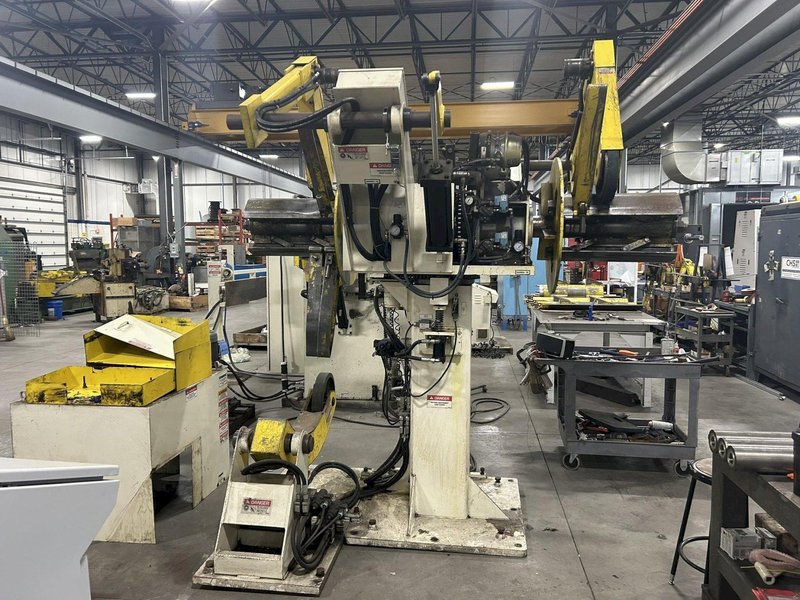

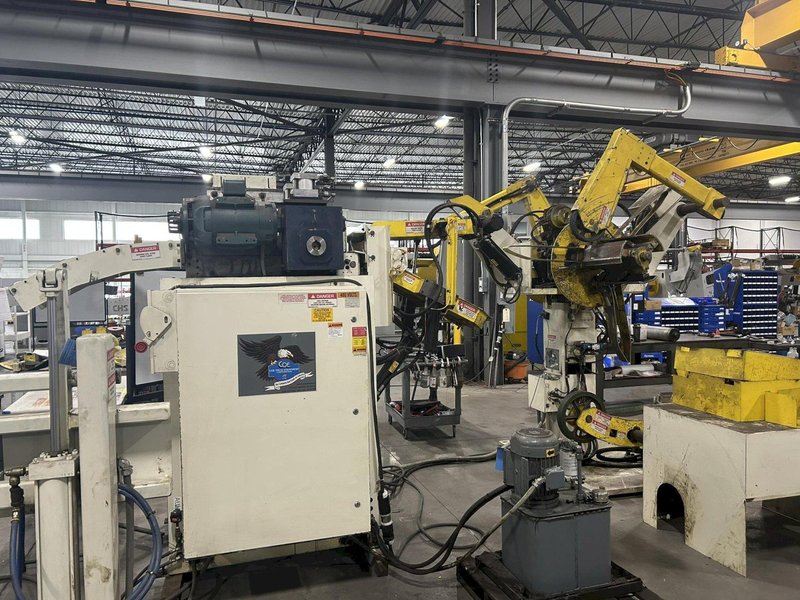

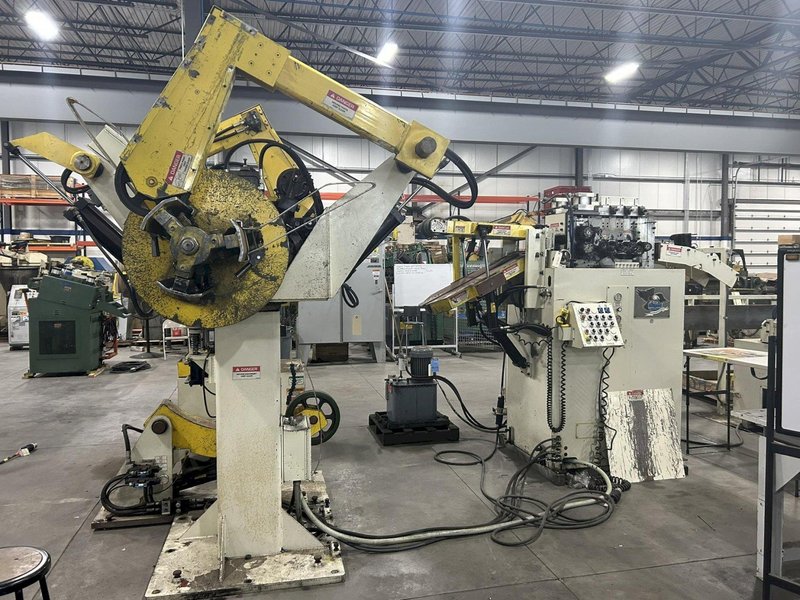

6,000 lbs. x 12" Coe Press Equipment High Strength Steel Capacity Double End Reel and Powered Straightener, Year 2014
Brand
Category
Model
CPR-DE-6018 / CPPS-350-12
Stock #
2919
Year
2015
Condition
Not specified
Location
Michigan
| Coil Weight | 6000 pounds |
| Coil Width | 12 inches |
| Coil Thickness | .250 inches |
|
CPR-DE-PO-6018 - Coe Double End Reel 6,000 lbs. x 18" Max. Coil Width
6,000 lbs. Capacity per Side 18" Maximum Coil Width 72" Maximum Coil O.D. 16-21" I.D. Range Serial Number - 66490-1 Three (3) Pad Mandrel Construction
One Set of (6) Quick Release Narrow Coil Keepers
Heavy Duty Welded Reel Construction
30" Diameter Heavy Duty Backplate
"Bearing Tube" Support of Mandrel
Material Width Scale on Mandrel Pad
Hydraulic Mandrel Expansion
Hydraulic Threading Drive
Powered Indexing Feature
Fail Safe Drag Brake to Prevent Coil Over Run
Extra Set of (6) Quick Release Narrow Coil Keepers Coil Hold Down Arms with Motorized End wheels
Lower Hold Up Arm with Motorized End Wheel to Reach within 2.00” of Fully Expanded Mandrel
Special End Cap on Mandrel (Per Photo)
Coil Load on Operator Side
CPPS-350-12 - Coe 3.5" x 12" Power Straightener Cluster Gear Drivetrain for All Lower Straightener Rolls
Funneled Stock Path for Material Threading and Operator Safety
Heavy Duty Welded Straightener Base
Precision Worm Gear Adjustment of Upper Straightener Rolls
Rigid Tie Bar Construction of Straightener Head
Independent Adjustment of Upper Straightener Rolls
Optimized Roll Diameter and Center Distance
Recommended Roll Depth Settings Chart
Remote Jog Pendant for Material Threading
Seven (7) 3.5" Diameter Straightener Rolls for Optimum Straightening Capability
Entrance Side Pinch Rolls
Pneumatic Raise and Lower of Upper Pinch Rolls
Four (4) Roll Catenary Section For Proper Material Support
Direct Mount Drive System for Efficient Torque Transfer
Central Point Lubrication System
Electrical Safety Disconnect
Alligator Style Peeler-Dekinker Station – Reference Job 54643-2 for Top and bottom Payoff
Centralized Controls for Straightener and Reel
Digital Upper Straightener Roll Height Indicators
Self Centering Hand Crank Entrance Edge Guides
10 Horsepower AC Variable Speed Drive - Digital Control
Reel to Straightener Tie In Brackets

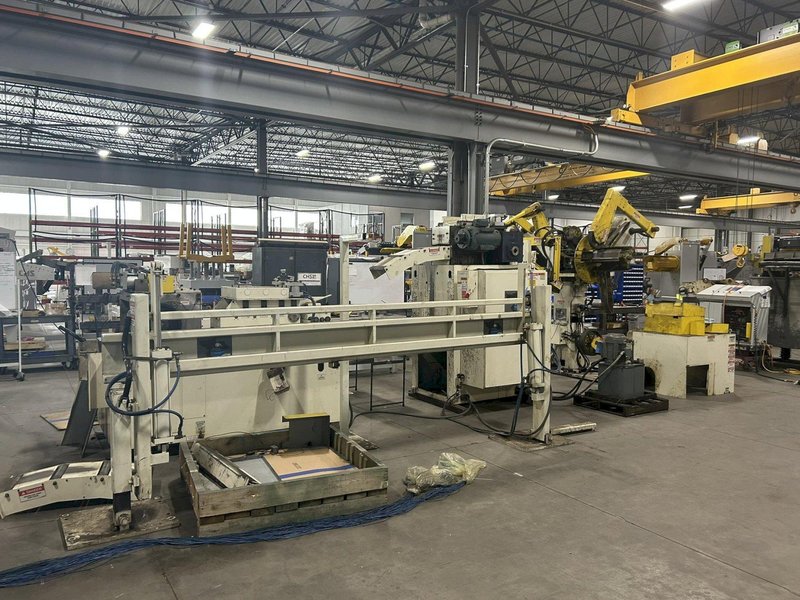

Flat Top Cabinet Laser Loop Control CPPT-1220 - Coe 12" x 20' Threading Table Heavy Duty Steel Solid Top Construction
Single Sided Table Construction
Thread Table Length
Adjustable Pass line Feature
Air Raise and Lower of Threading Table
Threading Table Special Options
Controls Solenoid Operated on Side of Servo Feed Cabinet
Entrance Pass line 69”, exit Pass line 55”
Mount Legs 24” Inside Table Length at Both Ends |
|
