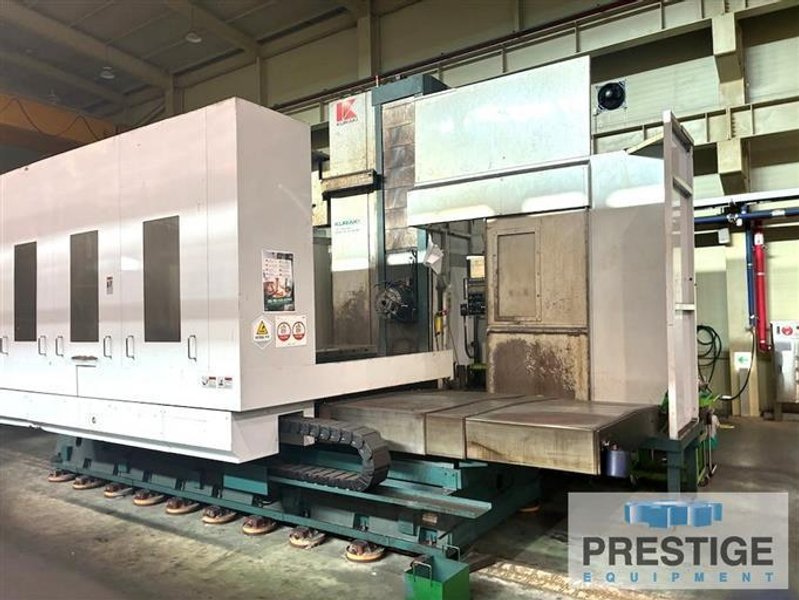

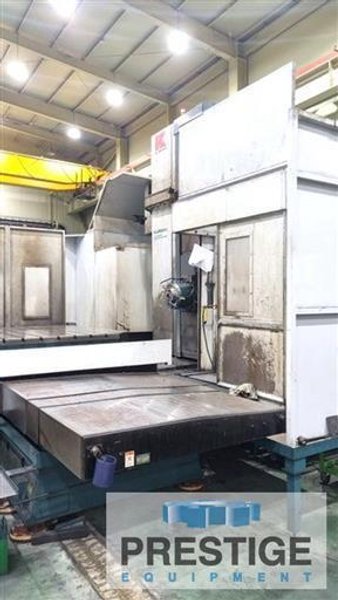

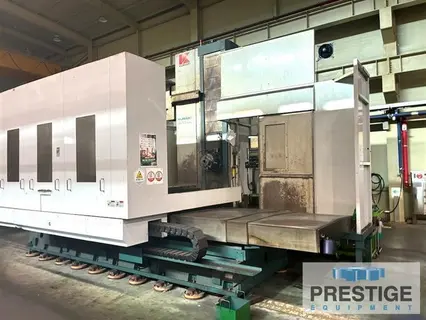

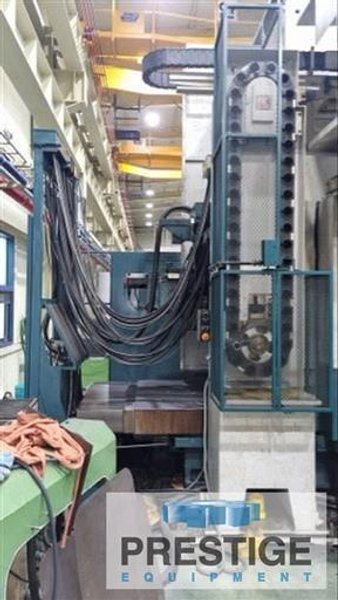

Boring Mills Horizontal Table Type CNC

CAPACITY:
Spindle Diameter 5.12"
Spindle Taper #50 Big Plus
Vertical Head Travel, Y-Axis 90.55"
Table Travel, X-Axis 118.11"
Spindle Travel, W-Axis 25.59"
Column Cross Travel, Z-Axis 62.99"
Table Size 70.87" x 86.61"
Table Load Capacity 26,400 LBS
Rotary Table, B-Axis 0.001 Degrees
Spindle Speeds 5-4,000 RPM
Speed Ranges 3
Feeds .04 - 157.48 IPM
Rapid Traverse, X,Y,Z, Axes 393.70 IPM
Rapid Traverse, W-Axis 236.22 IPM
Floor Space 268.9" x 267.72"
Machine Height 188.9"
Machine Weight 79,200 lbs



Equipped With:

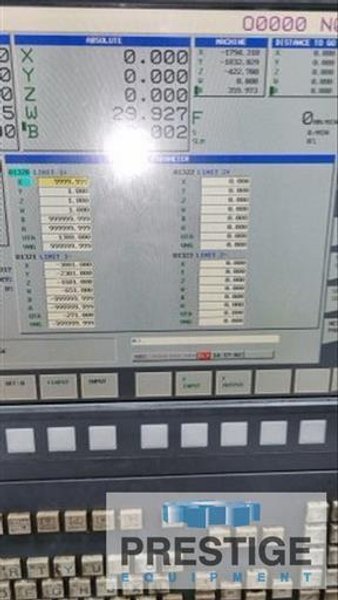

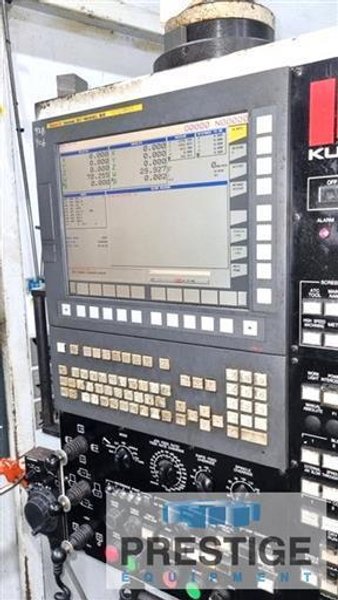

Fanuc 31i, Model B5 CNC Control
40-Station Automatic Tool Changer

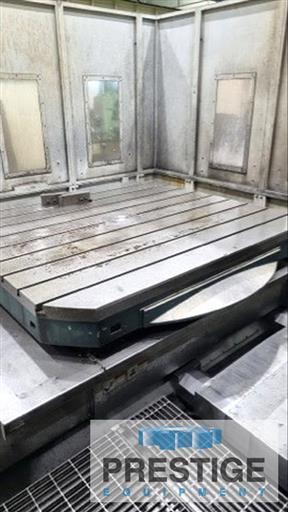

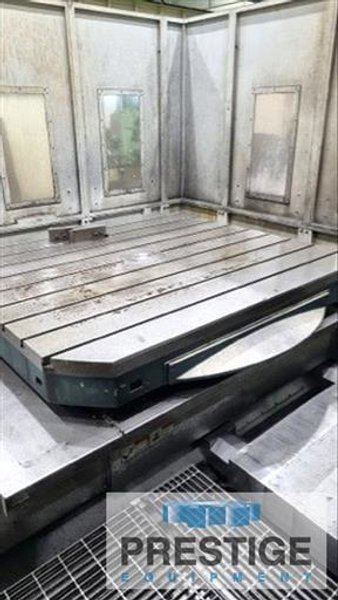

70.87" x 86.61" Built In B-Axis Rotary Table
Thru Spindle Coolant

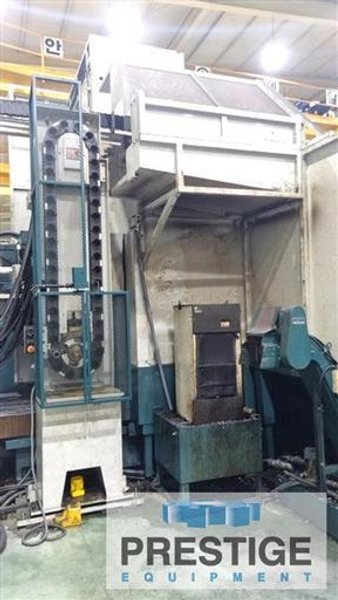

Rear Exit Chip Conveyor
30 HP Spindle Motor


NOTE: Inspect In Plant Under Power
