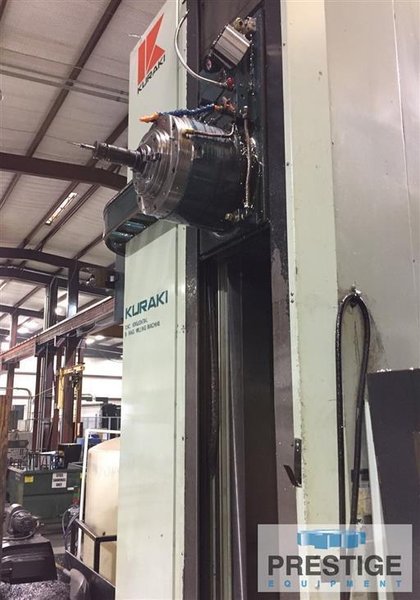

Boring Mills Horizontal Table Type CNC

SPECIFICATIONS:
Spindle Diameter 5.12"
Taper In Spindle #50
Table Cross Travel, X-Axis 118.11"
Headstock, Vertical Travel, Y-Axis 90.55"
Spindle Travel, Z-Axis 25.59"
Column Infeed Travel, W-Axis 62.99"
Rotary Table (Size), B-Axis 78.74" x 86.61"
Rotary Table (Capacity), B-Axis 44,000 Lbs
Rotary Table (Contouring), B-Axis .001 degrees
Spindle Speeds (3-Steps) 5-4000 RPM
Spindle Taper #50
Spindle Motor (cont./30 min)........... 60 HP / 50 HP 60 HP / 50 HP
Rapid Traverse (X,Y & Z) 472.44 IPM
Machine Floor Space 324" x 318"
Machine Height 198"
Machine Weight 83,600 lbs



Equipped With:

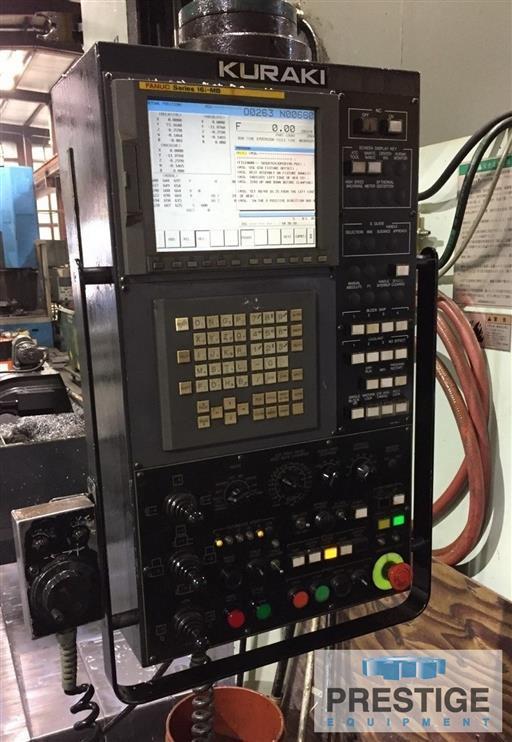

Fanuc 16i-MB CNC Control w/ MPG

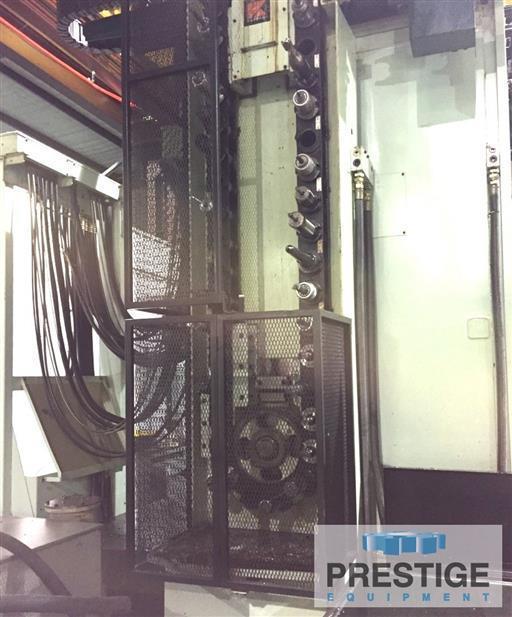

40-Station Automatic Tool Changer

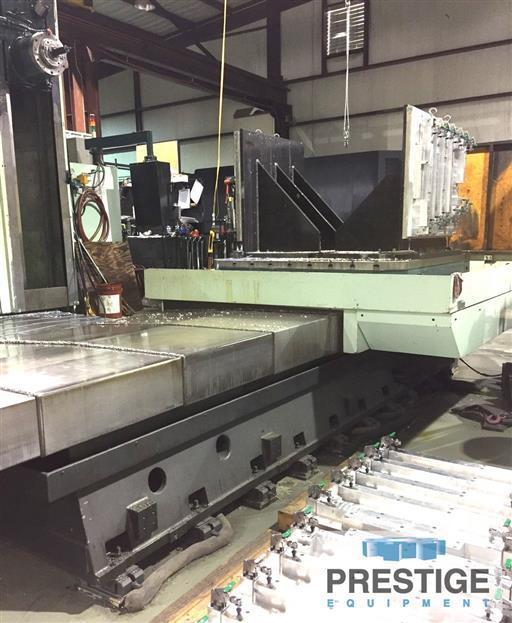

Built In B-Axis Rotary Table
Heidenhain Scales
Coolant Thru Spindle
Telescoping Steel Way Covers
Chip Conveyor


NOTE: Inspect In Plant Under Power!
