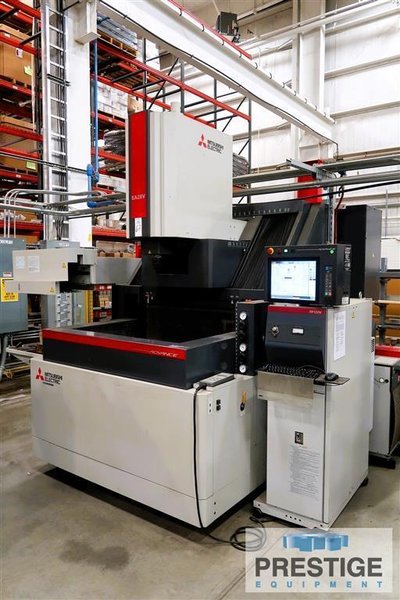

EDM Wire Type

CAPACITIES:
X-Axis Travel 25.6"
Y-Axis Travel 17.7"
Z-Axis Travel 13.8"
C-Axis Travel 0.001 Degrees
Max. Workpiece Dimensions 41.3" x 29.9" x 13.8"
Table to Electrode Mounting Surface 16.7"-30.5"
Max. Electrode Weight 441 Lbs.

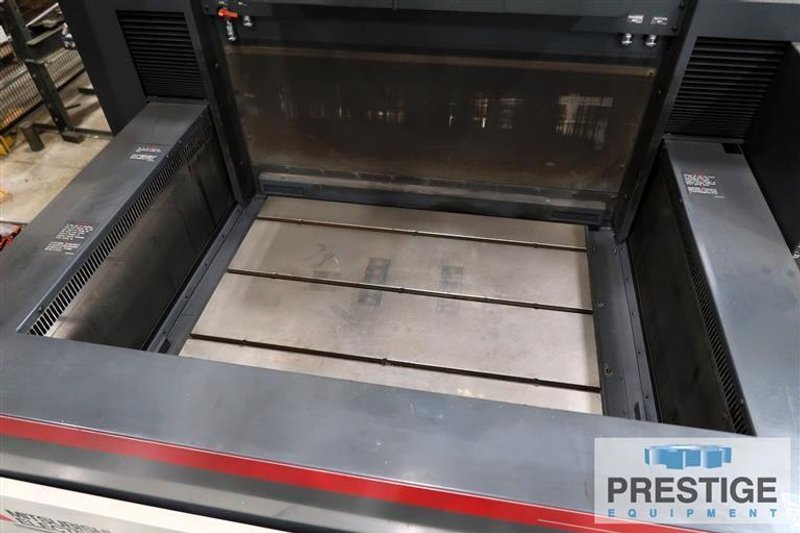

WORKING TANK:
Method Automatic Elevation Tank
Inner Dimensions, W x D x H 43.3" x 31.9" x 17.7"
Fluid Level Adjustment Range. 3.9" x 15.7" From Top of Table
TABLE:
Clamping Surface of Table 33.5" x 23.6"
Distance, Floor to Table Top 35.4"
Max. Workpiece Weight 4409 Lbs.
T-Slots (3) Slots at 14-200mm Pitch
DIMENSIONS & WEIGHT:
Machine Dimensions 86.4" x 98.9" x 103.0"
Approximate Weight 11,905 Lbs.



Equipped With:

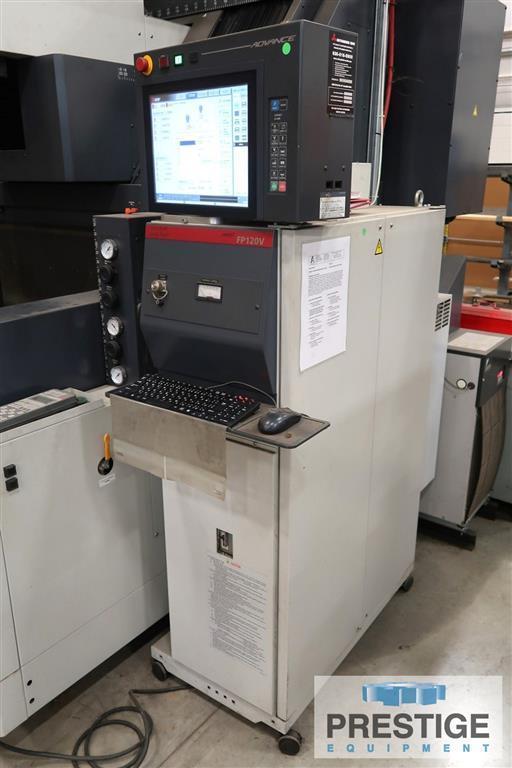

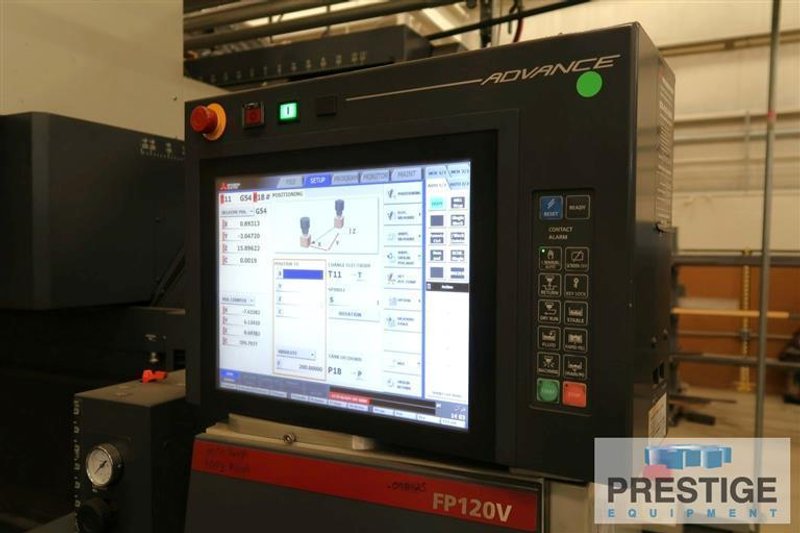

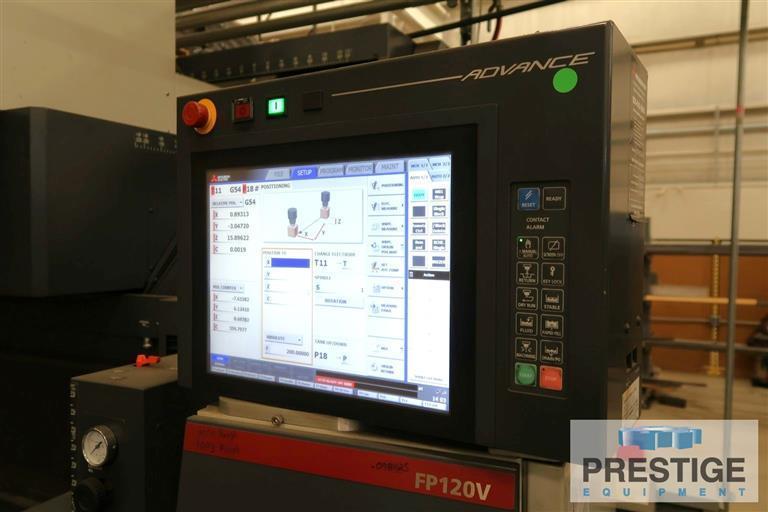

Mitsubishi Advance CNC Control

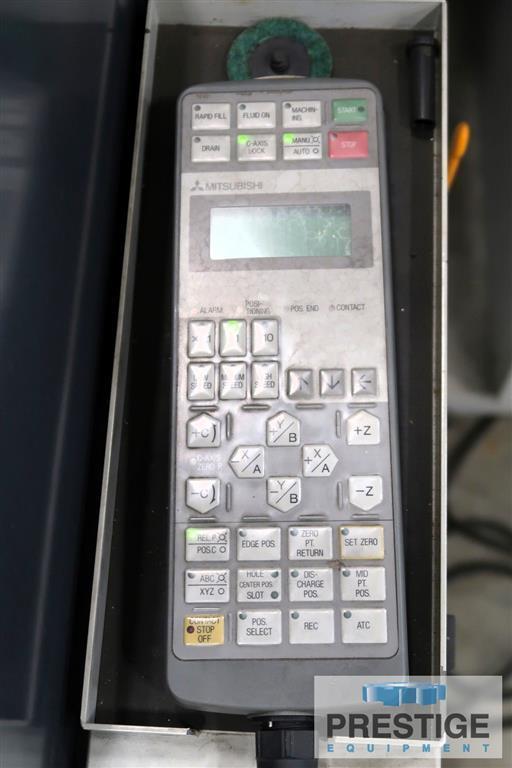

Hand Pendant Control

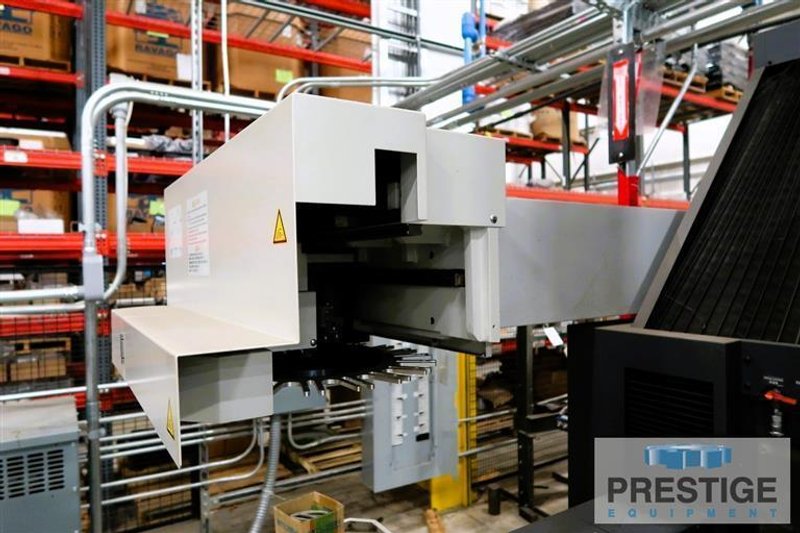

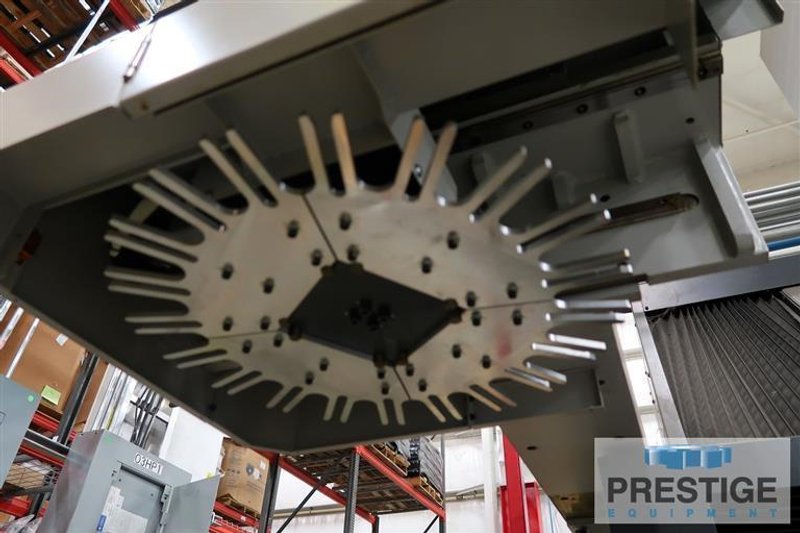

20-Position Automatic Tool Changer

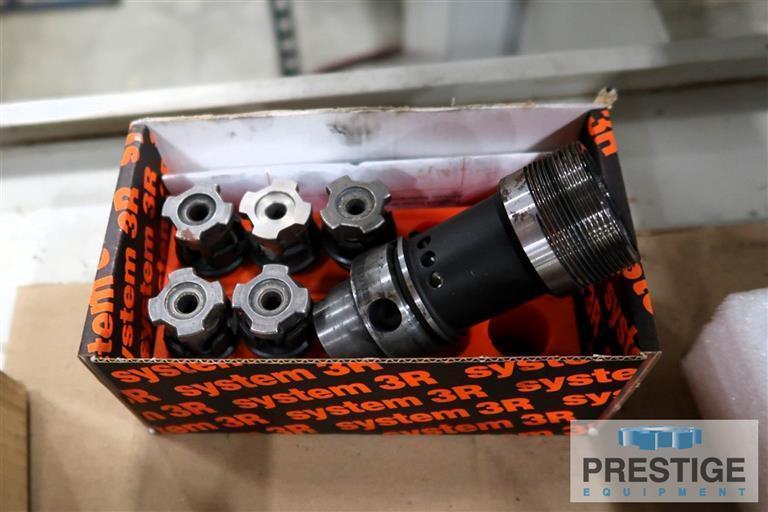

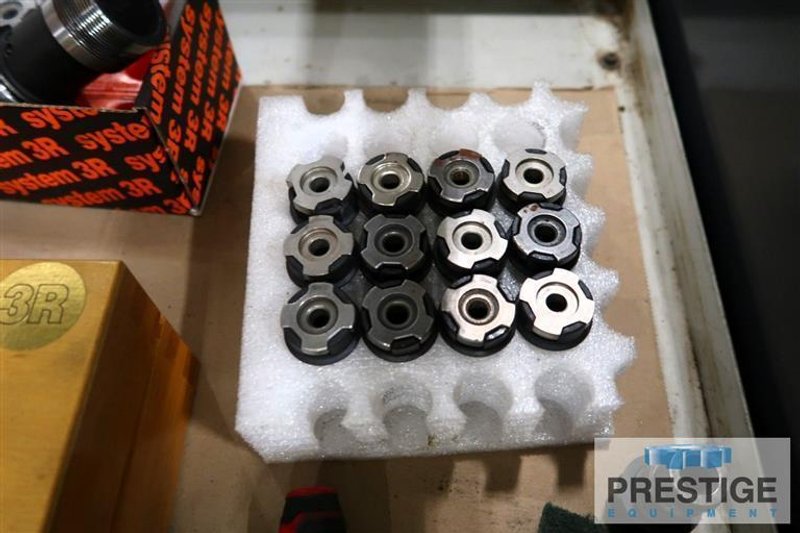

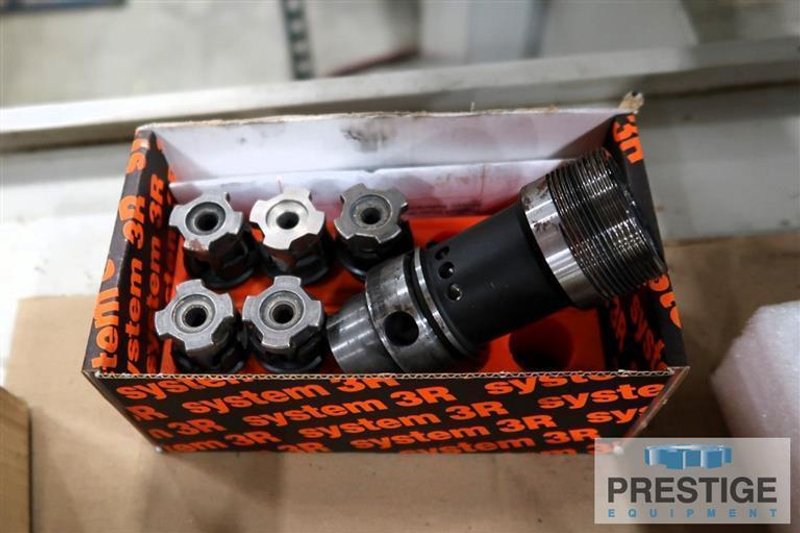

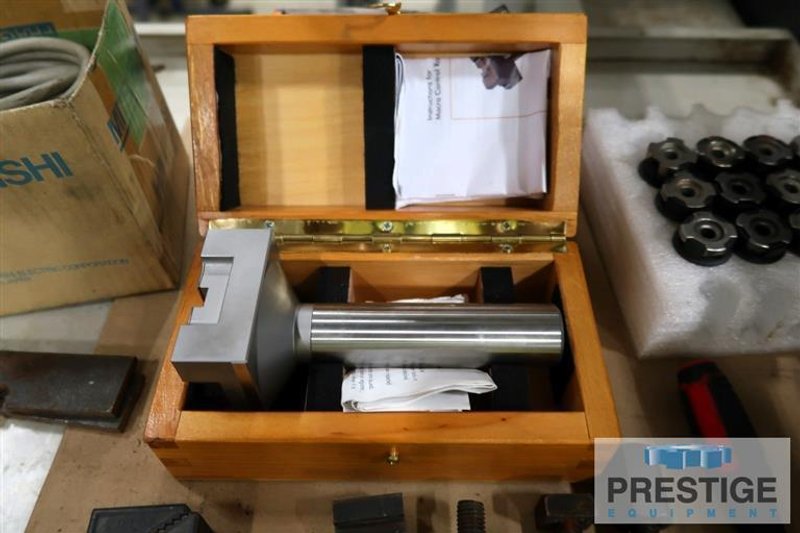

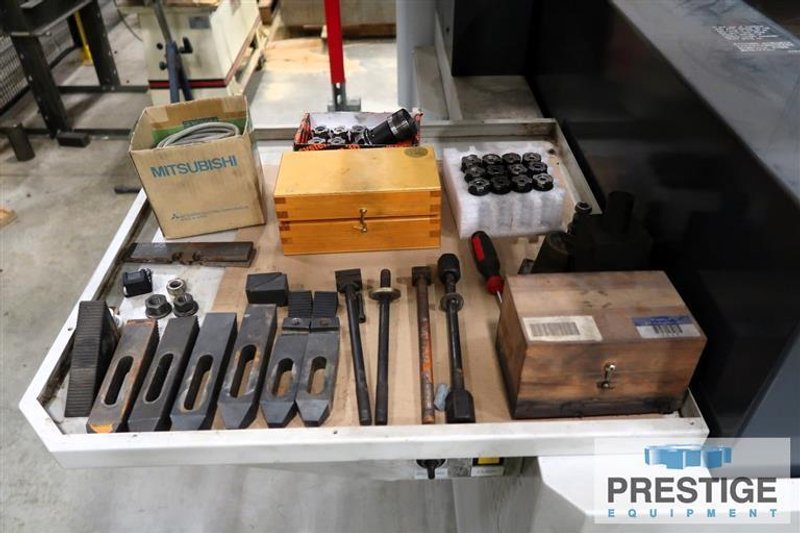

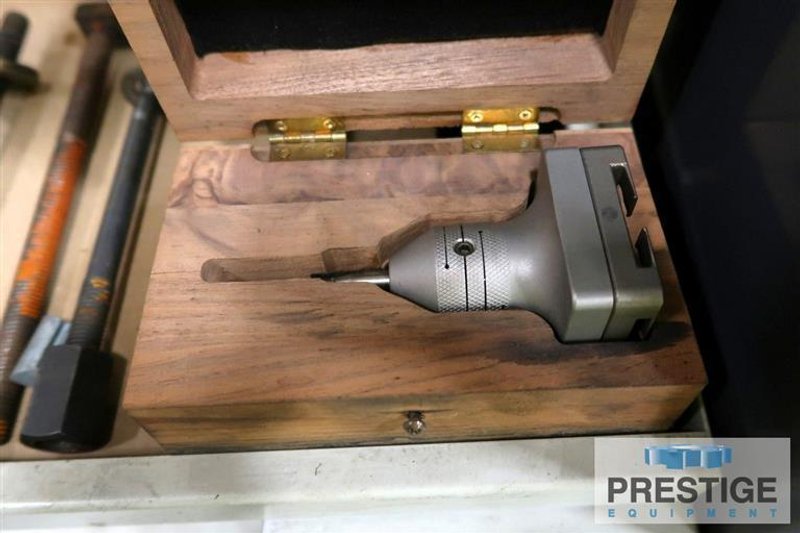

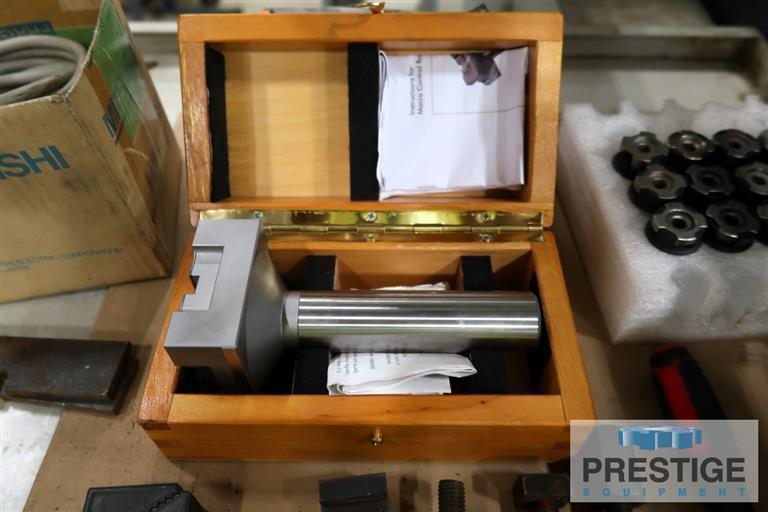

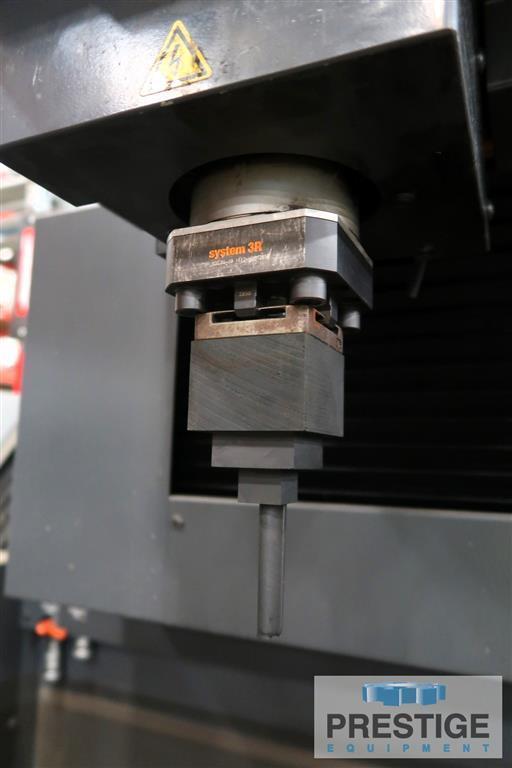

System 3R Tooling
FP120V Power Supply
Daikin Inverter
Dielectric Fluid Reservoir


LOCATION: Under Power In Midwest Manufacturing Facility
