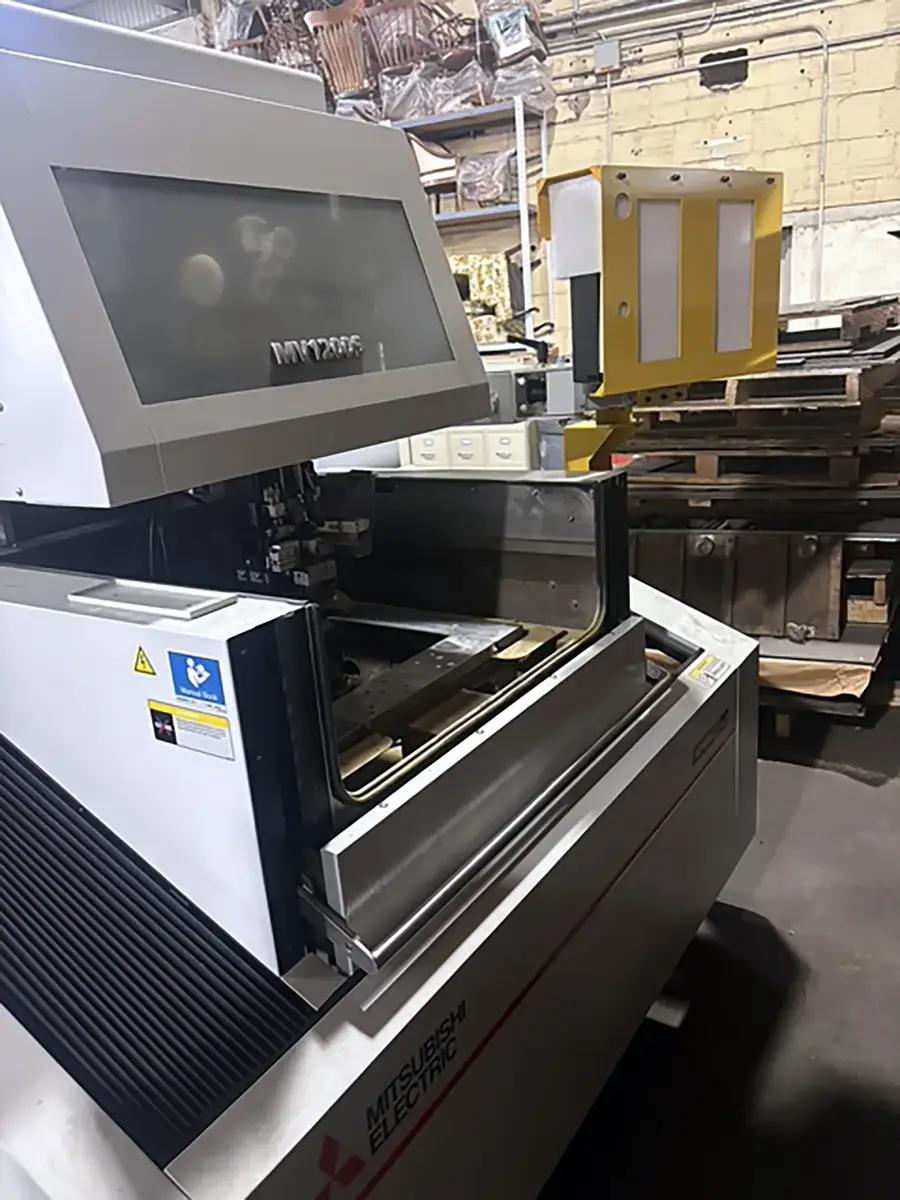

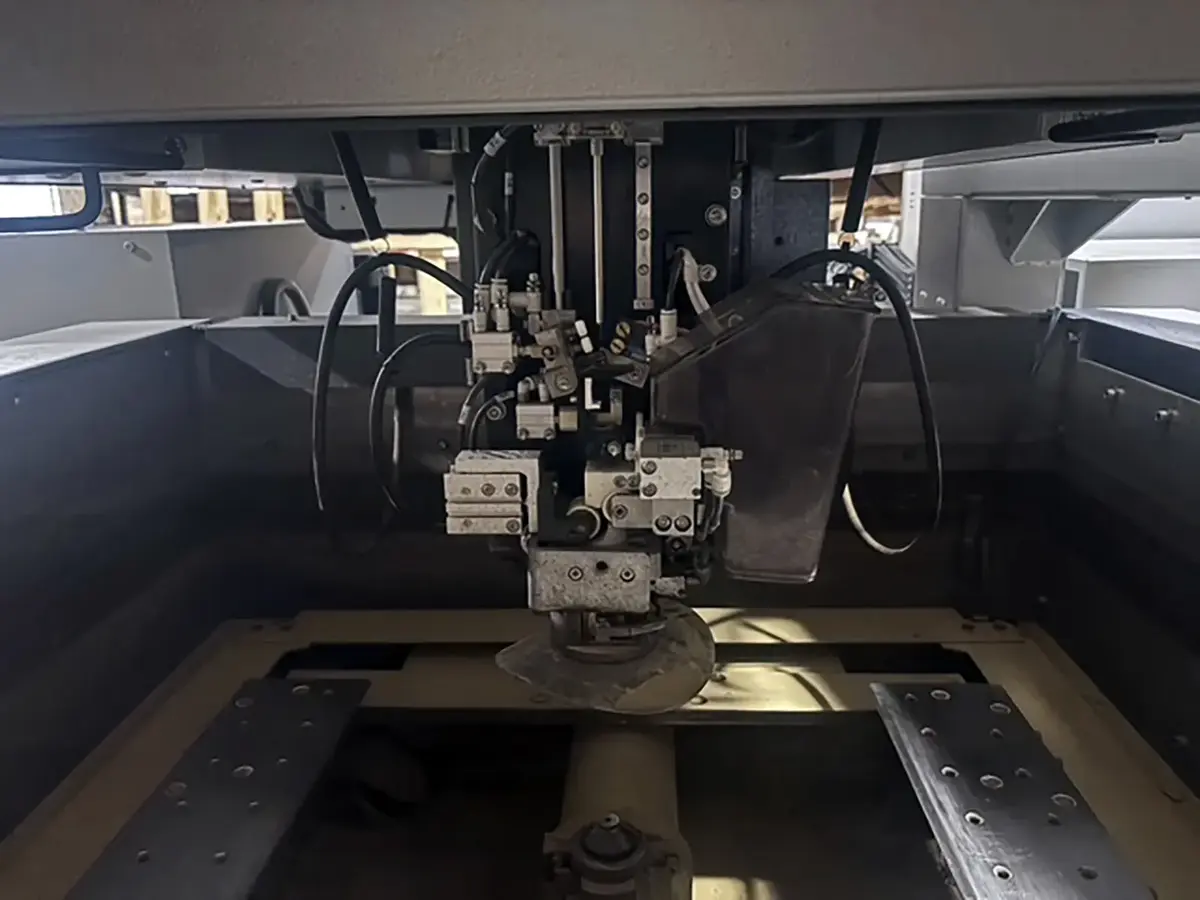

2022 MITSUBISHI MV1200S | EDM, Wire, CNC

CAPACITY

- Machining Range: 15.7" x 11.8" x 8.7"
- Max Workpiece Dimensions: 31.9" x 27.6" x 8.5"
- Max Workpiece Weight: 1,100 lb
- Max Workpiece Height (AT): 8.7"
- Table Dimensions: 25.2" x 17.7" (3-Sided Hardened Stainless Steel)
- U/V Travel: ±2.4" x ±2.4"
- Taper Angle: 15° @ 8.0"
- Table Rapid Feed: 51.2 in/min

WIRE

- Wire Diameter Range: 0.004"-0.012" (0.010" standard)
- Minimum Wire Thread Start Hole: 0.020"
- Wire Tension: 50-2,500 g
- Wire Spooling Speed: 0-11.8 in/sec
- Resolution: 0.00002" (2 millionths, Absolute Scales)

FILTRATION & COOLANT

- Filter System: Paper Cartridge (2x)
- Filter Precision: 5 micron
- Ion-Exchange Resin: 1 ft³ (6.4 gal. dry)
- Filter Tank Capacity: 145 gallons
- Integrated D/I Water Coolant System

ELECTRICAL

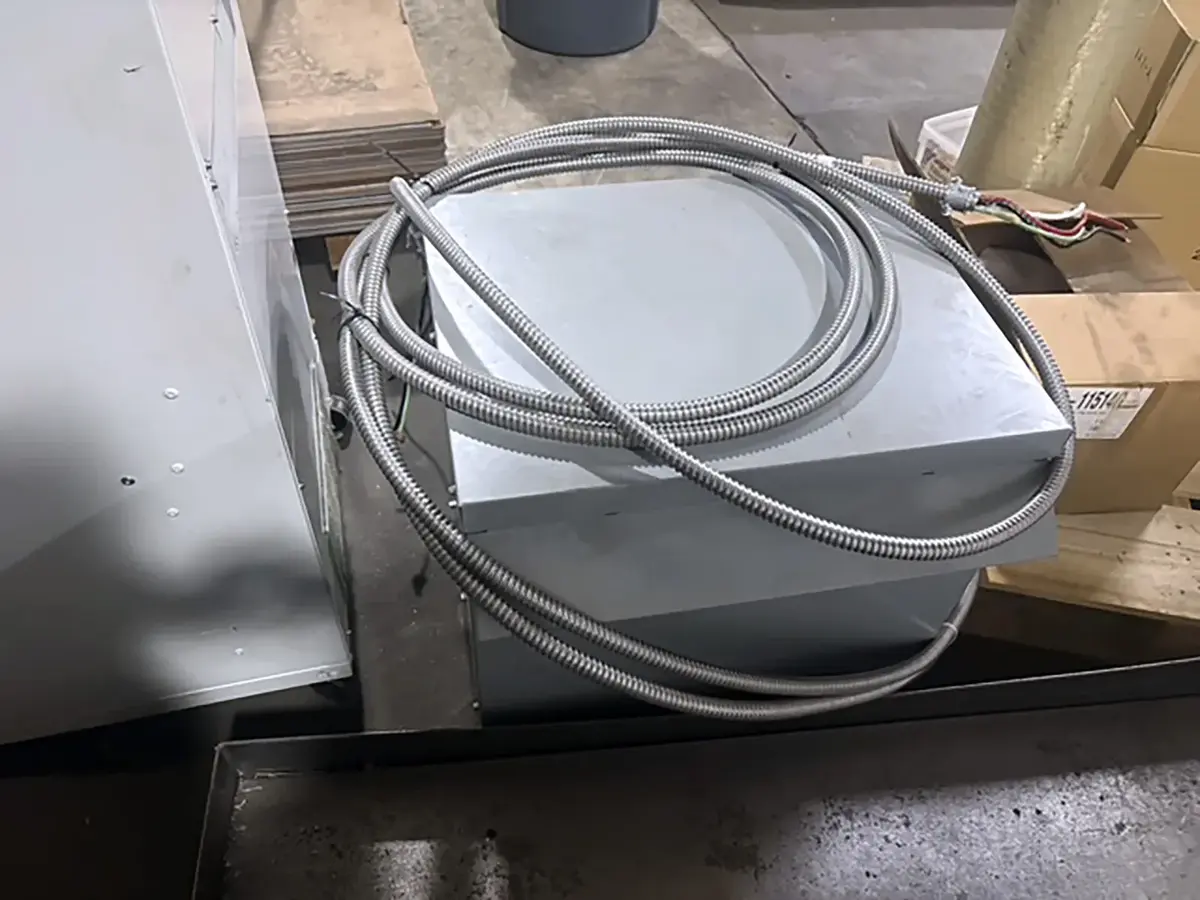

- 15 kVA Low-Voltage Distribution Transformer
- 3-Phase, 240Δ to 208Y/120V

MACHINE DIMENSIONS

- Overall Machine Unit: 79.7" x 106.4" x 79.3"

================================================

EQUIPPED WITH

- Mitsubishi CNC Control with 19" Touch Panel Interface
- 3-Sided Hardened Stainless Steel Work Table
- Fine Finish (PF Circuit) Capability

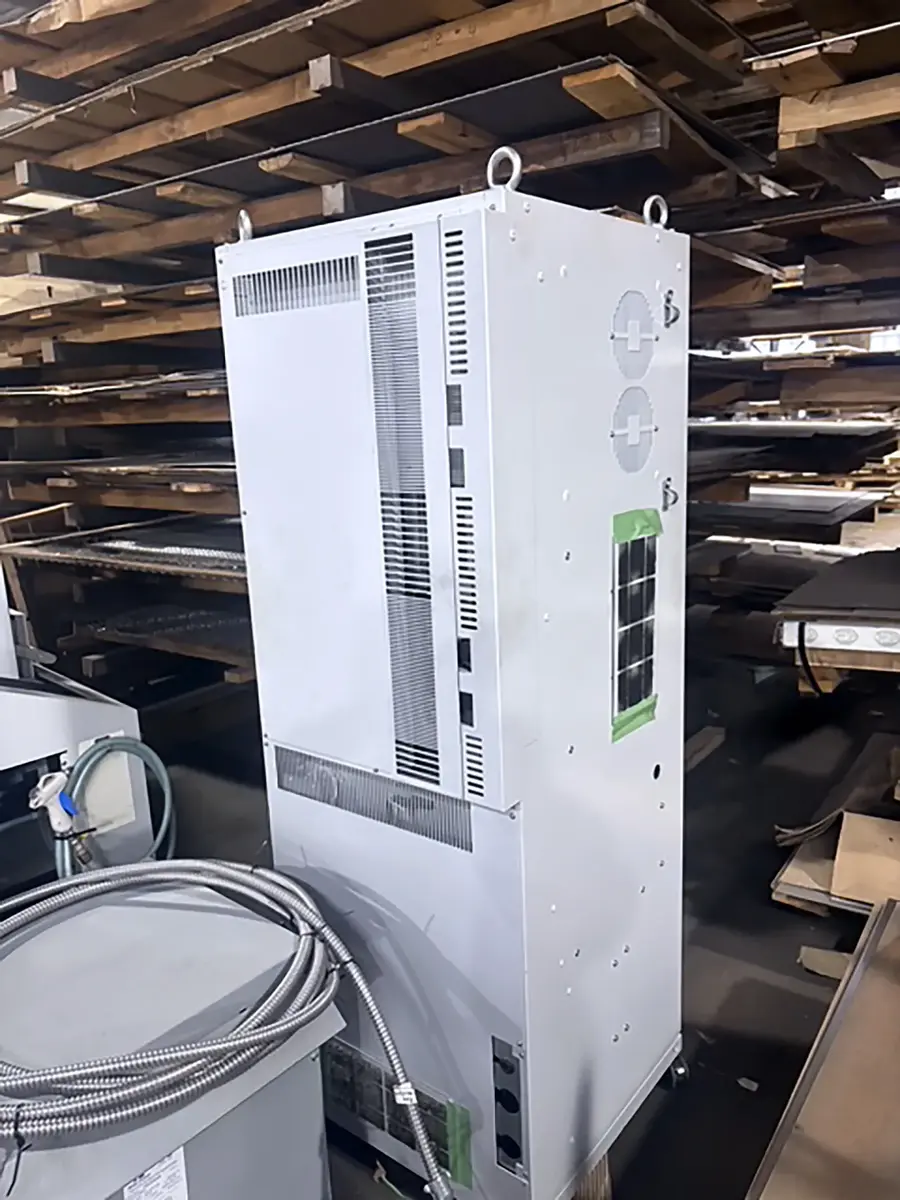

- Power Conditioning / Line Filter Unit
[VERIFY brand: "Powergy" spelling unconfirmed]
- Integrated D/I Water Coolant System
- Integrated Two-Cartridge Paper Filtration (5 micron)
- 15 kVA Low-Voltage Distribution Transformer
- Automatic Wire Threading

INCLUDED TOOLING

- Mitsubishi Advanced Starter Kit:
RWT-BASE, RWT-SVA, RWT-RAIL VISE, RWT-TORQ5, RWT-AD-AL,
RWT-3PSET, RWT-SQSTOP, RWT-STEP, RWT-BKIT, RWT-RAIL 480MM

- Mitsubishi Large Vise Kit:
RWT-BASE, RWT-AD-BL, RWT-LVA, RWT-TORQ8
