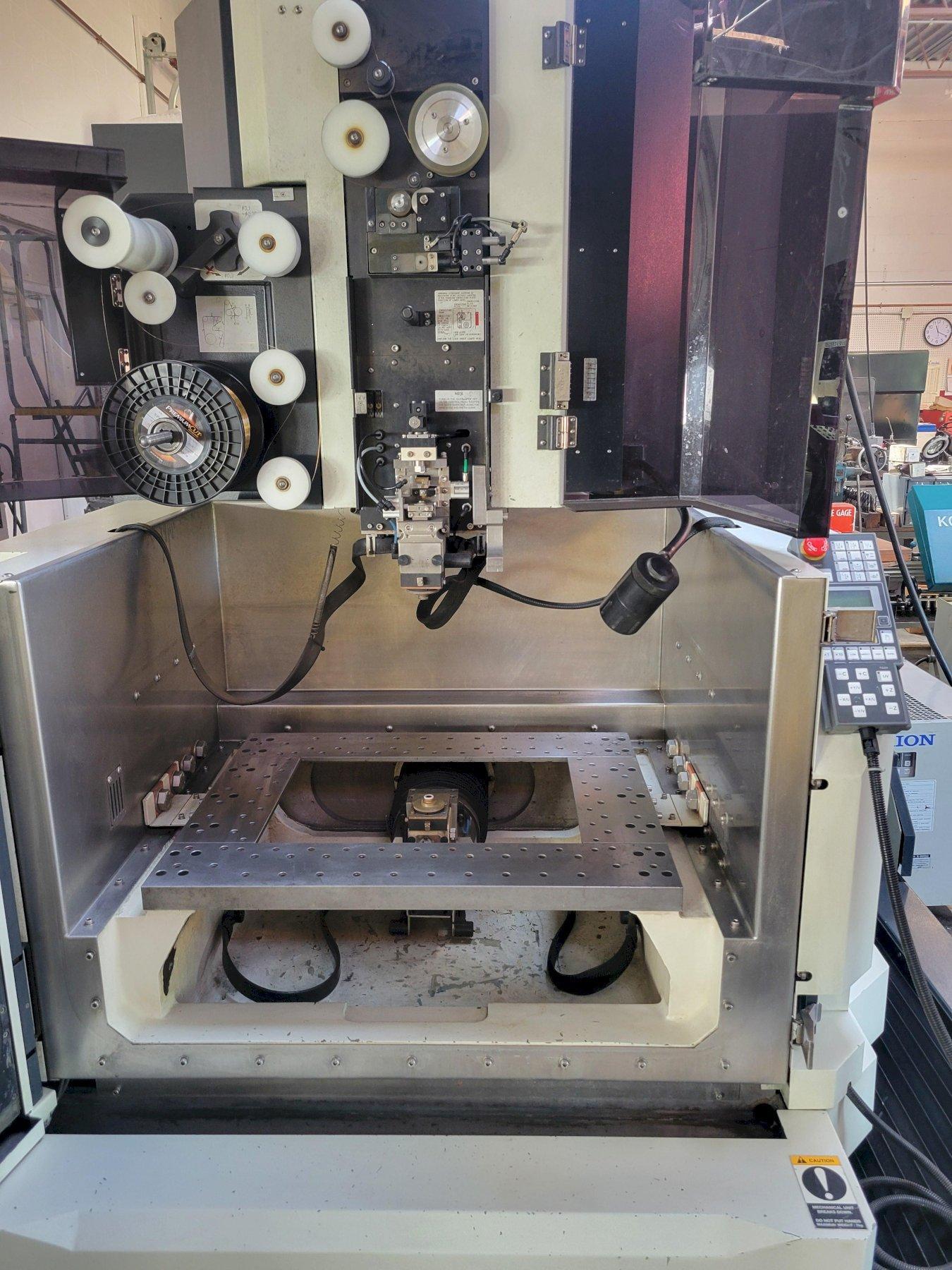

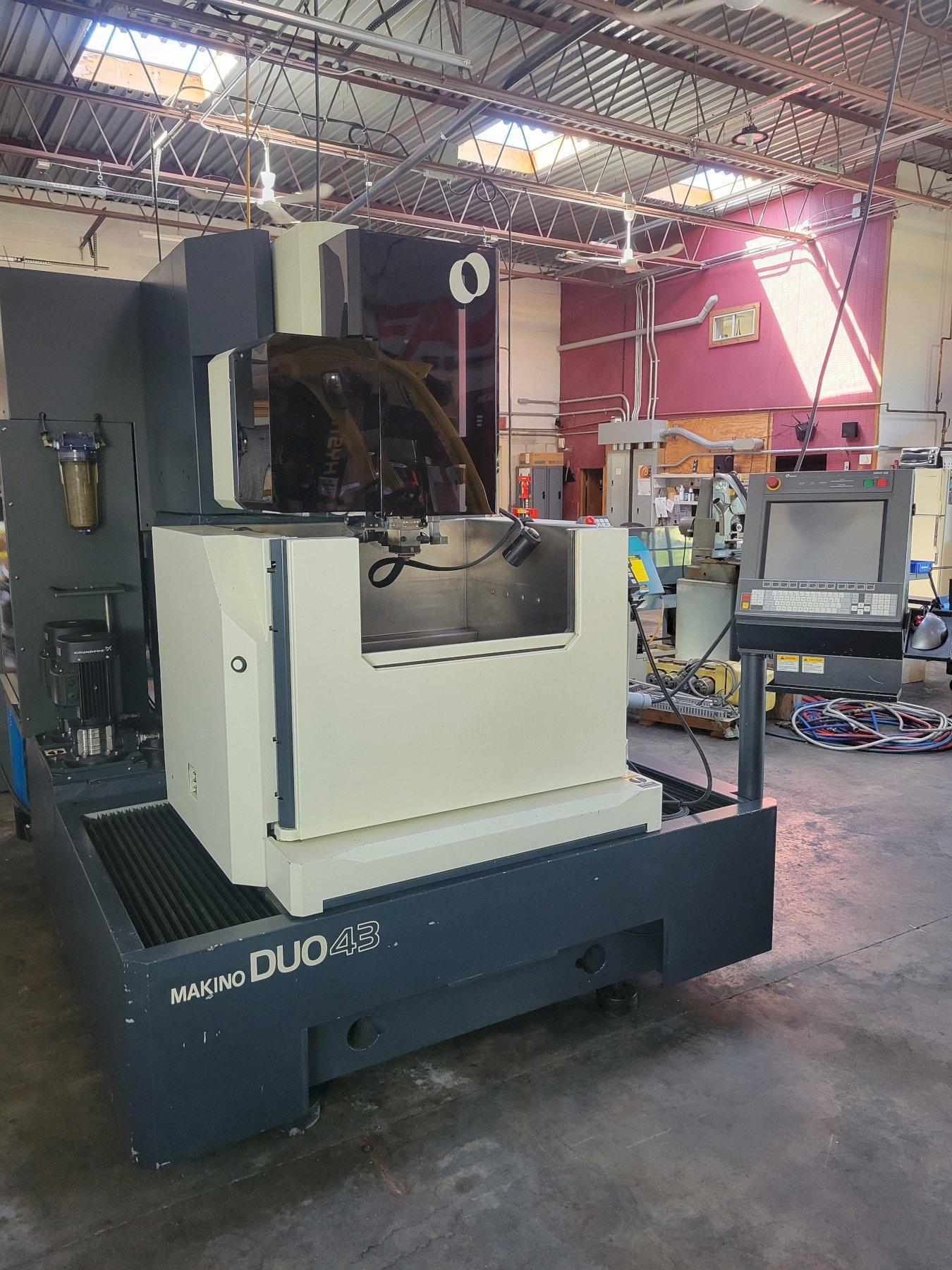

Makino Wire EDM, Model DUO 43

                        SPECIFICATIONS:

                                    TRAVELS:       X-AXIS……     17.7”

                                                            Y-AXIS……     11.8”

                                                            Z-AXIS……     12.8”

                                                            U-AXIS……       3.97”

                                                            V-AXIS……       3.97”

                                    DEGREE TAPER CUTTING      15 at 4”

                                    TABLE SIZE:………………     22” X 27.9” (SQUARE SHAPE)

                                    TANK SIZE:……………….      34.25” X 29.72”

                                    WIRE DIAMETERS:………     .004” - .012”

                                    WIRE SPOOL SIZE:……….     10Kg

                        EQUIPPED WITH:

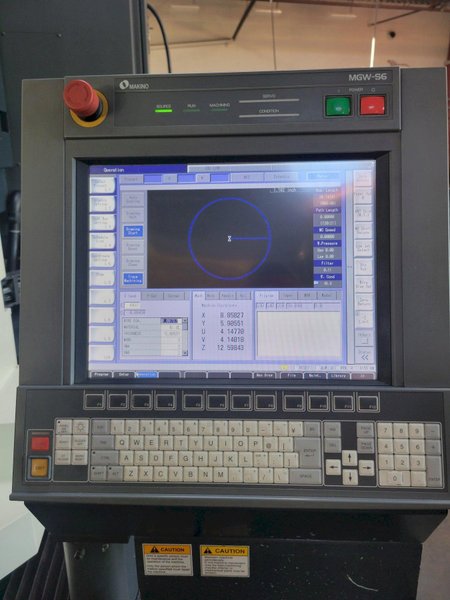

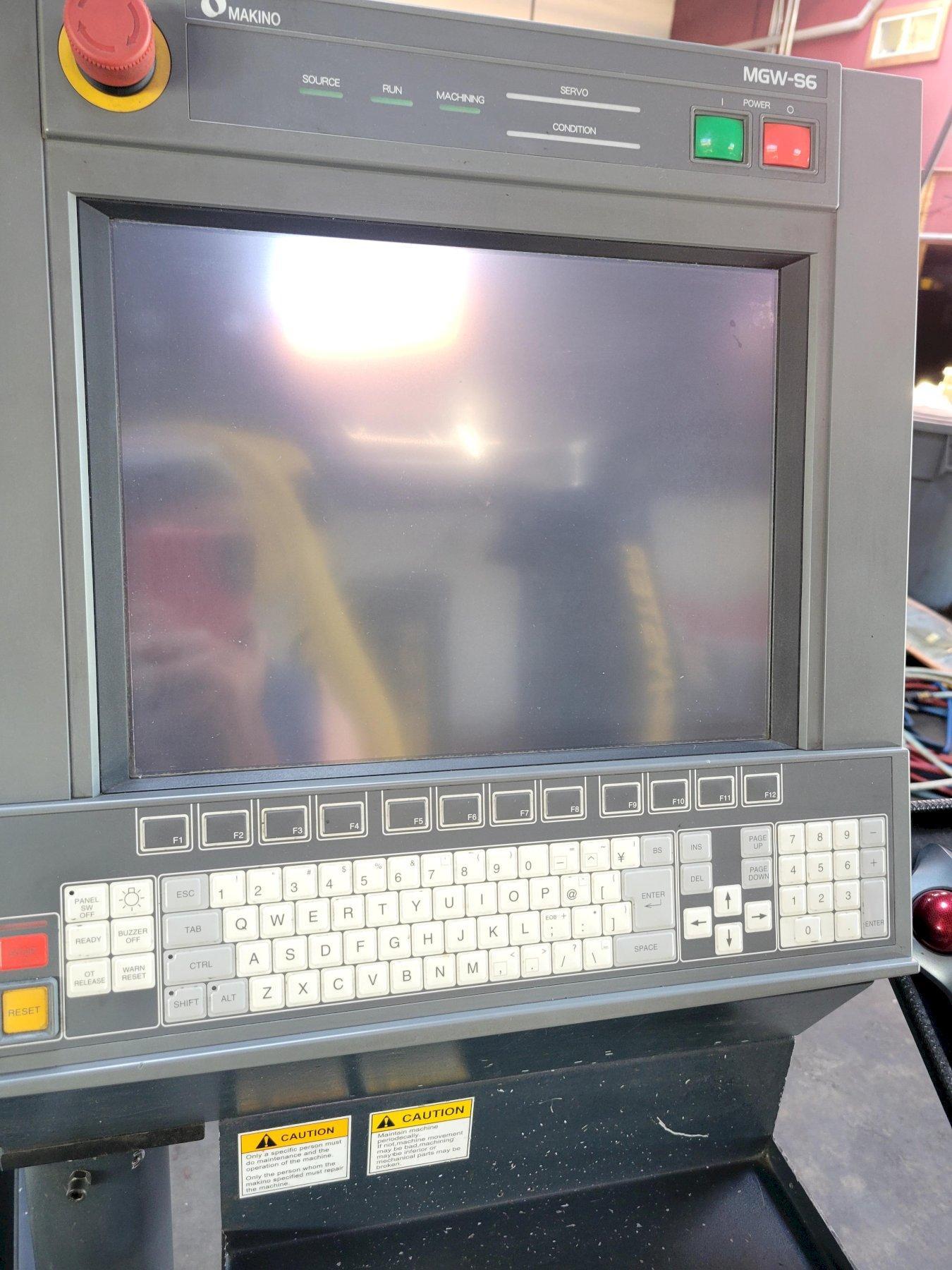

                                    5 AXIS MGW-S6 CNC CONTROL WITH COLOR CRT.

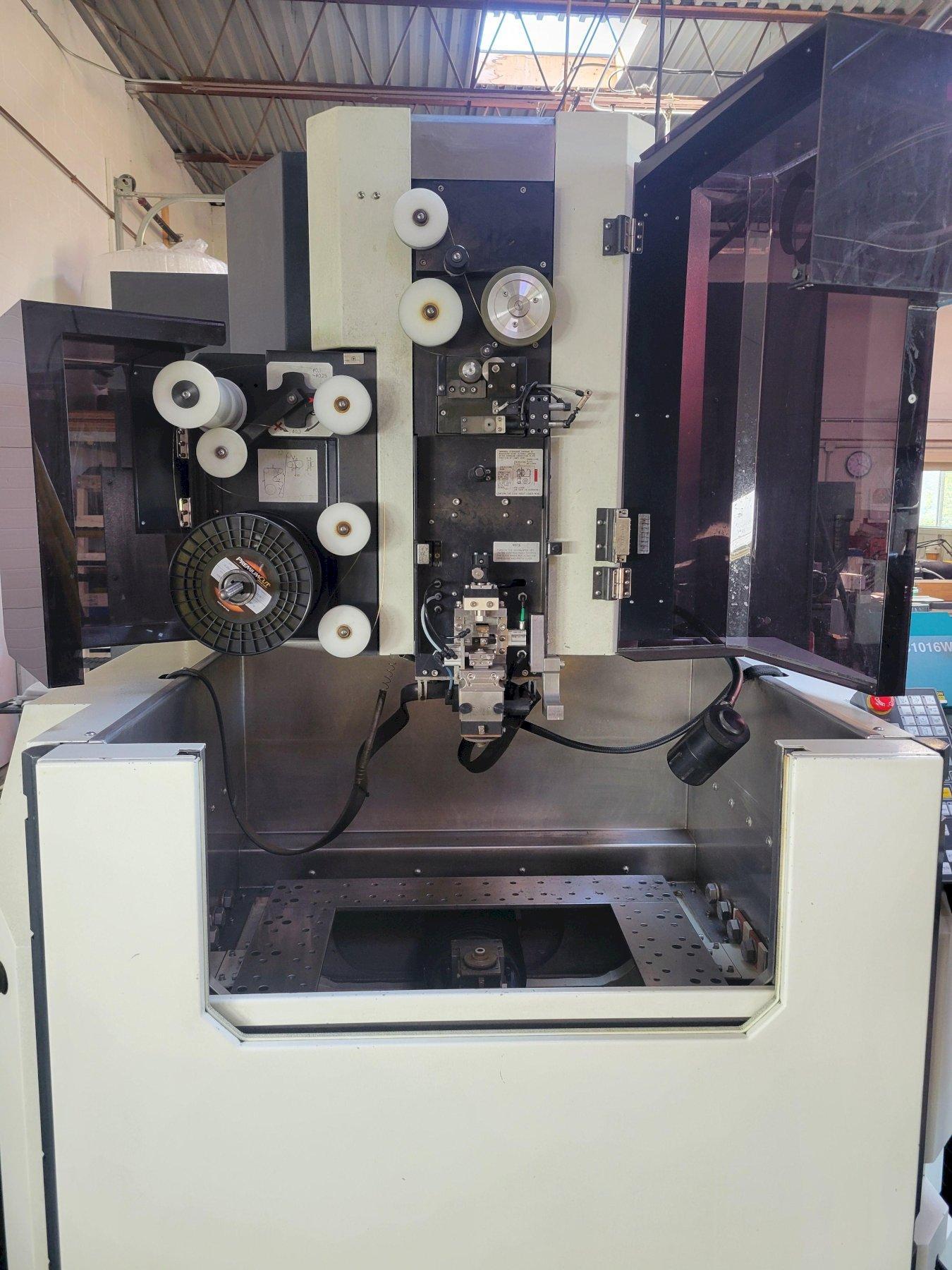

                                    AUTO WIRE THREADING.

                                    ETHERNET CONNECTION.

           SUBMERGED CUTTING

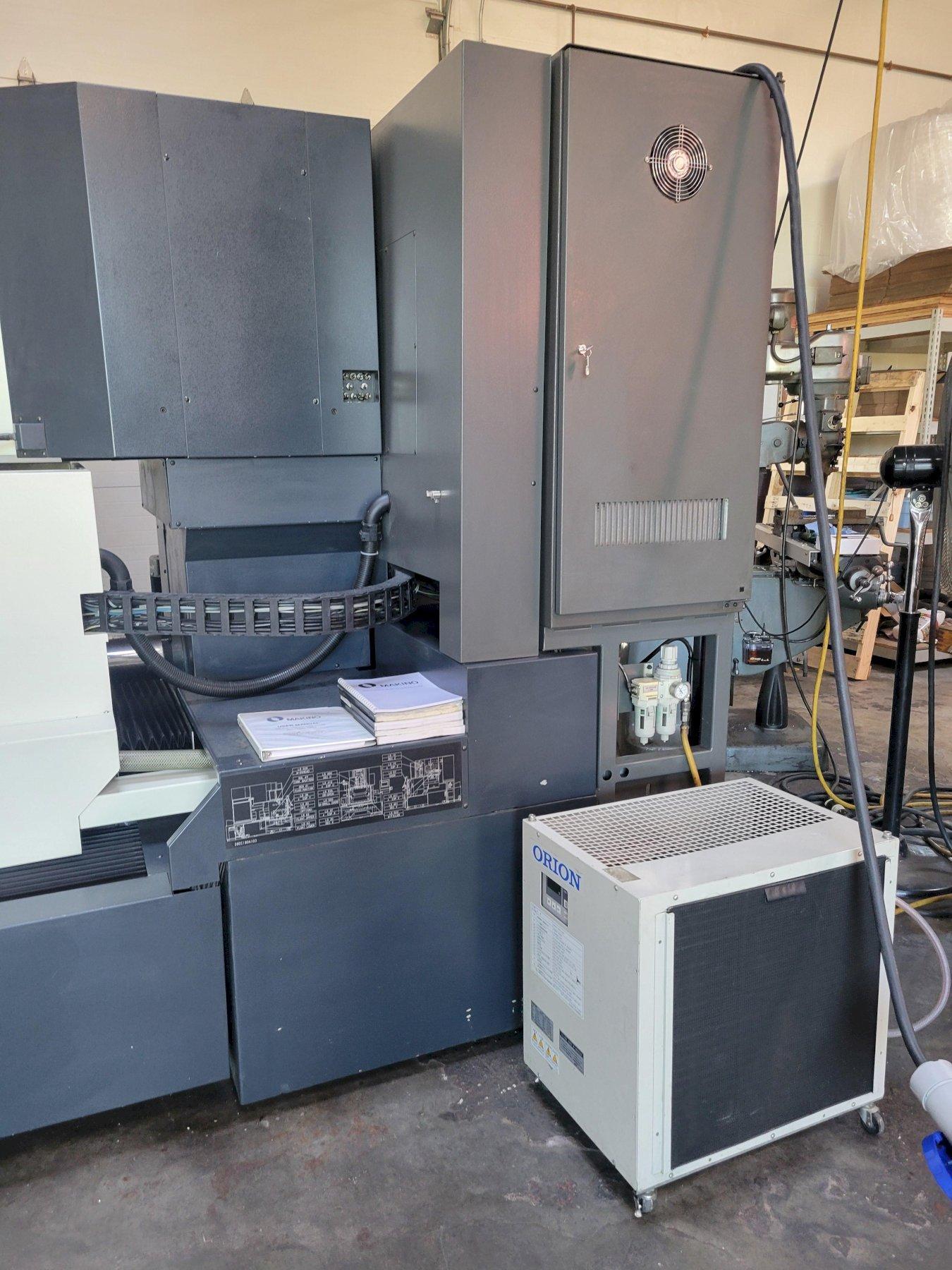

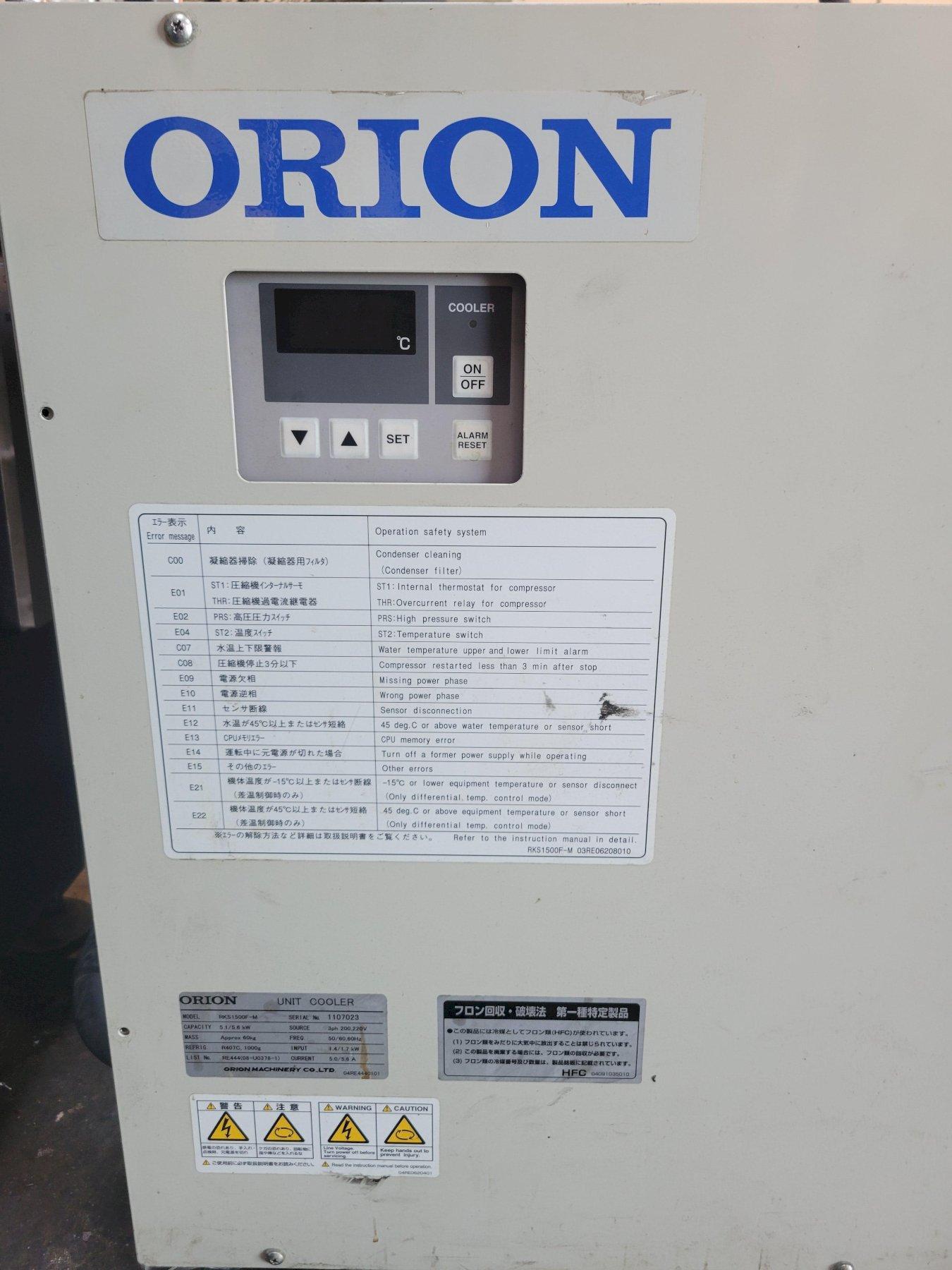

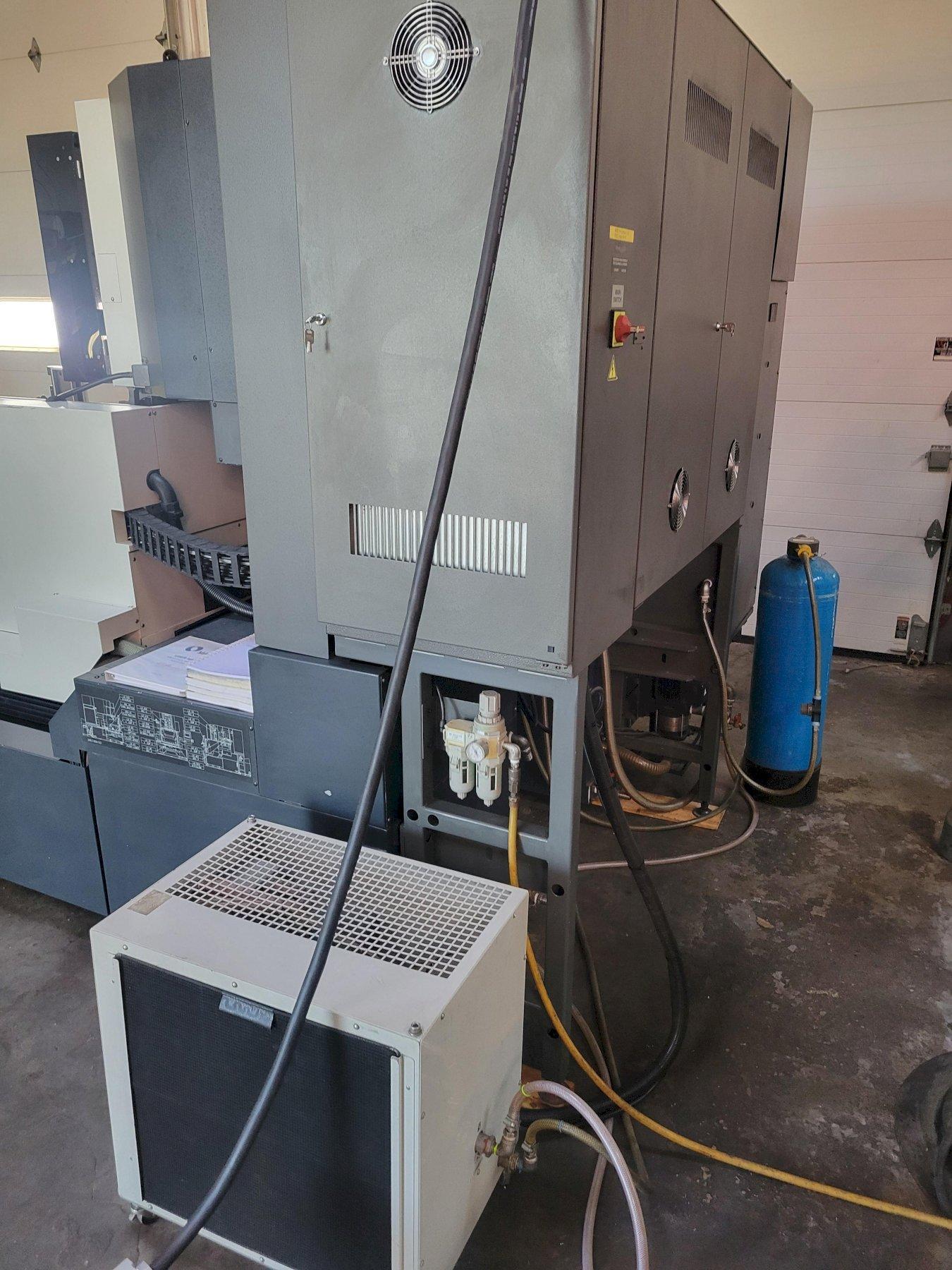

          ORION CHILLER RKS1500

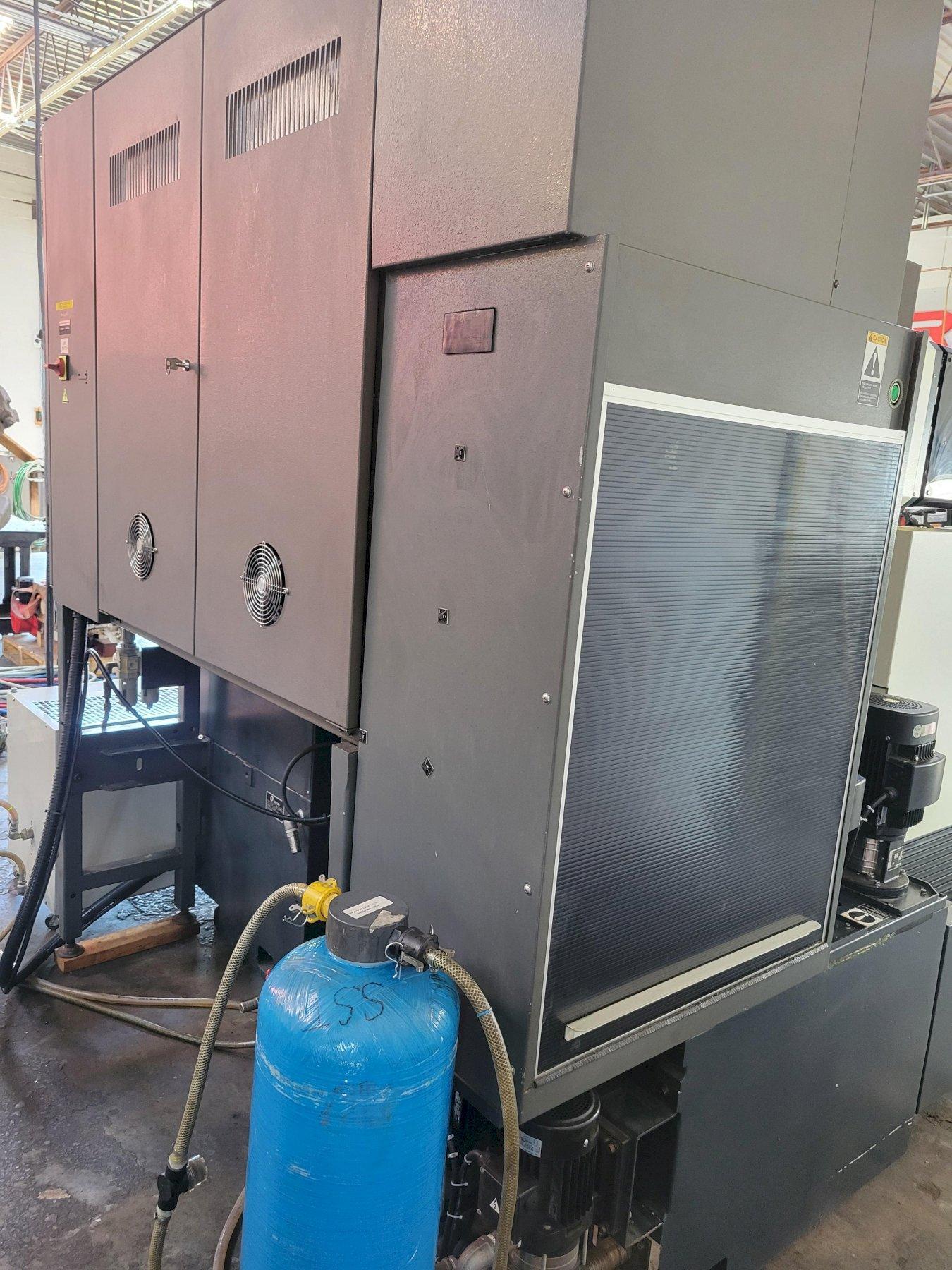

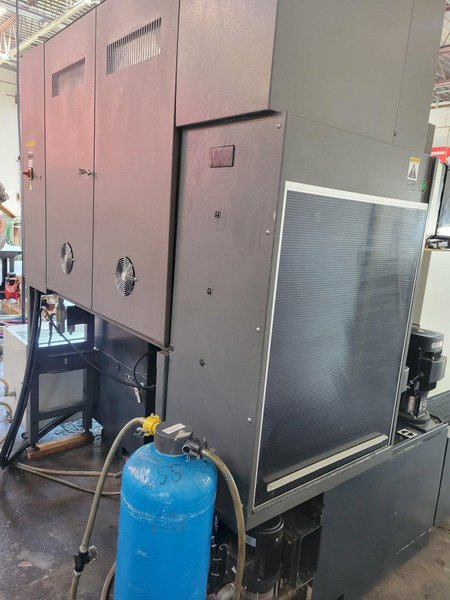

          F-M RESIN TANK

          LEVELLING PADS.

             ELECTRICS:……..       200V/3/60

                             DEMO:……………      YES. UNDER POWER AT OUR MASS. WAREHOUSE.

                        INSPECTION:……       ENCOURAGED TO VERIFY DIMENSIONS, SPECIFICATIONS, CONDITION.

PHOTOS:………….      SEE ATTACHED
