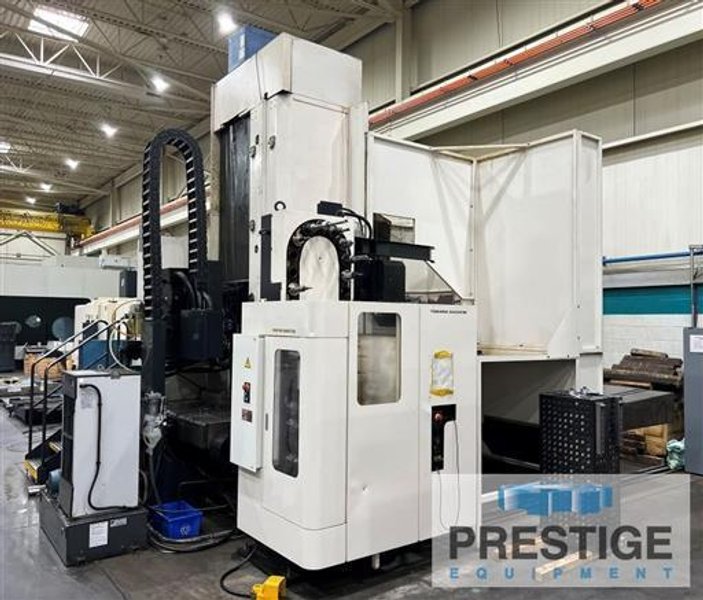

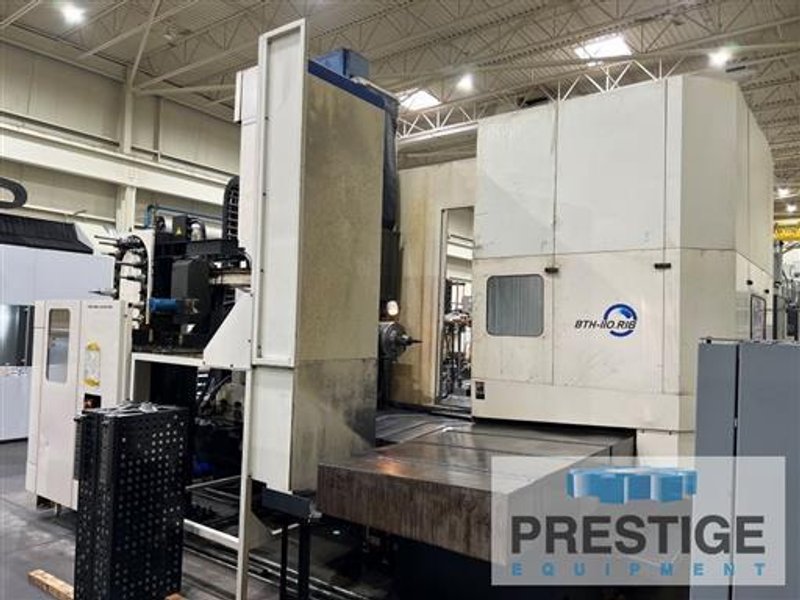

Boring Mills Horizontal Table Type CNC

SPECIFICATIONS:

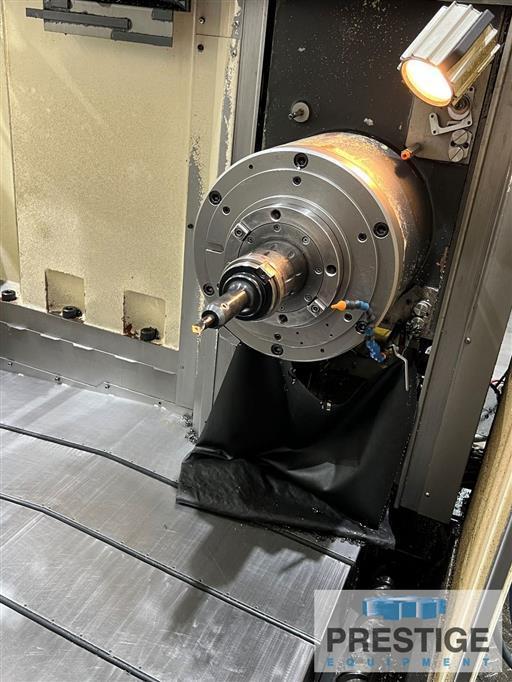

Spindle Diameter 4.33"
Taper In Spindle #50
Vertical Head Travel, Y-Axis 78.74"
Table Cross Travel, X-Axis 98.42"
Spindle Travel, Z-Axis 19.68"
Saddle Travel, W-Axis 59.05"

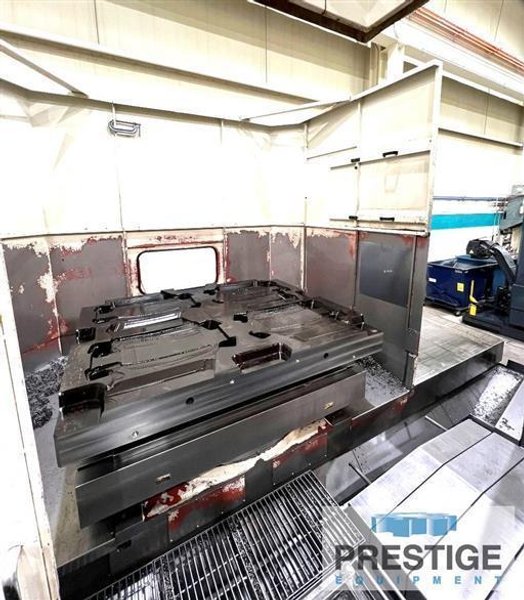

Table Size, Built-In Rotary 55.11" x 70.86"
Table Indexing 0.0001 Degree
Feed Rates 0.04-393 IPM
Rapid Traverse: X,Y, & Z Axes 708 IPM
Rapid Traverse: W-Axis 236 IPM
Rapid Traverse: B-Axis 720 Degrees/Minute
Table Load Capacity 22,000 Lbs.
Spindle Speeds 6-4000 RPM
Floor Space, L x W x H 240" x 240" X 181"
Machine Weight 66,000 lbs.



Equipped With:

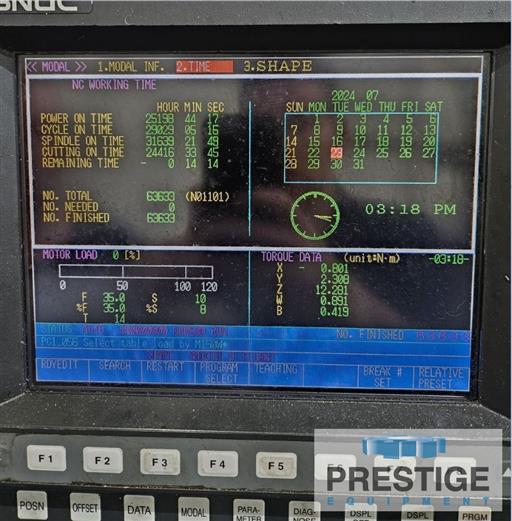

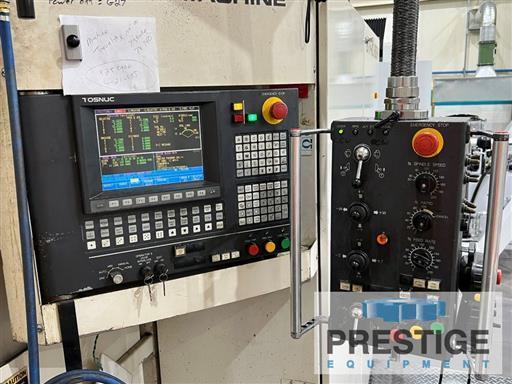

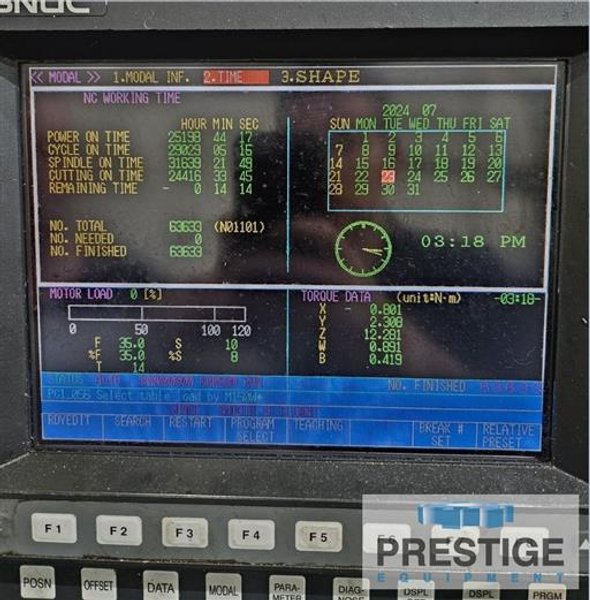

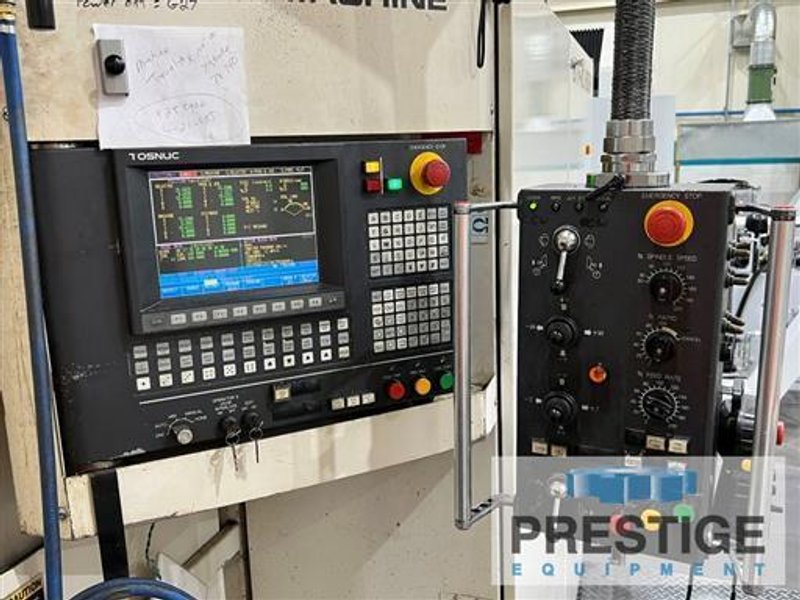

Tosnuc 999 CNC Controls
Full B-Axis Rotary Table

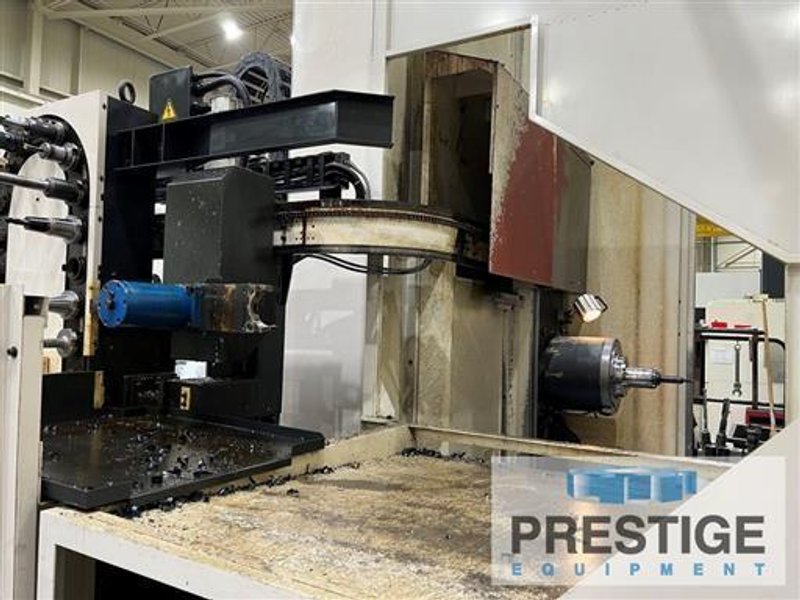

32 Position Automatic Tool Changer
Thru Spindle Coolant
Chip Conveyor
Flood Coolant
40 HP Spindle Motor
