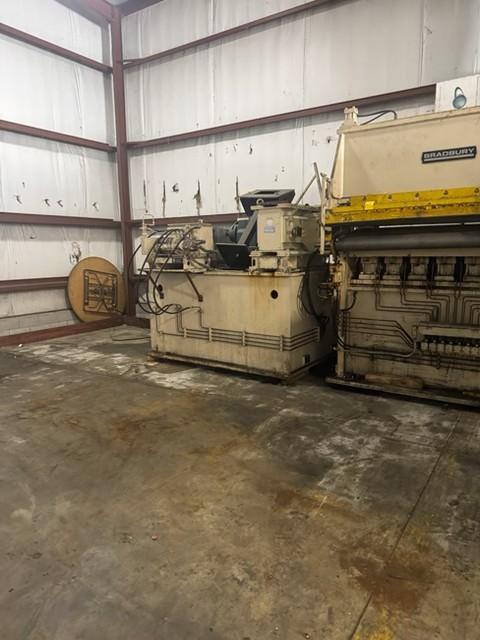

74” BRADBURY 17 ROLL 4HI PRECISION LEVELER
Brand
Category
Type
Model
Not specified
Stock #
117533
Year
Not specified
Condition
Used
Location
Not specified
|
SPECIFICATIONS:
MANUFACTURER – BRADBURY TYPE – 17 ROLL 4HI PRECISION LEVELER MATERIAL WIDTH RANGE – 12” – 74” MATERIAL THICKNESS RANGE – 0.019” – 0.142” MATERIAL YIELD – 20,000 MIN – 80,000 MAX PSI NUMBER OF ROLLS – 17 CONFIGURATION – 8 UP., 9 DOWN WORK ROLL DIAMETER – 1.75” WORK ROLL FACE – 78” WORK ROLL CENTERS – 1.875” PINCH ROLL DIAMETER – 6.271” BACK-UP FLIGHTS – 7 TOP, 7 BOTTOM MAIN DRIVE – 200 HP DC LINE SPEED – 250 FPM PASS LINE HEIGHT – 72” INCLUDING 1 ½” GROUT LINE DIRECTION – RIGHT TO LEFT INCLUDES: Main Piece: 8’6” L X 5’10” W X 10’2” H Approximately weighs 31,000 lbs. Gear Box: 9’ L X 7’7” W X 7’1” H Approximately weighs 21,000 lbs. Cabinet: 16’8” L X 1’9” W X 8’1” H Approximately weighs 3,800 lbs. |
