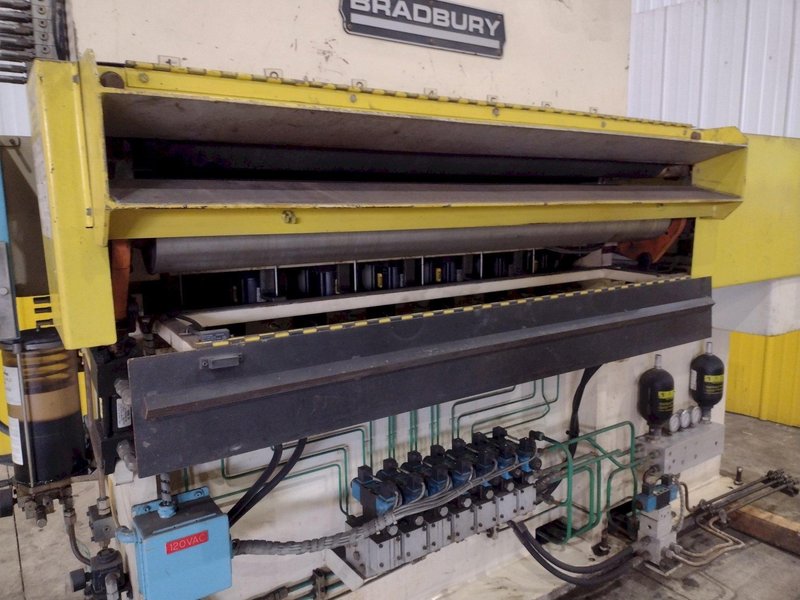

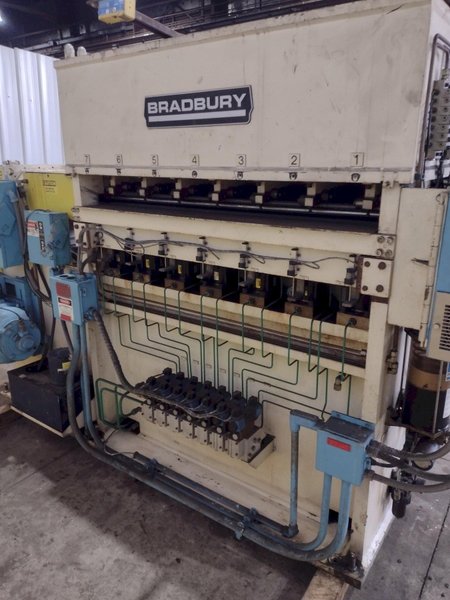

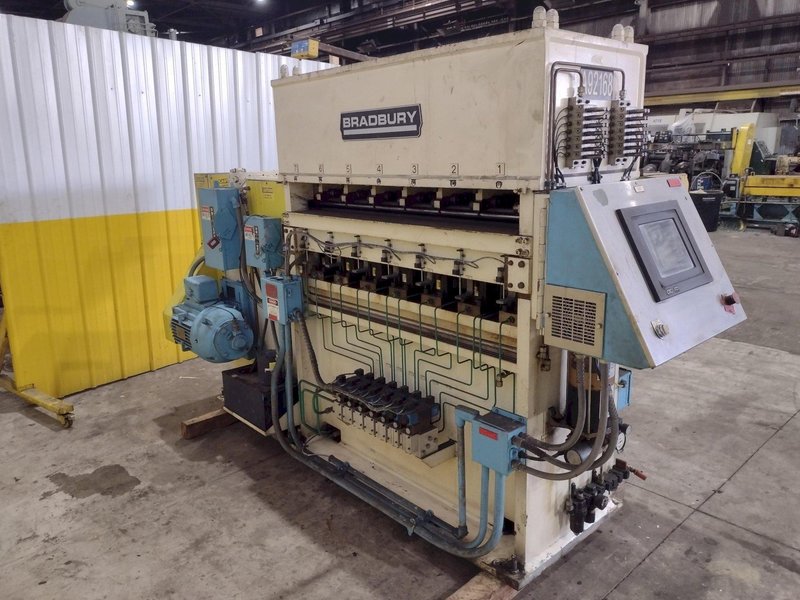

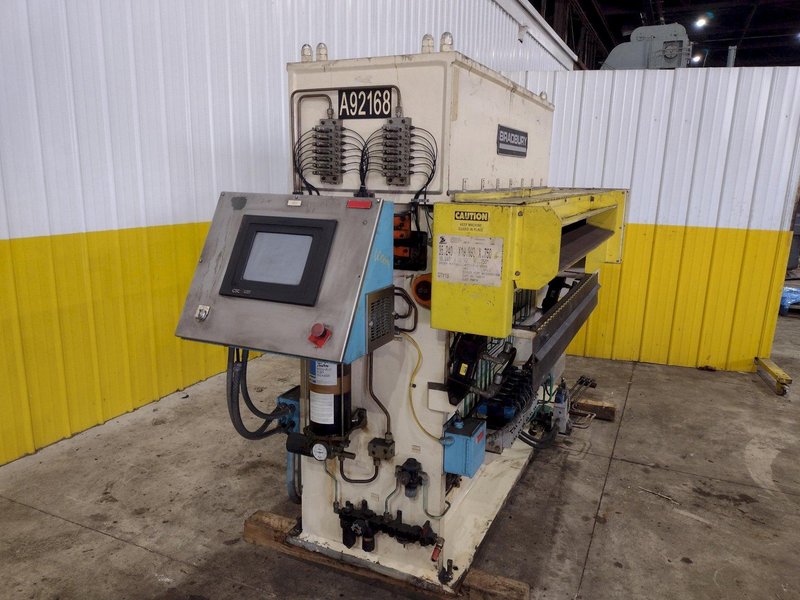

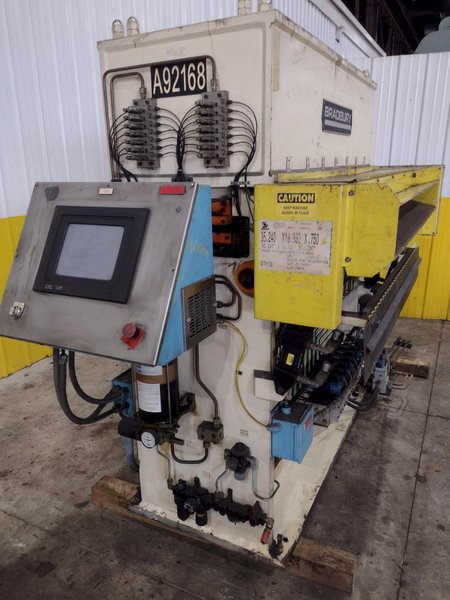

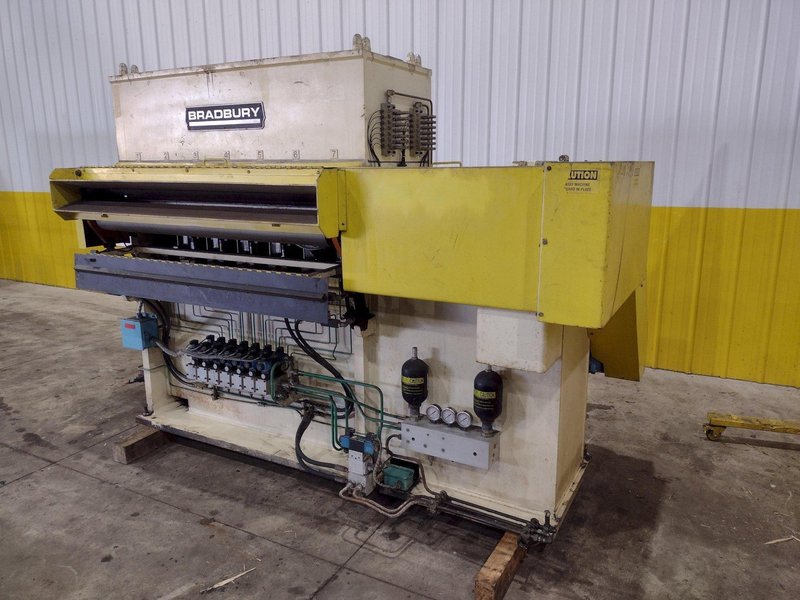

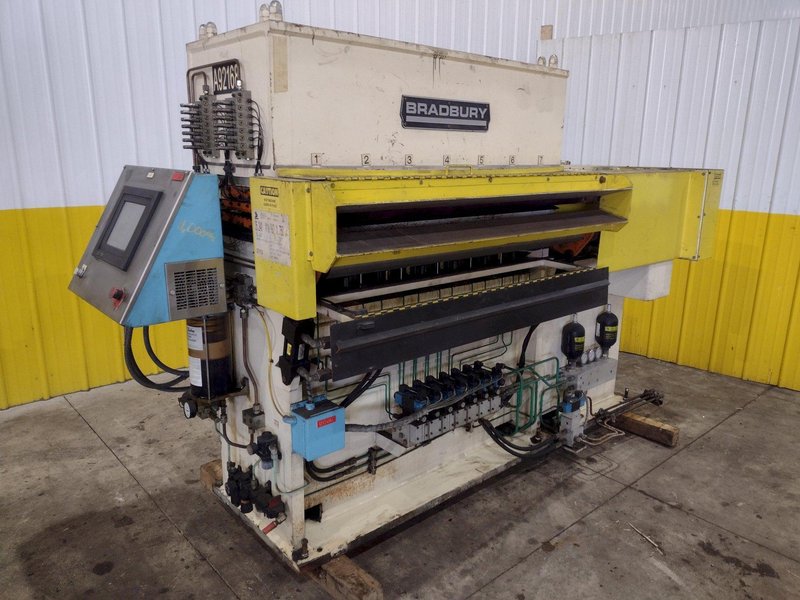

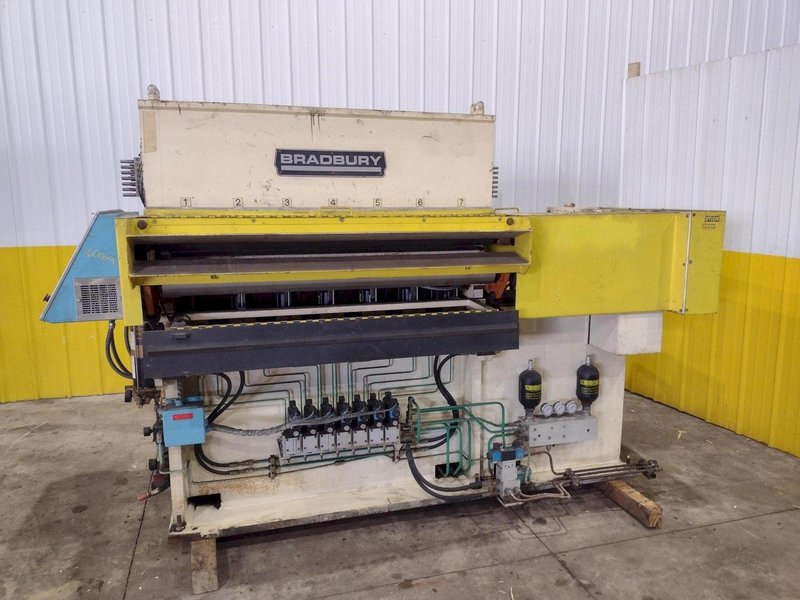

52" x .030" BRADBURY 5 HI 17 ROLL PRECISION LEVELER: STOCK 22669
Brand
Category
Type
Model
5 HI 17 ROLL
Stock #
22669
Year
Not specified
Condition
Very Good
Location
Ohio
|

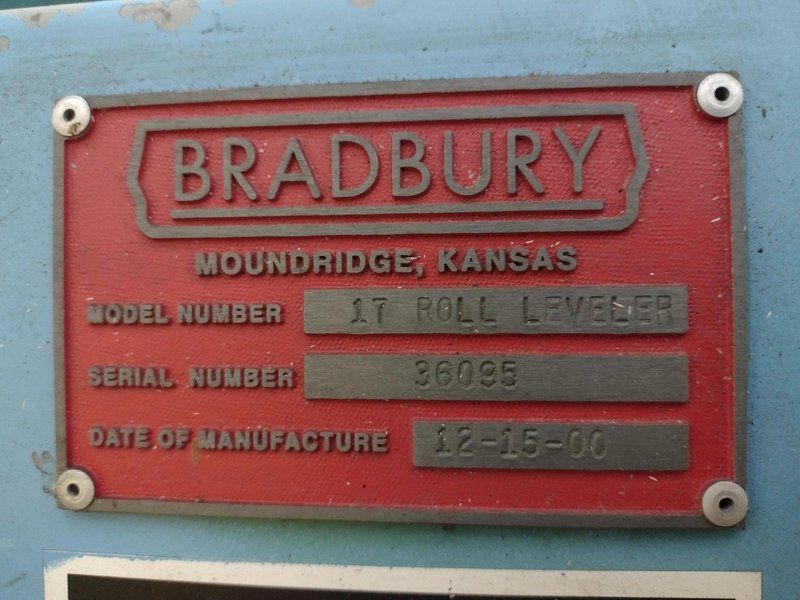

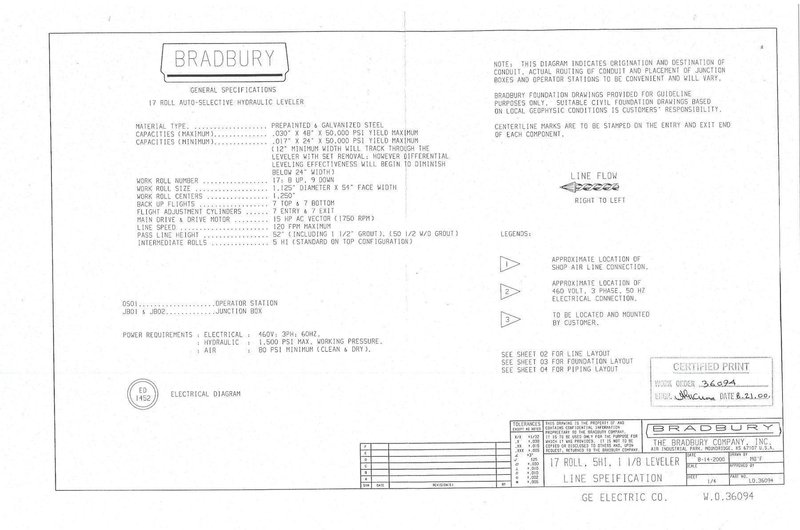

SERIAL ........................ 36095
NEW ........................... 12/2000
CAPACITY ...................... .030": X 48" MAXIMUM
CAPACITY ...................... .017 X 24" MAXIMUM
MATERIAL TYPE ................. PRE PAINTED & GALVANIZED STEEL

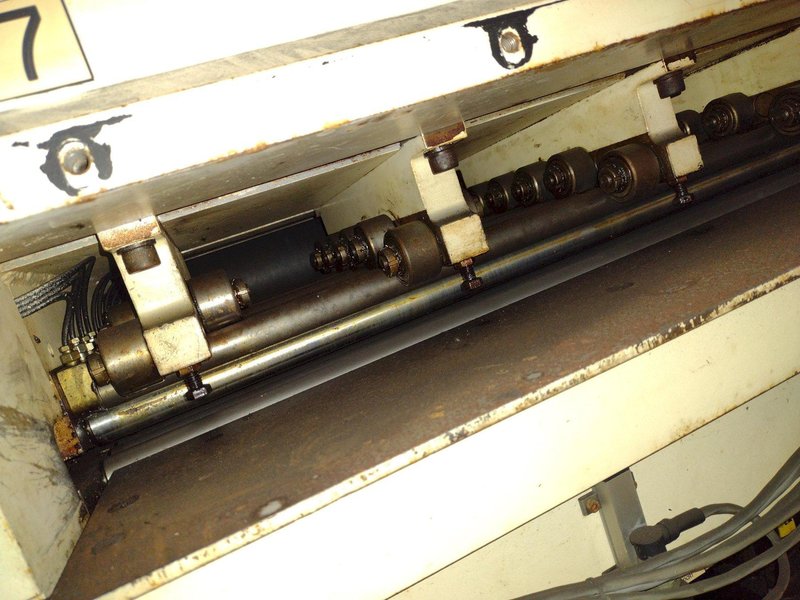

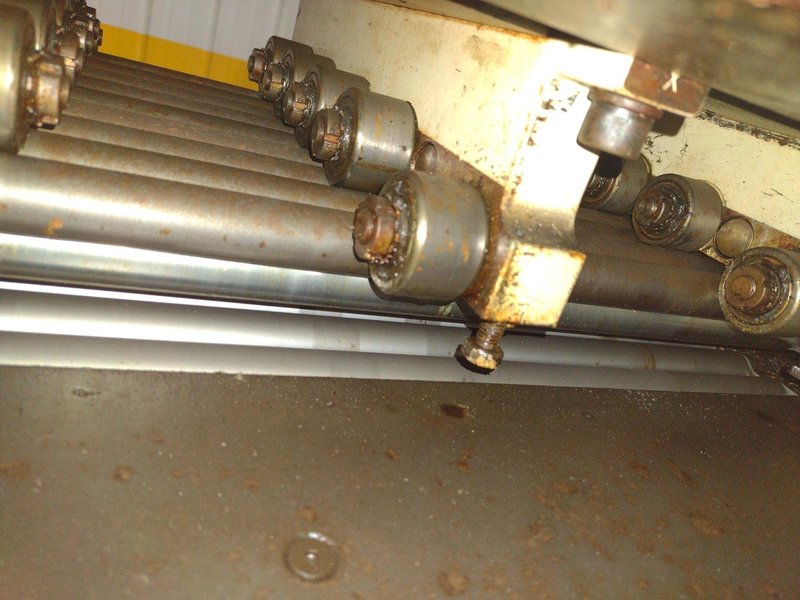

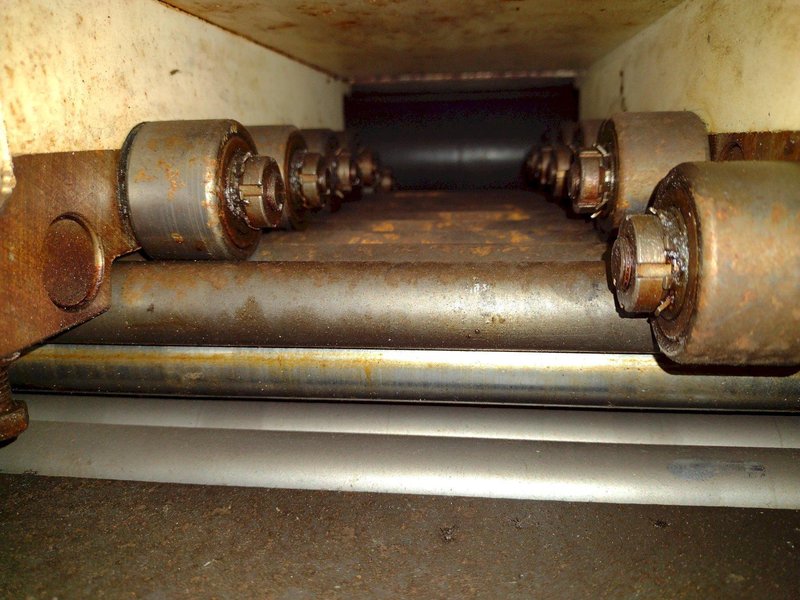

WORK ROLLS .................... 17 - 8 UP AND 9 DOWN
WORK ROLL WIDTH ............... 52"
WORK ROLL DIAMETER ............ 1.125"
WORK ROLL CENTERS ............. 1.250"

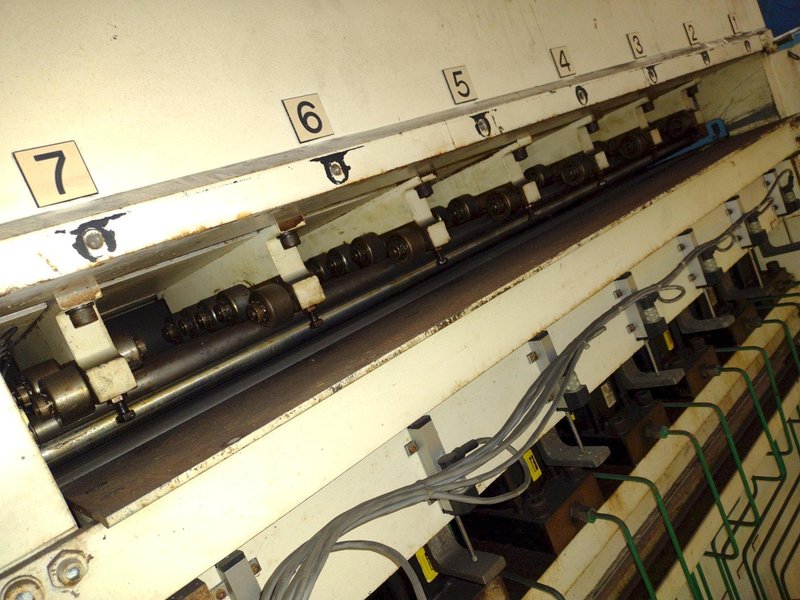

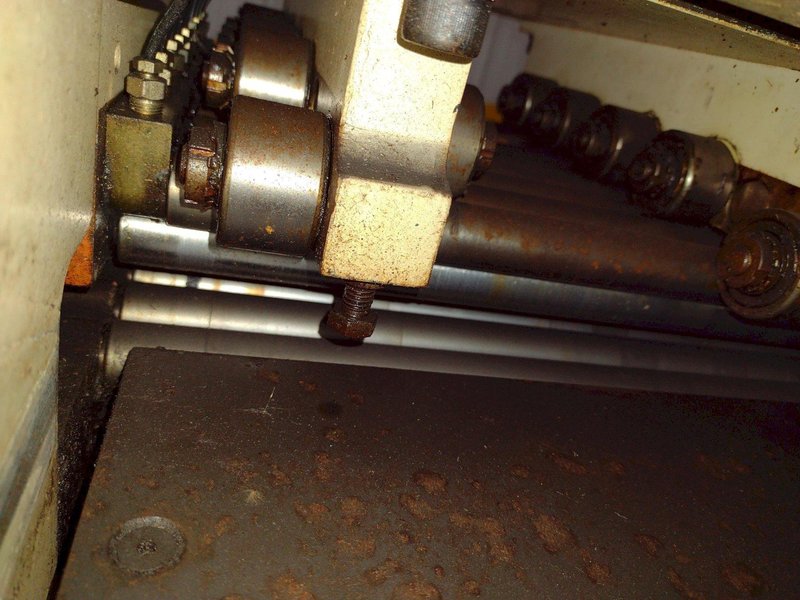

BACK UP FLIGHTS ............... 7 TOP & 7 BOTTOM

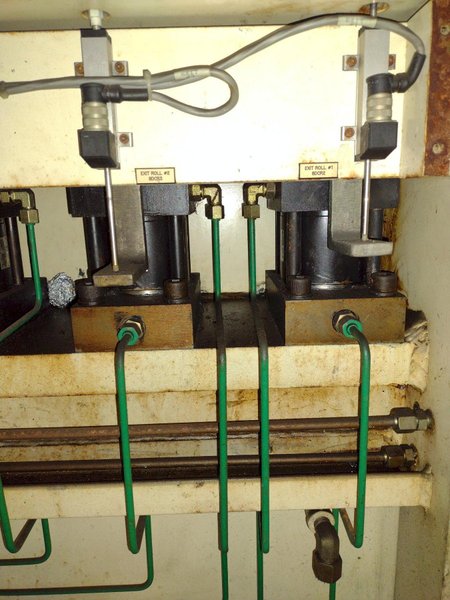

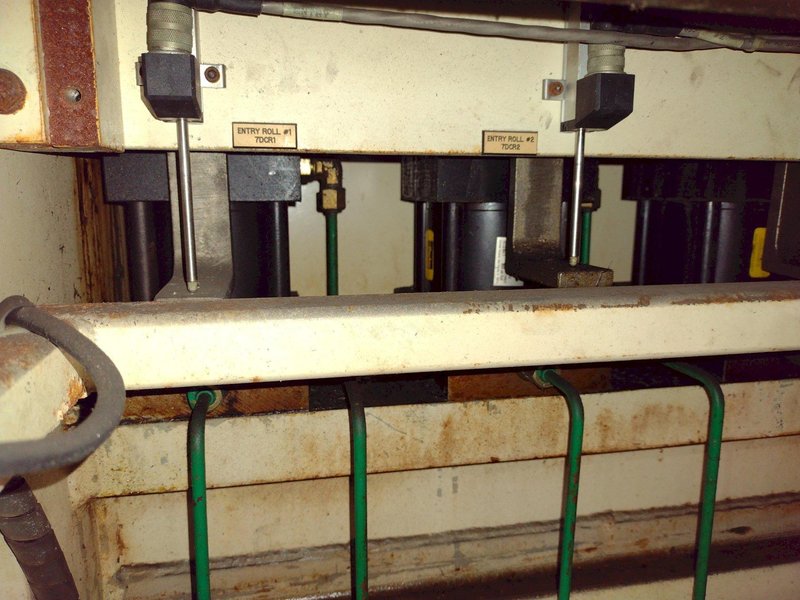

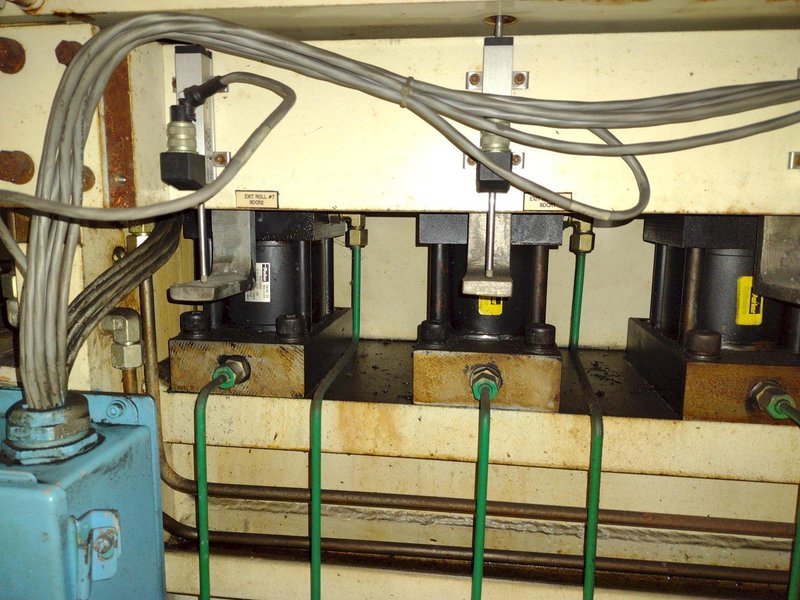

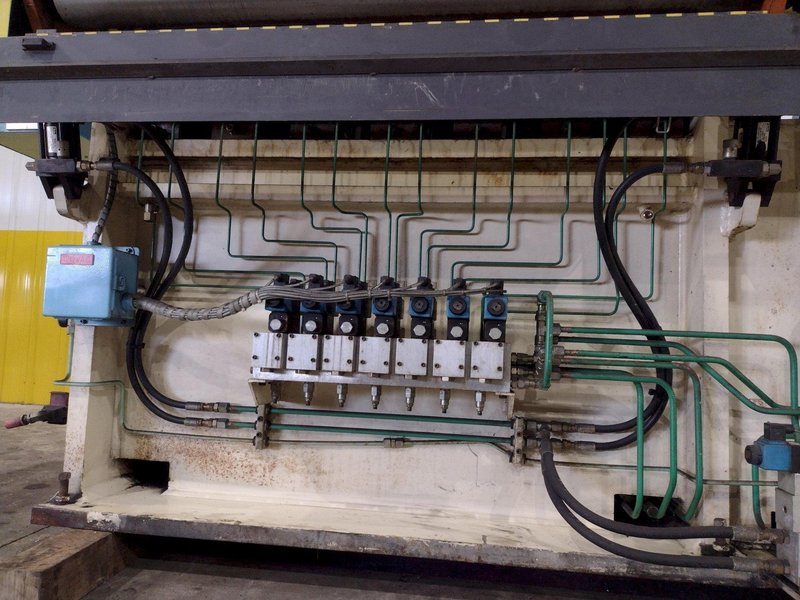

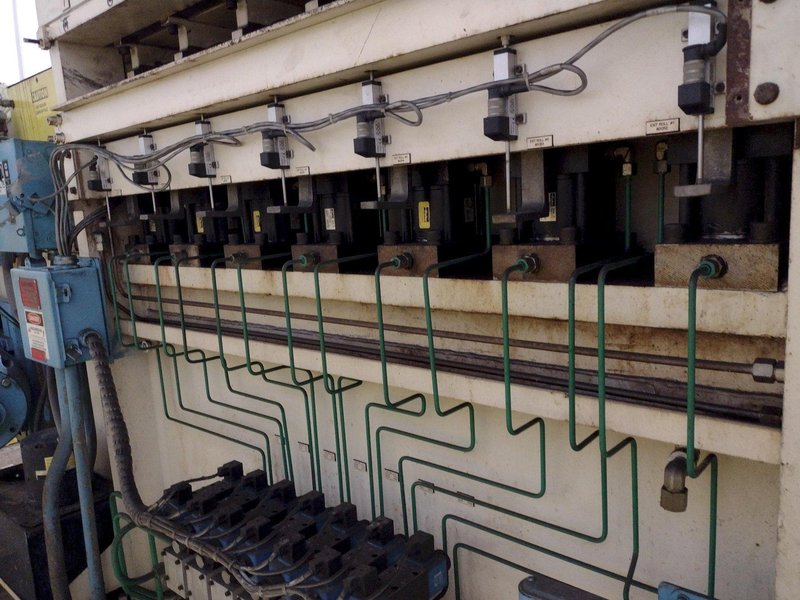

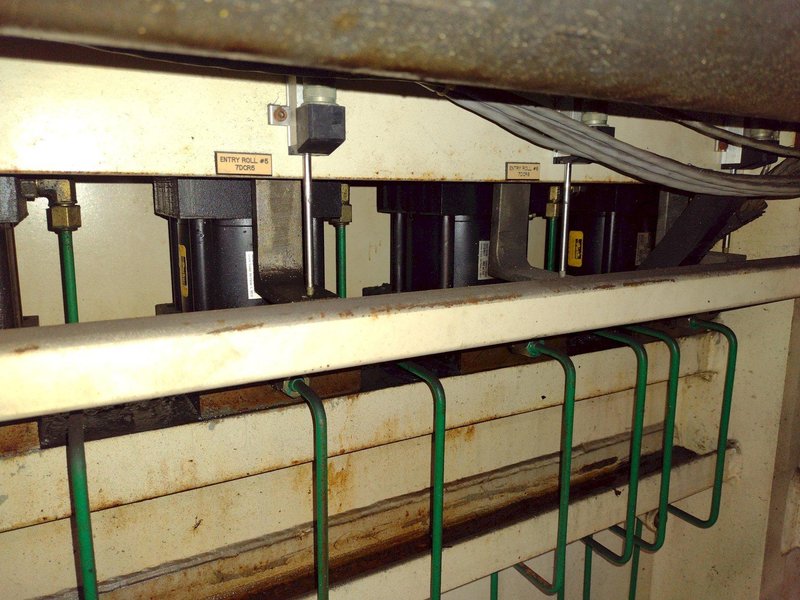

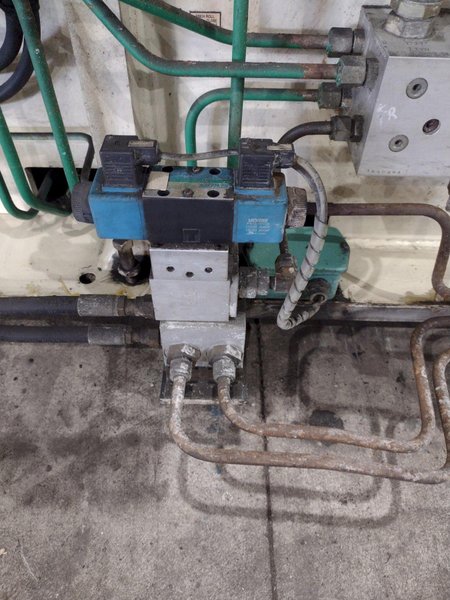

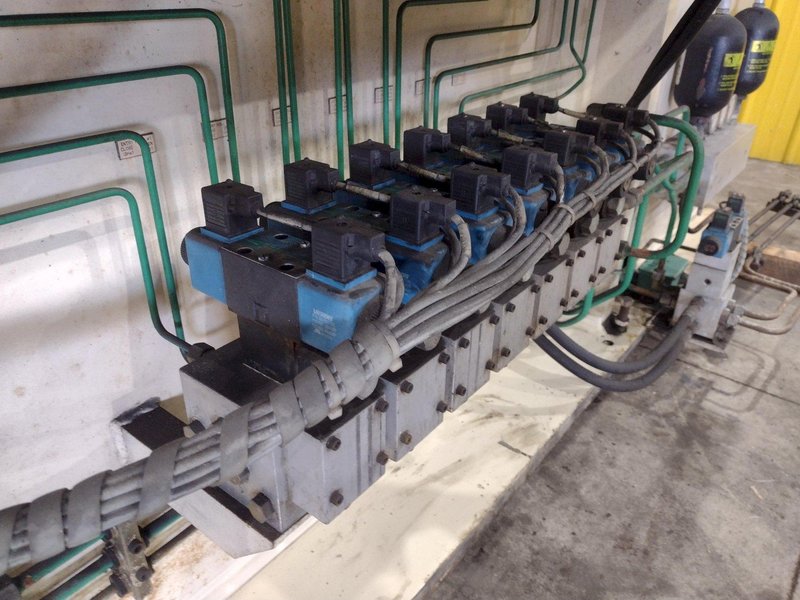

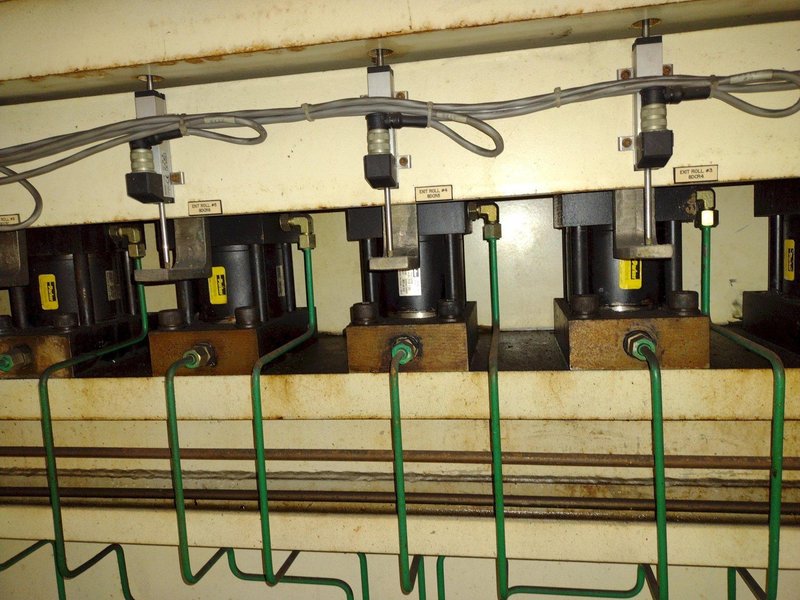

FLIGHT ADJUSTMENT CYLINDERS ... 7 ENTRY & 7 EXIT
INTERMEDIATE ROLLS ............ 5 HI TOP CONFIGURATION
LINE SPEED .................... 120 FPM MAXIMUM
PASS LINE HEIGHT .............. 50.5"

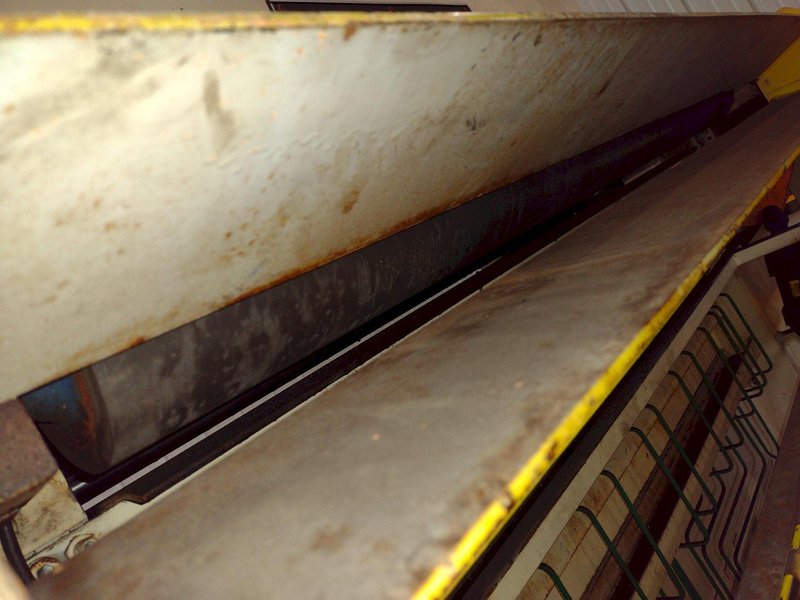

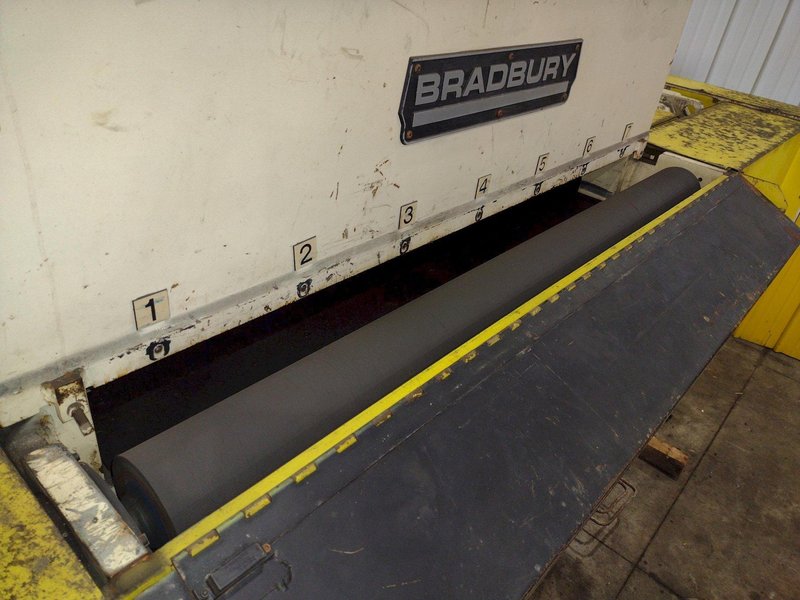

PINCH ROLLS ................... YES
LINE FLOW ..................... RIGHT TO LEFT

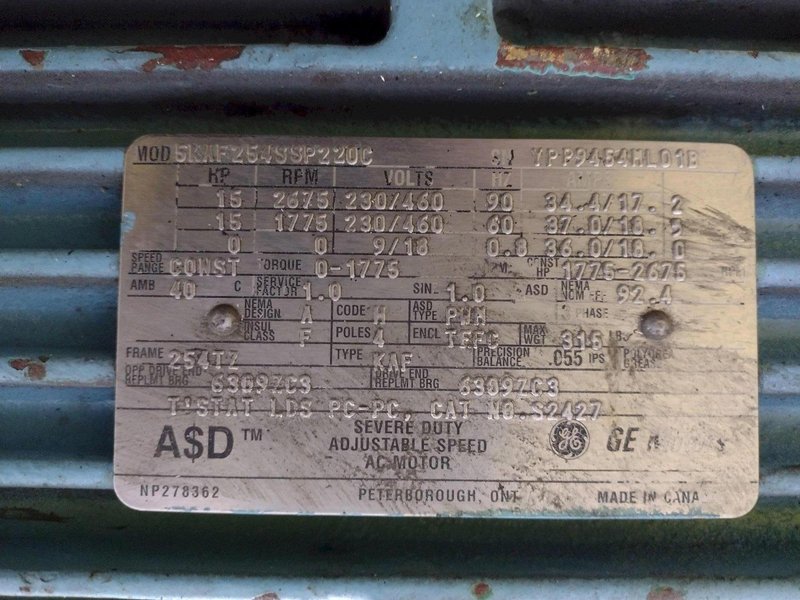

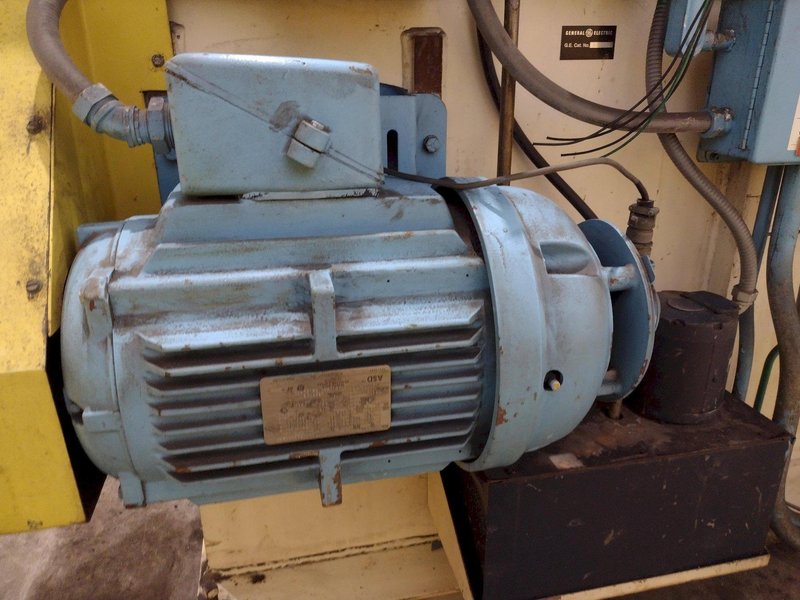

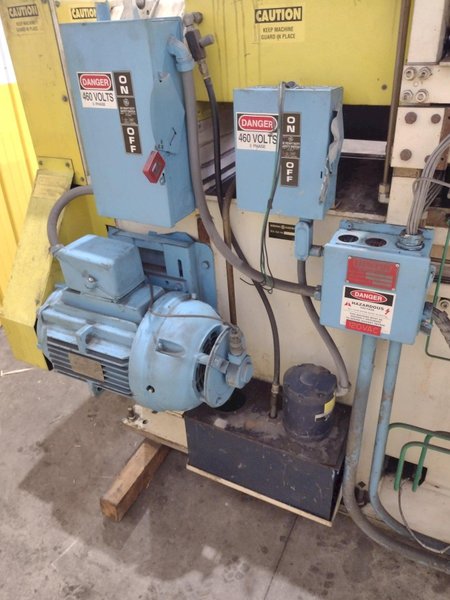

MAIN DRIVE MOTOR .............. 15 HP AC
|
