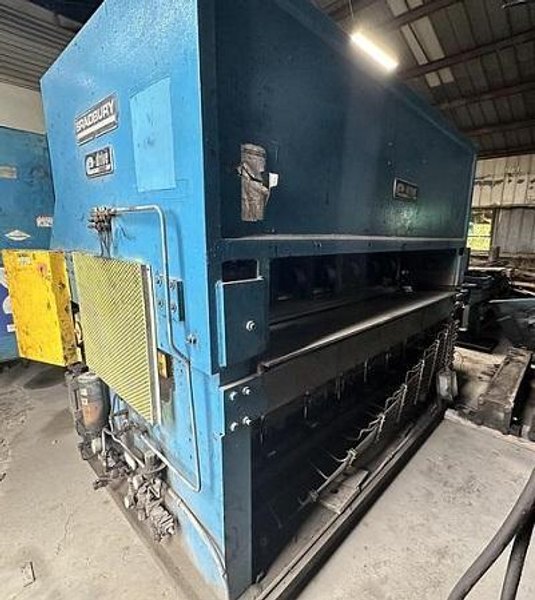

72" X .250" BRADBURY E-DRIVE LEVELER

72” X .250” BRADBURY E-DRIVE LEVELER

MANUFACTURER BRADBURY

YEAR 2011

CONDITION USED

SPECIFICATIONS

MATERIAL TYPE:

HOT ROLLED STEEL-BLACK AND P&O

ASTM A36, A572, A871, A1011

CAPACITIES (MAXIMUM):

0.250" X 72" @65,000 PSI-GRADE 50

0.205" X 72" @ 80,000 PSI-GRADE 65

CAPACITIES (MINIMUM):

0.100 X 36"@ 80,000 PSI-GRADE 65

0.075" X 36" @ 70,000 PSI

0.060" X 36" @ 55,000 PSI

WORK ROLL NUMBER: 11: 5 UP, 6 DOWN

WORK ROLL SIZE: 3.50" DIAMETER X 86" FACE

BACK UP FLIGHTS: 7 TOP AND 7 BOTTOM

FLIGHT ADJUSTMENT CYLINDERS : 7 ENTRY AND 7 EXIT

MAIN DRIVE AND DRIVE MOTOR: (2) 150HP PATENT PENDING EDRIVE(TM)

MAXIMUM SPEED: 150 FPM (@ 1750 RPM)

PASS LINE HEIGHT: 44.25" WITH 1.25" OF GROUT. THE EXISTING PASSLINE HEIGHT IS 44" TO THE BOTTOM

OF THE MATERIAL.

INTERMEDIATE ROLLS: 4 HI

LINE FLOW: LEFT TO RIGHT

FLATNESS PRECISION: 20 TIMES "I" UNIT IMPROVEMENT ON INCOMING STRIP TO OUTGOING STRIP AT OR

BELOW A MAXIMUM INCOMING CROSSBOW OF 6" OR LESS.

POWER REQUIREMENTS:

460 V, 60 CYCLES, 3 PHASE

24 V DC CONTROLS
