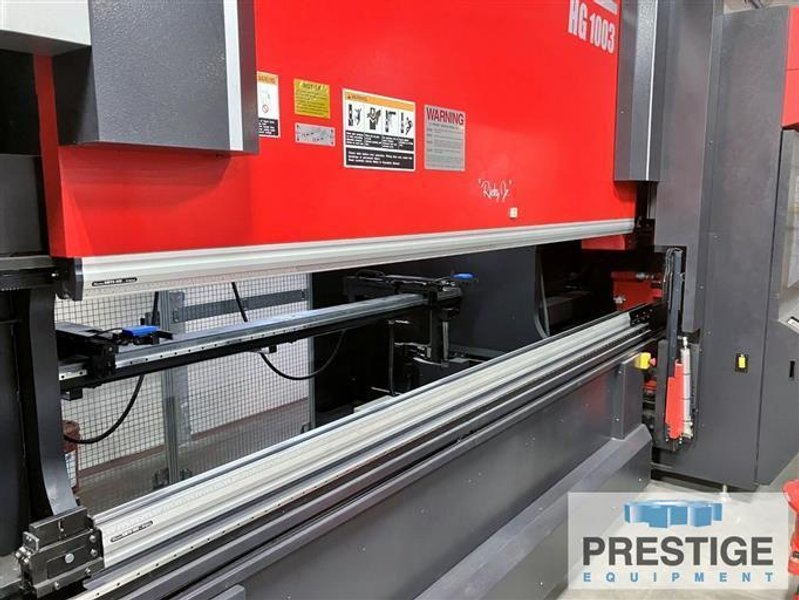

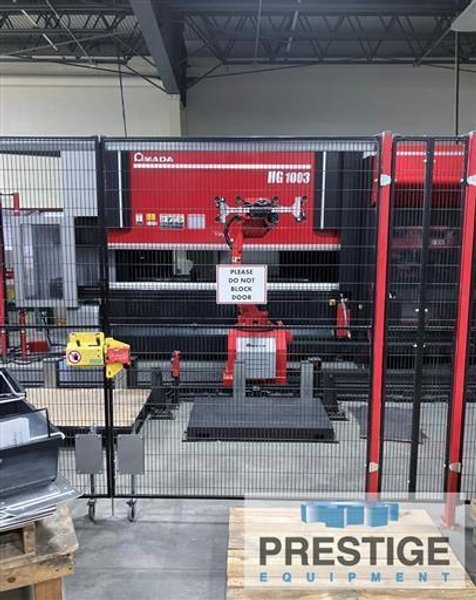

Brakes Press Hydraulic

CAPACITY:
Maximum Tonnage Capacity 110 Ton
Table Length 122.4"
Maximum Bending Length 120.5"
Distance Between Housings 106.3"
Open Height 23.4"
Throat Depth 17.7"
Stroke Length 9.8"

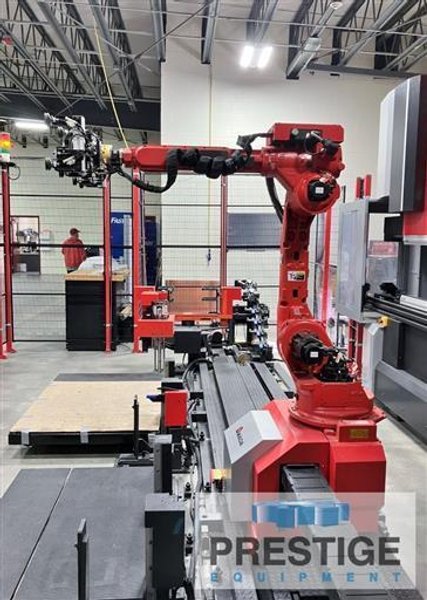

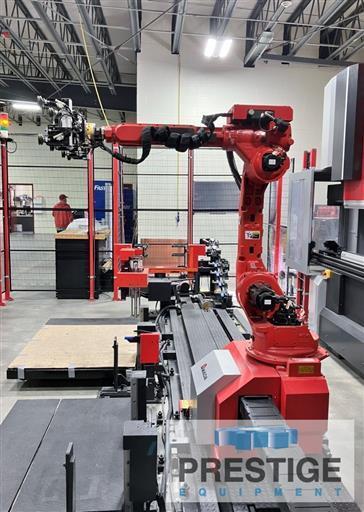

YASKAWA ROBOT:
Payload 44 Lb.
Number of Axis 6

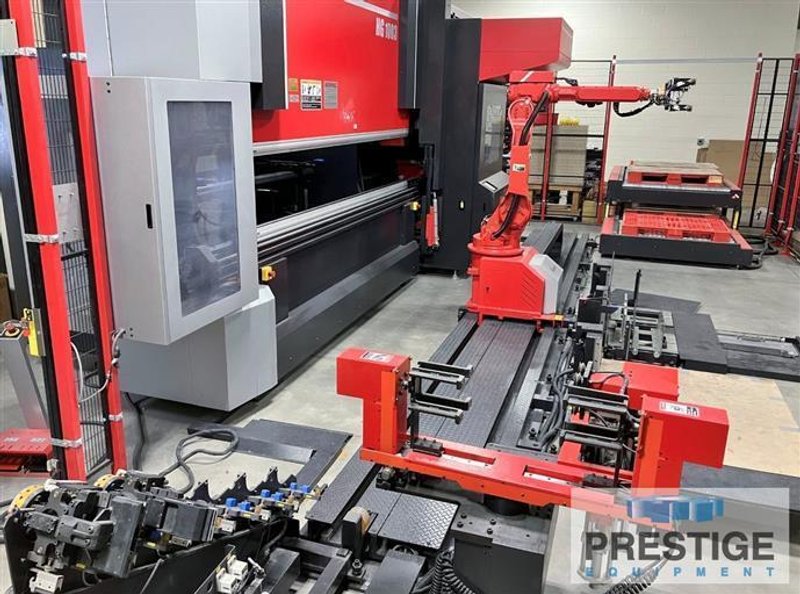

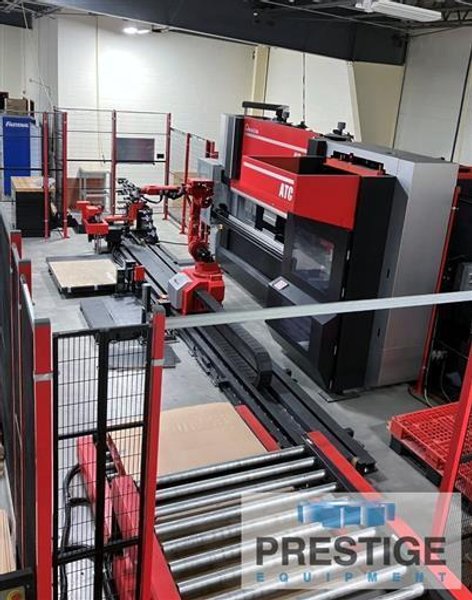

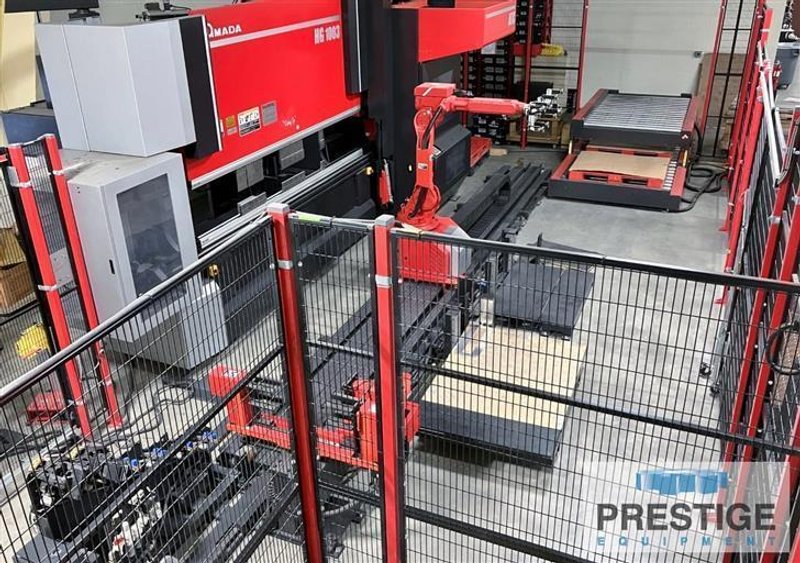

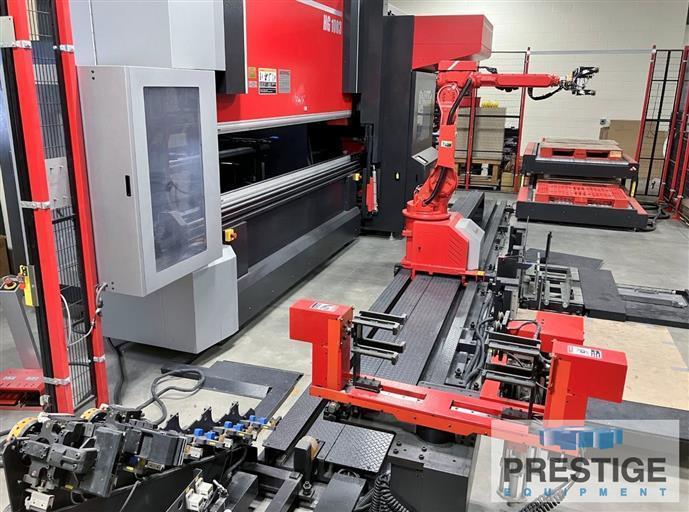

Equipped With:

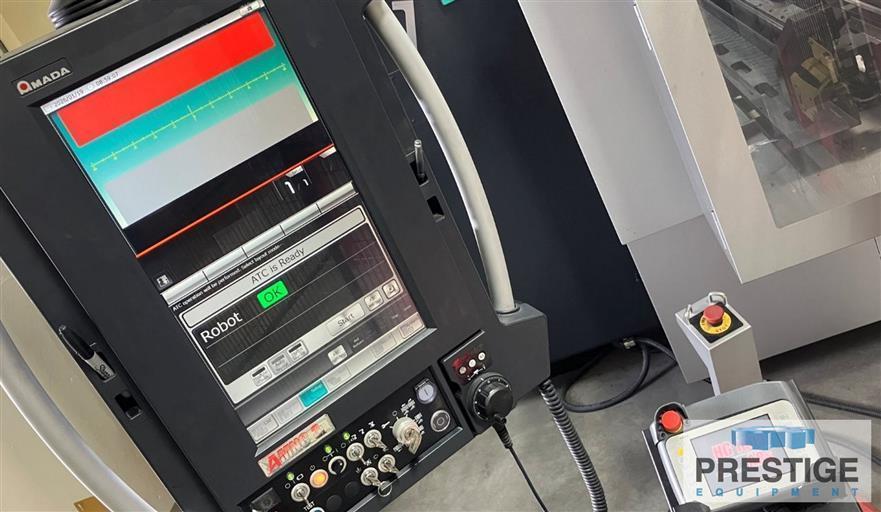

Amada AMNC 3i CNC Control with 19" Multi Touch LCD Screen

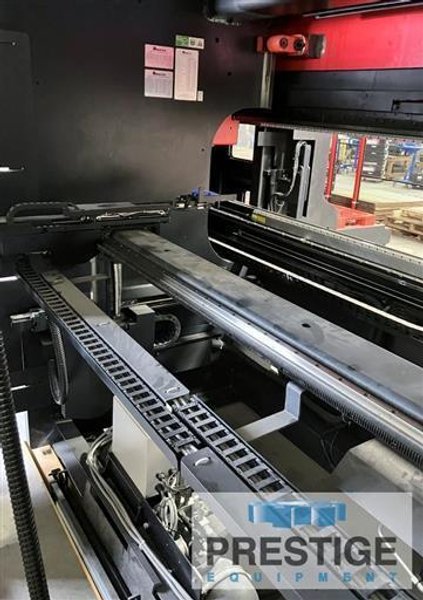

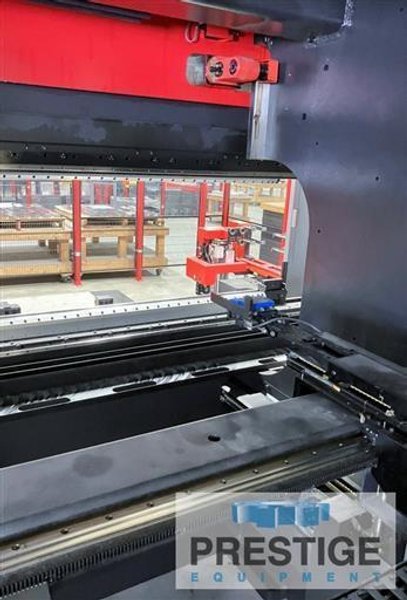

6-Axis Back Gauge Plus 2-Axis L-Shift

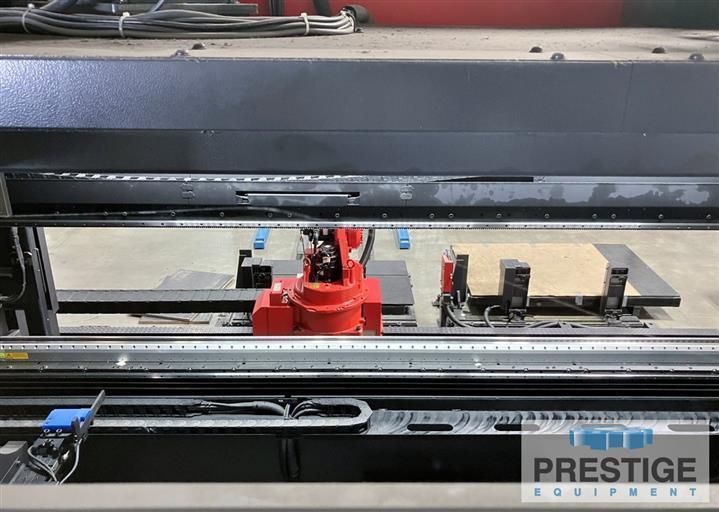

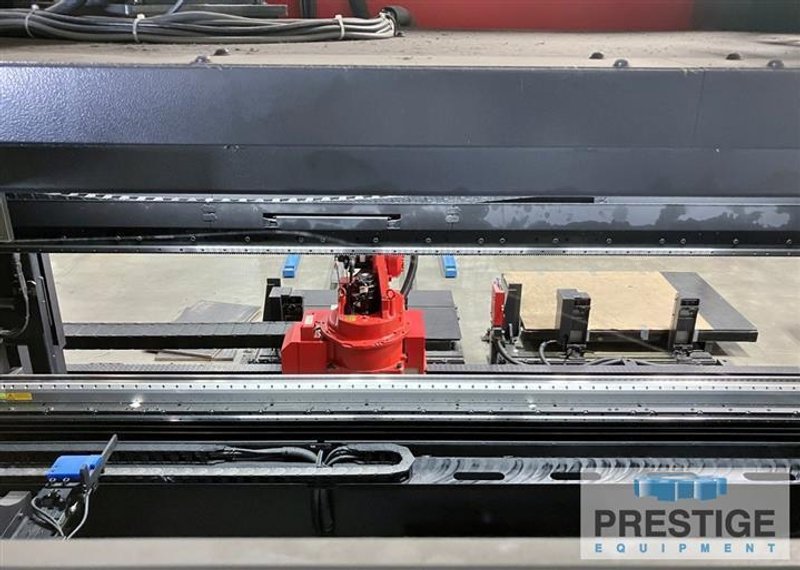

Yaskawa 7-Axis Robot (6-Axis Motion, 1-Axis Travel)
Automatic Tool Changer (Can Store up to 15 Punch Stockers & 18 Die Stockers)

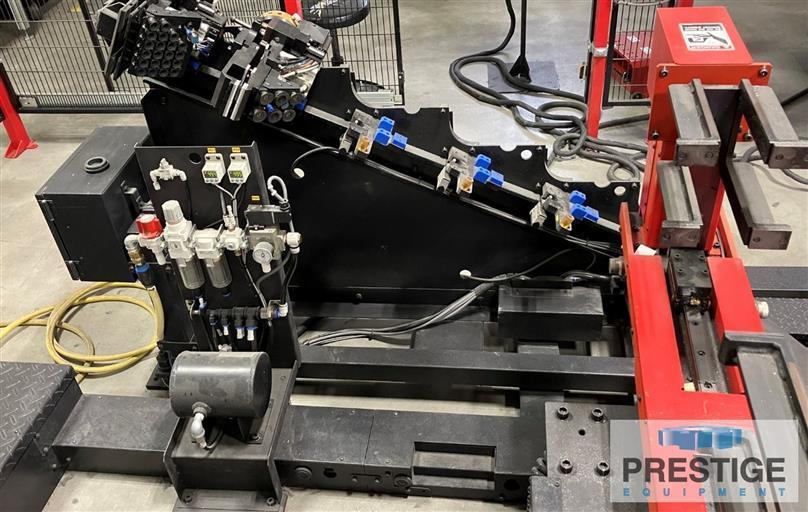

Automatic Gripper Changer

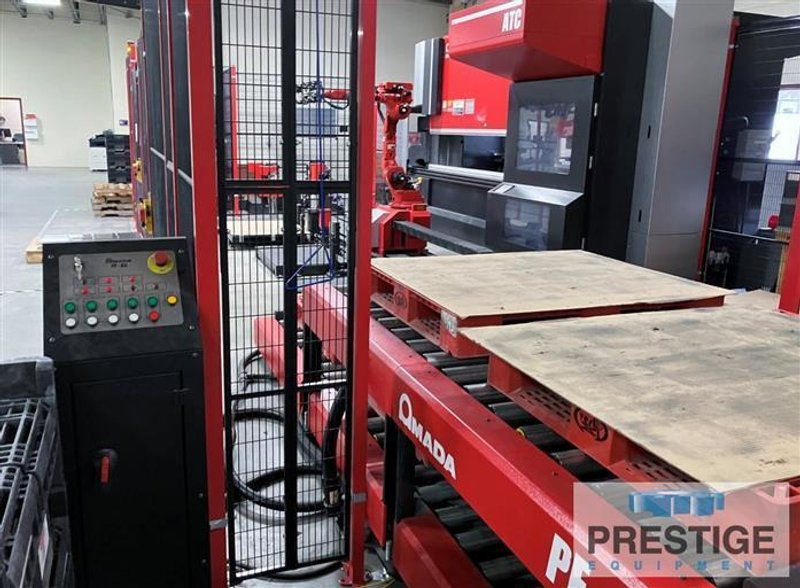

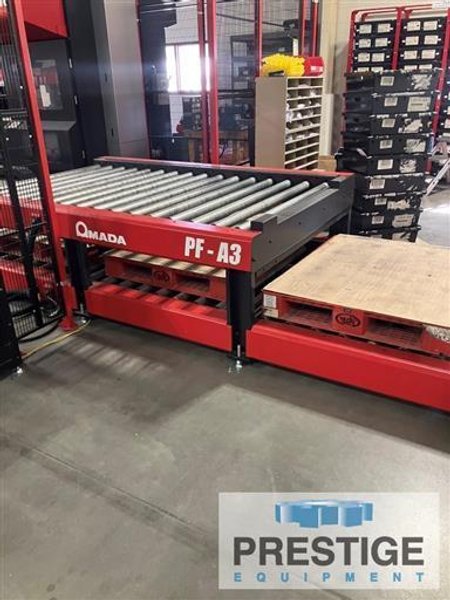

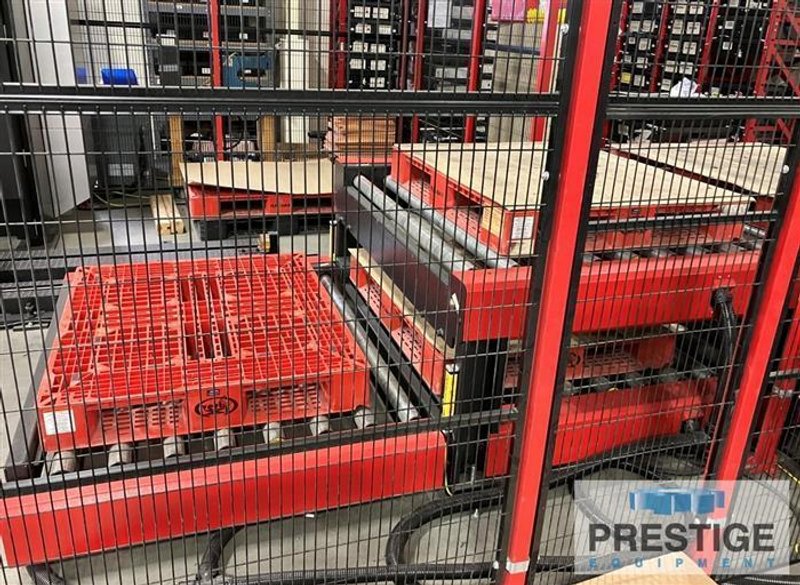

Roller Table/Conveyor for Finished Parts (Amada PF-A3)
Assorted Tooling

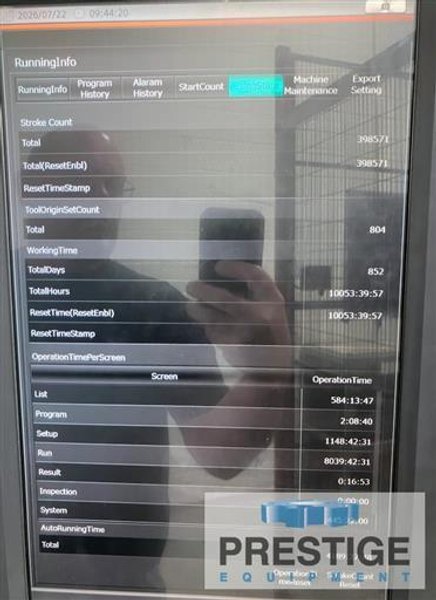

HOURS: Run Time of February 2026, 4,189 Hours


NOTE: Inspect In Plant Under Power
