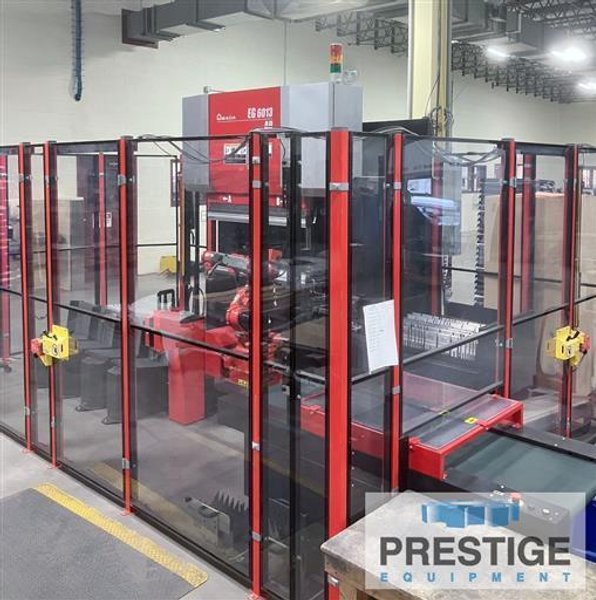

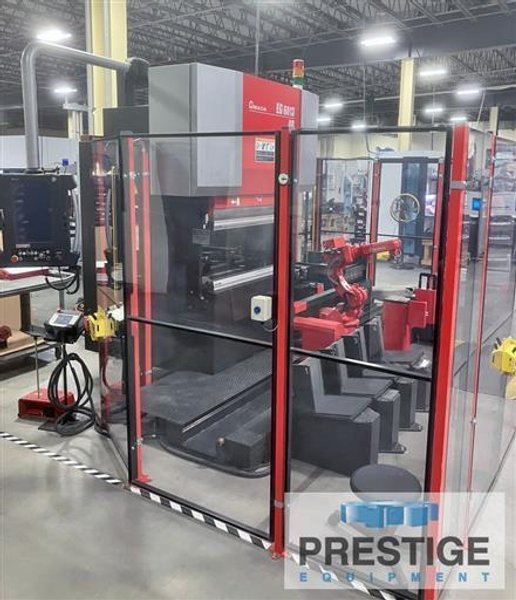

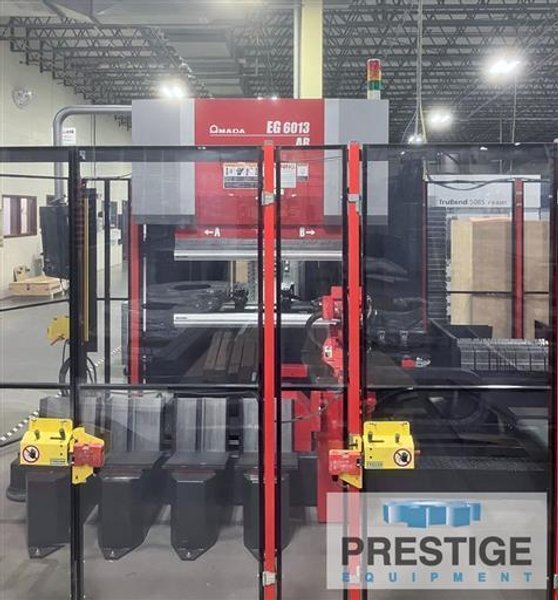

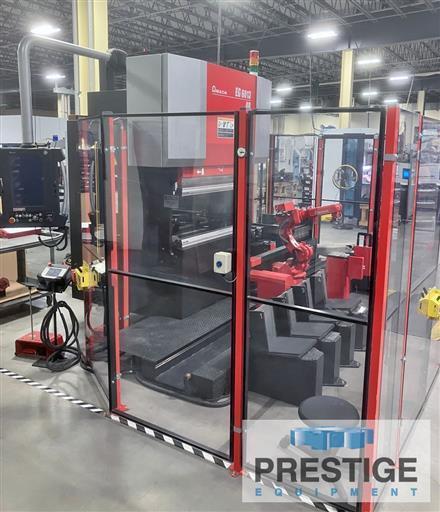

Brakes Press Hydraulic

CAPACITY:
Maximum Tonnage Capacity 67 Ton
Maximum Bending Length 55.1"
Distance Between Housings 39.8"
Stroke Length 5.9"
Throat 9.1"
Open Height 25"
Approach Speed 8.6"/sec.
Bend Speed 0.98"/sec.
Return Speed 8.7"/sec.
Approximate Floor Space 230" L x 120" Wide x 120" High
Approximate Weight of Brake 8,200 Lbs.

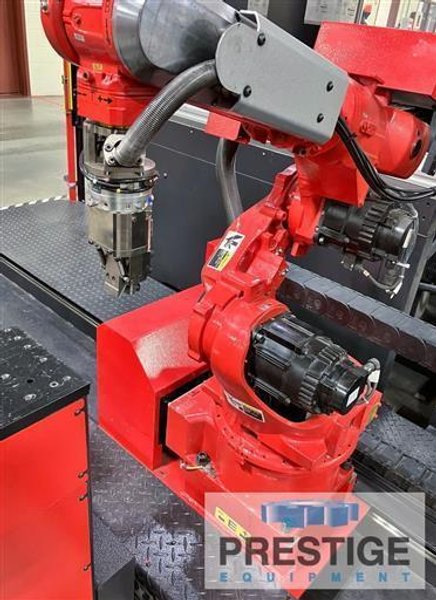

ROBOT:
Axis Configuration 6-Axis
Payload (With Gripper) 22 Lbs.
Stroke Length 125.98"



Equipped With:

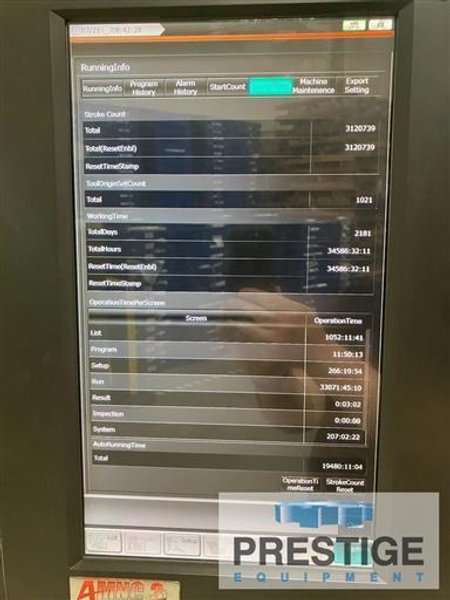

AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display

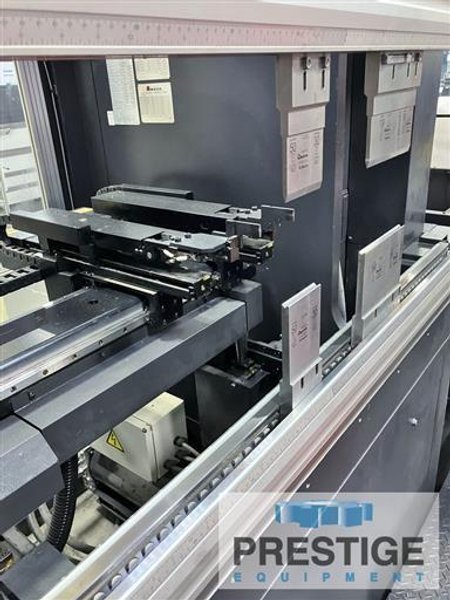

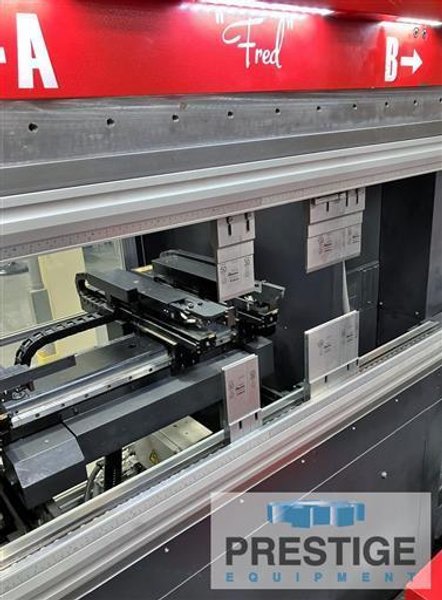

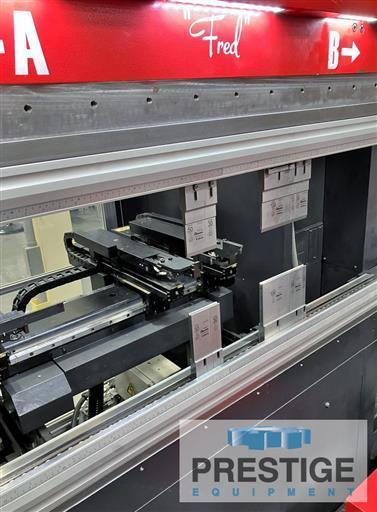

Automatic Toll Changer/Hand Changer
Automatic Gripper Station
Dual Electric Servo Power Drive

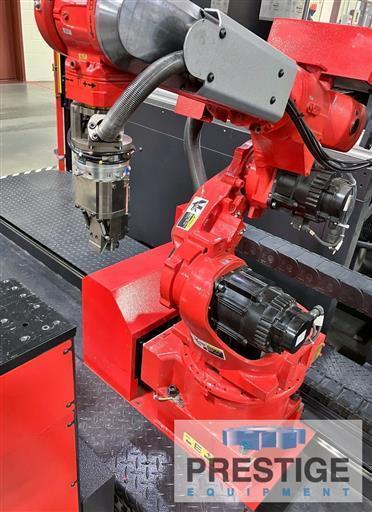

Amada 7-Axis EG-Robot (6-Articulated Axes & 1 Travel Axis)
(4) Part Loading Tables

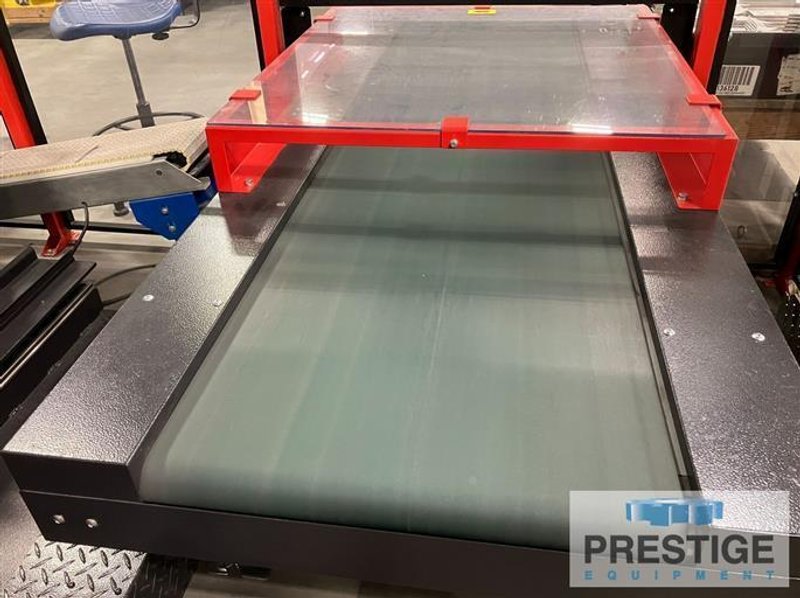

Unloading Conveyor

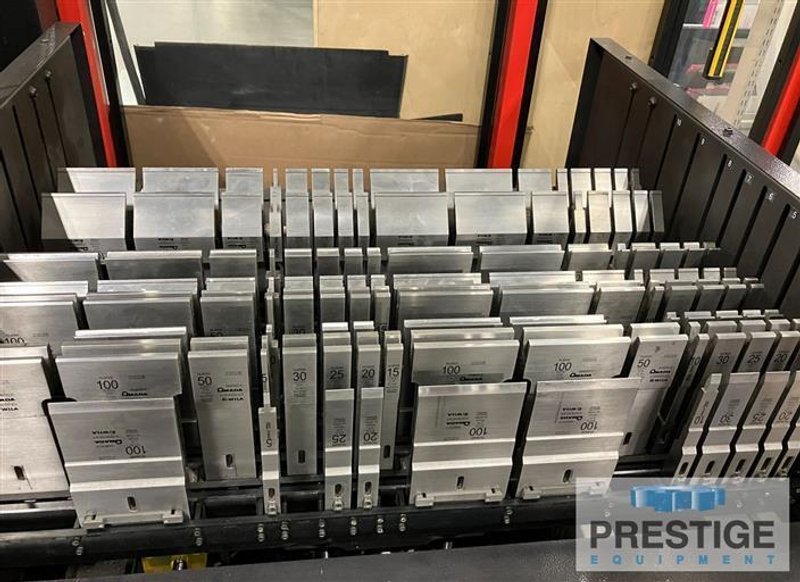

Tool Stocker
Misc. Tooling

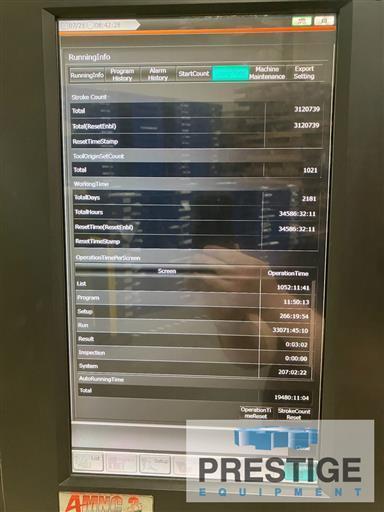

NOTE: Inspect in Plant Under Power, Low Hours, Excellent Condition
