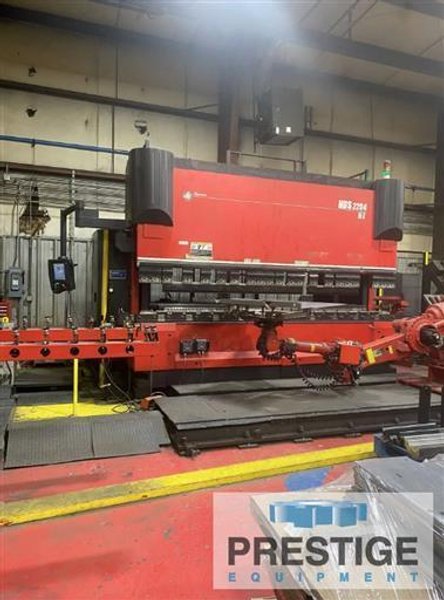

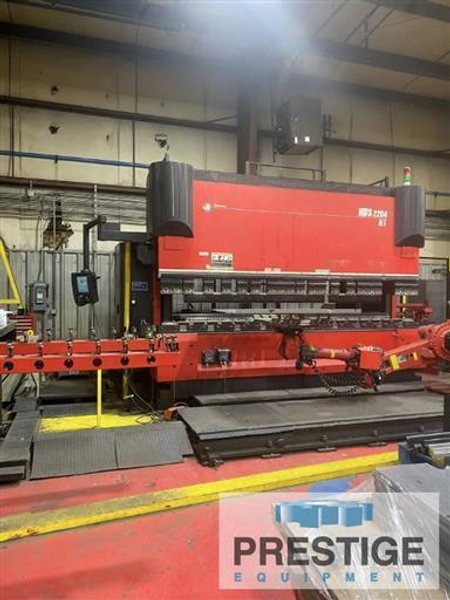

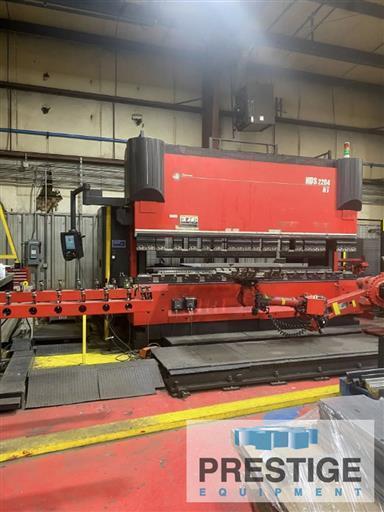

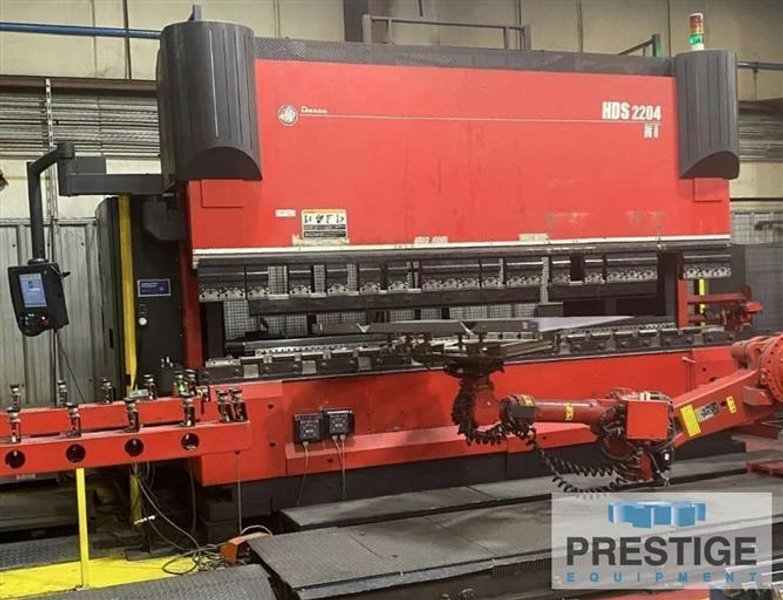

Brakes Press Hydraulic

CAPACITY:
Maximum Tonnage Capacity 242 Ton
Overall Length Of Bed & Ram 168.5"
Distance Between Housings 148"
Open Height 25.98"
Throat Depth 17.72"
Stroke Length 9.84"
Approach Speed 7.87 IPS
Bending Speed .78 IPS
Return Speed 7.87 IPS
Motor 27.6 HP
Approx. Machine Dimensions L x W x H 231.26" x 108.43" x 126.6"
Approx. Machine Weight 55,710 Lbs

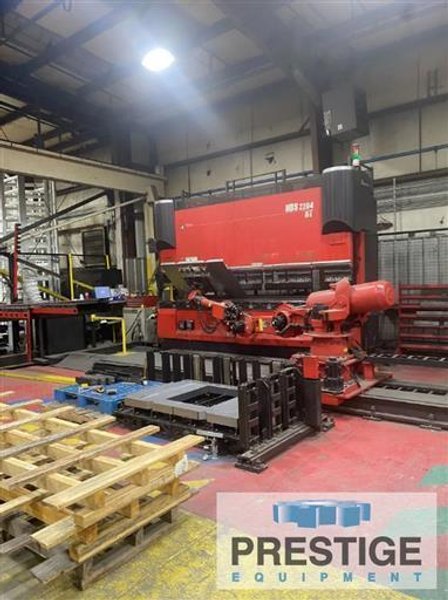

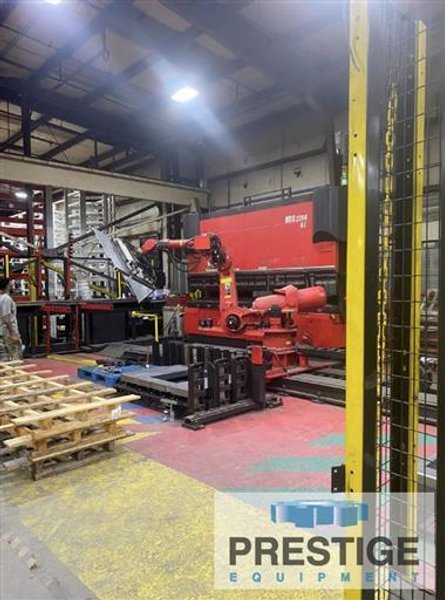

ASTRO 165W NT ROBOTIC BENDING SYSTEM:
Maximum Payload 363 Lbs
Controlled Axes 6

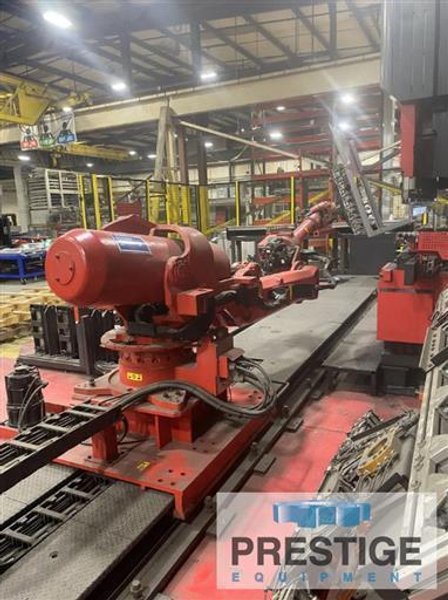

Rail Travel 240"
Maximum Part Size 59.1" x 118.11"
Minimum Part Size 5.9" x 5.9"



Equipped With:
Amada AMNC/PC CNC Control
Hydraulic Upper Clamping
5-Axis CNC Back Gauge
CNC Crowning
Hydraulic Tool Clamping

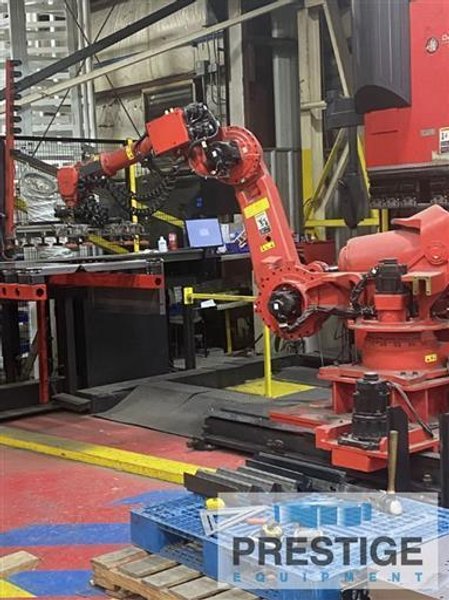

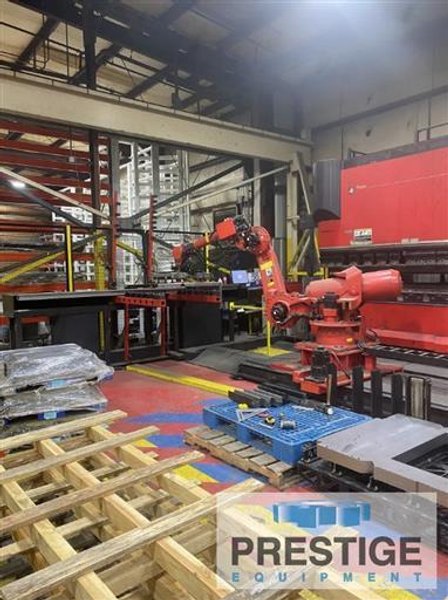

Astro 165W NT 6-Axis CNC Robot

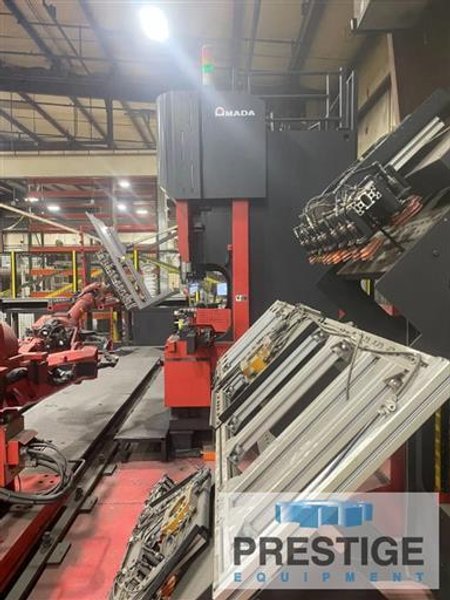

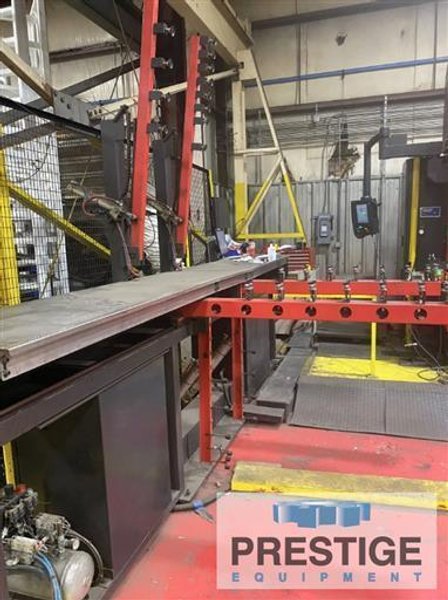

Part Handling Fixtures
Electric Foot Switch
Flush Floor
