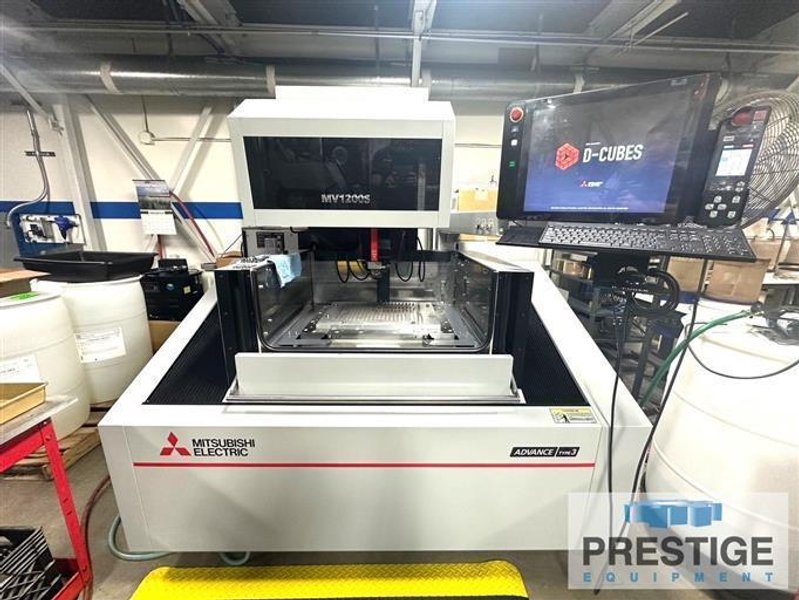

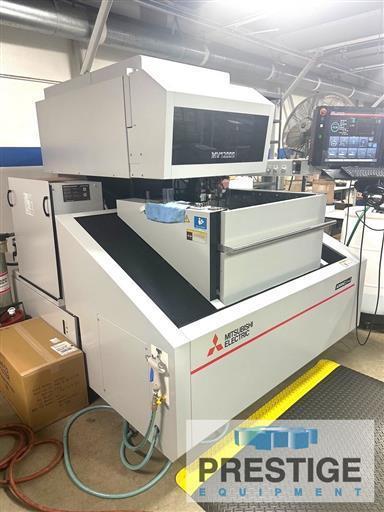

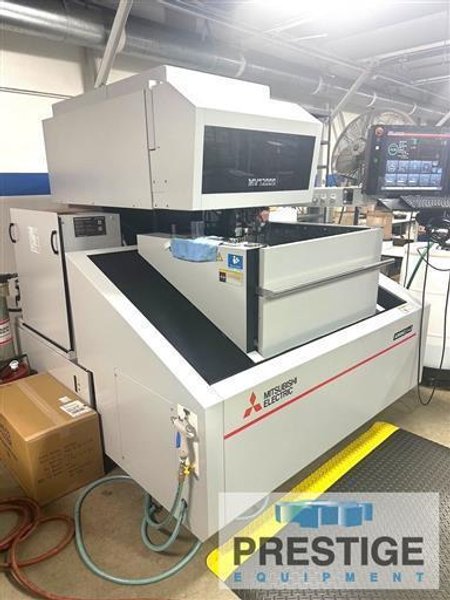

EDM Wire Type

SPECIFICATIONS:
X-Axis Travel 15.7"
Y-Axis Travel 11.8"
Z-Axis Travel 8.7"
Max. Workpiece Width 31.9"
Max. Workpiece Depth 27.6"
Max. Workpiece Height 8.5"
Max Submerged Workpiece Weight 1102 Lbs.
Table Size 25.2" x 17.7"
Wire Diameter Range 0.004"-0.012"
Minimum Start Hole Diameter 0.02"
Filter Tank Capacity 145 Gallons
Machine Dimensions 79.7" x 106.4"
Machine Height 79.3"
Machine Weight 5,952 Lbs.
Power Requirements 200-230V



Equipped With:

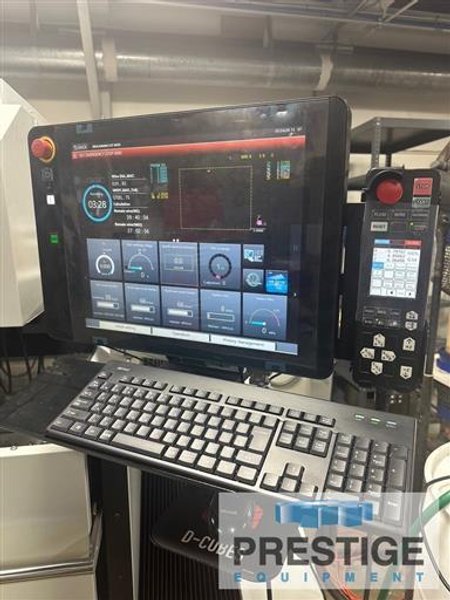

M800 Series CNC Control With 19" Ergonomic Touch Screen
Fully fiber optic servo control allows 4x faster internal communication speeds
Capable of submerged machining to 8.7” deep
DMX-S (Digital Matrix Sensor) shapes each spark, reducing electrode wear

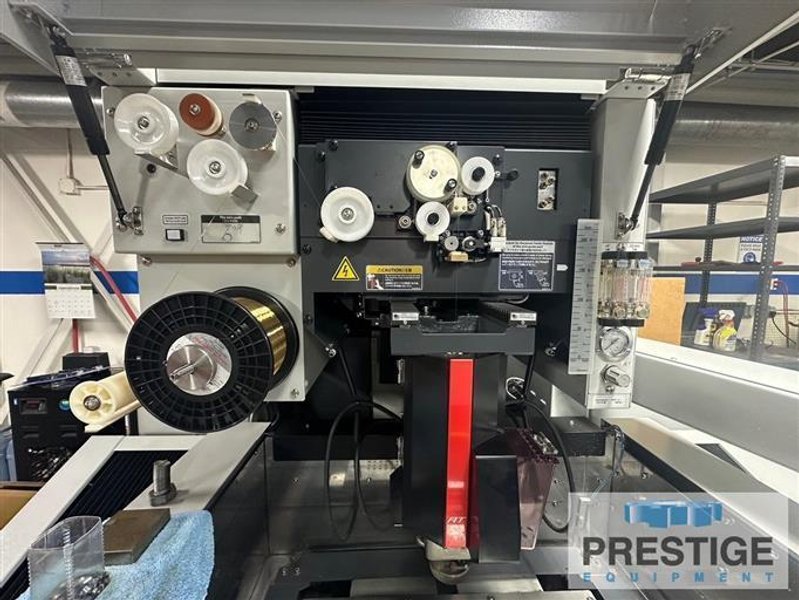

New 14” auto-threading annealing length improves threading reliability
Fine-grain “Dianite” casting material

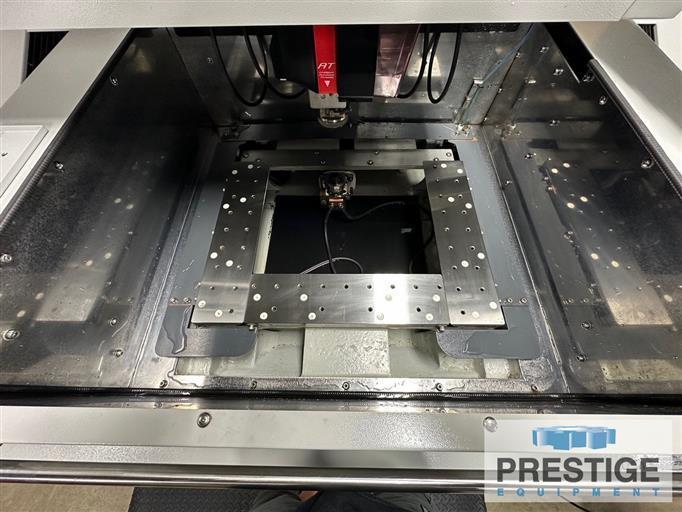

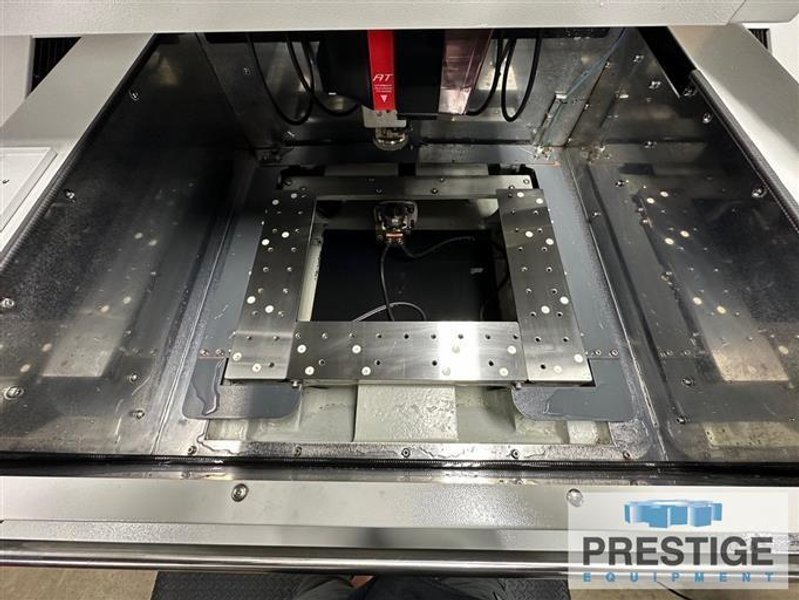

3-piece, hardened, 3-sided stainless worktable
V350-V AEII power supply with digital spark control, with full-time AEII (anti-electrolysis) power supply protection
DC-servo (closed loop) torque-control wire-tensioning system
Linear motion guideways
All-axes absolute control system
Split-axis construction (table moves in X axis, column moves in Y axis)
Linear glass scale feedback (X, Y axis)
Optical rotary encoder feedback (U, V, Z axis)
Non-contact, zero-backlash linear shaft drive system (X, Y axis)
Manual vertical machine tank door operation
Dielectric fluid chiller standard


NOTE: Inspect in Plant Under Power. Only 66 Hours
