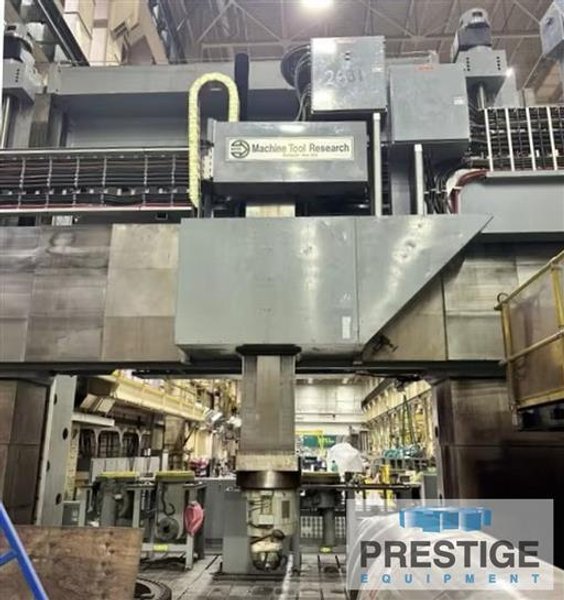

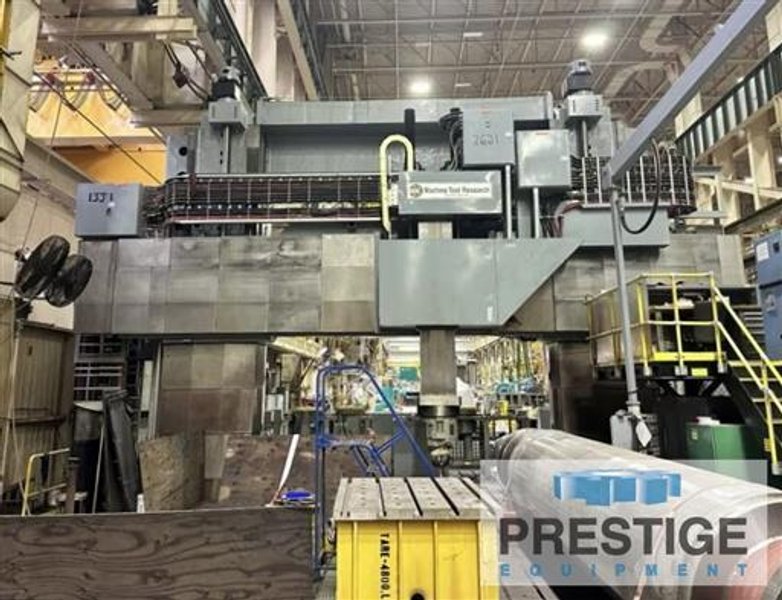

Machining Centers Vertical Bridge Type CNC

Brand
INGERSOLL
Category
Machining Centers
Type
Gantry Machining Centers (incld. Bridge & Double Column)
Model
CNC Bridge Mill
Stock #
44935
Year
2018
Condition
Not specified

Location

Not specified
SPECIFICATION:
Table Travel, X-Axis 684"
Head Travel, Y-Axis 275"
Ram Stroke, Z-Axis 60"
Rail Travel, W-Axis 172"
Ram Rotation, C-Axis .001 degrees
Distance Between Housings 222"
Height Under Rail 204"
Table Size 672" x 206"
Table Capacity 450,000 lbs
Spindle Speeds (Variable) 0-2,500 RPM
Vertical Milling Head 134 HP



Equipped With:

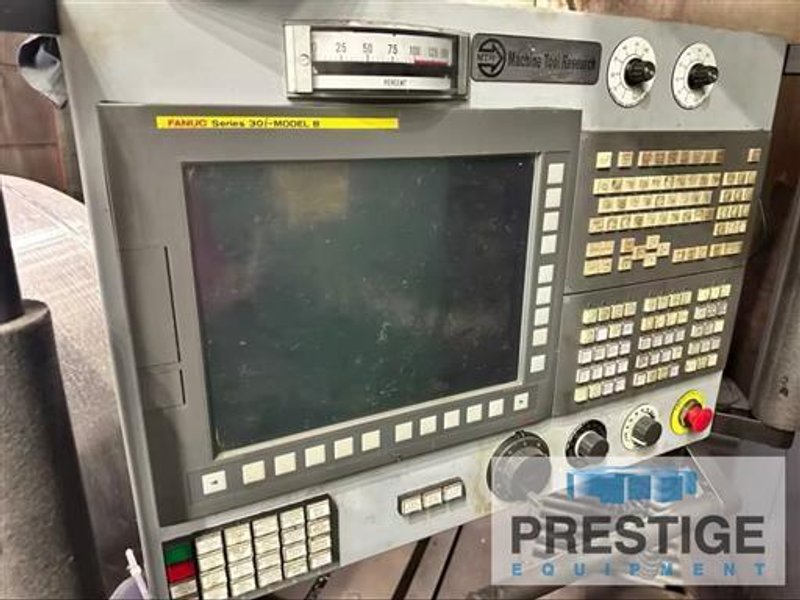

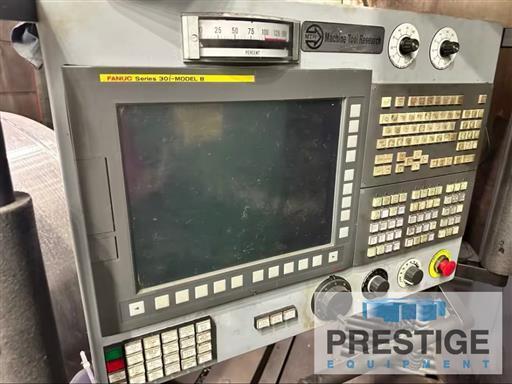

Fanuc 30i CNC Control

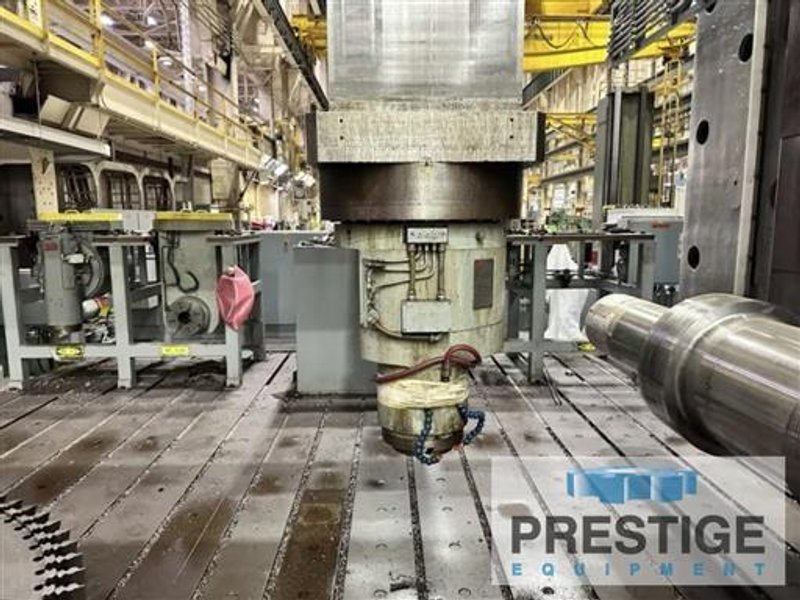

134 HP Milling Head
Right Angle Head Attachment, #50 Taper
Long Reach Straight Head Attachment, #60 Taper
Short Reach Straight Head Attachment, #50 Taper
672" x 206" T-Slotted Table
Through Spindle Coolant

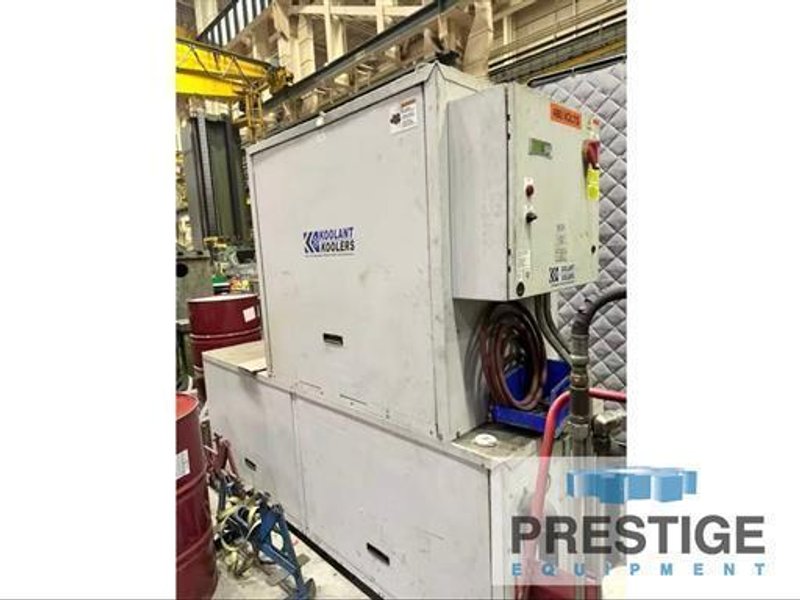

Koolant Koolers Chiller
Adjustable Rail
Chip Conveyor
No files or videos to display
