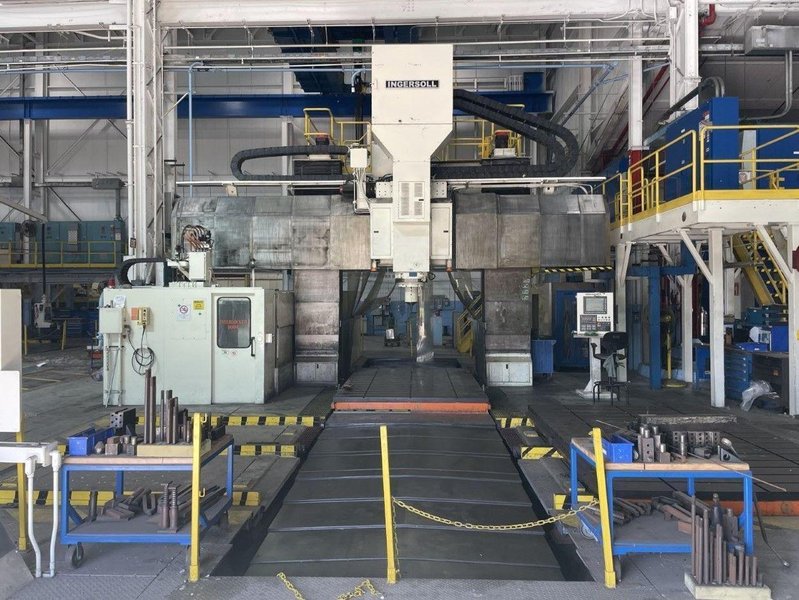

Ingersoll MasterMill 5-Axis CNC Bridge Mill, X-196″ w/Pallet Shuttle USED

Ingersoll MasterMill 5-Axis CNC Bridge Mill, X-196″ w/Pallet Shuttle USED

Name: Used INGERSOLL Mastermill For Sale iGAM01029611
Brand: INGERSOLL
SKU: iGAM01029611

Brand

INGERSOLL

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Ingersoll MasterMill 5-Axis CNC Bridge Mill, 2016 model, features an impressive 196-inch X-axis with pallet shuttle and Fanuc controls. Ideal for precision machining. Used condition, ready to enhance your manufacturing capabilities. Has Fanuc Controls

Specification Table

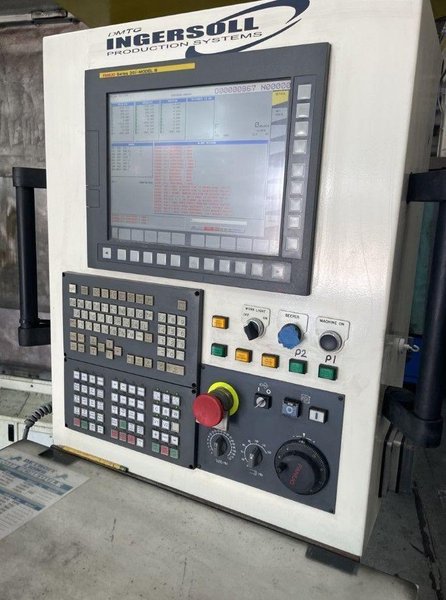

CNC Control	Fanuc 30i-B
Table-L	157.48"
Table-W	98.42"

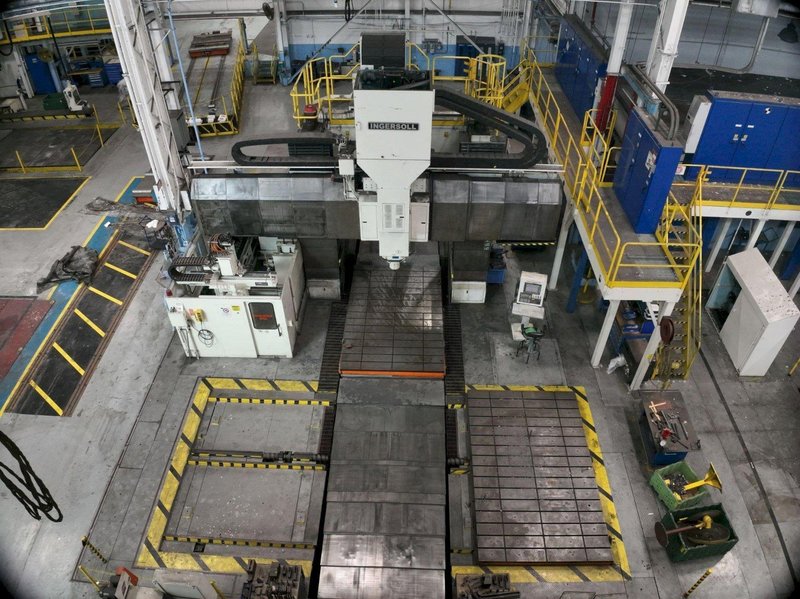

Number of Pallets	2
Distance Between Columns	118.11"
Maximum Height Pallet To Ram Face	108.3"
X-axis Travel	196.85"
Y-axis Travel	157.42"
Z-axis Travel	39.37"
W-axis, Rail Travel	59.05"
A-axis Head Swivel	0 - 180°
C-axis Head Rotation	0.001°
Spindle Taper	#50 ANSI B5.5
Spindle Speed (rpm)	4,000 RPM
Spindle Motor (hp)	50 hp

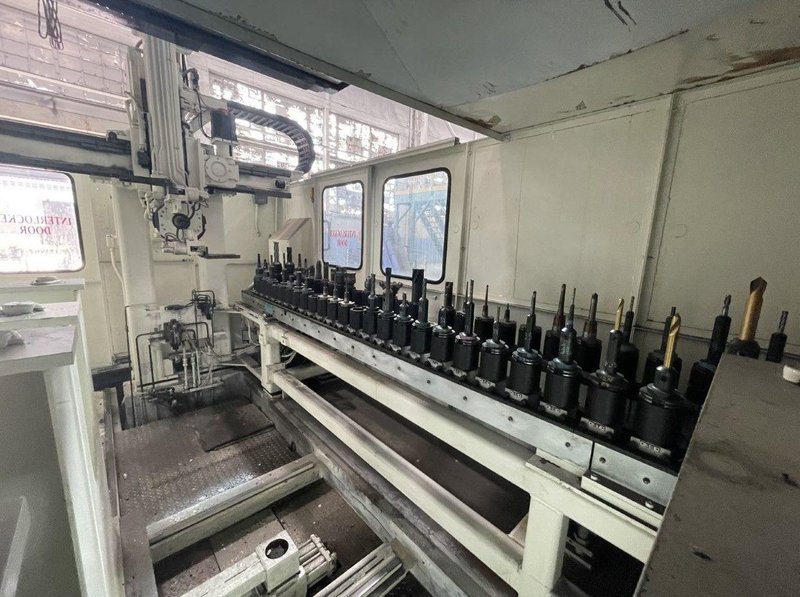

# ATC	60

Equipped With

- Fanuc 30i Model B CNC Control - Automatic Attachment Changer - Automatic Tool Changer - 5-Axis Milling Attachment - Straight Milling Attachment - Right Angle Milling Attachment - Sliding Steel Way Covers - 50 HP Digital AC Spindle Motor NOTE: Reconditioned & CNC Upgraded in 2016 With New Fanuc CNC Controls

Specifications:

CNC Control	Fanuc 30i-B
Table-L	157.48″
Table-W	98.42″
Number of Pallets	2
Distance Between Columns	118.11″
Maximum Height Pallet To Ram Face	108.3″
X-axis Travel	196.85″
Y-axis Travel	157.42″
Z-axis Travel	39.37″
W-axis, Rail Travel	59.05″
A-axis Head Swivel	0 – 180°
C-axis Head Rotation	0.001°
Spindle Taper	#50 ANSI B5.5
Spindle Speed (rpm)	4,000 RPM
Spindle Motor (hp)	50 hp
# ATC	60

Equipped With:

– Fanuc 30i Model B CNC Control- Automatic Attachment Changer- Automatic Tool Changer- 5-Axis Milling Attachment- Straight Milling Attachment- Right Angle Milling Attachment- Sliding Steel Way Covers- 50 HP Digital AC Spindle MotorNOTE:Reconditioned & CNC Upgraded in 2016 With New Fanuc CNC Controls

No files or videos to display
