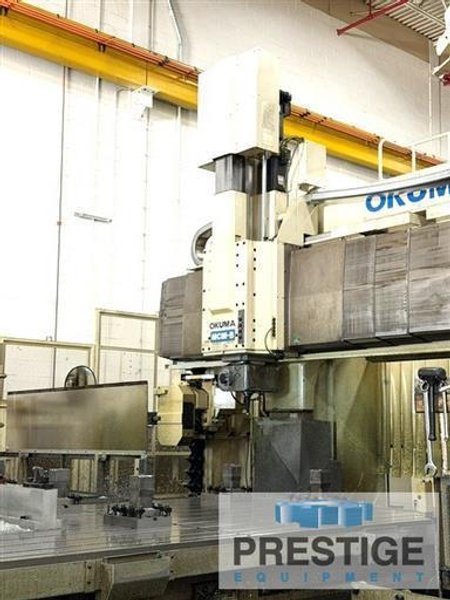

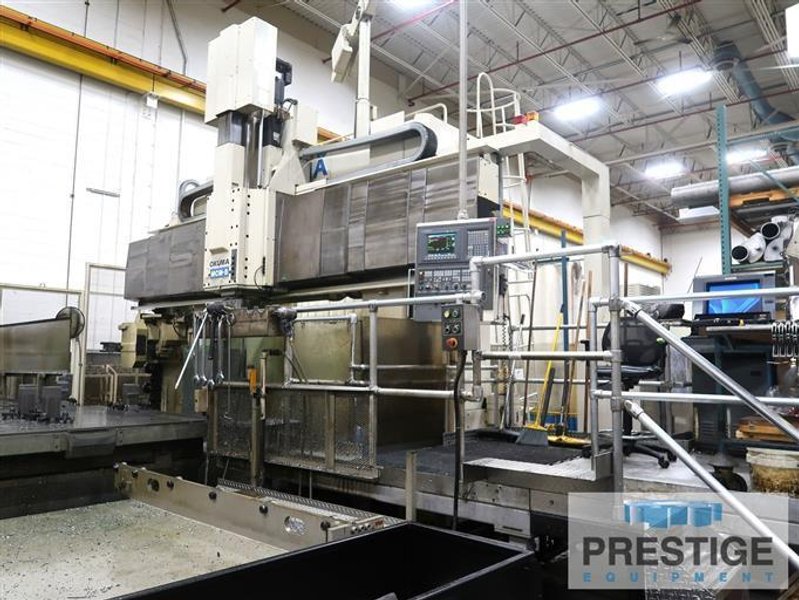

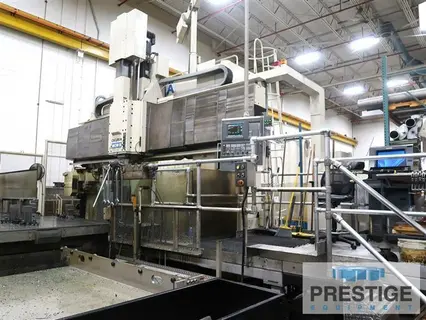

Machining Centers Vertical Bridge Type CNC

SPECIFICATIONS:
X-Axis Table Travel.................... 196.85" 196.85"
Y-Axis Head Cross Travel............... 125.96" 125.96"
Z-Axis Ram Vertical Travel 31.50"
W-Axis Cross Rail Vertical Travel 39.37"
Width Between Columns 120.08"
Height Under Spindle 59.84"
Working Surface 98.43" x 188.98"
Table Height from Floor 35.43"
Spindle Speeds, 2-Ranges 10-3000 RPM
Spindle Taper #50
Spindle Drive Motor 30 HP / 24 HP
Feedrate .0393-393.7 IPM
Rapid Traverse, X & Y 590.55 IPM
Rapid Traverse, Z 393.7 IPM
Floor Space 303.94" x 480.31"
Height 261.81"
Approximate Weight 123,200 Lbs.



Equipped With:

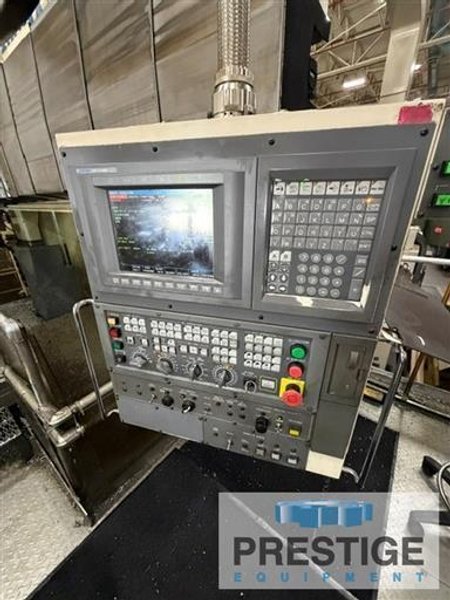

OSP-100M CNC Control

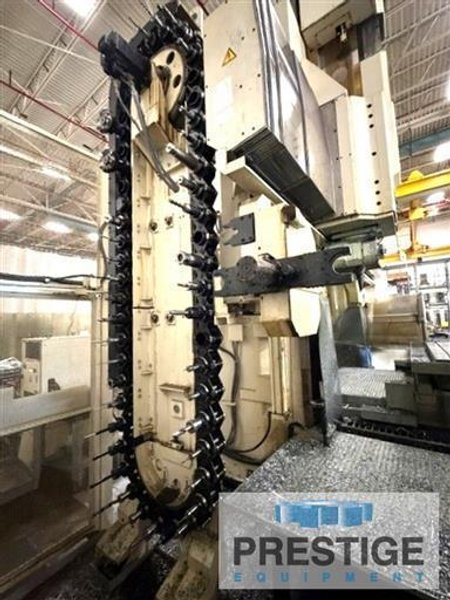

50-Position Automatic Tool Changer

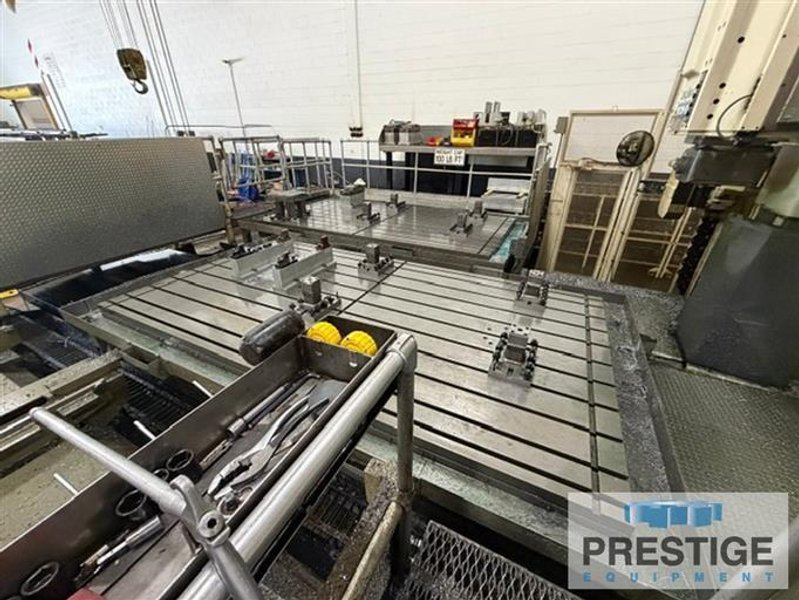

(2) Pallet Shuttle System
(1) 90 Degree Angle Heads
Synchro tapping
Helical 2 axis
Probe
Chip Conveyor
