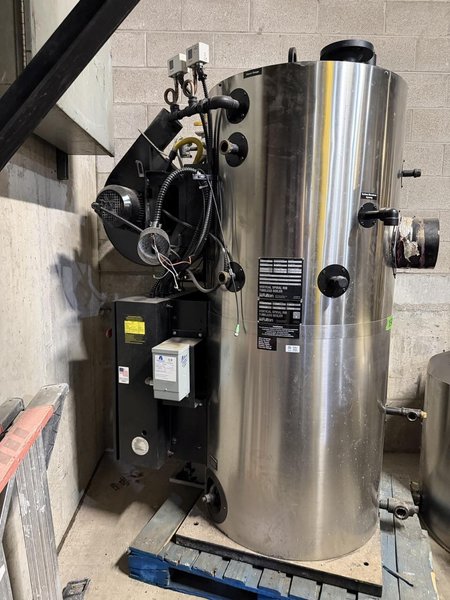

Fulton VSRT-30 300 kW Ultra-Efficient Vertical Tubeless Steam Boiler, 2023

Vertical Spiral Rib Tubeless Steam Boiler Fuel: Natural Gas Rated Output at High Fire: 300 kW Minimum Output at Low Fire: 50 kW Steam Output: 470 kg/hr (approx. 1,036 lb/hr) Maximum Allowable Working Pressure: 1,034 kPa (150 PSI) Efficiency: Up to 86% Burner Turndown: Up to 6:1 Low NOx: <20 ppm Natural Gas Consumption at Rated Input: 32.72 m³/hr Minimum Gas Pressure: 19 mbar Maximum Gas Pressure: 35 mbar Electrical: 415V / 3 Phase / 50 Hz Control Voltage: 110 VAC Boiler Full Load Amps: 21.6A Feed Pump Full Load Amps: 2.5A Water Capacity at Normal Working Level: 424 L Dry Weight: 1,284 kg / approx. 2,831 lb Approx. Shipping Weight: 1,543 kg / 3,402 lb Approx. Operating Weight: 1,708 kg / 3,765 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
