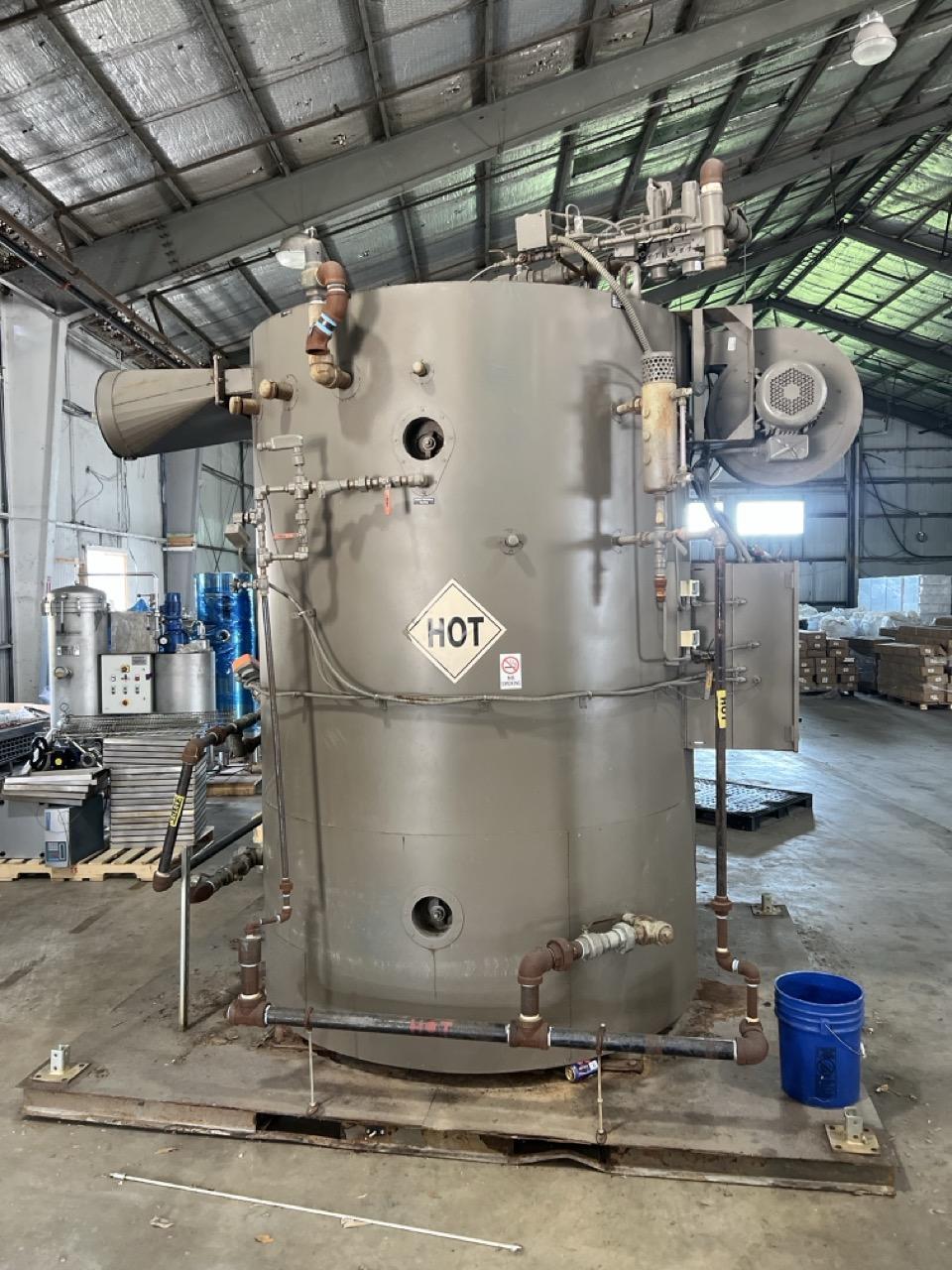

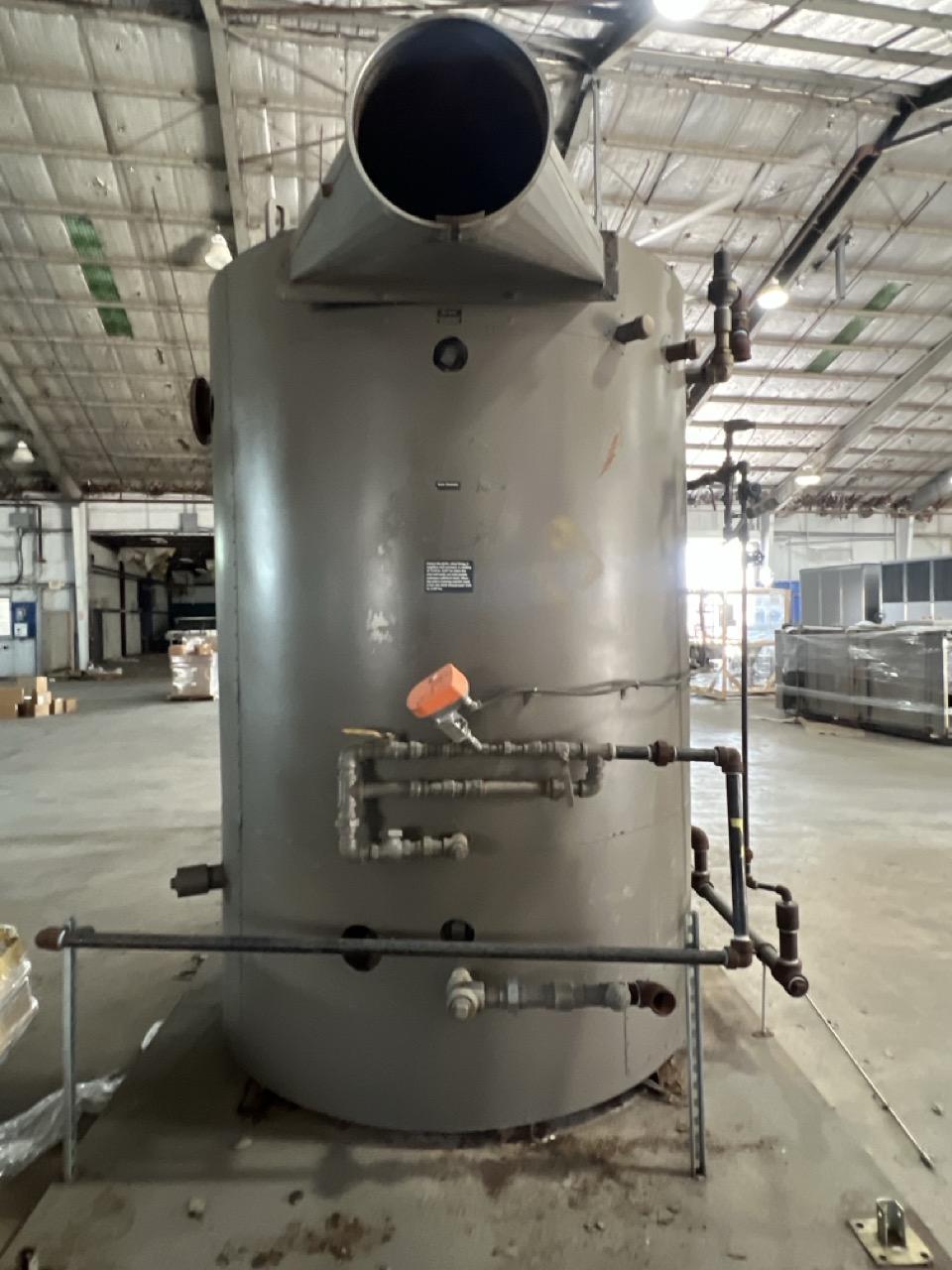

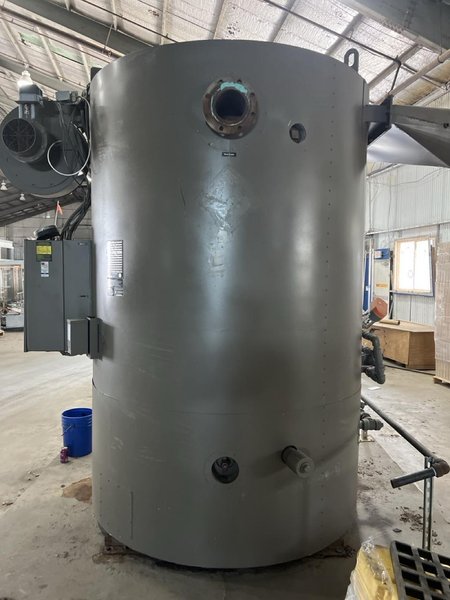

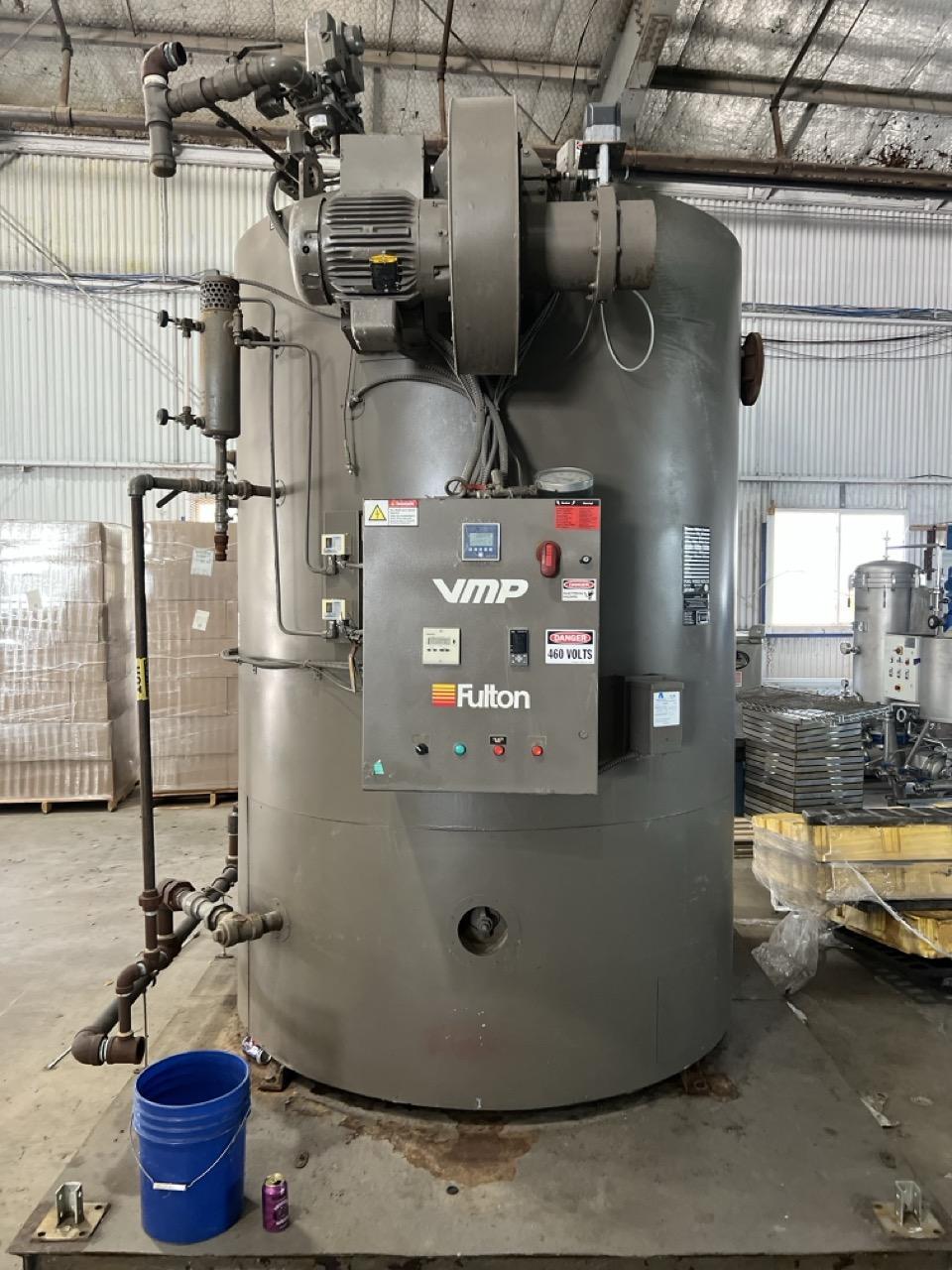

Fulton VMP-150 150 HP 5,175 Lb/Hr Natural Gas-Fired Vertical Steam Boiler, 2018
Brand
Category
Type
Model
VMP-150
Stock #
156634
Year
2018
Condition
Not specified
Location
Not specified
|
Type: Vertical Steam Boiler
Fuel: Natural Gas
Boiler Horsepower: 150 HP
Maximum Steam Output: 5,175 lb/hr
BTU Output: 5,022,000 BTU/hr
Maximum Fuel Input: 5,978,000 BTU/hr
Maximum Allowable Working Pressure (MAWP): 150 PSI
Heating Surface: 508 sq. ft.
Gas Supply Pressure: 10–138 in. W.C.
Manifold Gas Pressure: 6–10.7 in. W.C.
Electrical: 460V / 3-Phase / 60 Hz
Boiler Full Load Amps: 16A
Burner Motor: 460V / 3-Phase / 60 Hz / 14A
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
