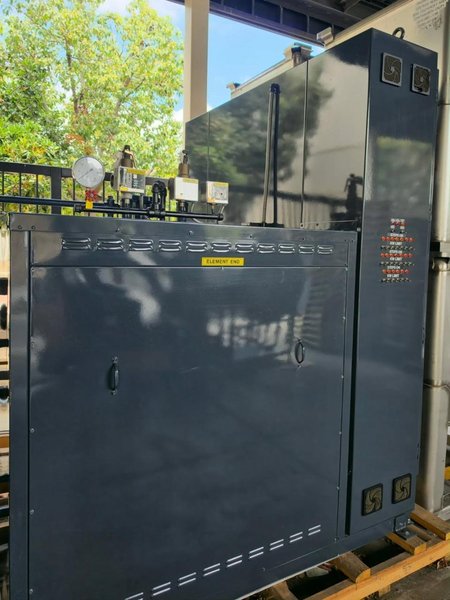

Precision Boiler ST48D-2400D-480-150 Electric Steam Boiler, 2021 – 400 kW, 150 PSI, 8,400 PPH
Brand
Category
Type
Model
ST48D-2400D-480-150
Stock #
893096
Year
2021
Condition
Not specified
Location
Not specified
|
Manufacturer: Precision Boiler
Model: ST48D-2400D-480-150
Year: 2021 (per purchase order)
Boiler Type: Electric Steam Boiler
Installation: Indoor
Steam Capacity: 8,400 lbs/hr
Boiler Horsepower: Approx. 240 HP
Power Rating: 2,400 kW
Operating Capacity: 345 Gallons
Design Pressure: 150 PSI
Operating Pressure: 125 PSI
Electrical: 480V / 3 Phase / 60 Hz
Full Load Amps: 2,890 A
Heating Elements: 120 Incoloy-Sheathed Elements
Element Rating: 20 kW Each
Heating Circuits: 60
Control Steps: 20
Feedwater Connection: 1″ NPT
Blowdown Connection: 2″ NPT
Steam Outlet: 3″ Flanged
Pressure Vessel Size: 48″ Diameter × 54″ Length
Operating Weight: 6,300 lbs
Shipping Weight: 4,600 lbs
Overall Dimensions: 70″ L × 68″ W × 87″ H
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
