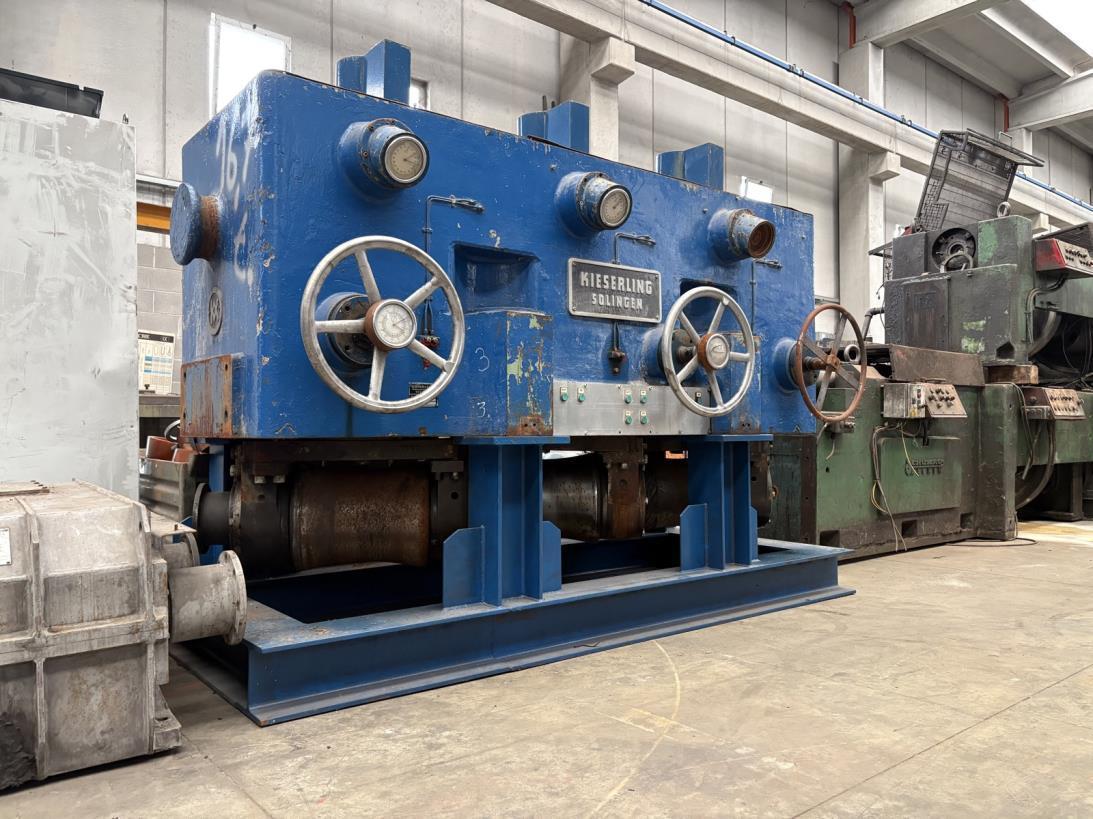

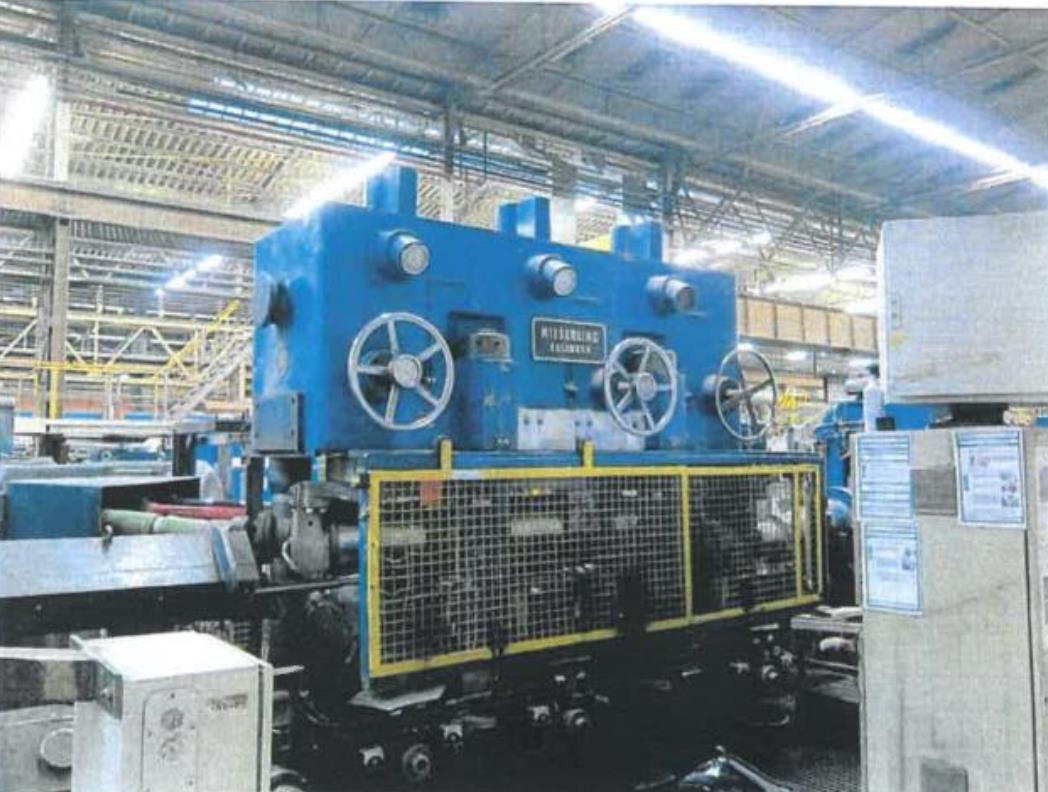

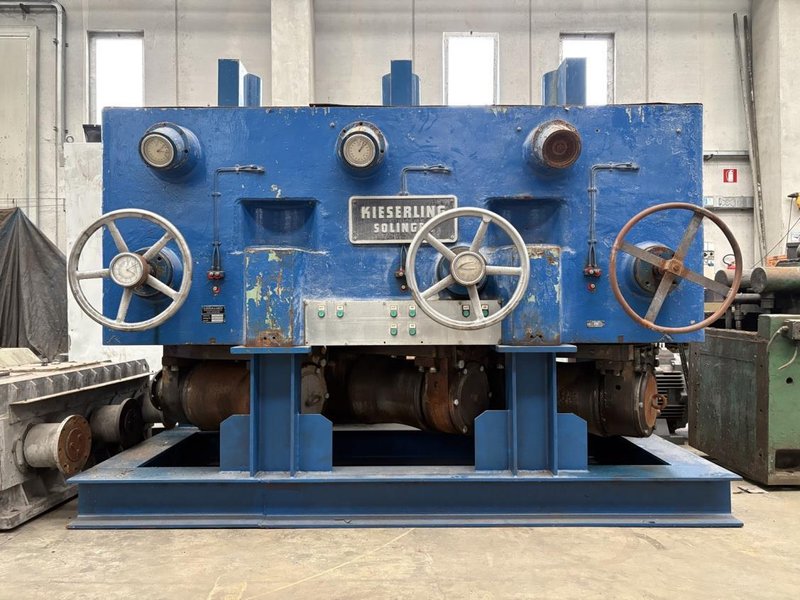

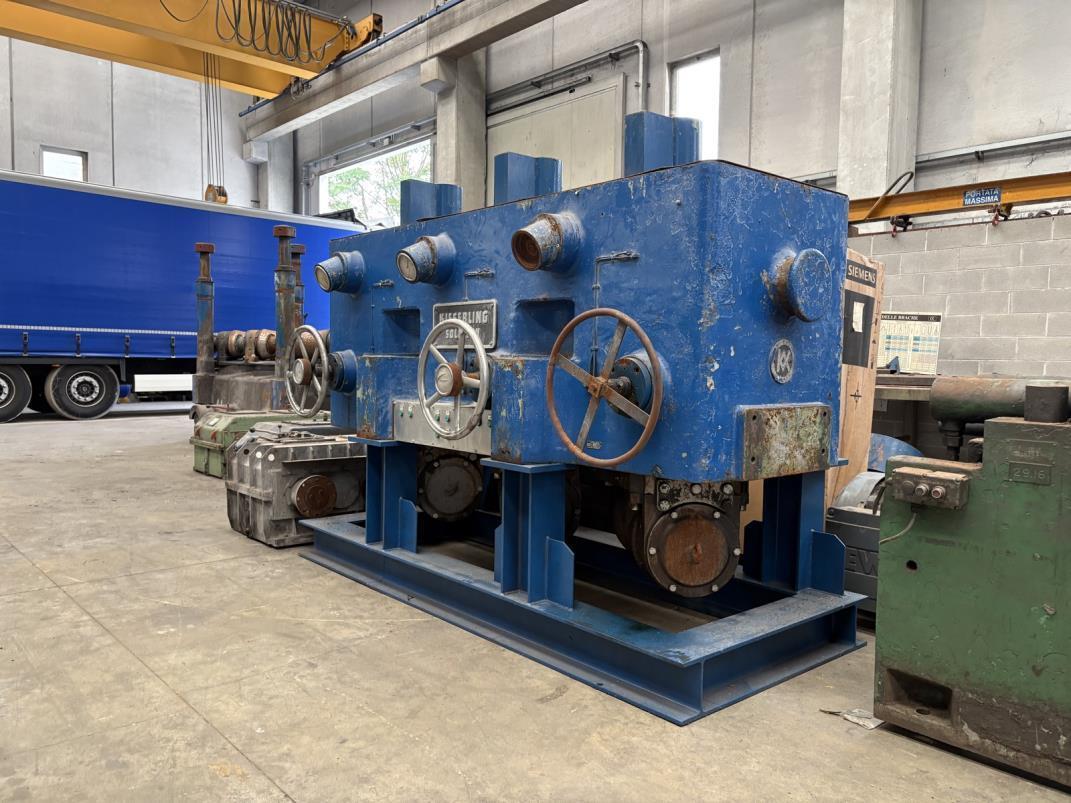

KIESERLING VRM 220 TUBE STRAIGHTENER - Precision Straightening Machine

Brand
KIESERLING
Category
Bending & Forming Equipment
Type
Tube & Bar Straighteners
Model
VRM 220 TUBE STRAIGHTENER
Stock #
14693
Year
Not specified
Condition
Not specified

Location

Not specified
Max Dia. Of Workpiece 220 millimeters
# Rolls 6
MANUFACTURER: KIESERLING GmbH (GERMANY)
TYPE: 6 ROLL ROTARY TUBE STRAIGHTENER
MODEL NO: VRM 220
WORKING RANGE: 60-220MM (2.36"-8.66") TUBE O.D.
SPEED: 30/40/60 M/MIN (98/131/196 FPM)
DRIVE MOTORS (2): 60 KW, 1500 RPM, 400 VOLT
NO. OF DRIVEN ROLLS: 6

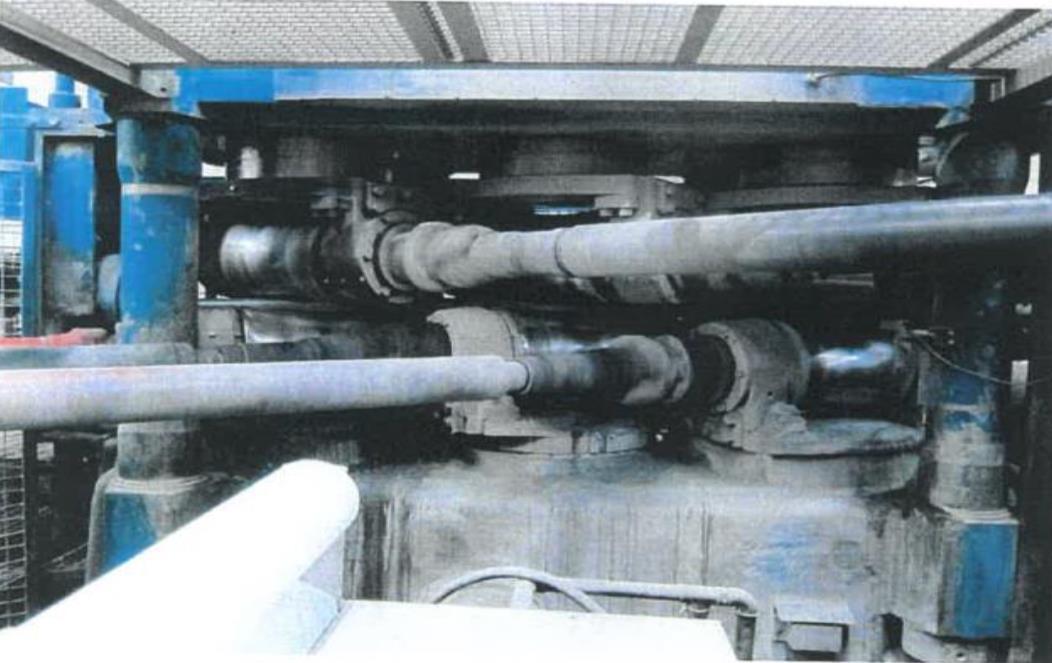

ROLL HEIGHT ADJUSTMENT ON ALL TOP ROLLS AND BOTTOM CENTER ROLL
DIRECTION OF TRAVEL: RIGHT TO LEFT
BUYER TO SUPPLY ENTRY AND EXIT TABLES

DIMENSIONS OF ROLLER UNIT:
-LENGTH: 2100 MM (83")
-WIDTH: 1400 MM (56")
-HEIGHT: 3390 MM (134")
-WEIGHT: APPROX. 38,000 KG (83,775 LBS)

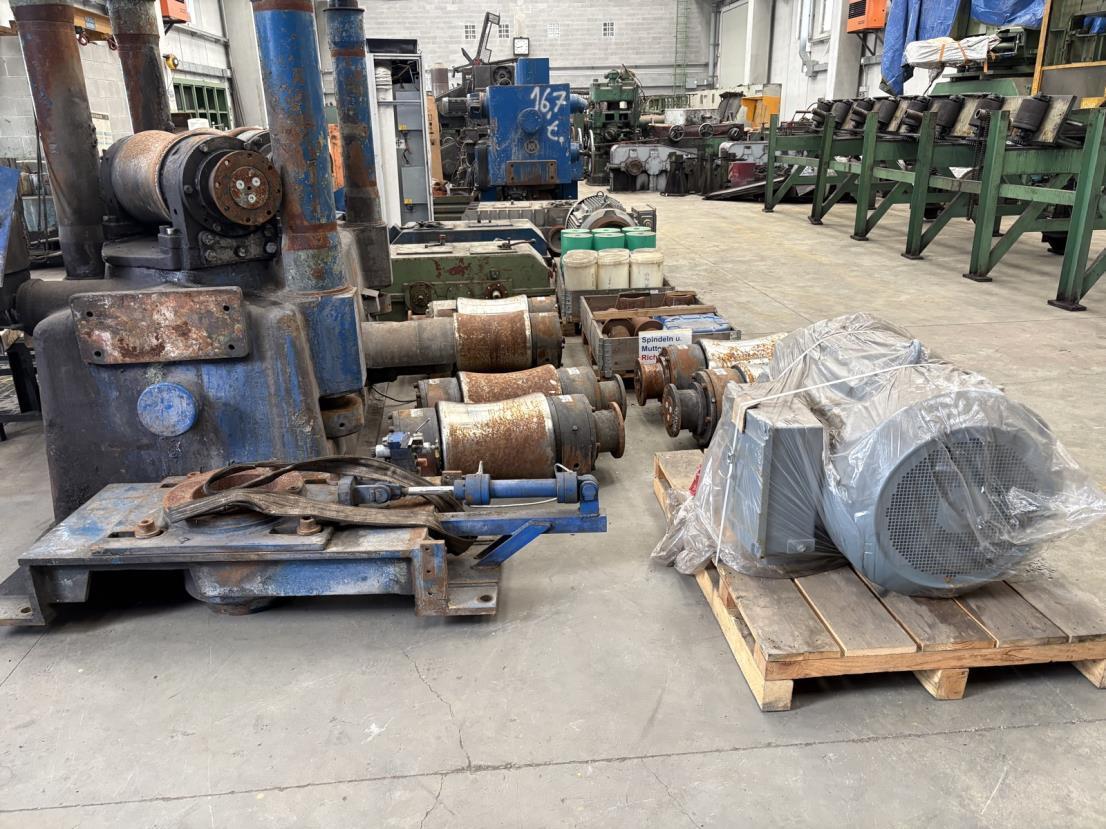

SPARE PARTS INCLUDED:

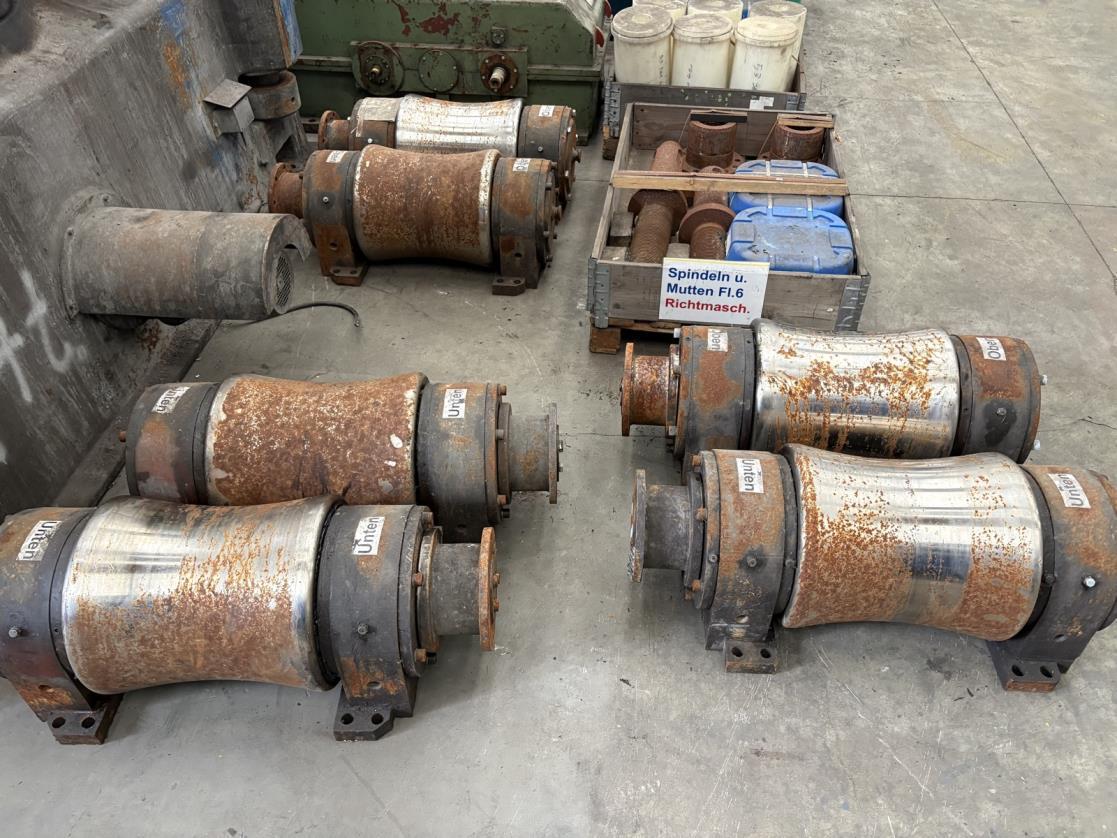

-6 SPARE ROLLS

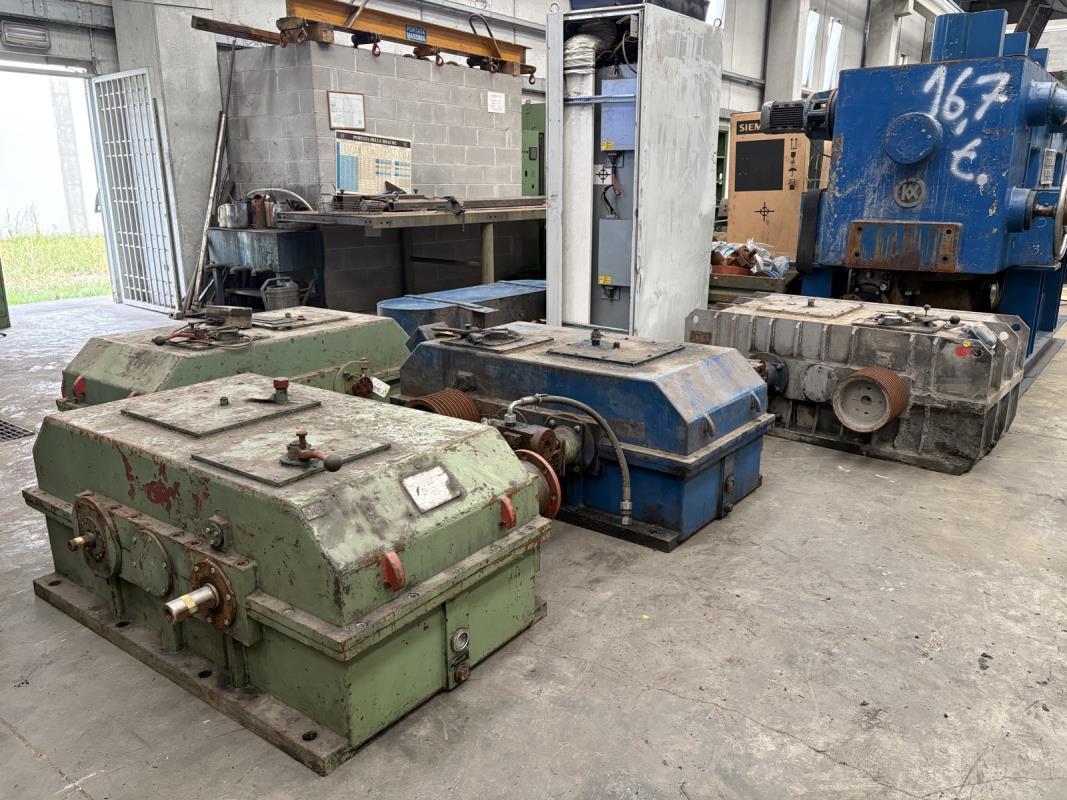

-2 SPARE GEAR BOXES
-1 NEW DRIVE MOTOR

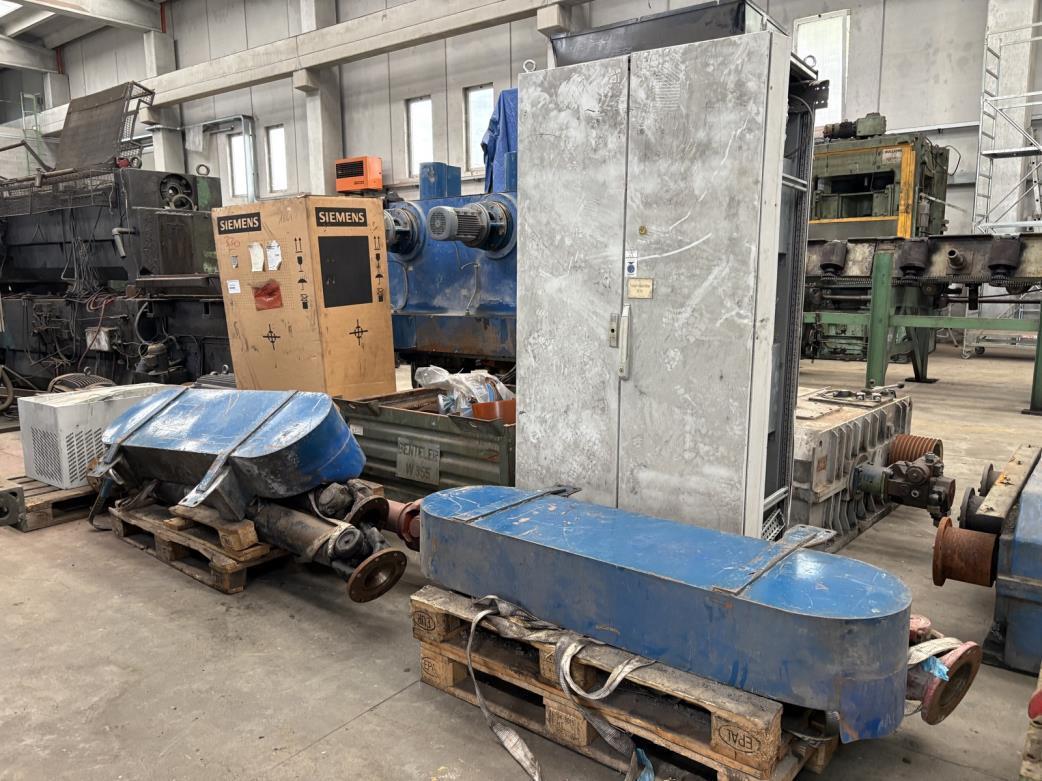

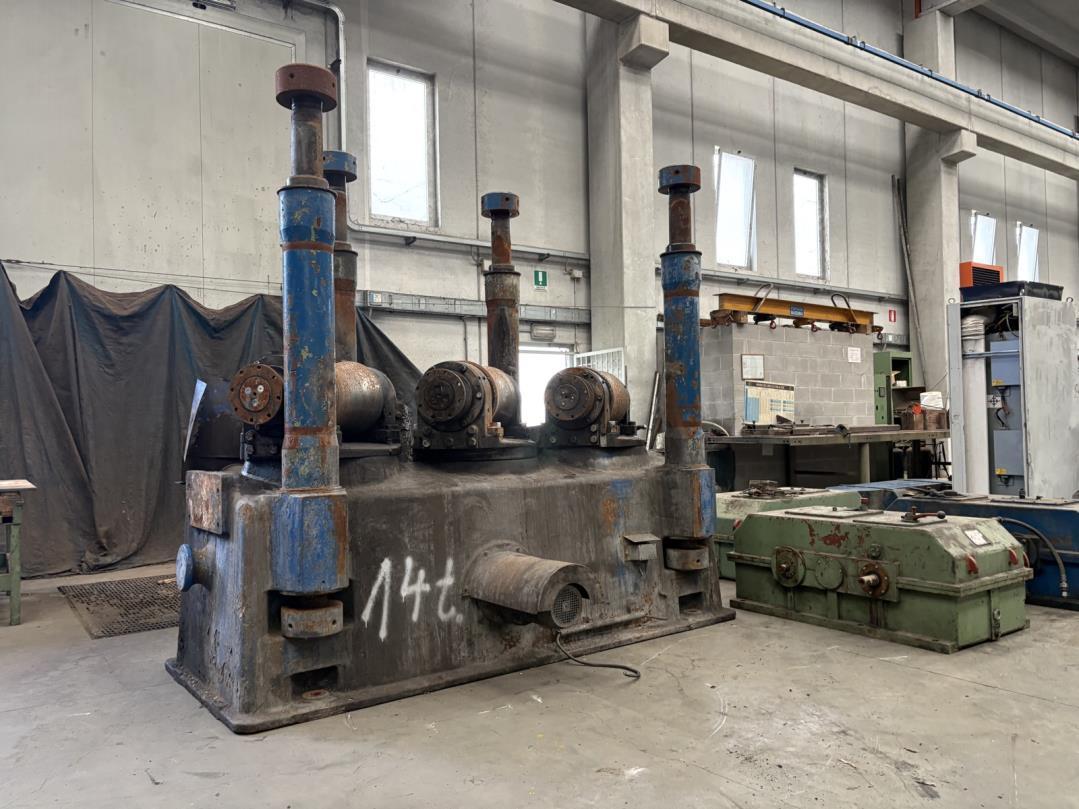

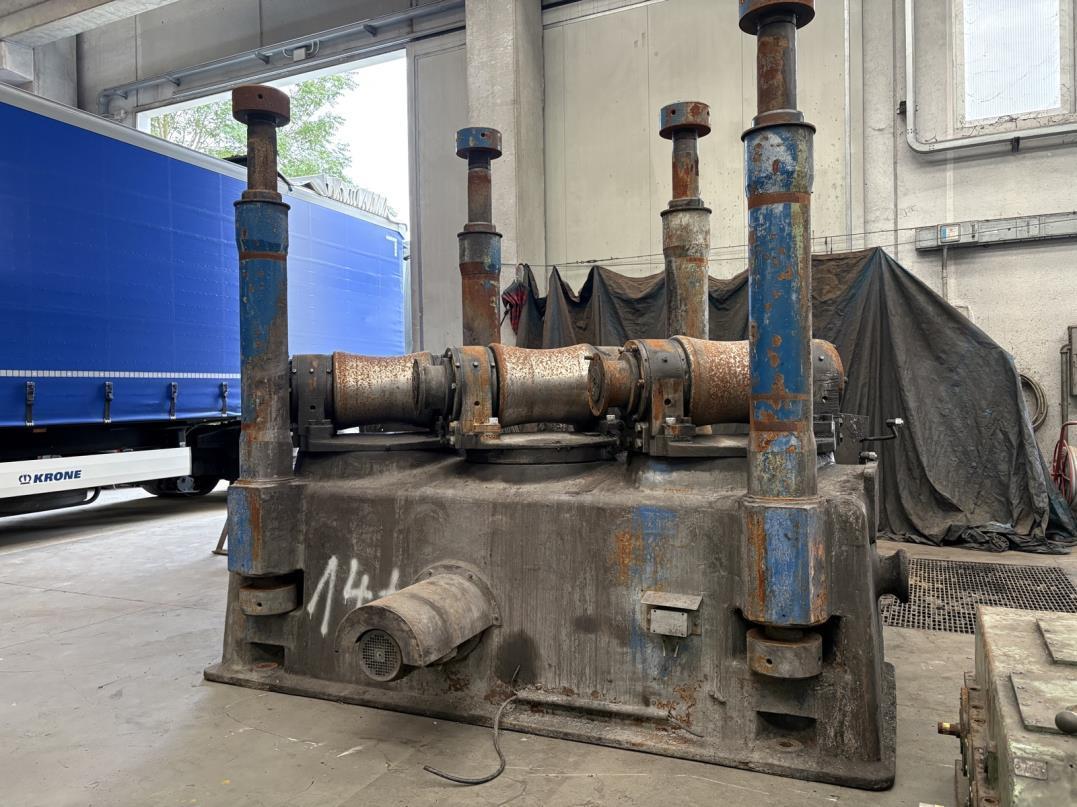

MACHINE IS DISMANTLED AND IN STORAGE
No files or videos to display
