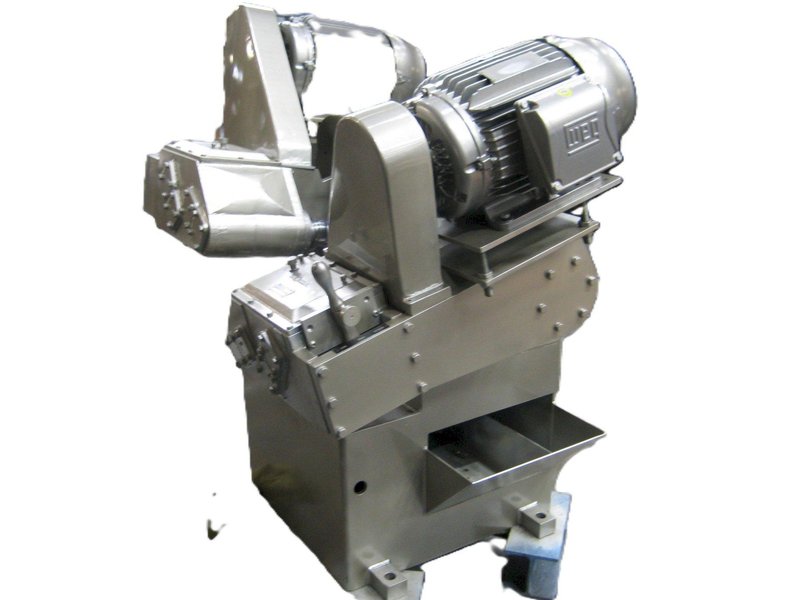

MEECO HD0A 2 ROLL STRAIGHTENER - Heavy Duty Precision Forming Machine

MEECO HD0A STRAIGHTENING, SIZING, AND POLISHING MACHINE
Stock # 14708

YEAR: 2000

SPECIFICATIONS:

HD0A MEECO 2R2M straightener

    Size range of 3/16” to 1” in mild steel.

Roll size:    Straight 7-1/2” long, 5-7/8” diameter 2-1/4” bore
Concave 9” long, 6-1/8” diameter, 2-1/4” bore
Timken bearing rating – 27,000 at 25 fpm of bar.
Maximum gear box HP – 10 @ 25 fpm each gear box.
Roll shaft size – 2-1/4” at roll, 2” at bearings, heat-treated.
Roll change time – 1 hour: two rolls out & two rolls in.
Roll Material – D2 tool steel hardened throughout to 58-60 RC.
Gear Ratio 1:1, 1.7:1, 2.3:1.
Minimum recommended speed – 25 fpm
Maximum recommended speed – 250 fpm.
Non-Clog Upper and Lower Guide Holder Assemblies

EQUIPPED WITH:

Built in coolant system
Two 10 hp 1200 rpm motors with V belt drive for
50, 80,115 FPM at 17 Roll Angle
    Variable Speed Drive for Main 10 HP Motors
Automation Direct Controls
800T pushbutton station with Jog-Stop-Run, roll start,
Roll stop, and Emergency Stop
Machine mounted input guide tube holder
Variable Speed Control
Spare HD0A rolls (D2) and yokes

CONDITION: New, this machine never ran production.

MOTORS: Two (2) 10 HP, One (1) Ruthman Gusher TEFC motor
for high volume, low pressure 1/4 HP flange mounted coolant
pump with coolant piping to the straight roll.
All motors are 480 volts, 3 phase, 60 HZ

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICAITONS ARE SUBJECT TO VERIFICATION**
