SCHUMAG TWO ROLL HORIZONTAL BAR STRAIGHTENER (14730)
Brand
Category
Model
TWO ROLL HORIZONTAL BAR STRAIGHTENER (14730)
Stock #
14730
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Dia. Of Workpiece | 30 millimeters |
| # Rolls | 2 |
|

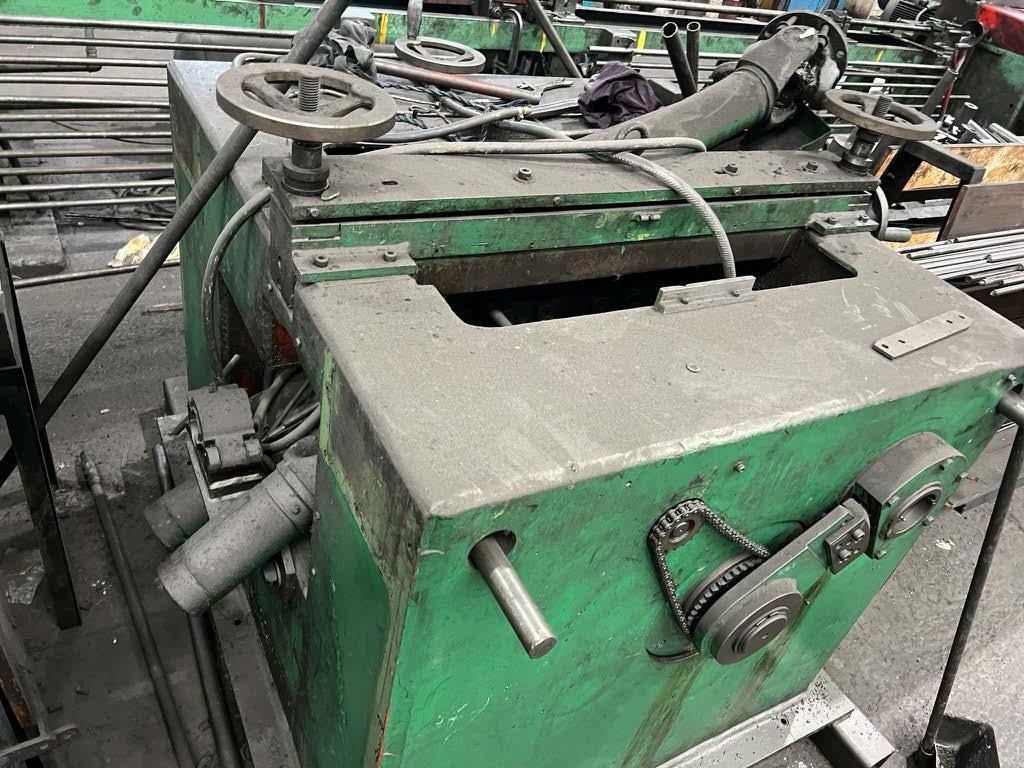

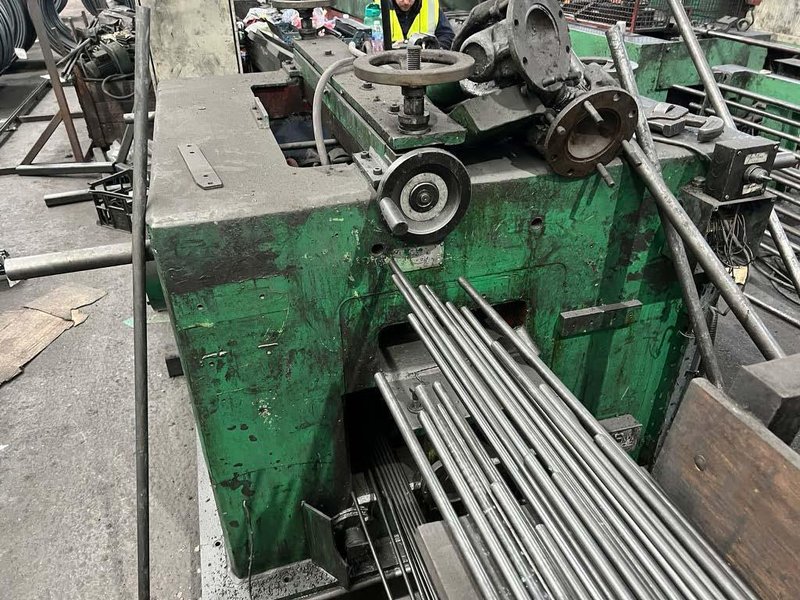

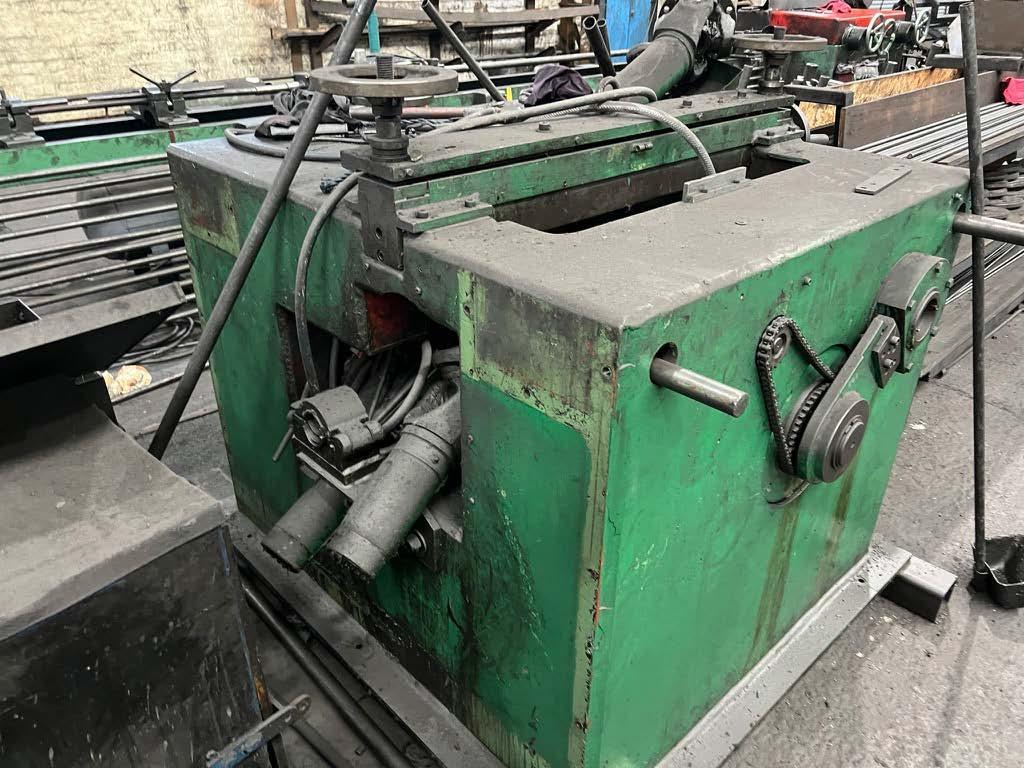

SCHUMAG TWO ROLL HORIZONTAL BAR STRAIGHTENER

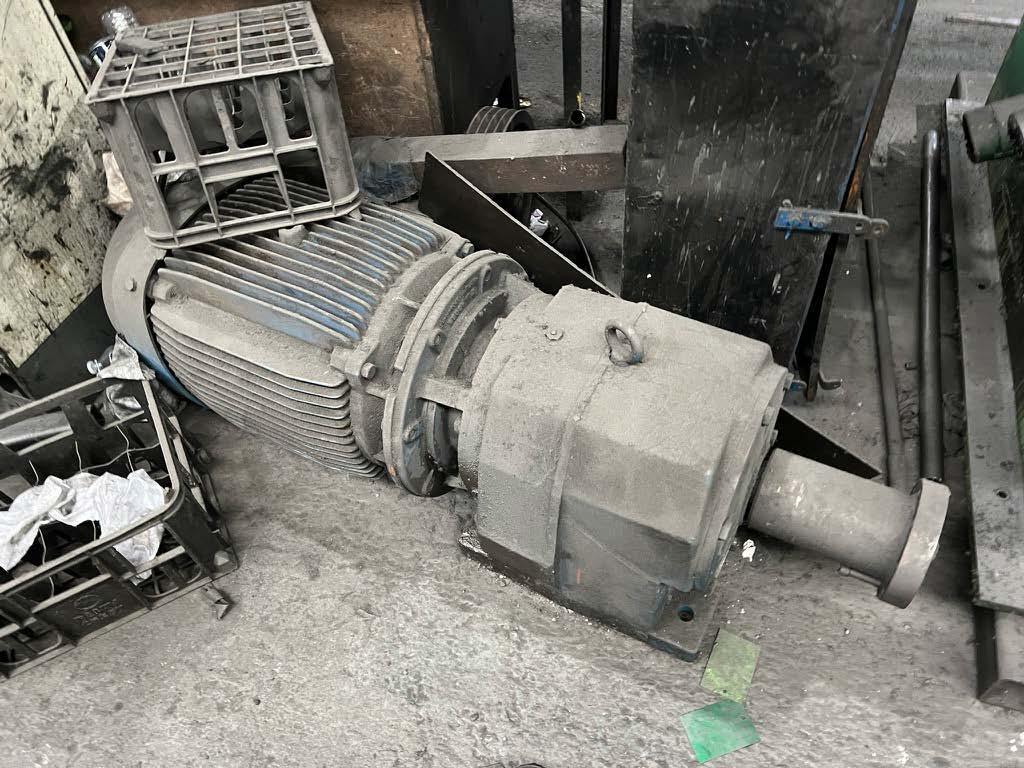

Stock # 14730 TECHNICAL DATA Manufacturer: Schumag AG, Aachen, Germany Year of Manufacture: 1976 Diameter Range: 8 – 30mm Material Quality: 120 kp/mm2 max. Throughput Speed: 130 m/min max. Roll Diameter: 250mm Roll Length: 290mm Roll Angular Adjustment: 10 – 22o Passline Height: 1000mm Drives Amount: Two (2) Type: Geared Motors Manufacturer: Eberhard Bauer GmbH, Essliengen Power: 15/20 HP Speed Range 1: 77/115 RPM Speed Range 2: 970/1460 RPM Voltage: 380V Current: 25/32 Amps Frequency: 50 Hz **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION** |
|
