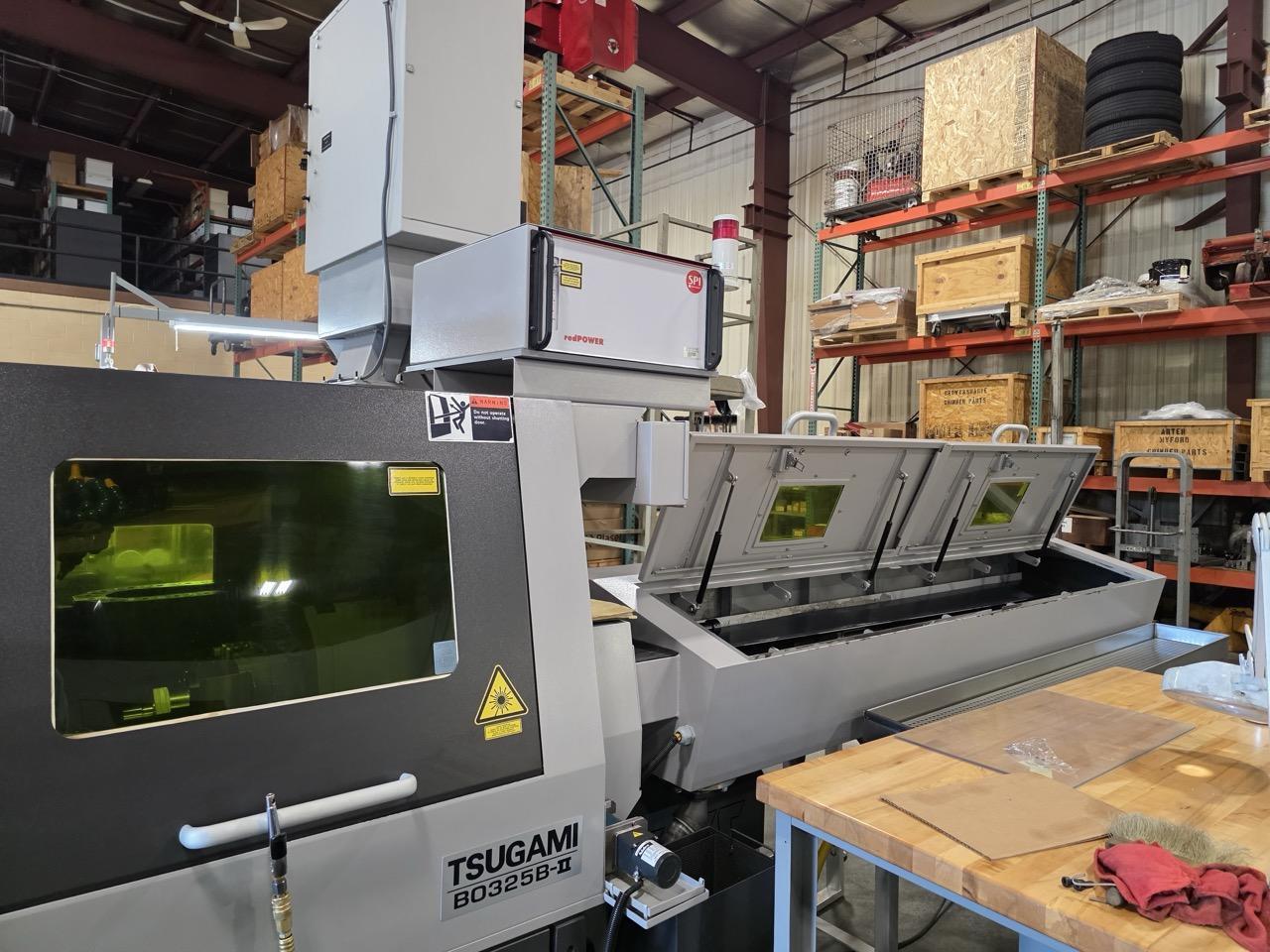

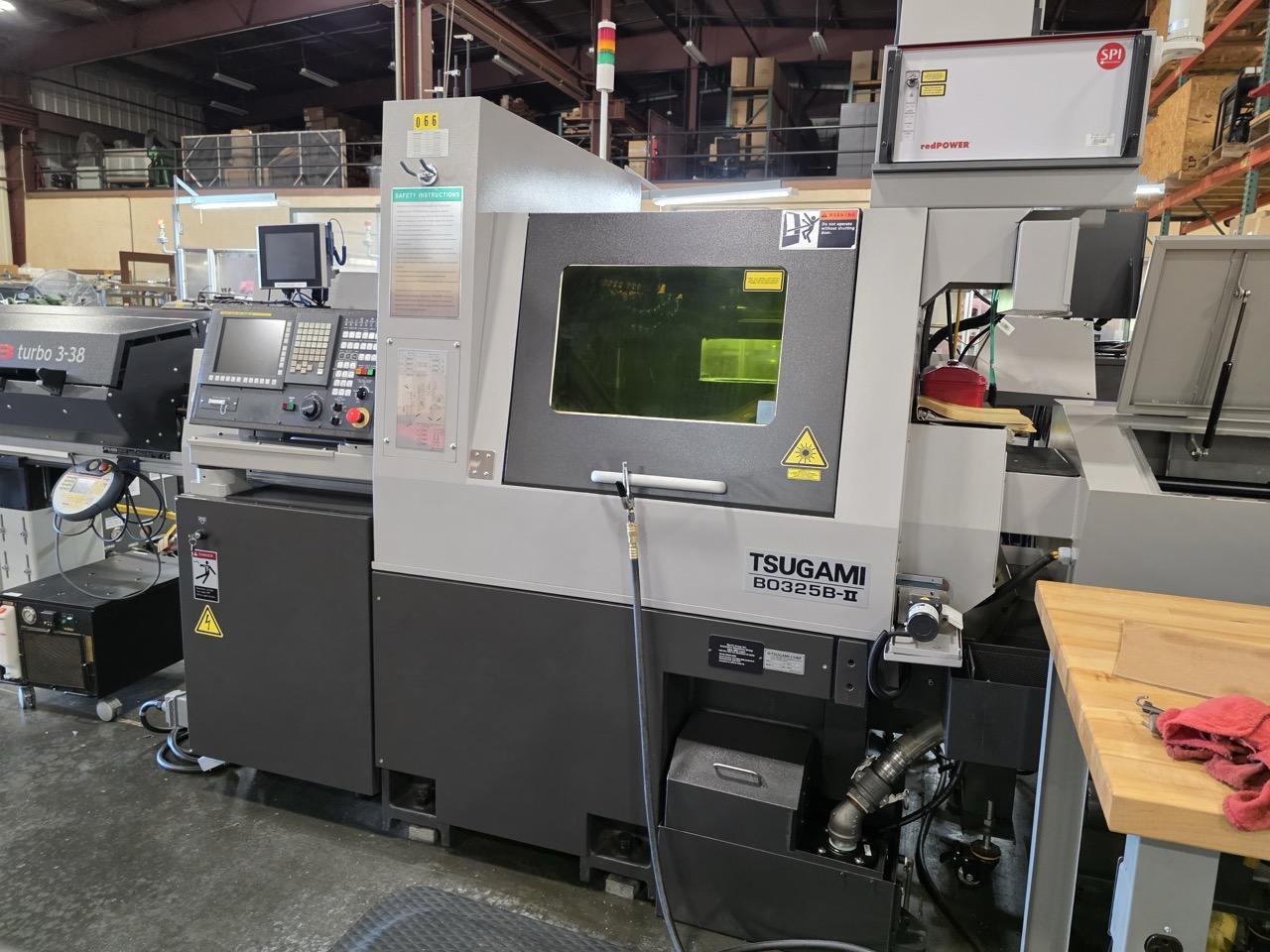

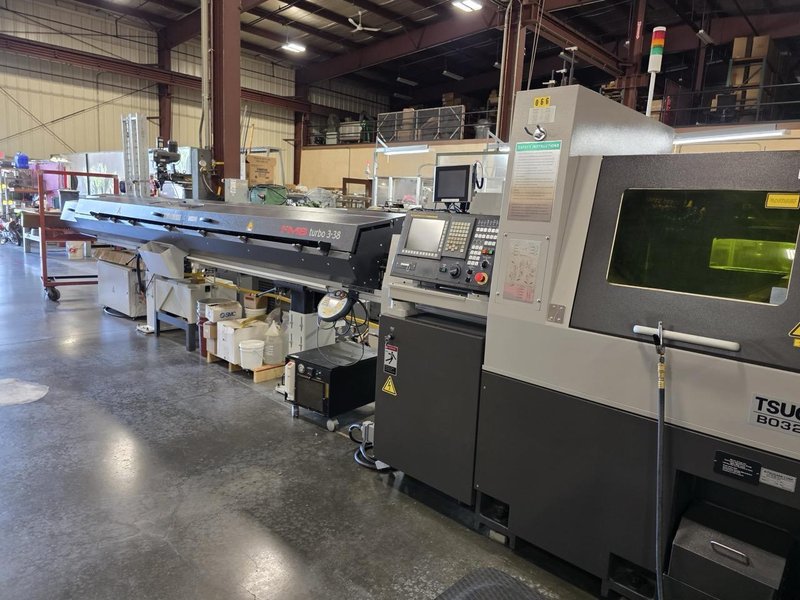

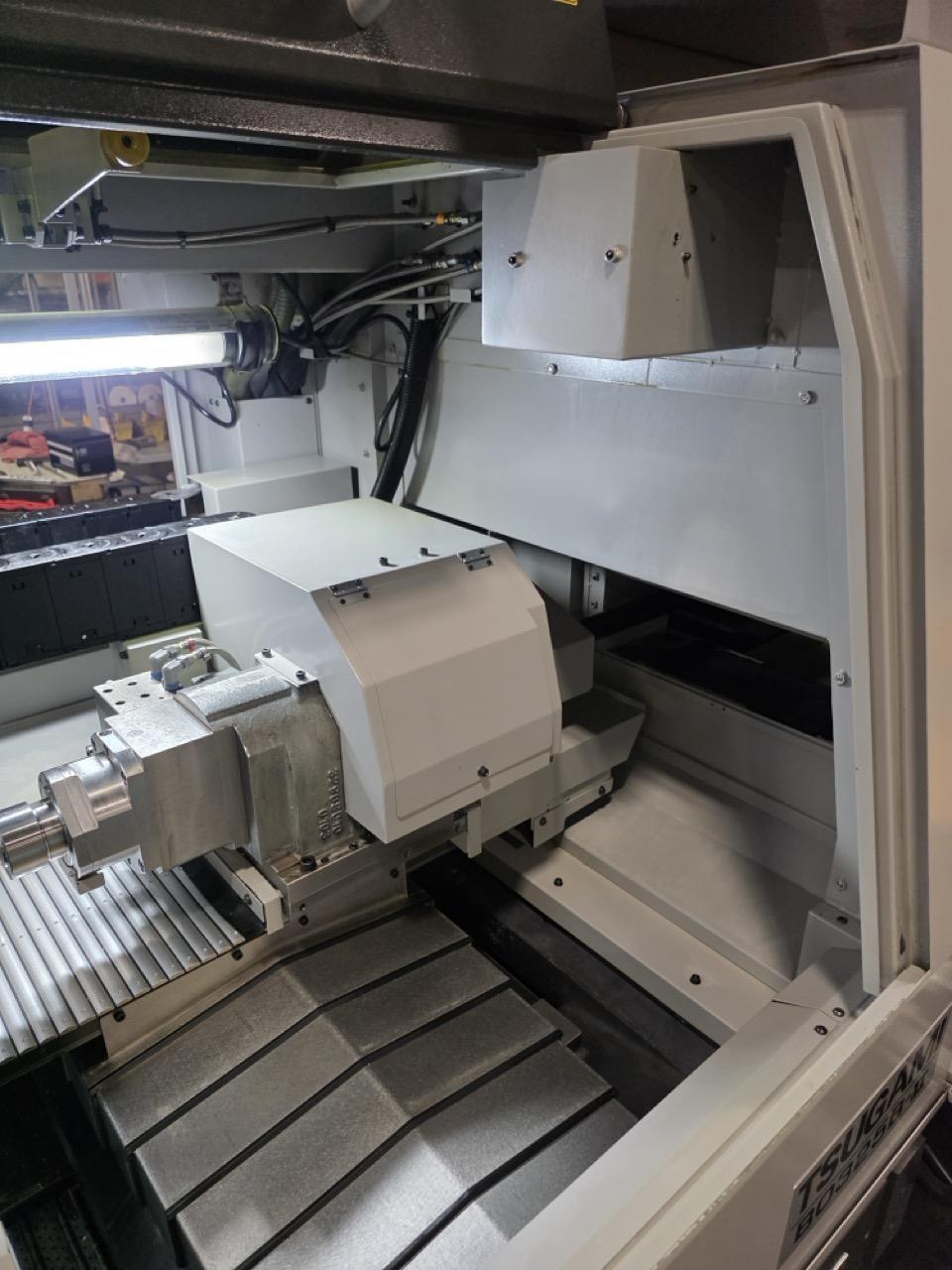

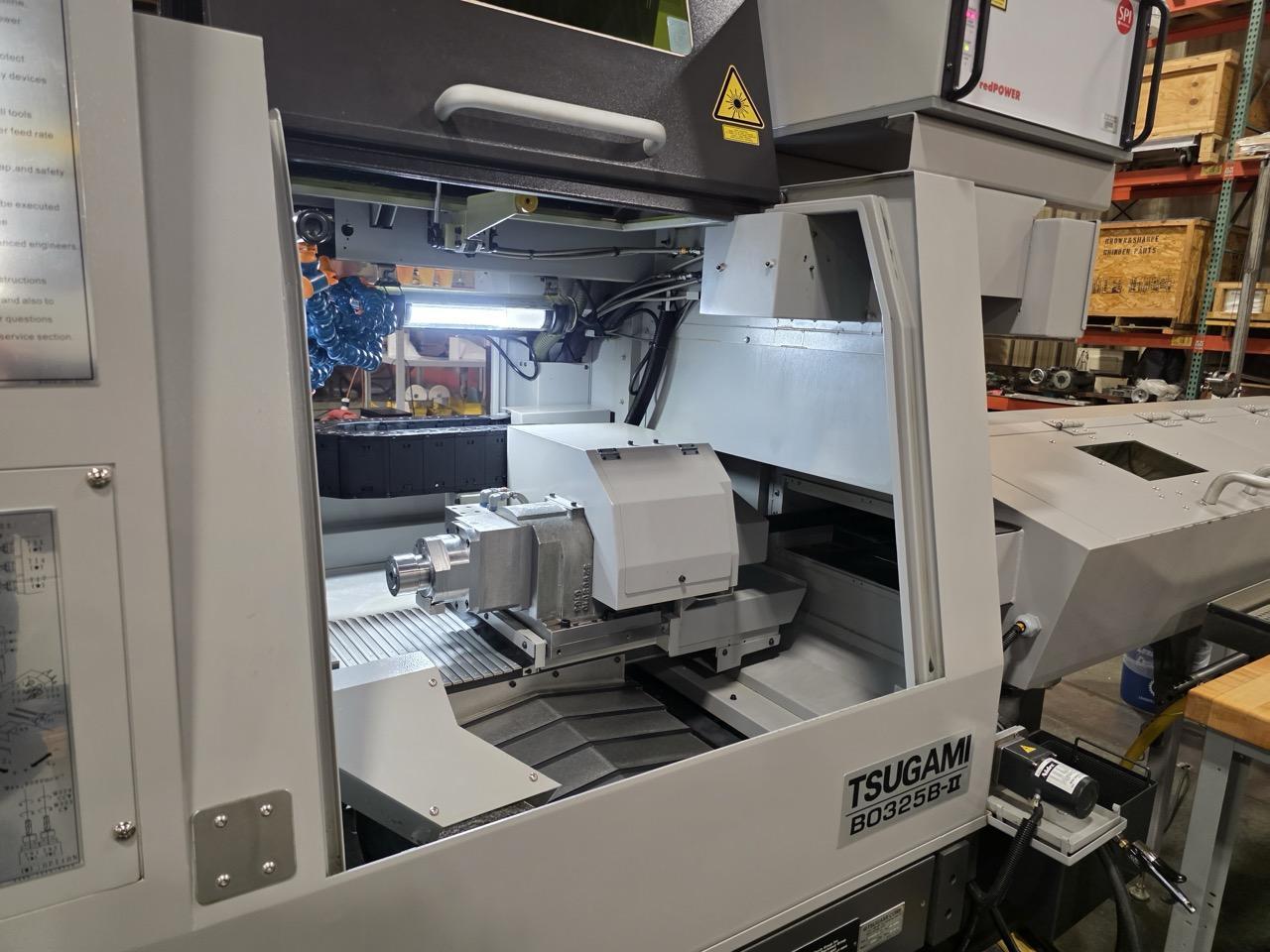

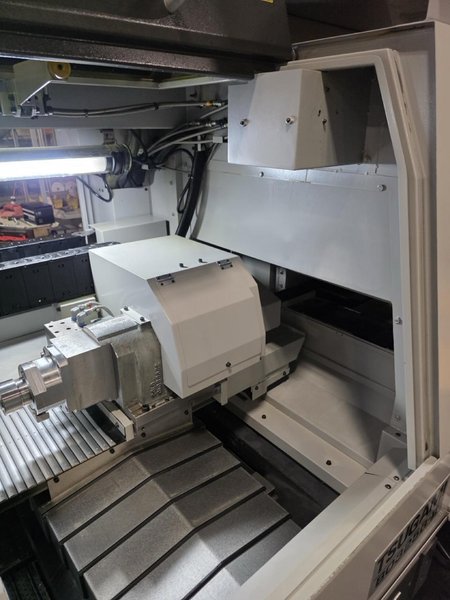

Tsugami B0325B-II CNC Swiss Lathe, 2019 – LaserSwiss Fiber Laser Integration System, Bar Feeder, Low Hours

Maximum Machining Dia.: 1.25″ Maximum Machining Length: 12.59″ Max. Drilling Diameter: 0.39″ Max. Tapping Diameter: M10 Max. Back Spindle Chucking Barstock Diameter: 1.26″ Max. Back Spindle Drilling Diameter: 0.39″ Max. Back Spindle Tapping Diameter: M8 Max. Tool Spindle Slotting Cutter Diameter: 1.77″ Stroke In Chucker Mode: 2.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle Speed: 200~8,000 RPM Rotary Tool Spindle Speed: 200~6,000 RPM Total Tool Number: 31 Back Spindle Maximum Machining Dia: 1.25″ Back Spindle Front Ejection maximum length: 3.9″ Back Spindle Speed: 200~8,000 RPM Rapid Traverse Rate: 32 M/min Spindle Center Height: 39.37” Weight: 7,500 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motors

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle: 7.5 hp Back Spindle: 5 hp Rotary Tool: 1.5 hp continuous Coolant: 0.5hp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mountable Tools

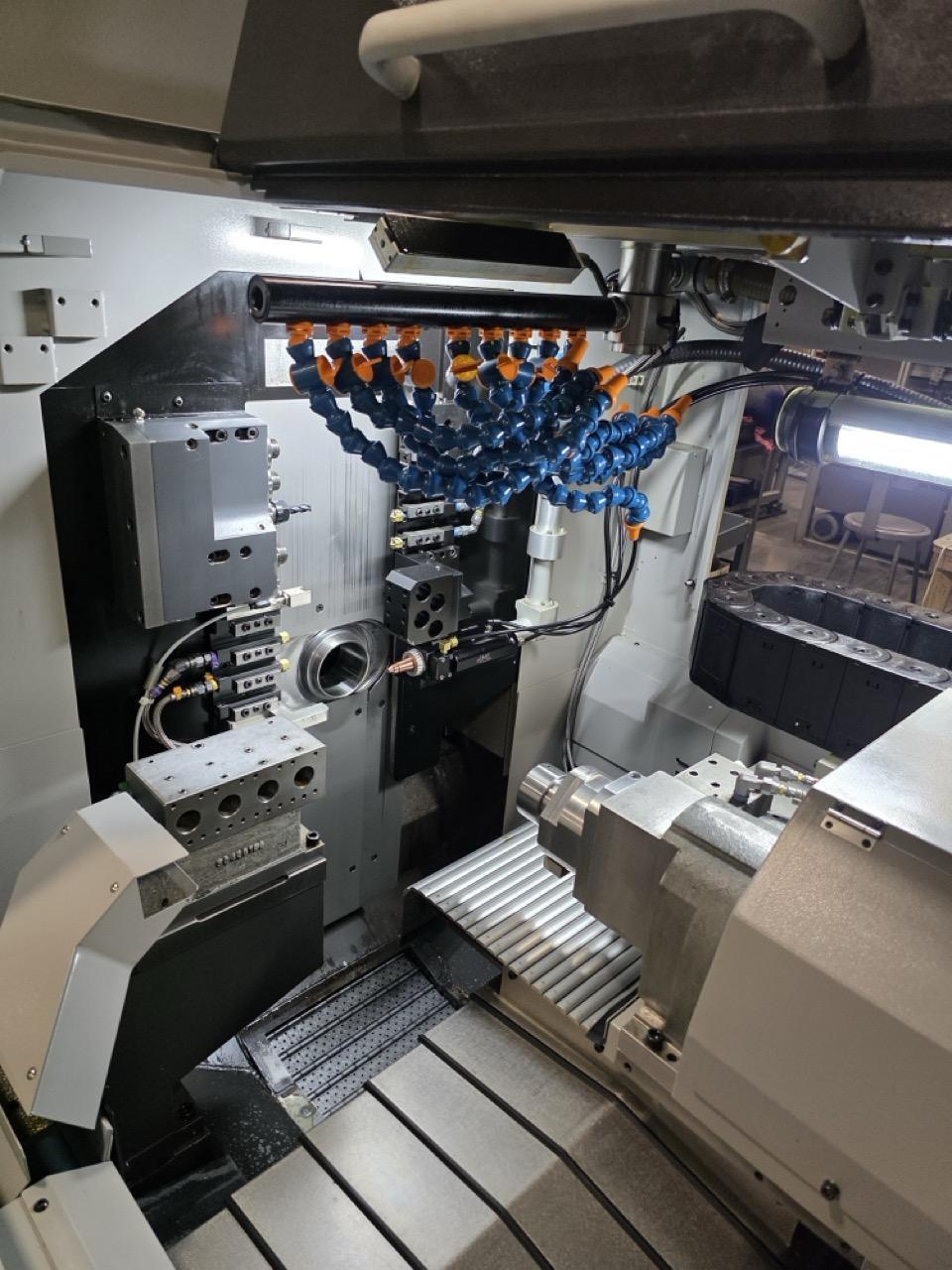

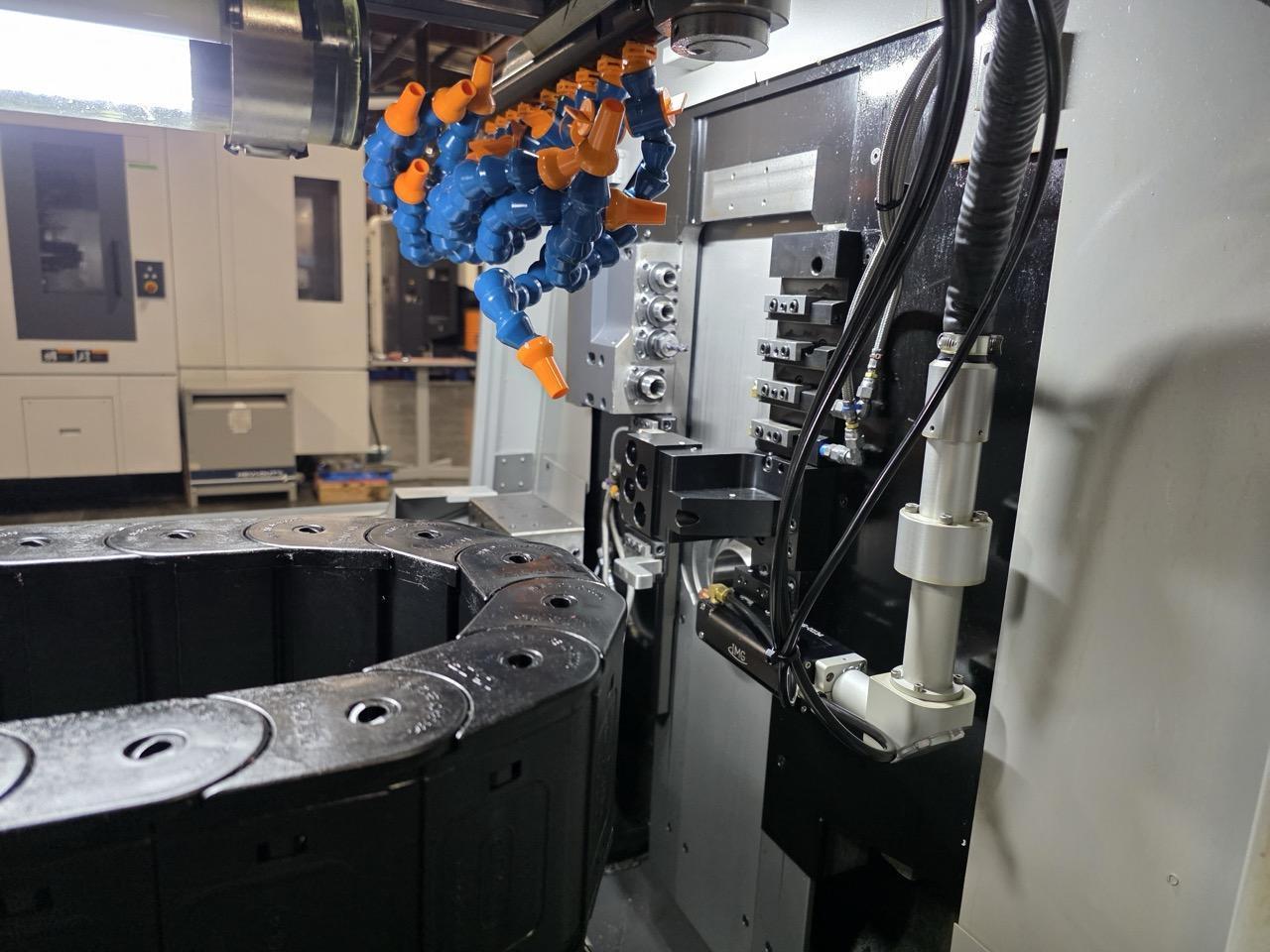

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gang Tool Post (turning): 8 Gang Tool Post (live): 4 Front Drilling: 7 Front Drilling Deep Hole: 2 Back Drilling: 9

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

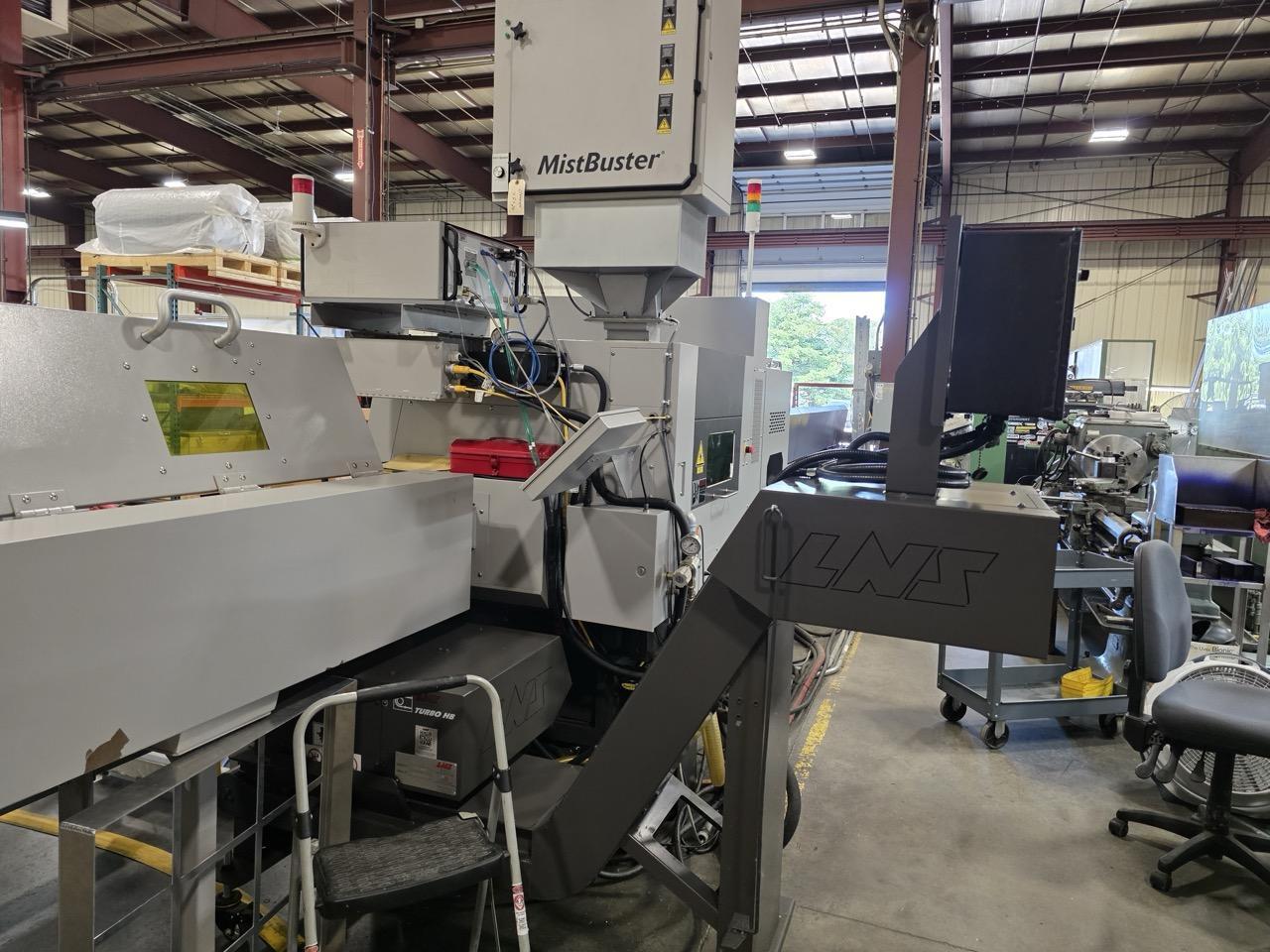

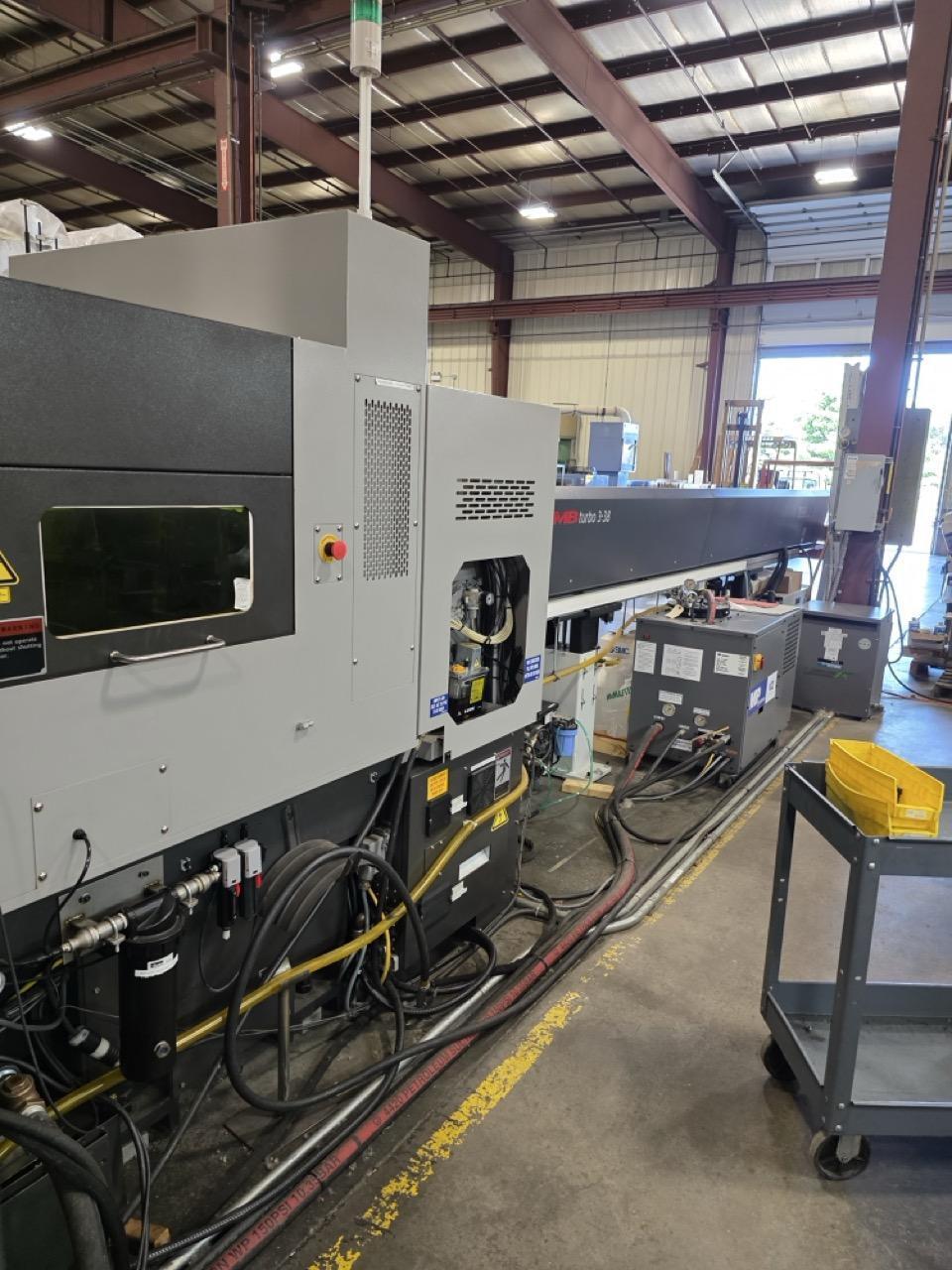

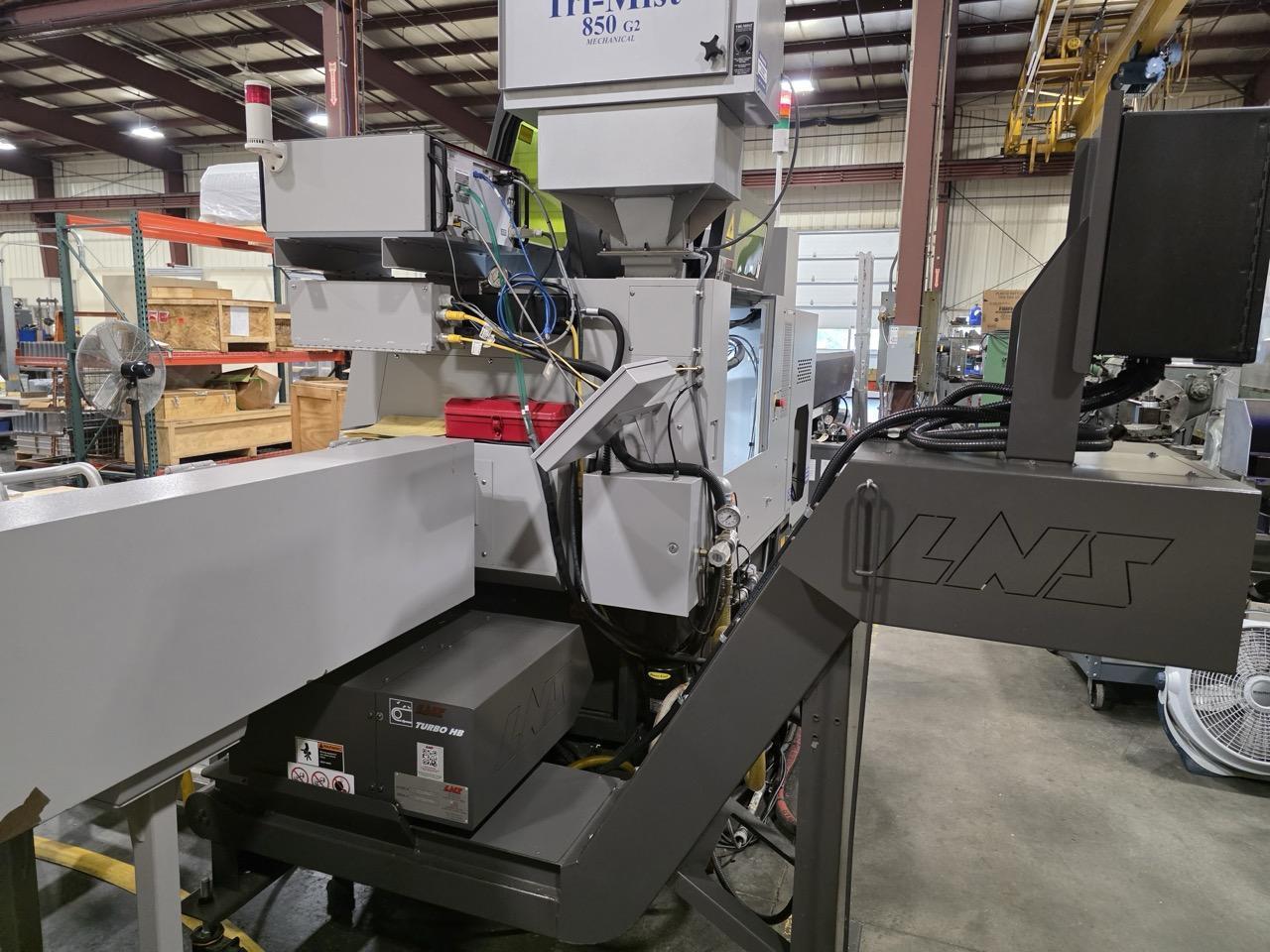

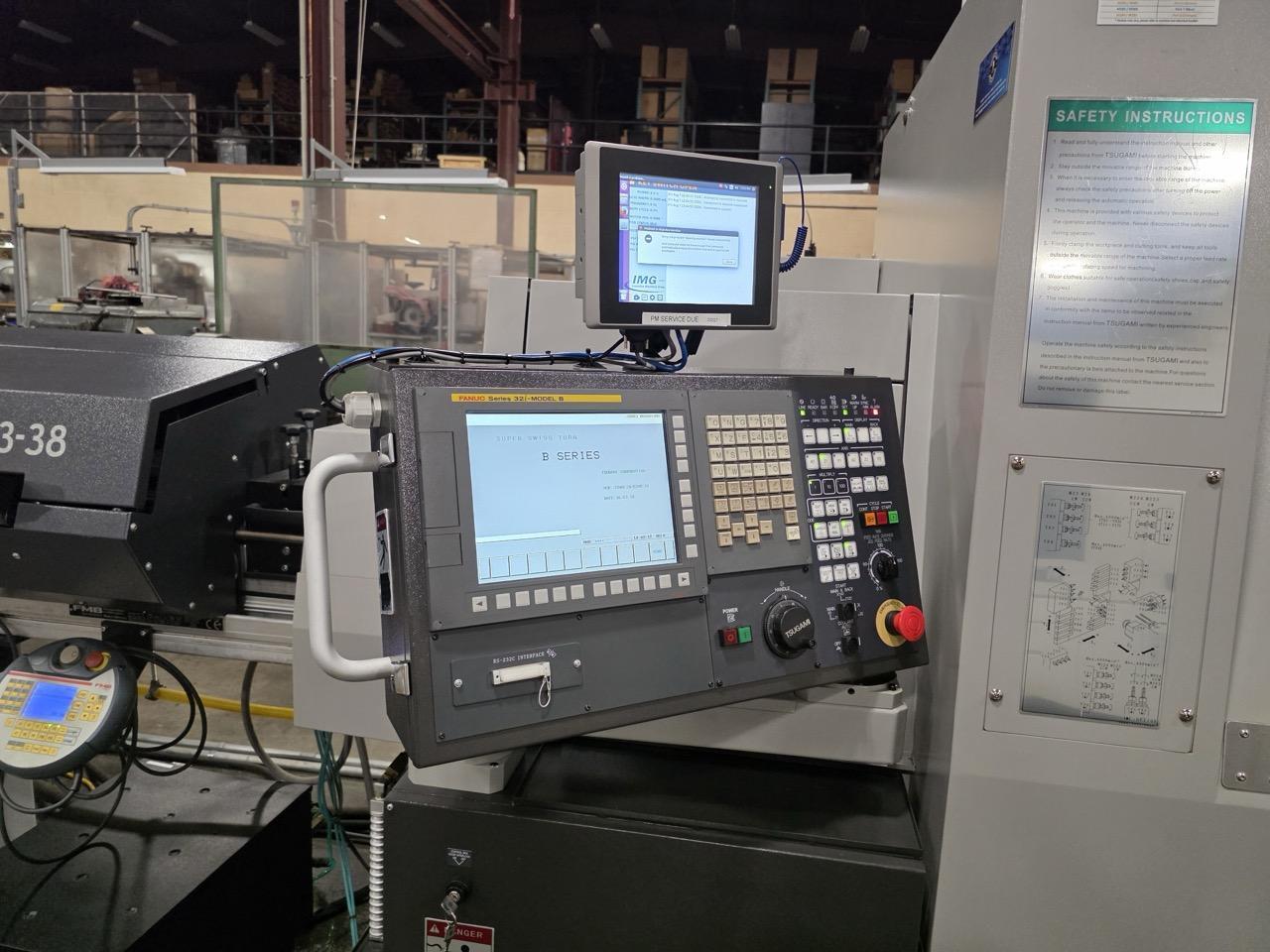

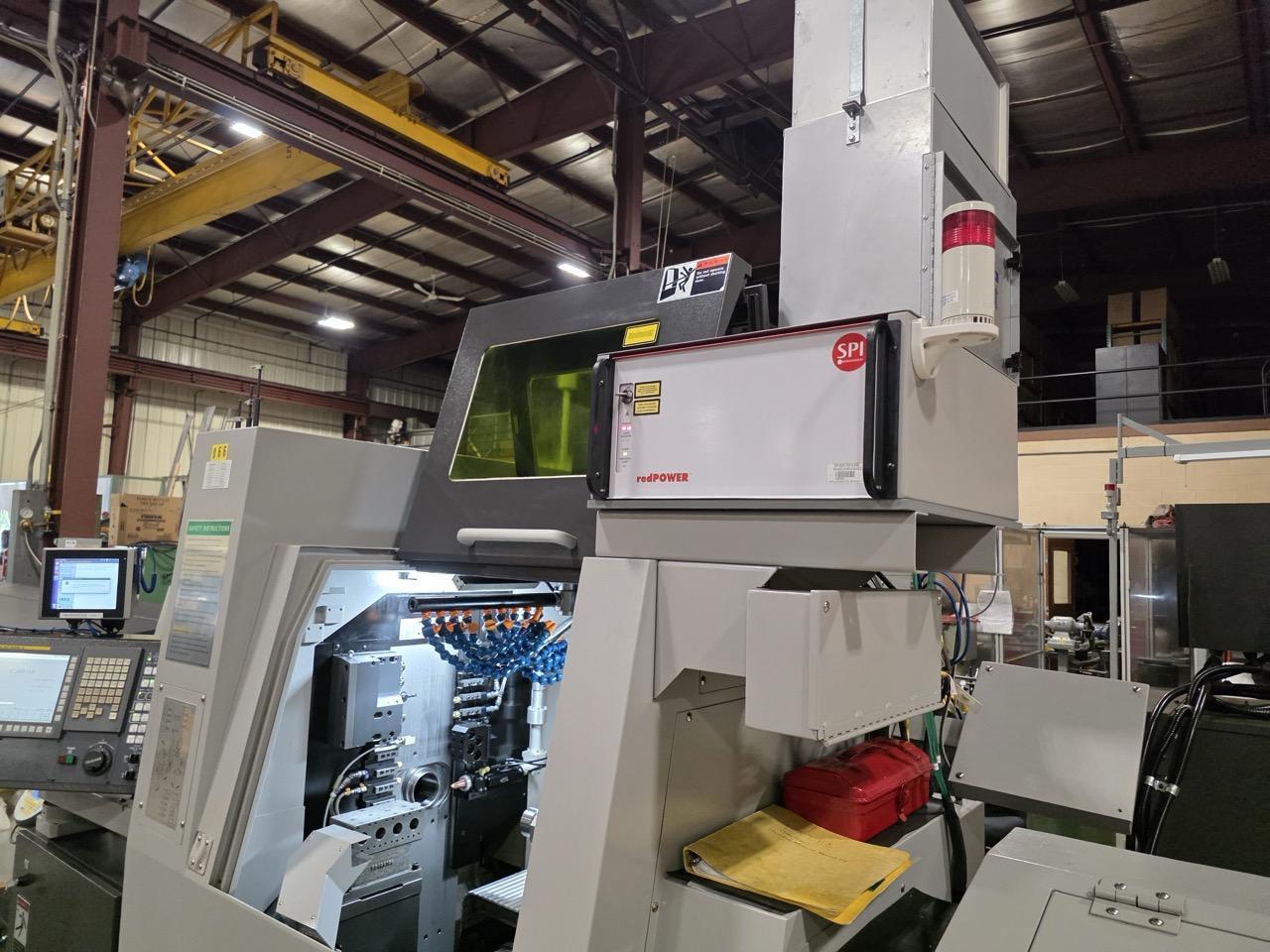

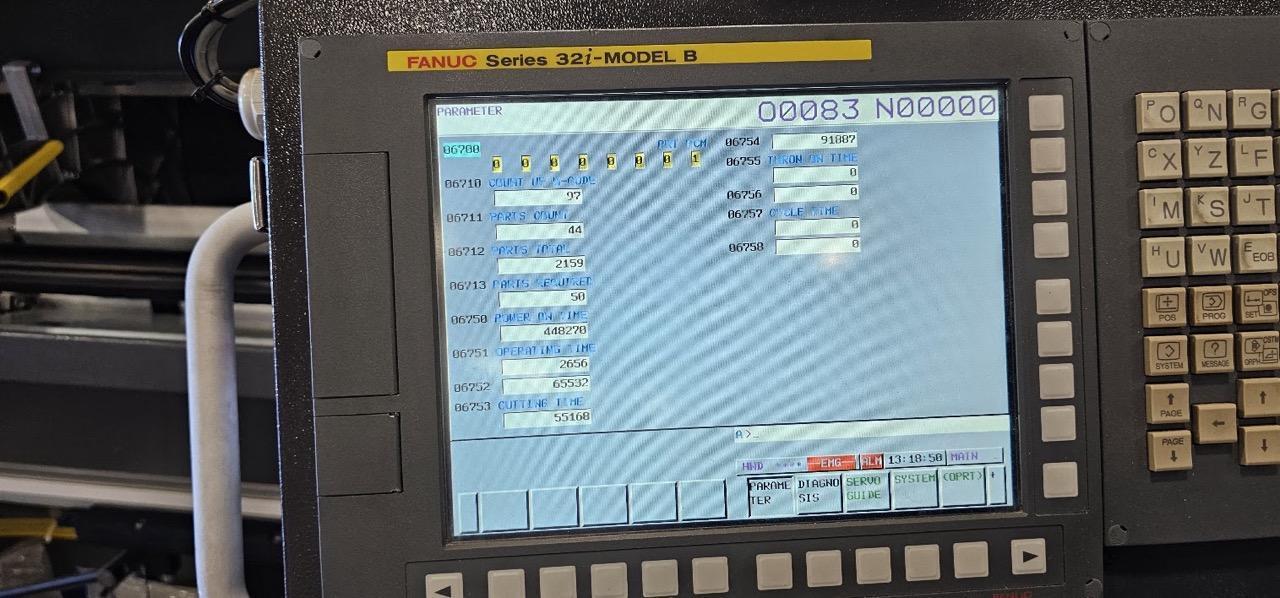

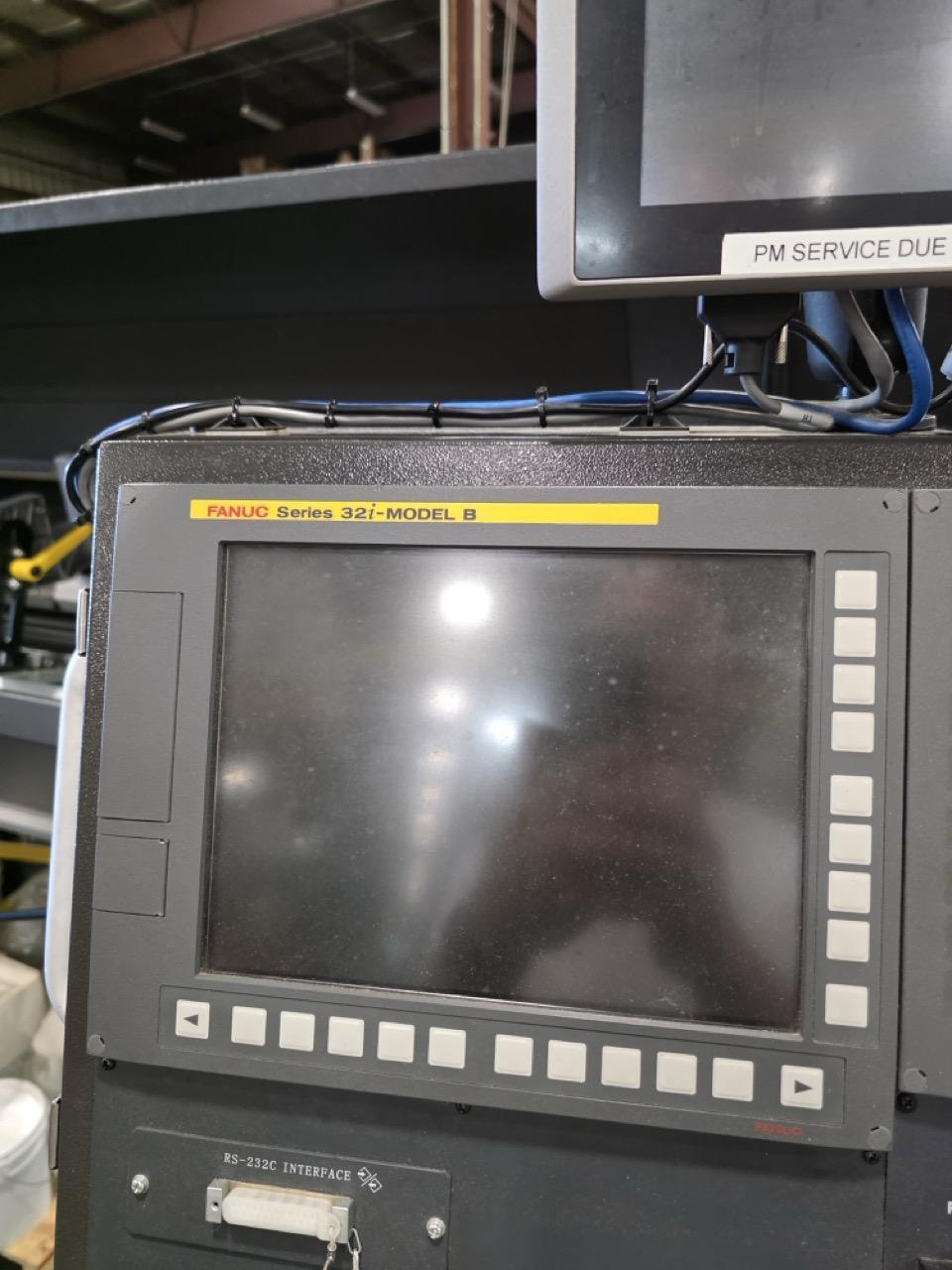

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 32i-B CNC System Simultaneous all axes control Tsugami Automation Laser Cutting Head Tsugami Automation Laser Interface LaserSwiss Integration Package Magnetic Scales Patrol Light FMB Turbo 3-38 Barfeeder V2-HW8 MP Systems 1,000 PSI Coolant System Mist Collector Guide Bushing Custom Rear Work Collection LNS Chip Conveyor Sub spindle air blast Door interlock with switches Direct Driven Servo Rotary Guide Bushing Main spindle C axis with brake Back (Sub) spindle C axis with brake Spindle Cooling for Main, Sub and Guide Bushing Motors Air pressurized guide bushing unit Centralized lubrication system w/oil level detector Parts catcher with exit conveyor and basket Cutting oil tank with coolant tank level detector Embedded PC For Bar Feed Communication Continuous Thread Cutting Custom Macro B Cut Off Breakage Detection Cylindrical Interpolation Helical Interpolation Main/Back Spindle Synchronization Rigid Tapping Main, Sub and Cross Tools Tooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
