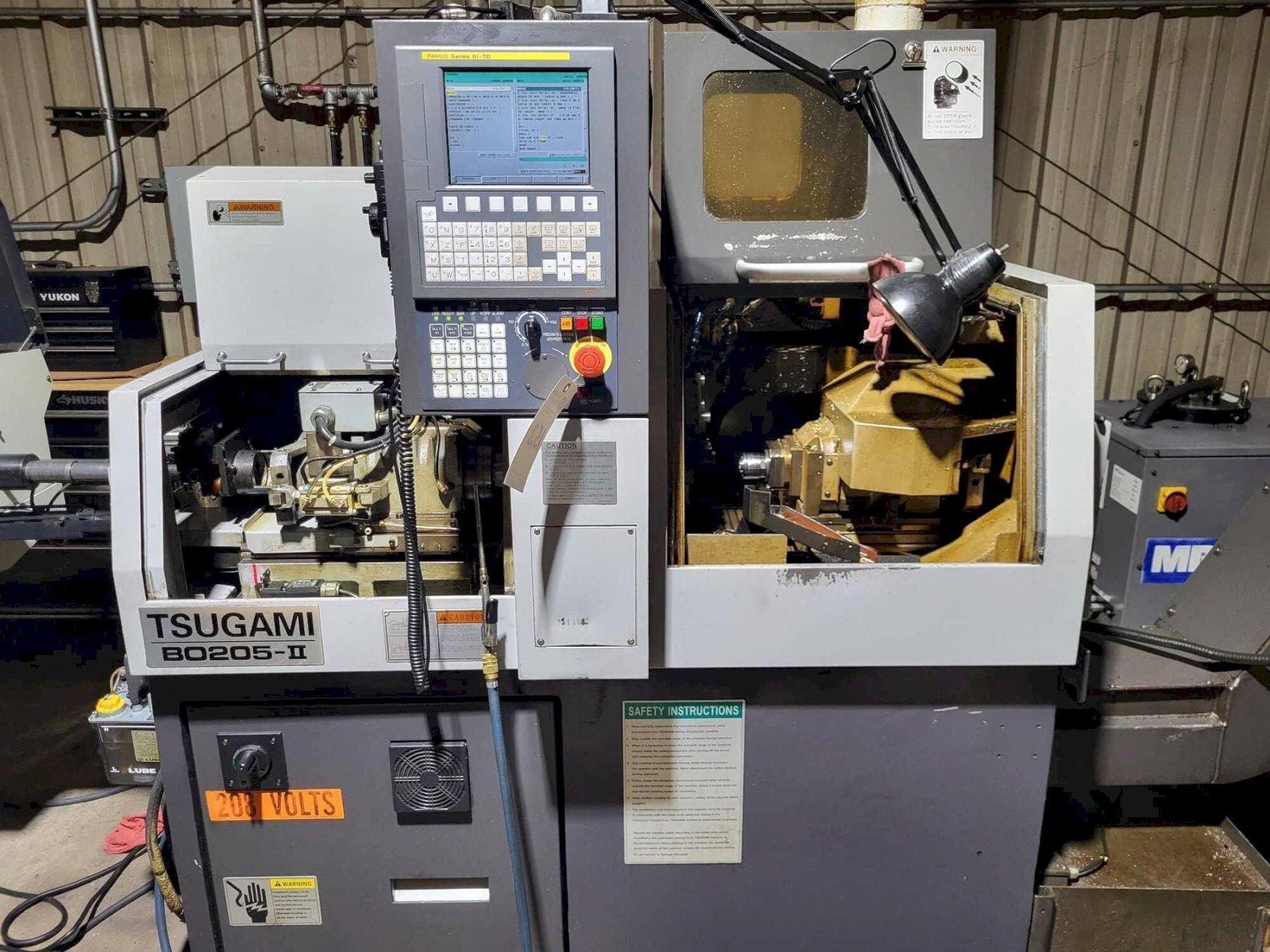

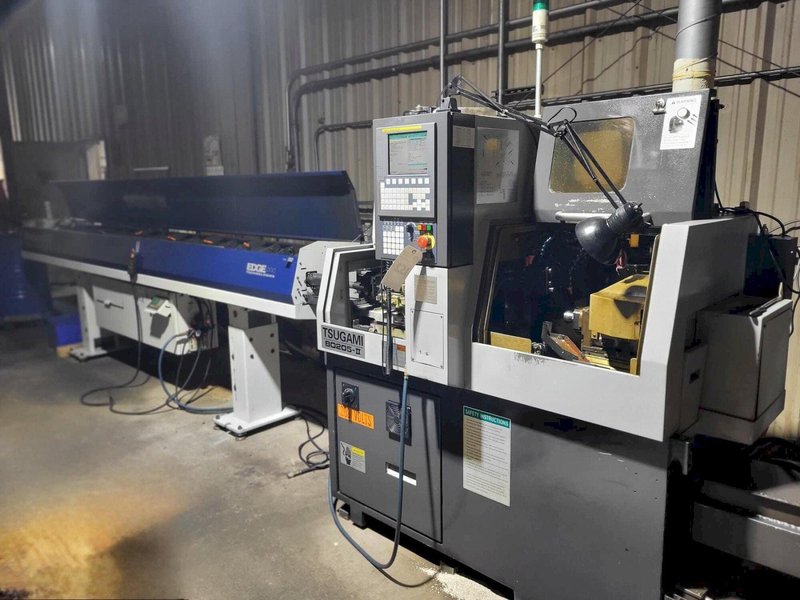

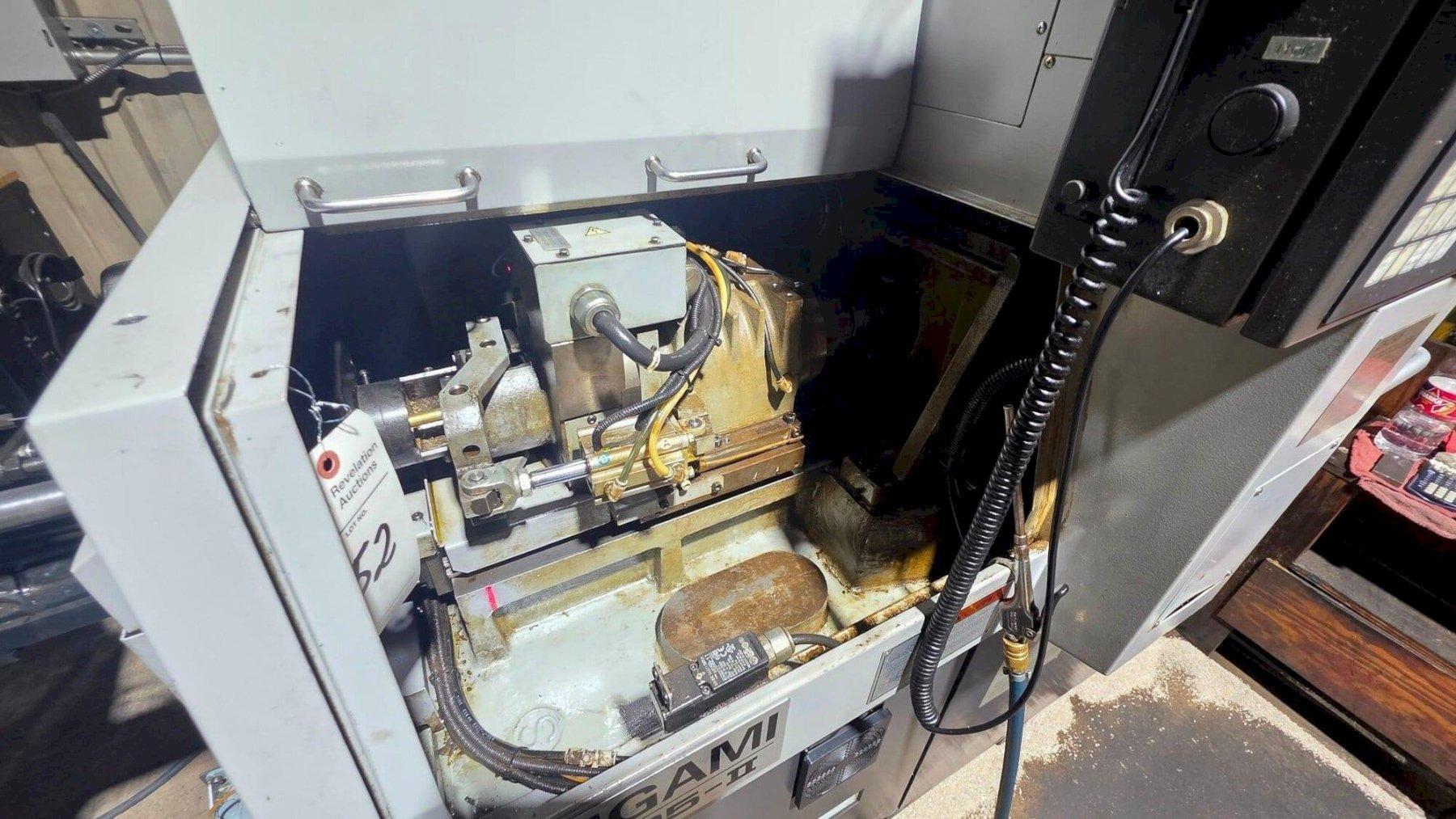

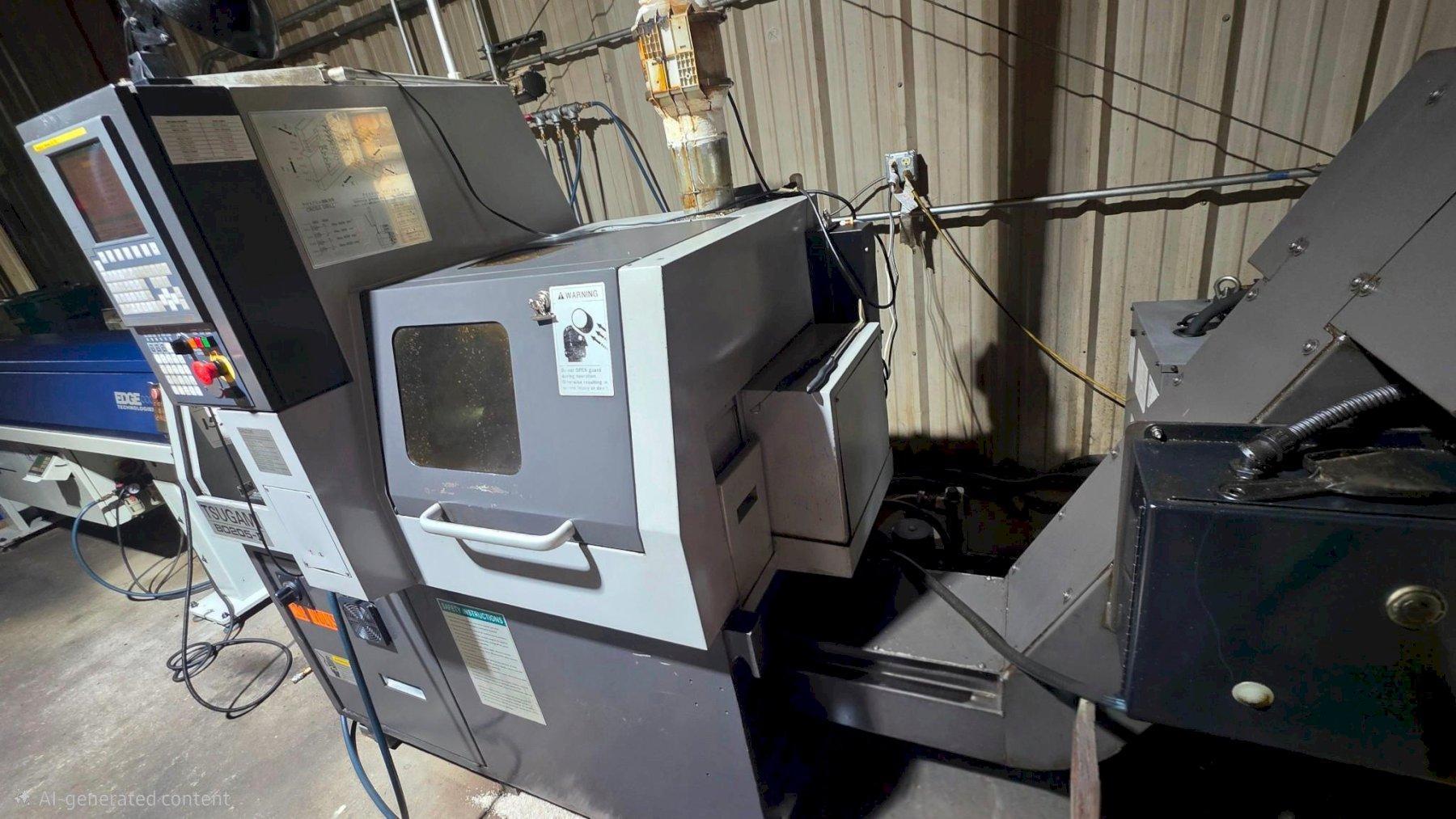

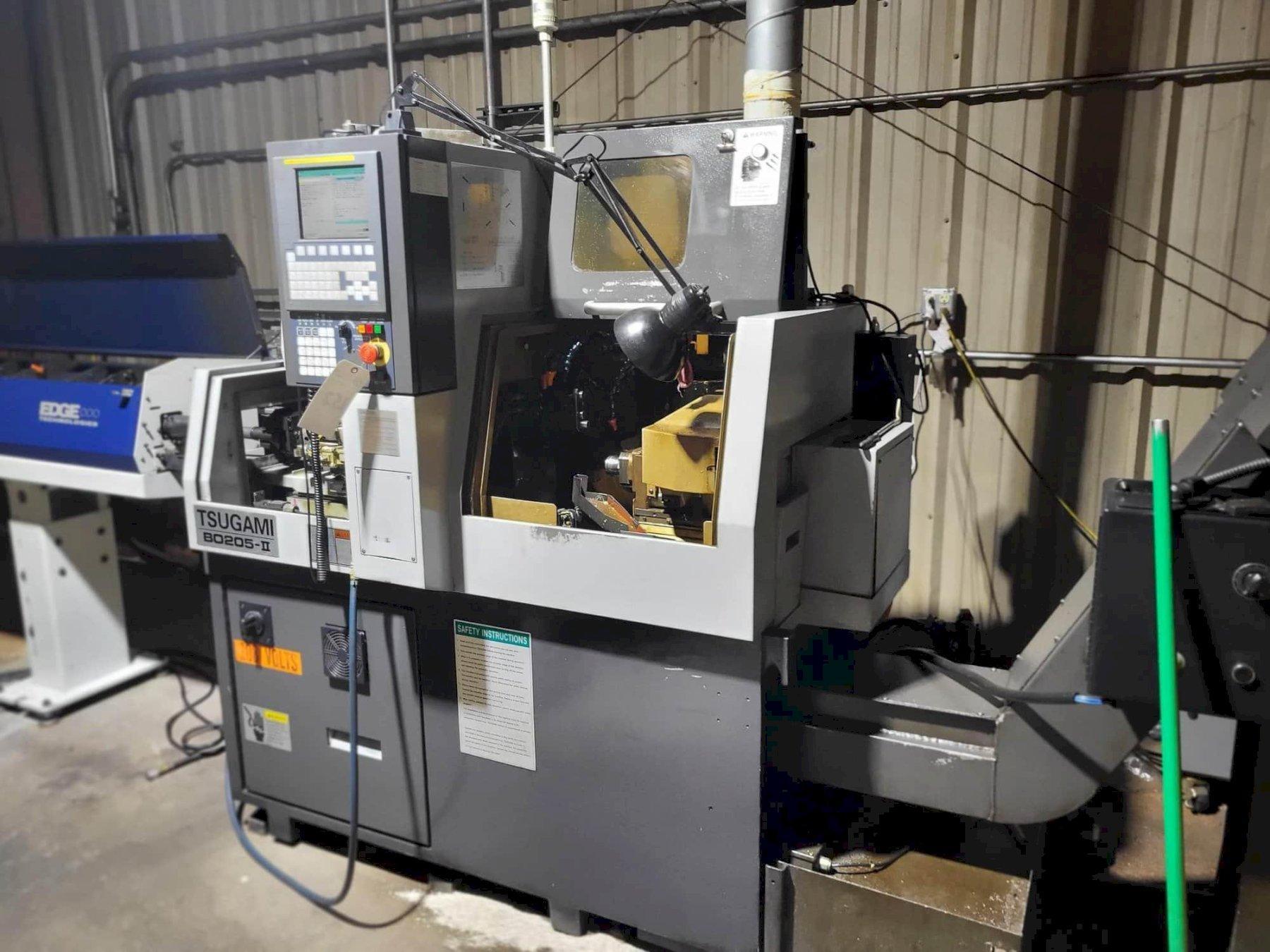

Tsugami B0205-II 5-Axis CNC Swiss Lathe, 2013 – Fanuc OI-TD Control, Edge Bar Feeder, High Pressure Coolant, Chip Conveyor

Max. Barstock Diameter: 20 mm Max. Machining Length: 210 MM (8.26″) Max. Machining Length (Guide Bushing): 45 mm (1.77″) Max. Main Spindle Drilling Diameter: 10 mm (.39″) Max. Main Spindle Tapping Diameter: M10 Max. Back Spindle Chucking Diameter: 20 mm (.79″) Max. Back Spindle Drilling Diameter: 8 mm (.31″) Max. Back Spindle Tapping Diameter: M8 Main Spindle Speed: 200 – 10,000 RPM Main Spindle: 5 HP Back Spindle Speed: 200 – 12,000 RPM Back Spindle: 3 HP Total Tool Capacity: 21 Tool Size: 0.5″ x 0.05″ x 3.35″ Total Axis: 5 Machine Dimensions: 66″x45″x67″ Weight: 4,410 lbs

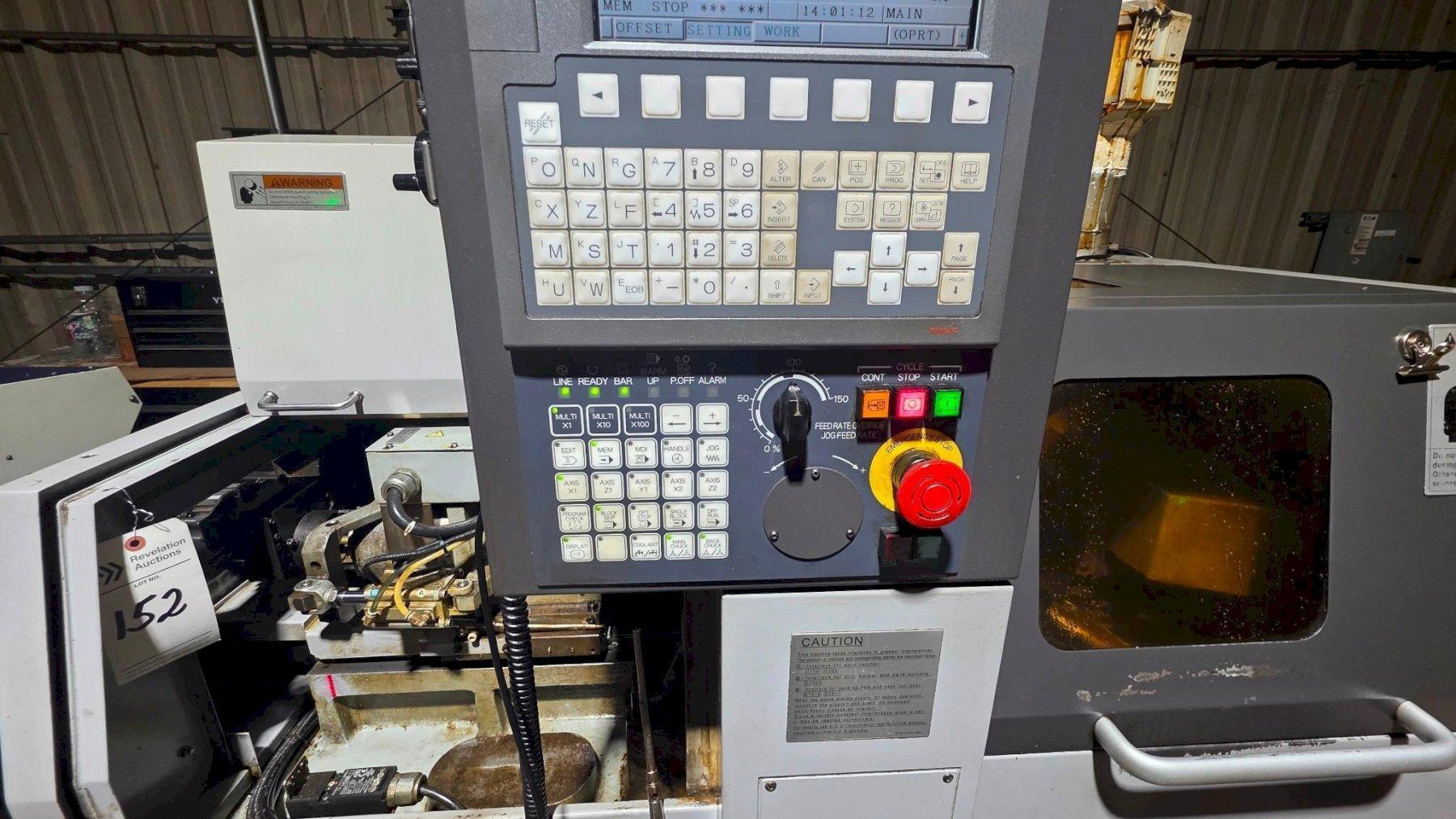

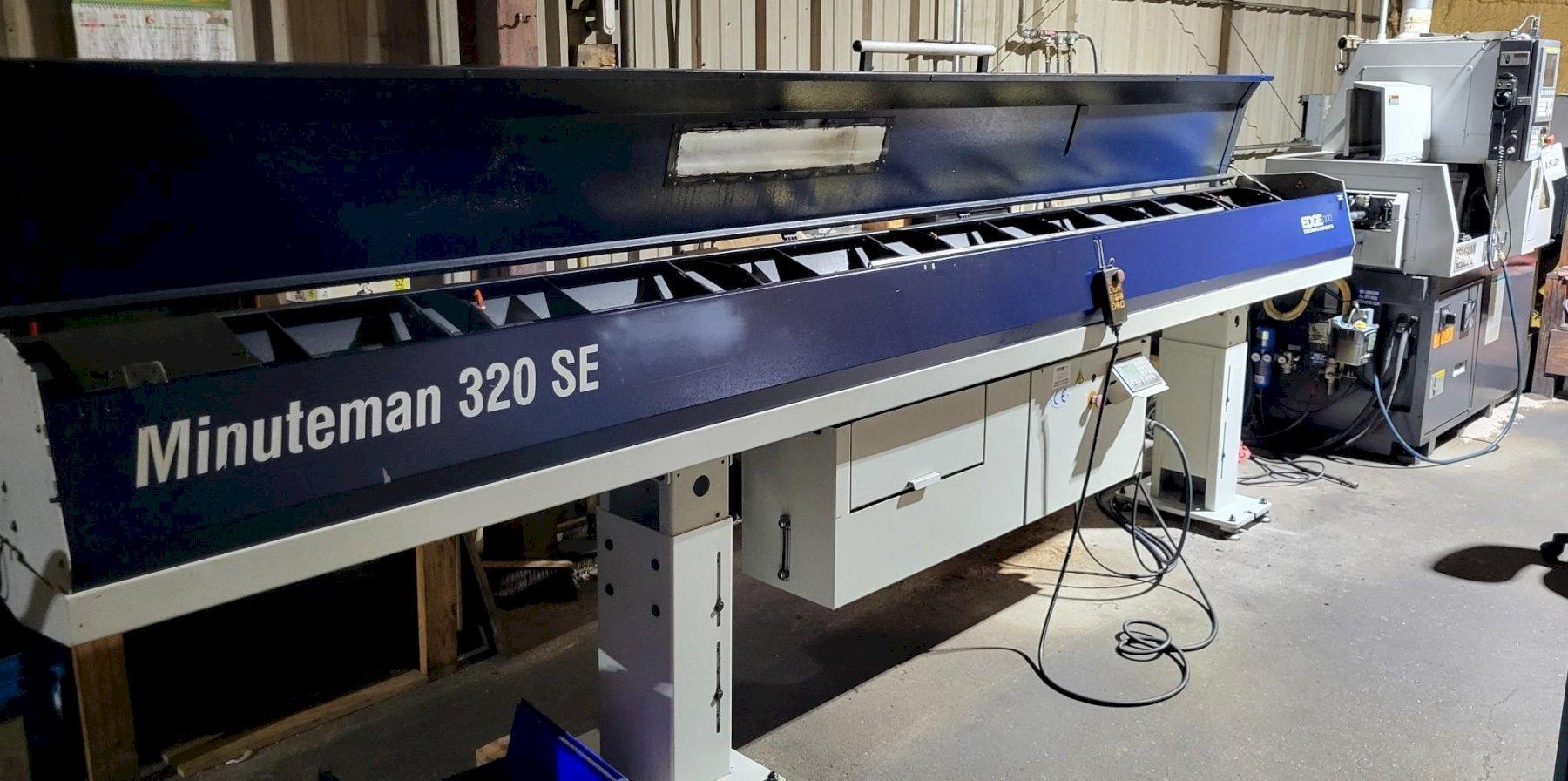

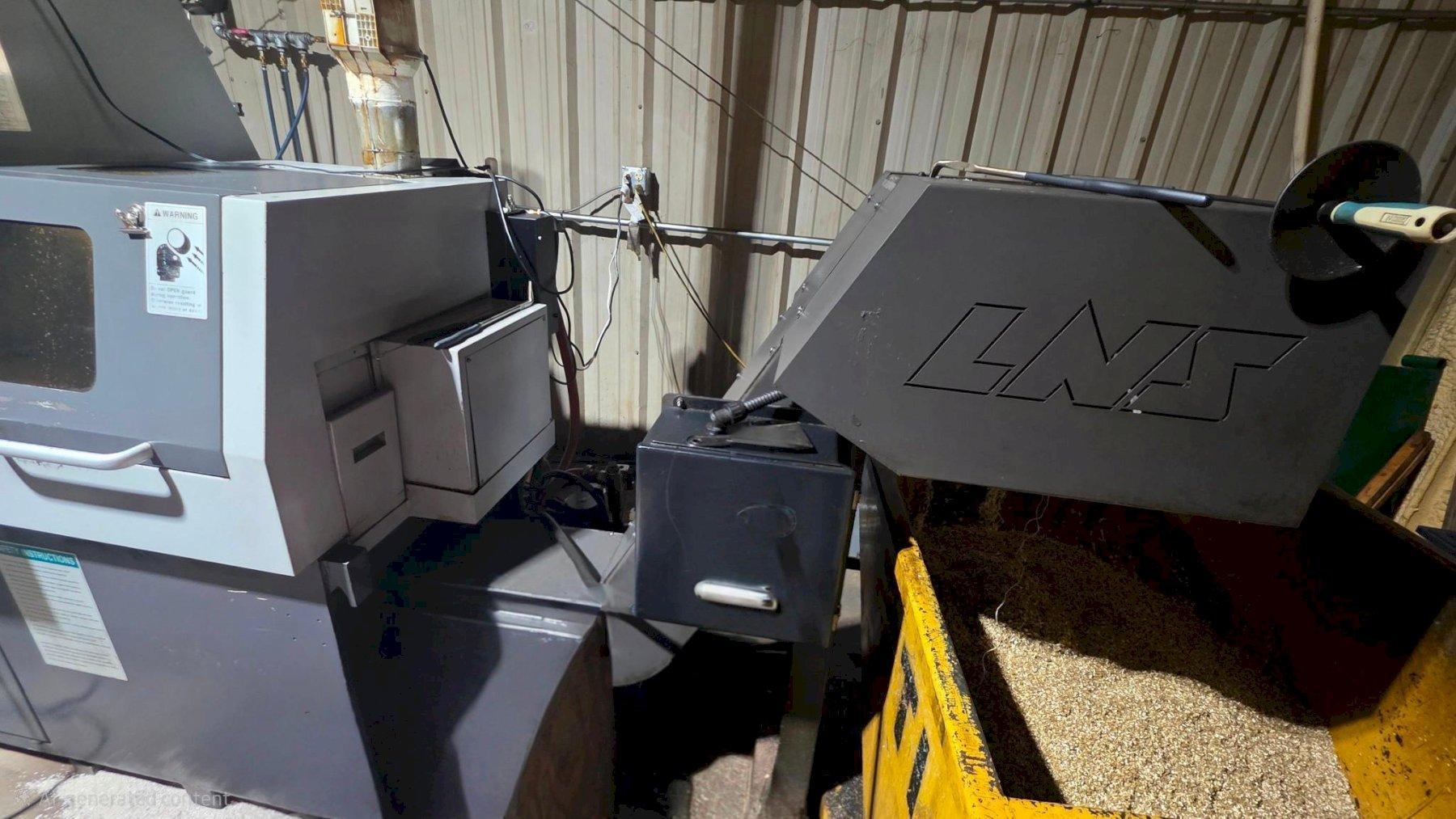

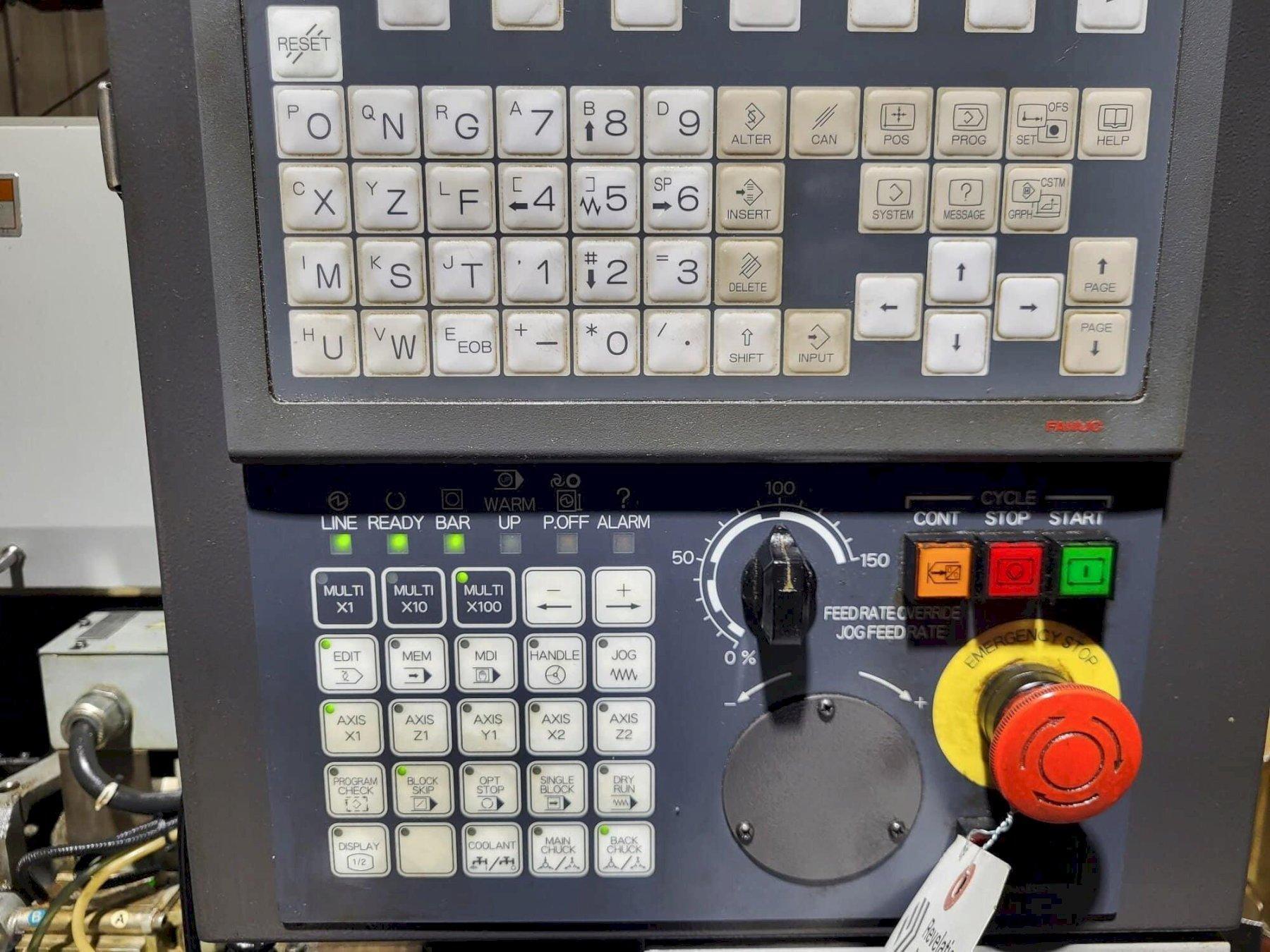

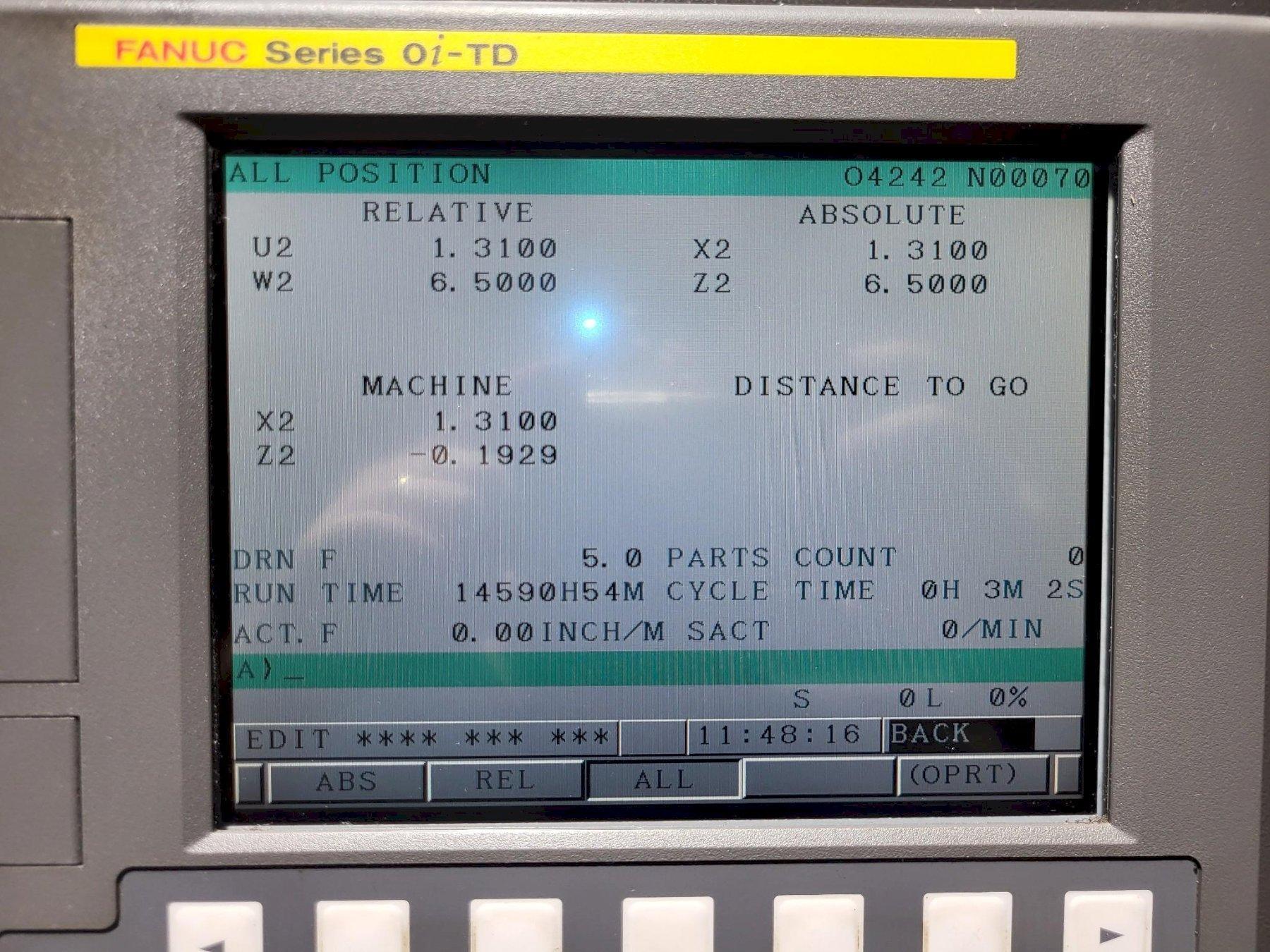

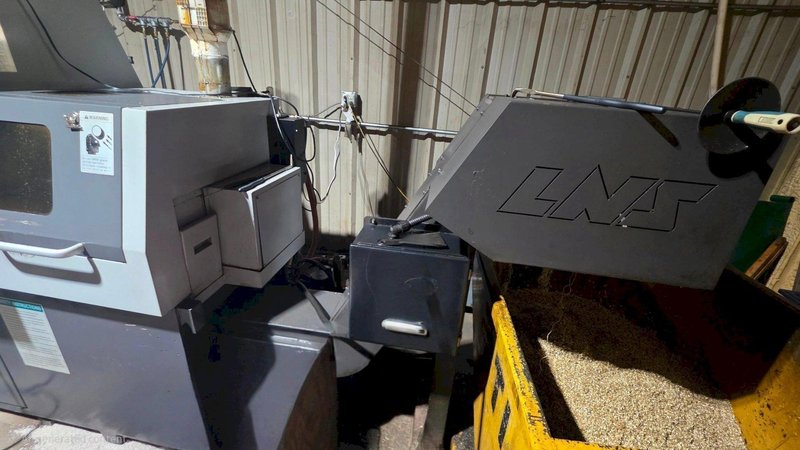

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Fanuc OI-TD CNC Control Edge Technologies MM320 Bar Feeder MP Systems AT V-2 H08 SD High Pressure Oil Coolant System LNS Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
